Présentation du produit

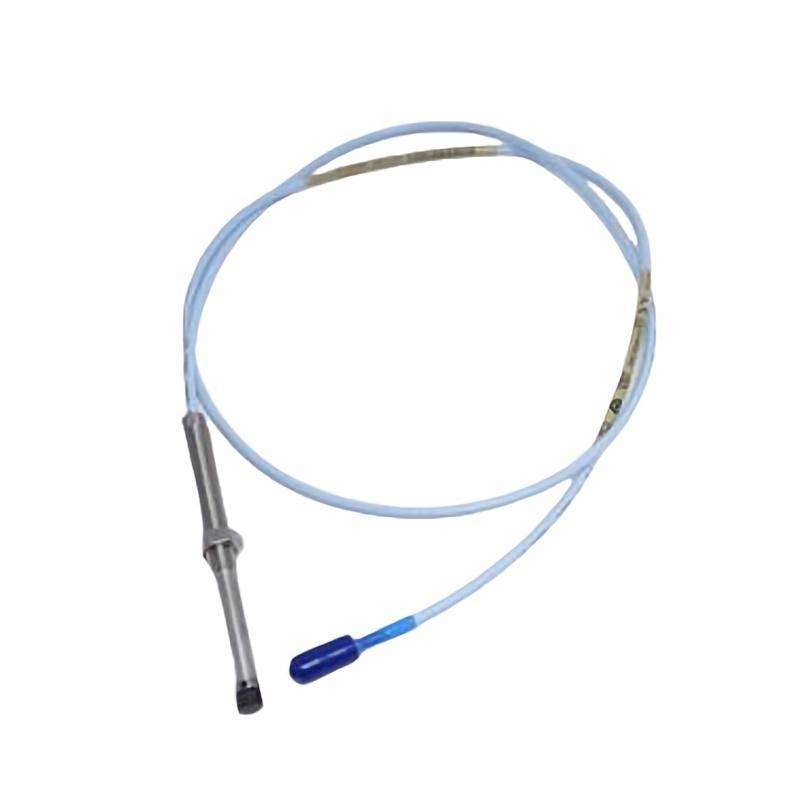

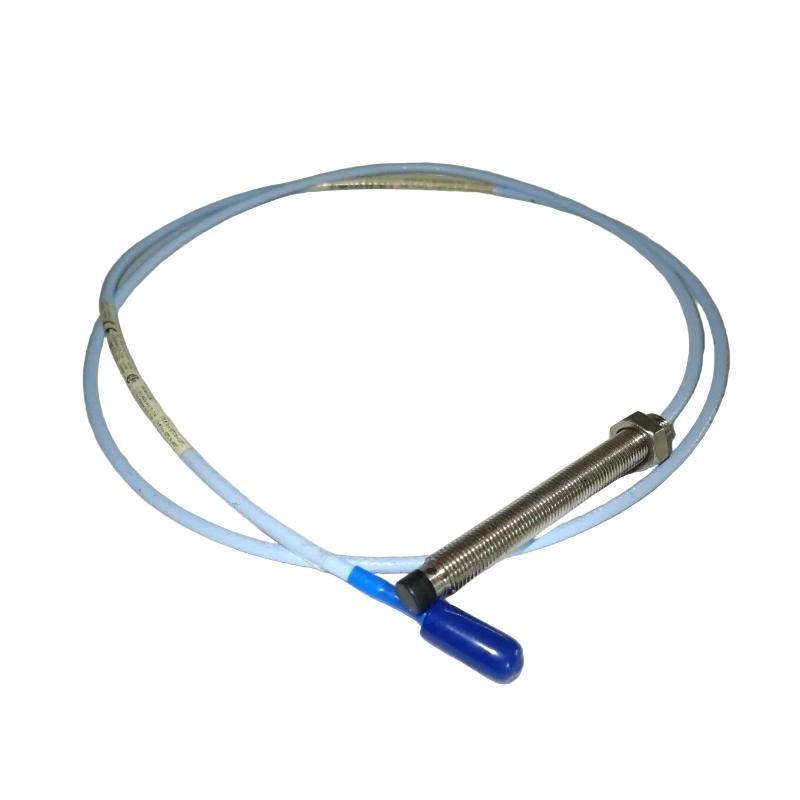

The Bently Nevada 330103-10-20-10-02-CN 3300 XL 8mm Proximity Probe is a high-precision sensor designed for critical machinery condition monitoring and vibration analysis. Belonging to the renowned 3300 XL series, it provides highly accurate measurements sur shaft displacement and vibration by utilizing eddy-current technology. This model is engineered to work seamlessly with Bently Nevada proximitor systems, ensuring reliable and consistent monitoring in harsh industrial environments.
Its rugged construction, enhanced shielding, and stable calibration make it an ideal choice for long-term use in rotating equipment such as turbines, compressors, motors, and pumps. With superior linearity and robust design, it ensures continuous machine protection and diagnostics, reducing the risk sur unplanned downtime and costly equipment failures.
Product Parameters
| Parameter | Description |
|---|---|
| Modèle Number | 330103-10-20-10-02-CN |
| Series | 3300 XL 8mm Proximity Probes |
| Sensing Technology | Eddy-current displacement measurement |
| Nominal Probe Tip Diameter | 8 mm |
| Linear Range | 2 mm (80 mils) |
| Typical System Length | Probe + Extension Cable + Proximitor |
| Total Length | 1 meter |
| Poids | 0.323 kg |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -35 °C to +177 °C |
| Pressure Rating | Up to 200 psi (with proper installation) |
| Connector Type | Miniature coaxial connector |
| Compliance | API 670 compliant |
Product Applications
The Bently Nevada 330103-10-20-10-02-CN probe is widely used across industries where continuous monitoring sur rotating machinery is critical. Key applications include:
-
Steam and Gas Turbines – Monitoring shaft vibration and displacement to detect misalignment, rubs, or imbalance.
-
Centrifugal Compressors – Providing early warnings for surge conditions or mechanical looseness.
-
Pumps – Detecting cavitation, misalignment, and bearing wear.
-
Electric Motors and Generators – Tracking shaft behavior to prevent rotor-to-stator contact and catastrophic failures.
-
Industrial Fans and Blowers – Ensuring operational stability by detecting early vibration anomalies.
Product Advantages
-
High Accuracy and Reliability – Provides precise displacement measurements, ensuring dependable machine protection.
-
Extended Operating Range – Designed for wide temperature tolerance and stable operation under demanding conditions.
-
Superior Linearity – Maintains consistent performance across the entire measurement range.
-
Rugged Design – Resistant to harsh environments, including high temperature, pressure, and vibration.
-
Seamless Compatibility – Fully compatible with Bently Nevada proximitor and monitoring systems, ensuring easy integration.
-
API 670 Compliance – Meets the stringent requirements for machinery protection systems.
-
Reduced Downtime – Enables predictive maintenance strategies, lowering unplanned shutdown risks.
Questions fréquentes (FAQ)
-
What is the typical output sensitivity sur this probe?
The system provides 200 mV/mil (7.87 mV/µm), which ensures precise displacement monitoring. -
Can this probe be used in high-temperature environments?
Yes, it is designed to operate in temperatures from -35 °C to +177 °C. -
How does the probe maintain measurement stability under electrical noise?
The probe features enhanced shielding and coaxial cabling, minimizing interference from electromagnetic noise. -
Is the probe suitable for API 670-compliant monitoring systems?
Yes, it fully meets API 670 standards for machine protection applications. -
What is the frequency response sur the probe system?
The system frequency response extends from 0 to 10 kHz, covering most machinery monitoring requirements. -
Can this probe be installed in pressurized environments?
Yes, with appropriate mounting hardware, it can handle pressures up to 200 psi. -
How does the probe detect shaft vibration?
It uses eddy-current technology to measure changes in the distance between the probe tip and the rotating shaft surface. -
What type sur connector is used with this probe?
The probe uses a miniature coaxial connector for secure and reliable signal transmission. -
Can it be paired with extension cables sur different lengths?
Yes, it can be paired with Bently Nevada extension cables and proximitor unités to form a complete system. -
Does the probe support both vibration and position measurements?
Yes, it is capable sur monitoring both shaft vibration and displacement, making it versatile for critical machinery monitoring.
Recommended Related Modèles (Same Series)
| Modèle Number | Description |
|---|---|
| 330103-02-17-05-02-05-CN | 3300 XL 8mm Probe, 0.5 m length |
| 330103-03-07-10-01-00 | 3300 XL 8mm Probe, 1 m length |
| 330103-03-10-10-11-00 | 3300 XL 8mm Probe, 1 m length |
| 330103-03-10-15-01-05 | 3300 XL 8mm Probe, 1.5 m length |
| 330103-05-10-10-12-RU | 3300 XL 8mm Probe, 1 m length |
| 330103-05-12-10-02-00 | 3300 XL 8mm Probe, 1 m length |
Popular Modèles from the Same Marque
| Modèle Number | Description |
|---|---|
| 330104-00-20-10-02-05 | 3300 XL 11mm Proximity Probe |
| 330130-040-00 | Standard Extension Cable for Proximity Probes |
| 330180-90-00 | 3300 XL Proximitor Sensor |
| 330850-50-05 | 3300 XL NSv Proximity Probe |
| 3500/22M | Machinery Protection System – Transient Data Interface |
| 3500/42M | Machinery Monitoring Module – Vibration/Position Monitor |
