Présentation du produit

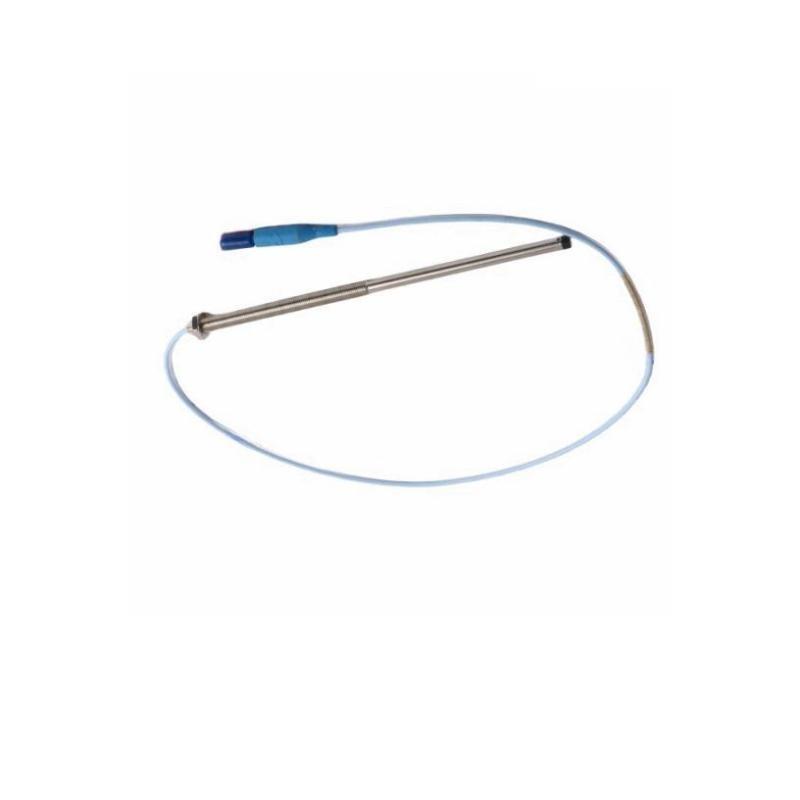

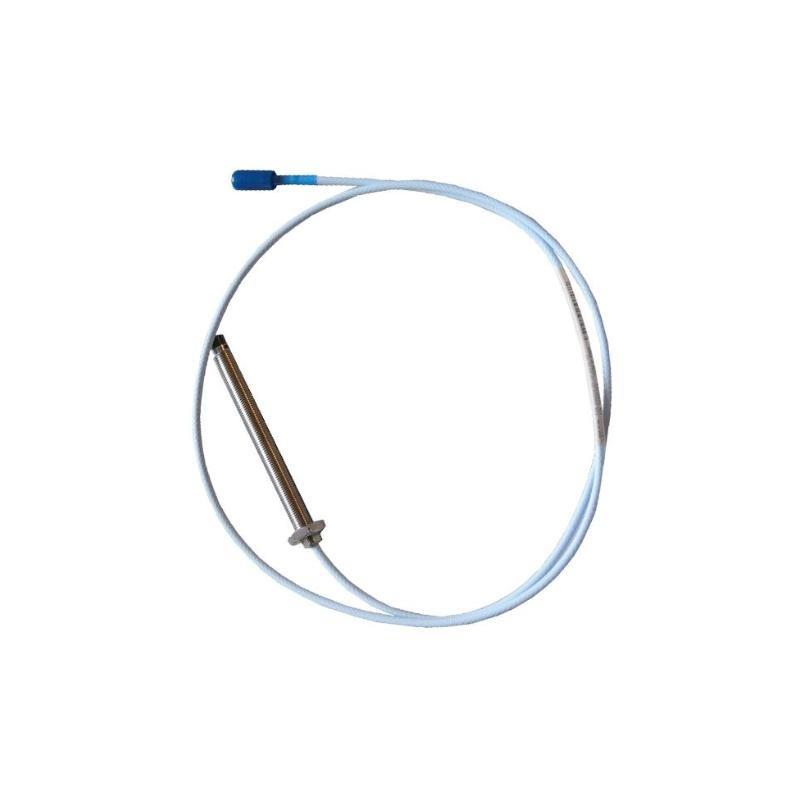

The Bently Nevada 330103-03-06-05-02-00 is a 3300 XL series 8 mm Proximity Probe designed for precise measurement sur shaft vibration and position in rotating machinery. Renowned for its reliability and robustness, the 3300 XL proximity probes are widely used in critical industrial applications, including turbines, compressors, and generators. This probe converts the movement sur a shaft into an electrical signal, enabling continuous monitoring for predictive maintenance and early fault detection.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Type | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0–0.25 mm (standard) |
| Probe Tip Diameter | 8 mm |
| Electrical Output | AC voltage, varies with gap |
| Total Length | 0.5 m |
| Poids | 0.162 kg |
| Operating Temperature | -40°C to 120°C |
| Probe Material | Stainless steel body with ceramic tip |
| Connector Type | 6-pin MS connector compatible with 3300 XL systems |
| Response Frequency | DC–25 kHz typical |
| Shock Resistance | Up to 100 g |
| Vibration Resistance | 50 g 5–2000 Hz |
| Installation Orientation | Axial or radial |
Product Applications
-
Monitoring shaft vibration and position in steam, gas, and hydro turbines.
-
Detecting misalignment and imbalance in pumps and compressors.
-
Industrial process machinery condition monitoring.
-
Integrating with 3300 XL monitoring systems for predictive maintenance.
-
Early detection sur bearing wear, shaft rubs, and rotor instability.
-
High-speed machinery applications requiring precise proximity measurements.
Product Advantages
-
High Accuracy: Provides precise shaft vibration and position data for reliable analysis.
-
Robust Construction: Stainless steel housing and ceramic probe tip ensure durability in harsh environments.
-
Wide Operating Temperature Range: Suitable for extreme industrial conditions.
-
Interchangeable with 3300 XL Systems: Compatible with existing Bently Nevada monitoring infrastructure.
-
Fast Response: High frequency response for detecting rapid machinery dynamics.
-
Reduced Downtime: Enables predictive maintenance and early fault detection to avoid costly outages.
-
Shock and Vibration Resistant: Maintains measurement integrity under mechanical stress.
-
Compact Design: Easy installation in constrained spaces without compromising performance.
FAQ
Q1: What is the sensing range sur the 330103-03-06-05-02-00 probe?
A1: The standard sensing range is 0–0.25 mm, suitable for most 8 mm 3300 XL applications.
Q2: Can this probe be used in high-temperature applications?
A2: Yes, it operates reliably between -40°C and 120°C.
Q3: Is the probe tip material compatible with ferrous and non-ferrous shafts?
A3: Yes, the ceramic tip ensures accurate readings on both shaft types.
Q4: What type sur electrical output does the probe provide?
A4: The probe provides an AC voltage output that varies with the distance to the target shaft.
Q5: Can this probe detect both vibration and shaft position simultaneously?
A5: Yes, the 3300 XL system interprets the probe signal to monitor vibration and position concurrently.
Q6: How is the probe connected to the monitoring system?
A6: It uses a 6-pin MS connector compatible with all 3300 XL monitoring modules.
Q7: What is the response frequency sur this proximity probe?
A7: Typical response frequency ranges from DC to 25 kHz.
Q8: Is the probe suitable for high-shock environments?
A8: Yes, it withstands up to 100 g shock and 50 g vibration.
Q9: Can the probe orientation affect measurements?
A9: The probe can be installed axially or radially without affecting accuracy if properly aligned with the shaft.
Q10: Is this probe interchangeable with other 3300 XL 8 mm probes?
A10: Yes, it is fully compatible with other 8 mm 3300 XL series probes for easy replacement and system upgrades.
Recommended 3300 XL Series or Related Modèles
| Modèle Number | Sensing Range | Probe Tip | Cable Length |
|---|---|---|---|
| 330103-03-06-05-01-00 | 0–0.25 mm | 8 mm | 0.5 m |
| 330103-03-06-05-03-00 | 0–0.25 mm | 8 mm | 1 m |
| 330103-03-06-05-04-00 | 0–0.5 mm | 8 mm | 0.5 m |
| 330103-03-06-05-06-00 | 0–0.25 mm | 8 mm | 2 m |
| 330103-03-06-05-07-00 | 0–0.5 mm | 8 mm | 1 m |
| 330103-03-06-05-08-00 | 0–0.25 mm | 8 mm | 3 m |
Popular Bently Nevada Modèles
| Modèle Number | Type | Sensing Range | Cable Length |
|---|---|---|---|
| 330103-03-06-05-00 | 8 mm Proximity Probe | 0–0.25 mm | 0.5 m |
| 330103-03-06-05-09 | 8 mm Proximity Probe | 0–0.25 mm | 1 m |
| 330103-03-06-07-00 | 12 mm Proximity Probe | 0–0.25 mm | 0.5 m |
| 330103-03-06-08-00 | 5 mm Proximity Probe | 0–0.25 mm | 0.5 m |
| 330103-03-06-09-00 | 8 mm Proximity Probe | 0–0.5 mm | 1 m |
| 330103-03-06-10-00 | 8 mm Proximity Probe | 0–0.25 mm | 2 m |
