Product Overview

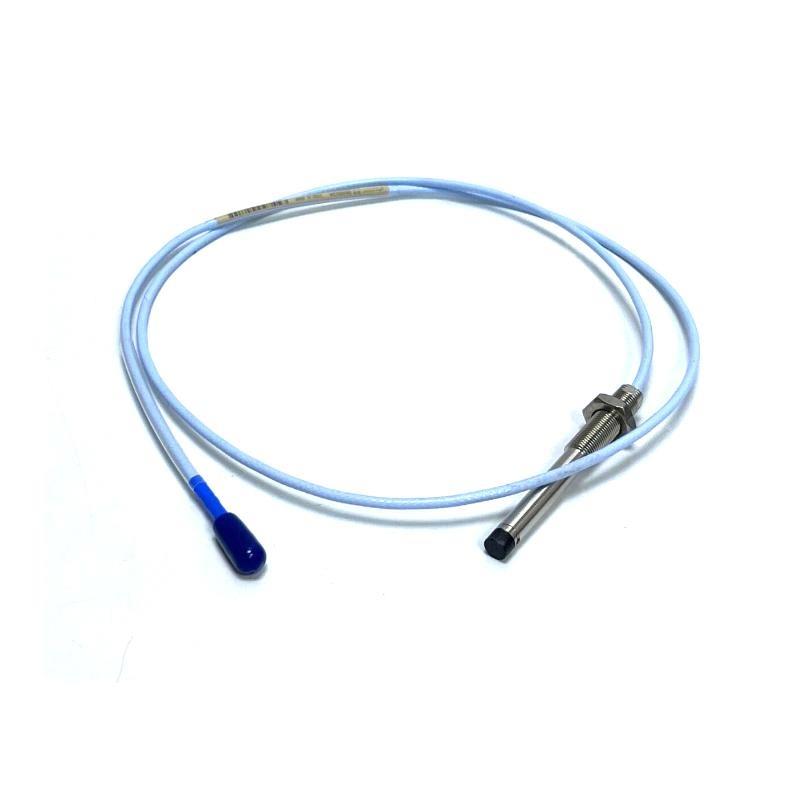

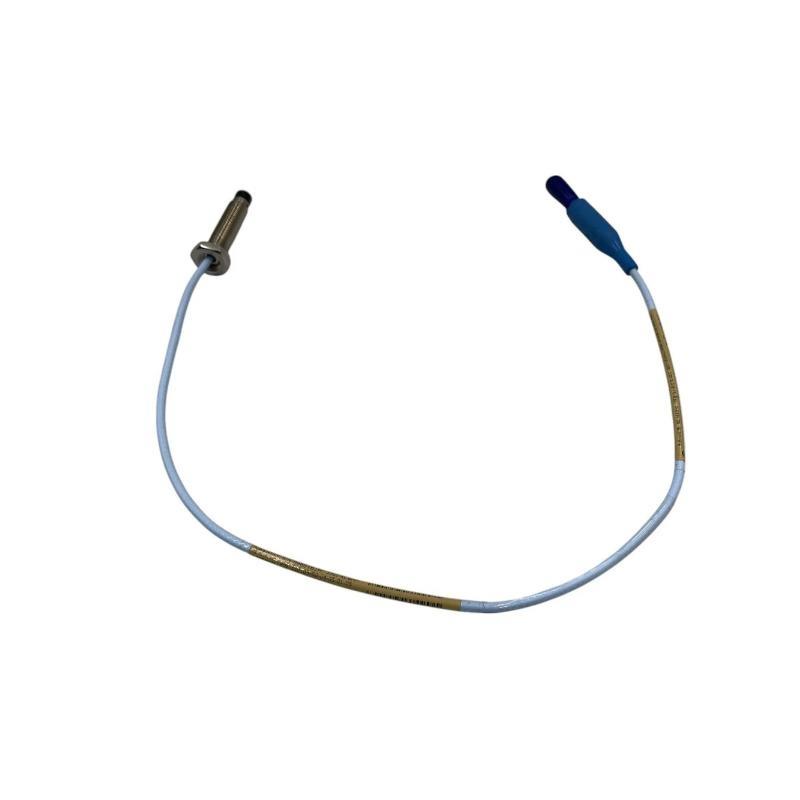

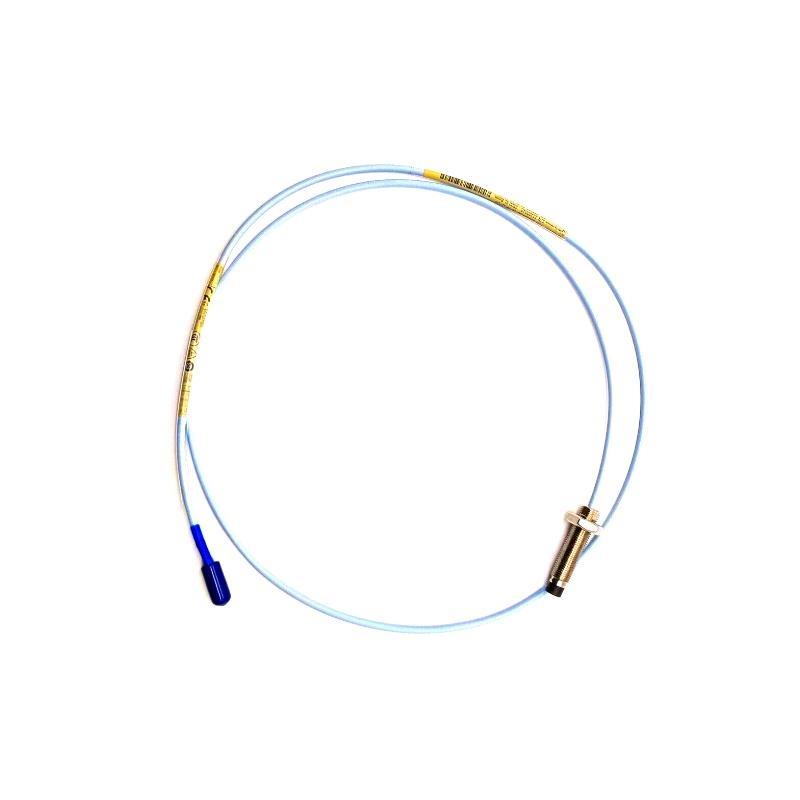

The Bently Nevada 330103-00-20-10-02-00 is part sur the 3300 XL 8 mm Proximity Transducer System. It includes a non-contacting probe designed to measure static and dynamic distances (vibration and position) from a conductive surface. This system delivers high performance, full interchangeability, and meets API 670 standards.
Applications
-
Vibration monitoring on fluid-film bearing machines
-
Shaft position measurements
-
Keyphasor reference signal generation
-
Overspeed protection systems
-
Turbine, compressor, and motor monitoring
Advantages
-
Fully compliant with API 670 mechanical and performance standards
-
Interchangeable components reduce installation and calibration time
-
Rugged design with patented TipLoc and CableLoc for high reliability
-
Optional FluidLoc cable prevents oil leakage
-
Extended Temperature Range (ETR) versions available
-
Improved immunitéy to RFI/EMI interference
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle Number | 330103-00-20-10-02-00 |
| Probe Type | 8 mm, M10 x 1 threaded, non-armored |
| Total Length | 1.0 meter |
| Poids | Approx. 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temp (ETR Probe) | Up to +218°C (probe tip), +260°C (cable/connector) |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap Voltage | -9 VDC (1.27 mm / 50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ± 5% |
| Frequency Response | 0 – 10 kHz |
| Output Resistance | 50 Ω |
| Pressure Seal | Viton O-ring, not pressure-tested |
Questions fréquentes (FAQ)
Q1: What is the typical application sur the 330103-00-20-10-02-00 probe?
A1: It is used in vibration and position monitoring systems for rotating machinery such as turbines, motors, and compressors.
Q2: Is this probe compatible with older 3300 systems?
A2: Yes, it is backward compatible and interchangeable with non-XL 3300 series components.
Q3: What material is the probe tip made from?
A3: The probe tip is molded from polyphenylene sulfide (PPS), surfering excellent durability.
Q4: What are the benefits sur the TipLoc and CableLoc designs?
A4: These patented designs enhance mechanical integrity, providing stronger tip bonding and better cable retention.
Q5: Can this probe be used in high-temperature environments?
A5: Yes, the ETR version supports up to 218°C (probe tip) and 260°C (cable).
Q6: Does the system require calibration for each component?
A6: No, the system components are fully interchangeable without the need for individual bench calibration.
Q7: Is this probe suitable for high RFI/EMI environments?
A7: Yes, it features enhanced RFI/EMI immunitéy, making it ideal for industrial environments.
Q8: How is the connector secured?
A8: The probe uses ClickLoc gold-plated connectors that require only finger-tightening and resist loosening.
Q9: Is the cable armored?
A9: This specific model is without armor. Armored versions are available as other part numbers.
Q10: What is the recommended minimum shaft diameter for radial measurements?
A10: A minimum sur 76.2 mm (3 in) is recommended to maintain accuracy and limit cross-talk.
Related Modèles (Same Series)
| Modèle Number | Description | Length | Thread Type | Armor | Poids |
|---|---|---|---|---|---|
| 330103-00-10-10-02-00 | M10 thread, non-armored | 1.0 m | M10 x 1 | No | 0.323 kg |
| 330103-00-20-10-02-05 | M10 thread, non-armored, with approvals | 2.0 m | M10 x 1 | No | 0.435 kg |
| 330104-00-20-10-02-00 | M10 thread, armored | 2.0 m | M10 x 1 | Yes | 0.590 kg |
| 330105-02-12-10-02-00 | Reverse mount, 3/8-24 thread | 1.0 m | 3/8-24 | No | 0.335 kg |
| 330140-00-20-10-02-00 | Smooth case, non-armored | 2.0 m | Smooth | No | 0.430 kg |
| 330191-00-20-10-02-00 | ETR version, 3/8-24 thread, non-armored | 2.0 m | 3/8-24 | No | 0.437 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Function | Poids |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 0.70 kg |
| 3500/22M-01-01-00 | Transient Data Interface | System Interface | 0.85 kg |
| 330104-00-06-10-11-00 | 8 mm Probe with Armor | Proximity Probe | 0.570 kg |
| 330180-91-CN | XL Proximitor Sensor, Panel Mount | Sensor Module | 0.246 kg |
| 3500/15-05-01-00 | Power Supply Module | Power Supply | 0.90 kg |
| 3500/25-01-01-00 | Keyphasor Module | Shaft Rotation Reference | 0.75 kg |
