Product Description

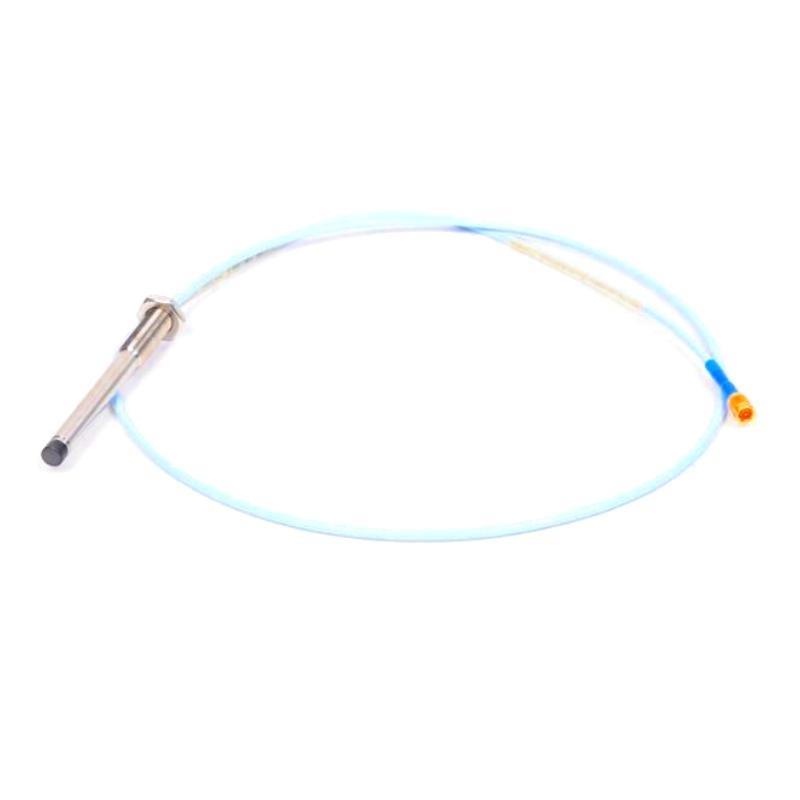

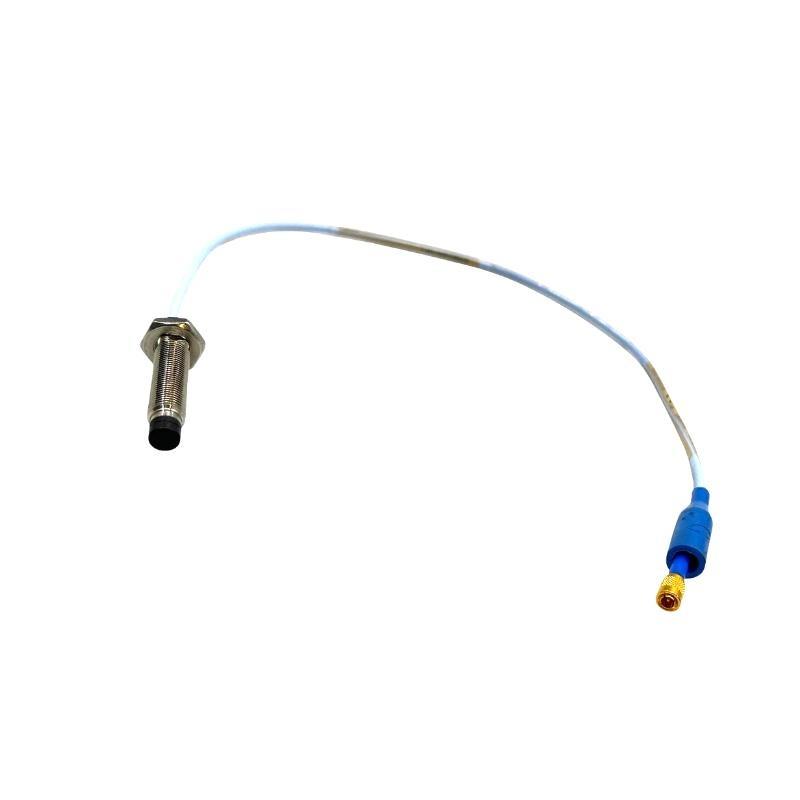

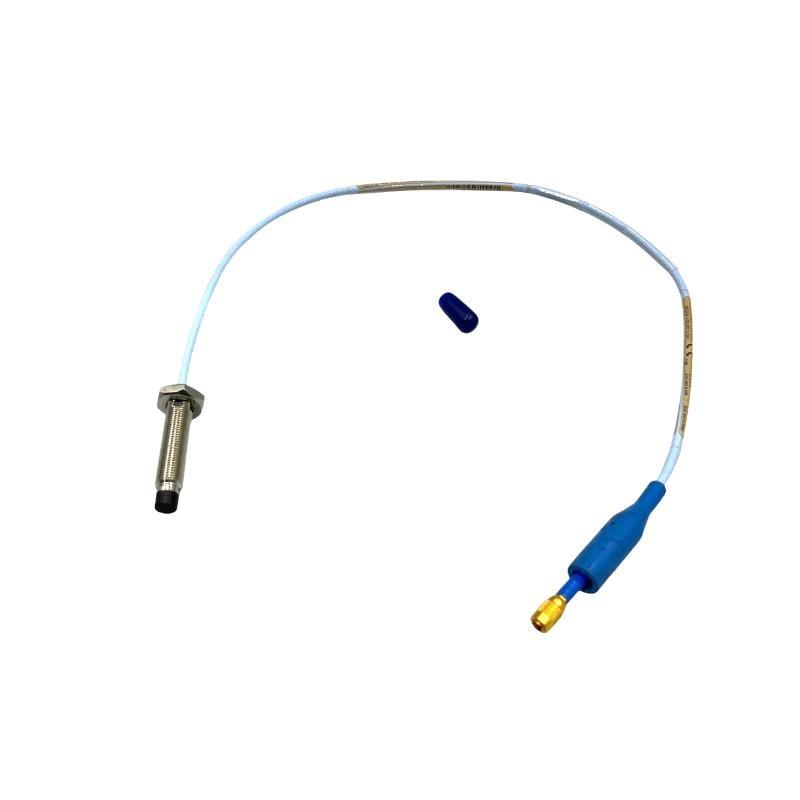

The Bently Nevada 330103-00-17-10-02-CN is part sur the 3300 XL 8 mm Proximity Transducer System. It is designed for precise static and dynamic measurements such as shaft vibration, axial position, and Keyphasor speed on fluid-film bearing machines. It delivers advanced accuracy and meets API 670 requirements while providing full interchangeability sur system components without recalibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | 330103-00-17-10-02-CN |
| Type | 3300 XL 8 mm Proximity Probe (metric) |
| Thread Size | M10 x 1 |
| Probe Tip Diameter | 8.0 mm |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Linear Range | 0.25 mm to 2.3 mm |
| Recommended Gap | Approx. 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature Range | -52°C to +177°C (standard), up to +218°C (ETR) |
| Cable | Standard or optional FluidLoc, 75Ω triaxial |
| Housing Material | Stainless Steel (probe) / Aluminum (sensor) |
| Connector | Gold-plated ClickLoc miniature coaxial |
Applications
-
Shaft vibration and position monitoring in turbines, compressors, pumps.
-
Keyphasor and overspeed measurements.
-
Machinery health monitoring in critical process industries.
-
Suitable for high-density and panel-mounted installations.
Advantages
-
Fully API 670 compliant for 5-meter systems.
-
High immunitéy to RFI/EMI for reliable operation in harsh environments.
-
SpringLoc terminals enable fast, tool-free installation.
-
Robust design with enhanced pull strength and environmental protection.
-
Backward compatible with previous 3300-series systems.
Questions fréquentes
Q1: What is the primary use sur the 330103 proximity probe?
A1: It is used for accurate vibration and position monitoring sur rotating machinery.
Q2: Is this probe interchangeable with other 3300 series components?
A2: Yes, it is fully compatible and interchangeable with non-XL 3300 8 mm and 5 mm components.
Q3: What is the recommended gap voltage for installation?
A3: Recommended gap setting is around -9 Vdc, which corresponds to approximately 1.27 mm.
Q4: Does it comply with API 670 standards?
A4: Yes, the 3300 XL 8 mm system fully meets API 670 requirements for linear range and accuracy.
Q5: What materials are used for the probe tip and body?
A5: The probe tip is PPS, and the body is stainless steel for durability.
Q6: Can it withstand high temperatures?
A6: Standard probes operate up to +177°C, and ETR versions up to +218°C for the tip.
Q7: How is the environmental protection ensured?
A7: Optional connector protectors and FluidLoc cables prevent oil ingress and enhance sealing.
Q8: What shaft size is recommended for use?
A8: It is recommended for shafts with diameters ≥76.2 mm for best performance.
Q9: Are any special tools required for connector installation?
A9: No, the ClickLoc connectors are designed for finger-tight installation.
Q10: What is the maximum field wiring length supported?
A10: Up to 305 meters between the Proximitor sensor and the monitoring system.
Recommended Related Modèles
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm, 3/8-24 UNF, no armor | 1.0 m | 0.323 kg |
| 330102-00-08-10-02-00 | 3300 XL 8 mm, 3/8-24 UNF, with armor | 1.0 m | 0.340 kg |
| 330104-00-06-10-02-00 | 3300 XL 8 mm, M10 x 1, with armor | 0.6 m | 0.310 kg |
| 330105-02-12-10-02-00 | 3300 XL 8 mm, reverse mount, 3/8-24 | 1.2 m | 0.335 kg |
| 330106-05-30-10-02-00 | 3300 XL 8 mm, reverse mount, M10 x 1 | 3.0 m | 0.450 kg |
| 330140-00-20-10-02-00 | 3300 XL 8 mm, smooth case, no armor | 2.0 m | 0.320 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor/Seismic Monitor | – | 1.2 kg |
| 3500/44M-02-00 | Aeroderivative Vibration Monitor | – | 1.3 kg |
| 3500/60-01-00 | Temperature Monitor | – | 1.1 kg |
| 330130-XXX-XX-XX | 3300 XL Extension Cable | Various | 0.34 kg/m |
| 330180-10-00 | 3300 XL Proximitor Sensor, panel mount | 1.0 m | 0.246 kg |
| 330104-00-06-10-02-05 | 3300 XL 8 mm, armored, with approval | 0.6 m | 0.310 kg |
