Product Description

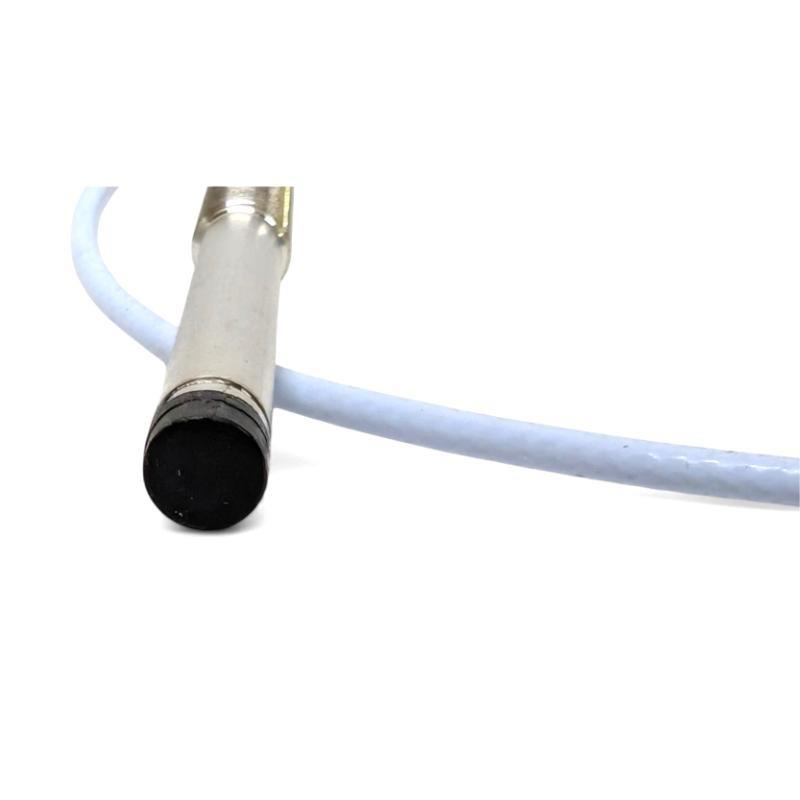

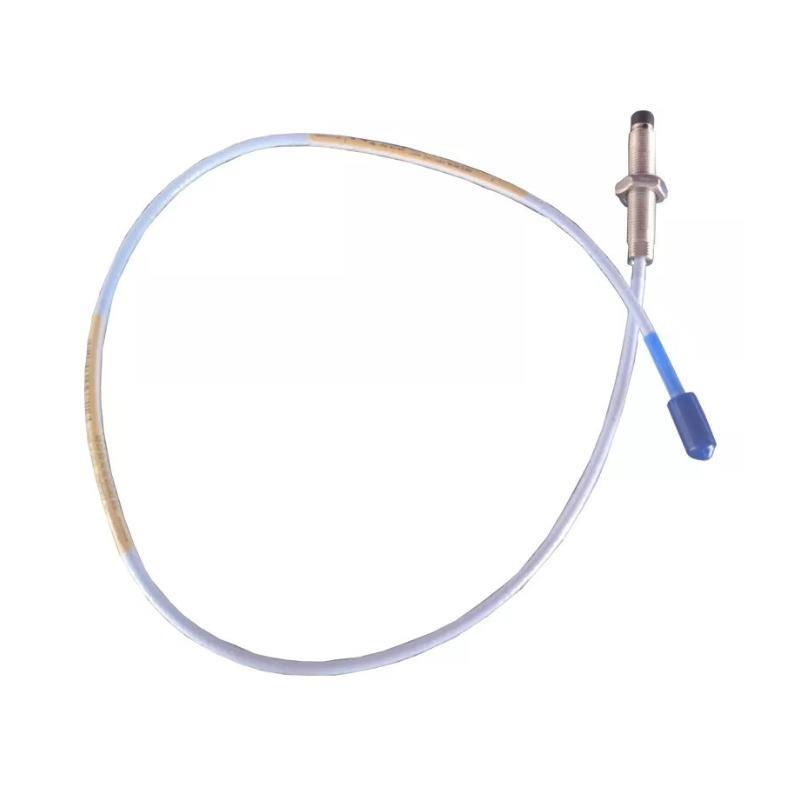

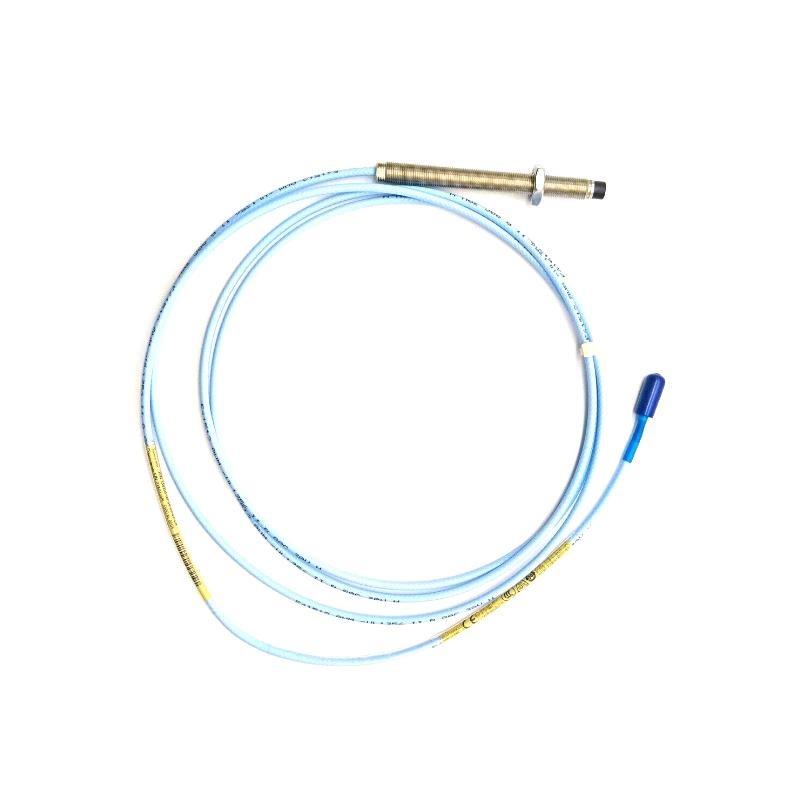

The Bently Nevada 330103-00-16-10-12-RU 3300 XL 8 mm Proximity Probe is designed for accurate vibration and position measurement in rotating machinery. It features a rugged stainless-steel case, PPS probe tip, and a fluid-resistant FluidLoc cable with a secure ClickLoc connector. With full compliance to API 670 standards, it provides reliable performance in harsh industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle | 330103-00-16-10-12-RU |
| Probe Tip Diameter | 8 mm |
| Case Length | 16 mm |
| Thread Size | M10 × 1 |
| Cable Type | FluidLoc cable with ClickLoc connector |
| Cable Length | 1.0 m |
| Target Material | AISI 4140 steel |
| Typical Gap Setting | 1.27 mm |
| Operating Temperature | -35 °C to +177 °C |
| Compliance | API 670 |
| Total Length | 1.0 m |
| Poids | 0.323 kg |
| Certification Code | RU (Regional compliance for Russian/harsh environments) |
Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Shaft position and displacement measurement
-
Keyphasor® or speed sensing in rotating equipment
-
Monitoring machinery in humid, fluid-exposed, or hazardous areas
Advantages
-
High Reliability: Meets API 670 standards with precise linearity and temperature stability
-
Rugged Design: TipLoc™ bonding and CableLoc™ technology ensure mechanical durability
-
Fluid Resistance: FluidLoc cable prevents moisture ingress in harsh environments
-
Secure Connection: ClickLoc connector prevents loosening under vibration
-
Backward Compatibility: Works seamlessly with 3300 series and older systems
-
Enhanced EMI/RFI Immunitéy: Stable readings in electrically noisy environments
FAQ
Q1: What is the sensing range sur the 330103-00-16-10-12-RU probe?
A1: The probe operates with a linear sensing range sur approximately 2 mm, optimized for 8 mm proximity measurements.
Q2: Can this probe be used with other Bently Nevada proximitor sensors?
A2: Yes, it is fully compatible with 3300 XL Proximitor Sensors and other 3300 series components.
Q3: What is the standard gap setting for installation?
A3: The recommended gap setting is 1.27 mm relative to the AISI 4140 steel target.
Q4: How does the FluidLoc cable improve durability?
A4: FluidLoc construction provides superior resistance to oil, moisture, and chemical ingress.
Q5: Is this probe suitable for hazardous environments?
A5: Yes, the RU certification ensures compliance with regional hazardous area standards.
Q6: What is the maximum operating temperature?
A6: The probe can operate continuously from -35 °C to +177 °C.
Q7: Does this probe require calibration before use?
A7: No, it is factory-calibrated and requires no bench calibration for installation.
Q8: Can it be used as a Keyphasor® probe?
A8: Yes, the probe is designed for both vibration monitoring and Keyphasor® speed applications.
Q9: How strong is the cable attachment?
A9: CableLoc technology ensures pull strength up to 330 N, preventing accidental disconnection.
Q10: Is this probe backward compatible with older 5 mm or 8 mm systems?
A10: Yes, it is backward compatible and interchangeable with earlier Bently Nevada 3300 series probes.
Related Modèles (Same Series)
| Modèle Number | Description | Cable Length | Case Length | Poids |
|---|---|---|---|---|
| 330103-00-07-10-02-00 | 8 mm probe, 0.7 m cable, standard connector | 0.7 m | 16 mm | 0.295 kg |
| 330103-00-09-10-02-00 | 8 mm probe, 0.9 m cable, standard connector | 0.9 m | 16 mm | 0.305 kg |
| 330103-00-12-10-12-00 | 8 mm probe, 1.2 m FluidLoc cable | 1.2 m | 16 mm | 0.335 kg |
| 330103-00-15-10-02-00 | 8 mm probe, 1.5 m cable, standard connector | 1.5 m | 16 mm | 0.348 kg |
| 330103-00-20-10-12-00 | 8 mm probe, 2.0 m FluidLoc cable | 2.0 m | 16 mm | 0.370 kg |
| 330103-00-25-10-12-00 | 8 mm probe, 2.5 m FluidLoc cable | 2.5 m | 16 mm | 0.395 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Application | Poids |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | Vibration monitoring | 0.310 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | Signal conditioning | 0.450 kg |
| 330106-05-30-05-02-00 | 3300 XL 5 mm Proximity Probe | Small-shaft vibration monitoring | 0.280 kg |
| 330709-000-060-10-02-00 | 3300 XL Extension Cable | Probe-to-proximitor connection | 0.250 kg |
| 330130-080-00-00 | 3300 XL NSv Proximity Probe | Narrow space vibration applications | 0.300 kg |
| 3500/22M | Transient Data Interface Module | Machinery protection system | 0.520 kg |
