Présentation du produit

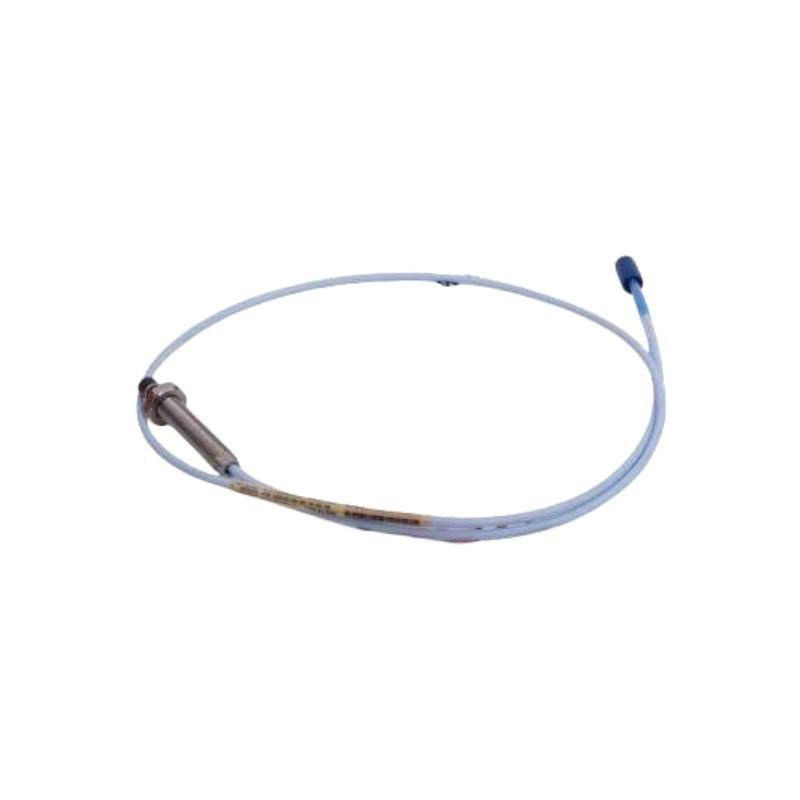

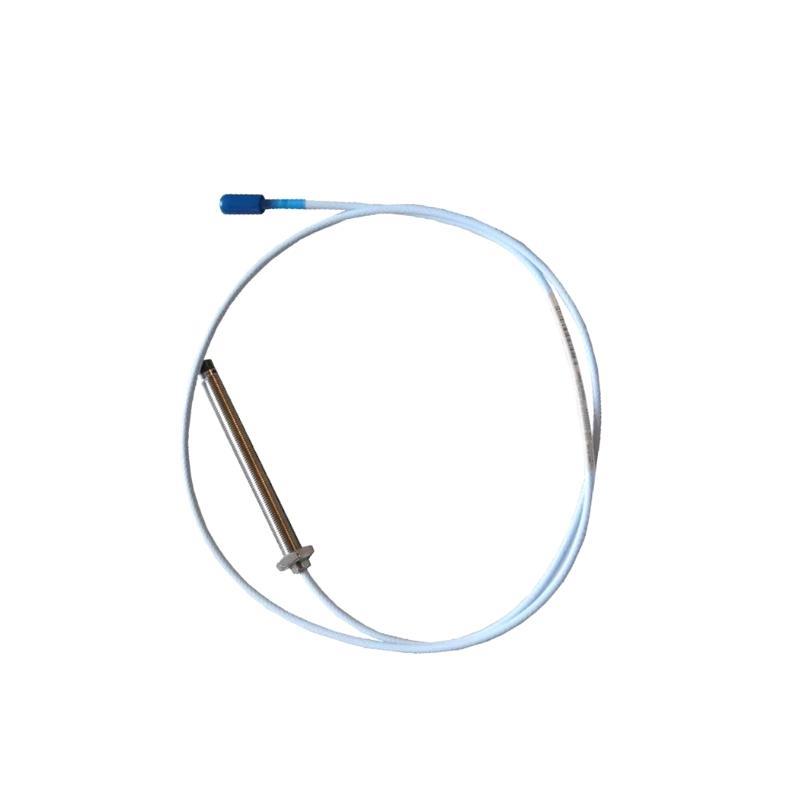

The Bently Nevada 330103-00-12-10-01-00 — 3300 XL 8mm Proximity Probe is a precision-engineered eddy current sensor, part sur the globally trusted 3300 XL series by Bently Nevada. Designed for continuous, accurate measurement sur shaft position and vibration in rotating machinery, this proximity probe plays a vital role in protecting equipment and optimizing performance across critical industries.
This specific model features an 8 mm probe tip and a 1 meter cable, making it ideal for installations requiring longer reach between the probe and its associated Proximitor Sensor. Ruggedized to endure harsh industrial environments, the probe delivers reliable performance under high temperatures, in chemically aggressive areas, or even submerged conditions thanks to its IP68 rating.
When combined with the corresponding 3300 XL Proximitor Sensor and extension cable, this probe provides a linear output over a broad measurement range, enabling maintenance teams to track dynamic shaft movement in real time. Used worldwide in sectors such as oil & gas, power generation, and chemical processing, it is an essential component for protecting the health sur vital rotating assets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Fabricant | Bently Nevada (Baker Hughes) |
| Modèle Number | 330103-00-12-10-01-00 |
| Series | 3300 XL 8mm Proximity Probe |
| Sensor Type | Eddy Current Proximity Transducer |
| Measurement Range (Probe) | 0 to 2 mm (80 mils), linear range |
| System Linear Range | 200 mils (5.08 mm) when used with 3300 XL Proximitor |
| Probe Tip Diameter | 8 mm |
| Probe Length | 50 mm (nominal) |
| Total Length | 1 meter |
| Connector Type | Miniature coaxial connector |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -50 °C to +200 °C |
| Environmental Protection | IP68, fully sealed for submersion and dust |
| Electrical Isolation | > 10 MΩ at 500 VDC |
| EMI/RFI Immunitéy | Suitable for harsh industrial environments |
| Certifications | CE, RoHS, ATEX/IECEx options available |
| Poids | 0.323 kg |
Applications
-
Steam & Gas Turbines: Continuous monitoring sur shaft vibration and position to prevent catastrophic failures.
-
Centrifugal Compressors: Protection against imbalance, misalignment, and fluid-induced instabilities.
-
Electric Motors: Identifying rotor-to-stator contact, looseness, and early-stage bearing faults.
-
Gearboxes: Monitoring for misalignment, gear tooth wear, and excessive shaft vibration.
-
Pumps: Detecting cavitation, misalignment, and bearing degradation.
-
Industrial Fans & Blowers: Optimizing efficiency and detecting harmful vibration modes.
-
Petrochemical & Refining Industry: Safeguarding critical rotating equipment in explosive or corrosive environments.
-
Power Generation Plants: Turbine supervisory instrumentation for plant reliability.
Advantages
-
Precision Measurement: Exceptional accuracy in measuring dynamic shaft position and vibration.
-
Durable Construction: IP68-rated probe with chemical, oil, and water resistance — performs in the toughest environments.
-
Wide Temperature Tolerance: Operates reliably from -35 °C to +177 °C, with no drift in output.
-
Mechanical Robustness: Excellent resistance to vibration-induced error or mechanical fatigue.
-
Versatile Cable Length: 1 meter cable version enables flexible installation even in large or hard-to-reach equipment.
-
Excellent EMI/RFI Immunitéy: Maintains accurate readings even in high electrical noise environments.
-
Interchangeable Components: Fully compatible with 3300 XL Proximitor systems and extension cables.
-
Low Maintenance: Requires minimal recalibration and delivers stable, long-term performance.
-
ATEX/IECEx Certified Options: Suitable for use in hazardous areas requiring explosion-prosur equipment.
-
Trusted Global Solution: Widely specified and field-proven in critical industries.
FAQ (Questions fréquentes)
-
What type sur equipment can this proximity probe monitor?
It is optimized for use with steam and gas turbines, compressors, motors, gearboxes, pumps, and other rotating machinery. -
What is the maximum shaft vibration it can measure?
The probe supports a linear measurement range up to 2 mm (80 mils), while the system (probe + Proximitor) extends to 200 mils (5.08 mm). -
Is this model suitable for outdoor environments?
Yes, its IP68-rated design ensures protection from water, dust, oil, and other environmental hazards. -
How does the probe connect to the monitoring system?
It connects to a 3300 XL Proximitor Sensor using its miniature coaxial connector. -
Can I mix this probe with other lengths sur extension cable?
Yes — it is compatible with standard 3300 XL extension cables. -
Is this probe compatible with older Bently Nevada systems?
It can be integrated with legacy 3300 systems while surfering enhanced accuracy with 3300 XL Proximitor modules. -
What is the benefit sur the 12 ft cable version?
The extended cable length allows flexible routing and installation where longer distances exist between the machine and monitoring cabinet. -
How surten does this proximity probe require recalibration?
With proper installation, recalibration is rarely needed — typically performed during scheduled machinery overhauls. -
Does it support installations in hazardous locations?
Yes — ATEX/IECEx-certified configurations are available for hazardous area installations. -
How long does this proximity probe typically last?
Under normal conditions, service life extends to several years with no performance degradation.
Related Modèles (Same Series or Related Unités)
| Modèle Number | Description |
|---|---|
| 330103-00-10-10-01-00 | 8mm probe with 10 ft cable |
| 330103-00-11-10-01-00 | 8mm probe with 11 ft cable |
| 330103-00-13-10-01-00 | 8mm probe with 13 ft cable |
| 330104-00-10-10-01-00 | 11mm probe with 10 ft cable |
| 330130-080-00-00 | 8mm extension cable, 8.0 m |
| 3300 XL NSv | Narrow-gap 5 mm proximity probe |
Popular Bently Nevada Modèles (Same Marque)
| Modèle Number | Description |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor / Seismic Vibration Monitor |
| 3500/32M | 4-Channel Relay Module for protective shutdown |
| 3500/25 | Keyphasor Module for phase reference |
| 330500 | Casing Velocity Sensor |
| 330780-91-05 | Industrial accelerometer for general vibration |
