Présentation du produit

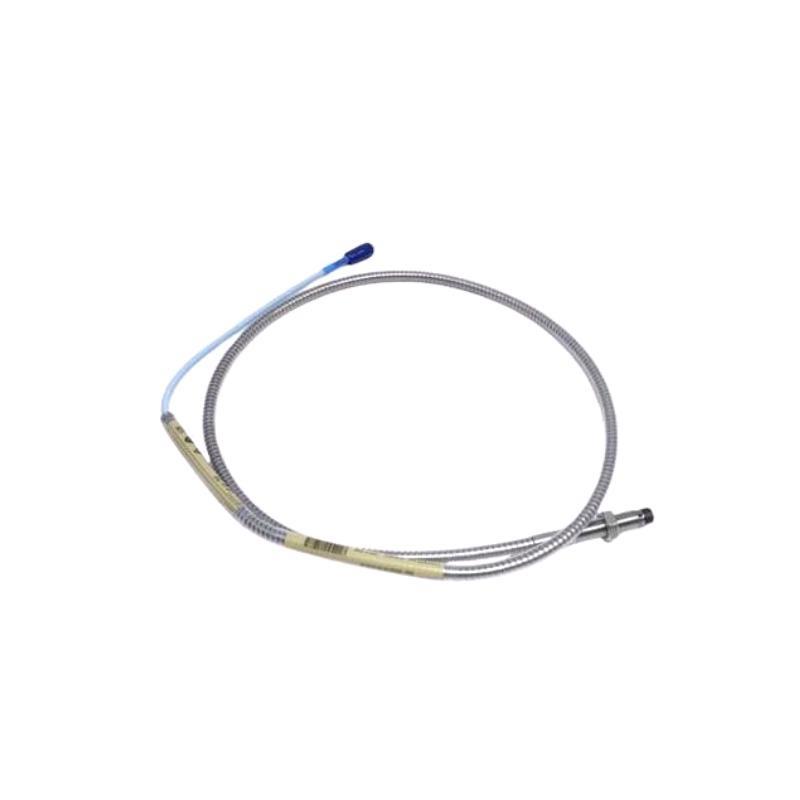

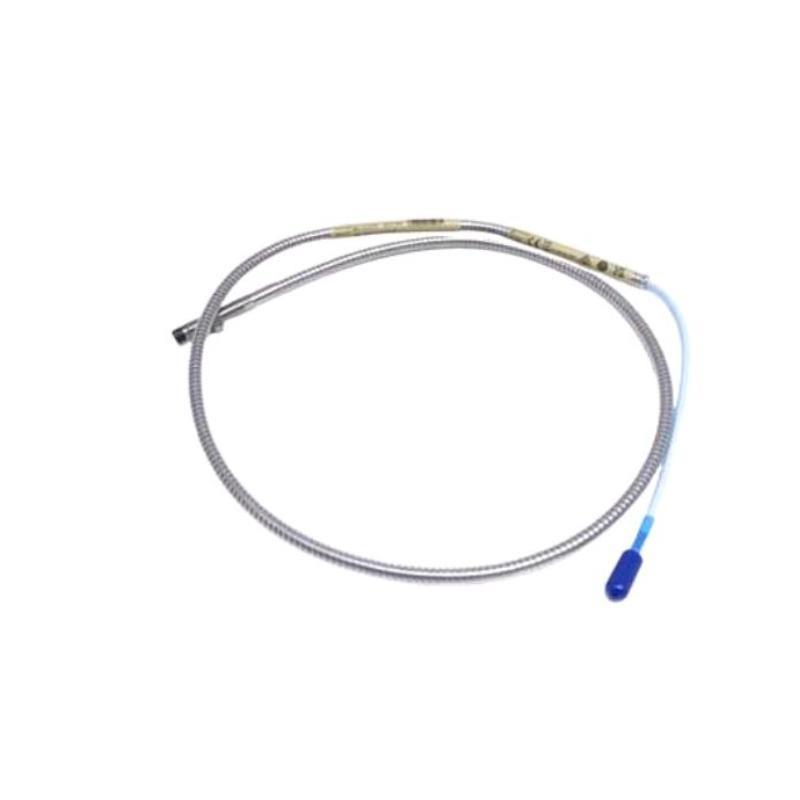

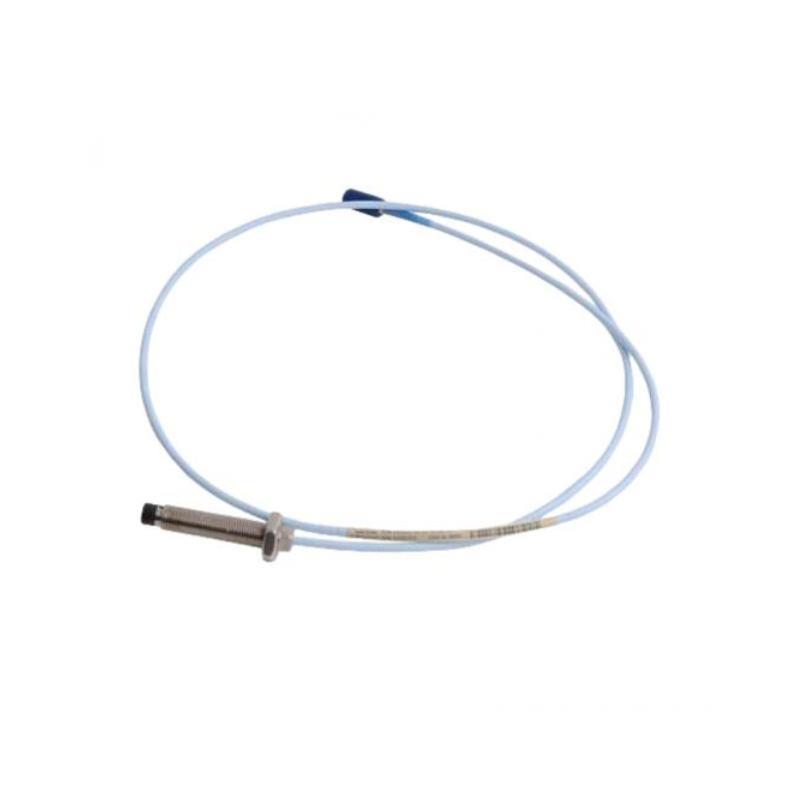

The Bently Nevada 330103-00-10-05-02-BR 3300 XL 8 mm Proximity Probe is a high-precision, industrial-grade displacement sensor designed for continuous machinery monitoring in critical applications. Part sur the 3300 XL Series, this probe surfers robust performance in harsh environments, including extreme temperatures, high vibration, and high-speed rotating machinery.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 330103-00-10-05-02-BR |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Sensor Principle | Eddy-Current |
| Probe Tip Material | High-grade stainless steel |
| Cable Type | Shielded coaxial cable |
| Operating Temperature | -40°C to +120°C |
| Environmental Protection | IP65 / Flame retardant cable |
| Electrical Interface | 100 mV/mil standard output |
| Response Time | < 1 ms |
| Linearity | ±1% sur full scale |
| Frequency Response | DC to 10 kHz |
| Vibration Resistance | 20 g RMS, 10–2000 Hz |
| Poids | 0.162 kg |
| Total Length | 0.5 m |
Product Applications
-
Turbine Monitoring: Detect shaft vibration, rotor displacement, and alignment issues in steam and gas turbines.
-
Compressor Surveillance: Monitor axial and radial movement in centrifugal and reciprocating compressors.
-
Motor État Monitoring: Ensure reliable operation in high-speed electric motors.
-
Pump Protection: Track impeller position and detect early signs sur cavitation or imbalance.
-
Generator Monitoring: Measure rotor displacement and vibration to prevent catastrophic failures.
-
Industrial Process Equipment: Applicable in refineries, power plants, and manufacturing facilities with critical rotating machinery.
Product Advantages
-
High Accuracy: Provides precise measurement sur shaft displacement with minimal deviation.
-
Reliable in Harsh Environments: Resistant to extreme temperatures, vibration, and EMI interference.
-
Compatibility: Fully compatible with the 3300 XL monitoring system for seamless integration.
-
Durable Construction: Stainless steel probe tip and flame-retardant cables ensure long-term performance.
-
Fast Response: Low-latency signal output supports real-time monitoring and protection.
-
Flexible Installation: Disponible in multiple cable lengths and mounting configurations to fit various machinery setups.
FAQ
Q1: What is the standard operating gap for the 8 mm probe?
A1: The probe is designed for an 8 mm measurement gap, which is compatible with standard 3300 XL monitoring systems.
Q2: Can this probe operate in high-vibration environments?
A2: Yes, it is rated to withstand up to 20 g RMS from 10–2000 Hz without performance degradation.
Q3: What is the frequency response range sur the probe?
A3: The probe has a DC to 10 kHz frequency response, suitable for most rotating machinery applications.
Q4: How does the probe handle EMI or electrical interference?
A4: The shielded coaxial cable design and robust sensor construction reduce susceptibility to EMI.
Q5: Is this probe compatible with older Bently Nevada 3300 series monitors?
A5: It is specifically designed for the 3300 XL series and may not be fully compatible with legacy 3300 or non-XL monitors.
Q6: What is the linearity tolerance sur the sensor?
A6: The sensor maintains ±1% full-scale linearity across its measurement range.
Q7: Can it be used in sub-zero environments?
A7: Yes, the operating temperature range is -40°C to +120°C.
Q8: What is the electrical output signal specification?
A8: The probe outputs 100 mV per mil sur displacement, which is standard for the 3300 XL system.
Q9: Are there alternative cable lengths available?
A9: Yes, standard lengths range from 2 m to 10 m, and custom lengths can be requested.
Q10: Is the probe suitable for wet or corrosive environments?
A10: The probe tip is made sur high-grade stainless steel, and the cable is flame-retardant and moisture-resistant, making it suitable for most industrial environments.
Related or Same-Series Modèles
| Modèle Number | Description | Probe Type |
|---|---|---|
| 330103-00-08-05-12-05 | 8 mm Proximity Probe, standard | 8 mm |
| 330103-00-09-10-11-00 | 8 mm Proximity Probe, extended range | 8 mm |
| 330103-00-10-05-02-BR | 8 mm Proximity Probe, BR variant | 8 mm |
| 330103-00-08-10-12-RU | 8 mm Proximity Probe, RU variant | 8 mm |
| 330103-00-08-05-01-CN | 8 mm Proximity Probe, CN variant | 8 mm |
| 330103-00-10-10-02-01 | 8 mm Proximity Probe, high-temp | 8 mm |
Popular Bently Nevada Modèles
| Modèle Number | Description | Probe Type |
|---|---|---|
| 330103-00-08-15-02-05 | 8 mm Proximity Probe | 8 mm |
| 330103-00-08-10-12-05 | 8 mm Proximity Probe | 8 mm |
| 330103-00-09-50-02-00 | 8 mm Proximity Probe | 8 mm |
| 330103-00-10-05-02-BR | 8 mm Proximity Probe | 8 mm |
| 330103-00-08-50-12-00 | 8 mm Proximity Probe | 8 mm |
| 330103-00-08-05-12-00 | 8 mm Proximity Probe | 8 mm |
