Présentation du produit

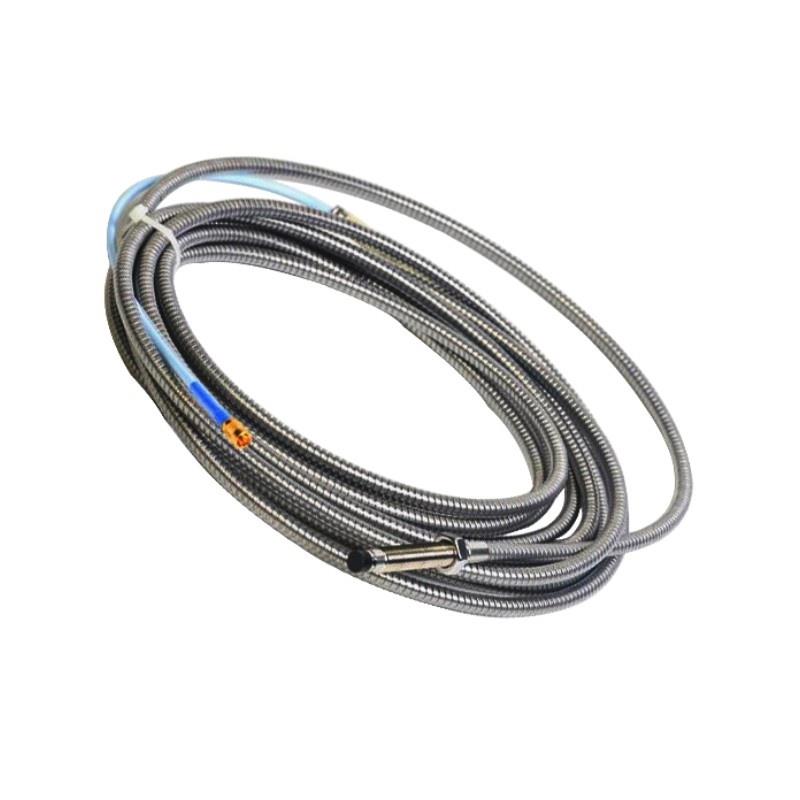

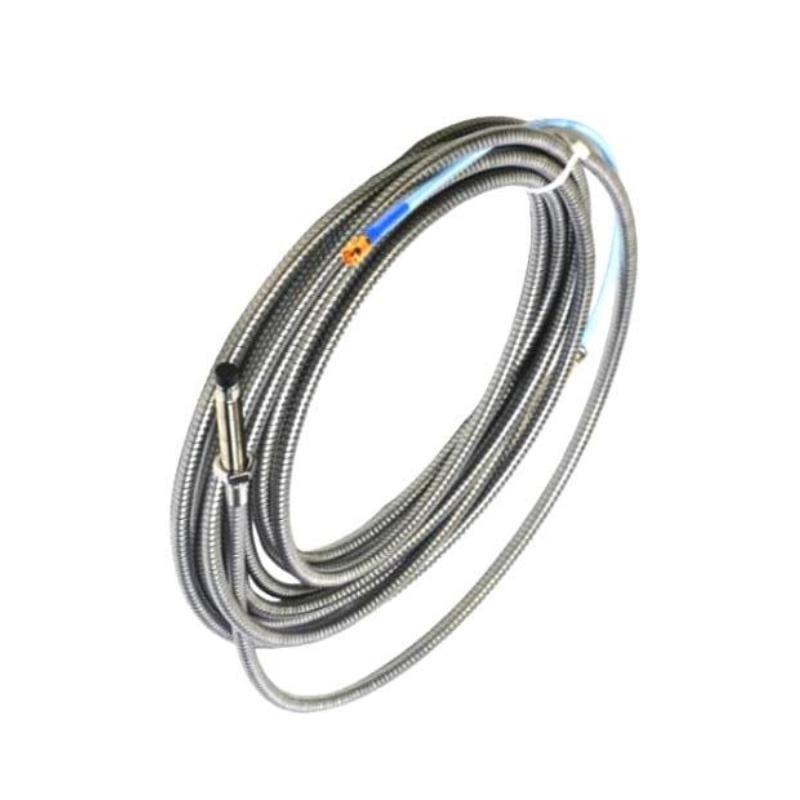

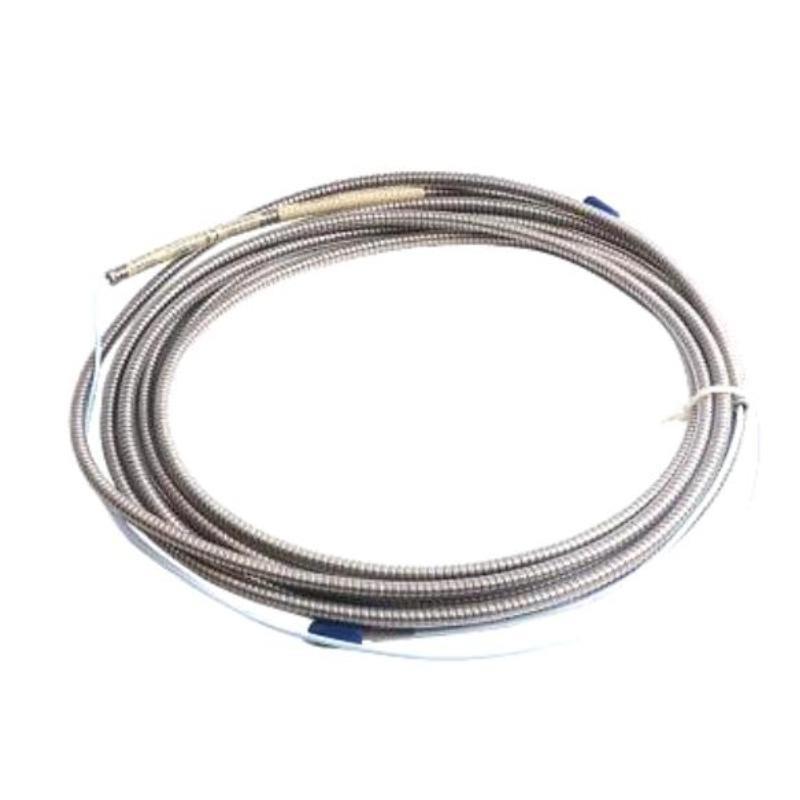

The Bently Nevada 330103-00-08-90-02-00 is an 8 mm 3300 XL Proximity Probe, part sur the industry-leading 3300 XL machinery protection system. Designed for precise rotor and machinery vibration monitoring, this proximity probe is widely adopted in power generation, oil & gas, and heavy industrial applications.
Product Advantages
-
High Reliability: Consistent performance in extreme temperatures, high vibration environments, and electrically noisy conditions.
-
Precise Measurement: Accurate detection sur shaft displacement down to micrometer resolution.
-
Compatibility: Seamless integration with the 3300 XL monitoring system.
-
Durable Construction: Designed to withstand chemical exposure, oil, and moisture, ensuring long-term stable operation.
-
Enhanced Safety: Supports predictive maintenance by providing early warning sur shaft instability, reducing unplanned downtime.
-
Ease sur Installation: Pre-aligned probe geometry simplifies mounting and setup, reducing labor and error.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 330103-00-08-90-02-00 |
| Probe Type | Proximity (Eddy Current) |
| Measurement Range | 0 – 0.254 mm (0 – 10 mils) |
| Tip Diameter | 8 mm |
| Total Length | 9 m |
| Operating Temperature | -40°C to +125°C |
| Poids | 2.907 kg |
| Housing Material | Stainless Steel |
| Cable Type | Shielded coaxial |
| Connector Type | M12/Euro-style connector |
| System Compatibility | Bently Nevada 3300 XL Monitor |
| Electrical Characteristics | 2-wire eddy current |
| Response Frequency | DC to 25 kHz |
| Maximum Shaft Voltage | 24 V peak |
Product Applications
-
Gas and Steam Turbines: Measures rotor displacement and vibration for condition monitoring.
-
Centrifugal and Reciprocating Pumps: Detects shaft misalignment and imbalance.
-
Compressors: Provides real-time vibration data for predictive maintenance.
-
Industrial Motors: Monitors shaft runout and eccentricity.
-
Generators: Protects against rotor instability and mechanical failure.
-
Hydroelectric Equipment: Ensures safe operation by tracking shaft movement.
FAQ
Q1: What is the optimal probe gap for accurate measurement?
A1: The optimal gap for the 8 mm probe tip is 0.13 mm to 0.25 mm (5–10 mils) depending on the shaft material and rotation speed.
Q2: Can this probe be used with non-ferrous shafts?
A2: Yes, the probe operates on eddy current principles and can detect both ferrous and non-ferrous materials.
Q3: What is the maximum cable length without signal degradation?
A3: The 3300 XL system supports cable lengths up to 30 meters while maintaining signal fidelity.
Q4: Is this probe compatible with all 3300 XL monitors?
A4: Yes, it is fully compatible with standard 3300 XL monitors that accept 8 mm probes.
Q5: How does temperature affect the probe performance?
A5: The probe operates reliably within -40°C to +125°C. Temperature variations within this range have negligible impact on measurement accuracy.
Q6: Can the probe detect shaft vibration at high RPMs?
A6: Yes, it supports a frequency response up to 25 kHz, suitable for high-speed machinery applications.
Q7: Is the probe resistant to electromagnetic interference (EMI)?
A7: Yes, the coaxial cable design and grounding method provide excellent EMI resistance.
Q8: How does the probe output signal behave under shaft misalignment?
A8: The output voltage varies proportionally with shaft displacement, allowing the monitoring system to detect misalignment or eccentricity.
Q9: Can the probe be installed in vertical or horizontal positions?
A9: Yes, the probe’s design allows flexible mounting orientations without affecting performance.
Q10: What maintenance is required for reliable operation?
A10: Routine inspection for cleanliness and cable integrity is sufficient; no calibration is required under normal operating conditions.
Related Modèles
| Modèle Number | Tip Diameter | Probe Length | Cable Length | Notes |
|---|---|---|---|---|
| 330103-00-08-05-02-00 | 8 mm | 50 mm | 2 m | Standard 8 mm XL probe |
| 330103-00-08-10-02-00 | 8 mm | 100 mm | 2 m | Extended length probe |
| 330103-00-08-15-02-00 | 8 mm | 150 mm | 2 m | Long-range measurement probe |
| 330103-00-08-50-12-05 | 8 mm | 50 mm | 12 m | High-temperature resistant cable |
| 330103-00-08-05-01-CN | 8 mm | 50 mm | 1 m | China-region compatible version |
| 330103-00-08-90-02-BR | 8 mm | 90 mm | 2 m | Alternate region version |
Popular Modèles
| Modèle Number | Probe Type | Tip Diameter | Cable Length | Notes |
|---|---|---|---|---|
| 330103-00-08-50-12-00 | Proximity | 8 mm | 12 m | Standard XL probe |
| 330103-00-08-10-12-00 | Proximity | 8 mm | 12 m | High-speed machinery |
| 330103-00-12-50-02-00 | Proximity | 12 mm | 2 m | Large rotor applications |
| 330103-00-08-05-02-05 | Proximity | 8 mm | 2 m | Standard XL replacement |
| 330103-00-08-90-12-00 | Proximity | 8 mm | 12 m | Extended range XL probe |
| 330103-00-05-50-02-00 | Proximity | 5 mm | 2 m | Small shaft applications |
