Product Overview

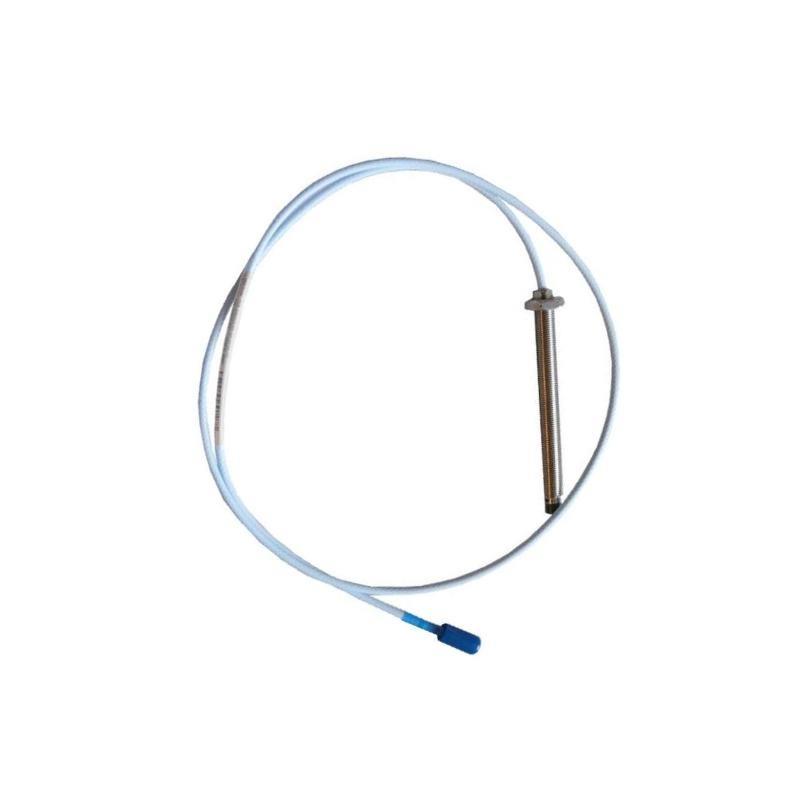

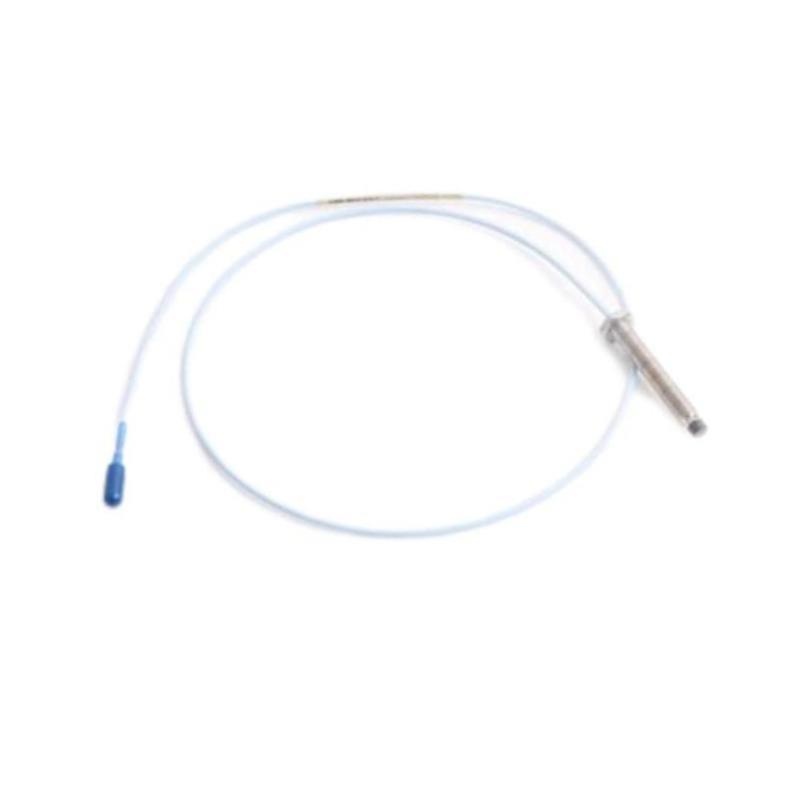

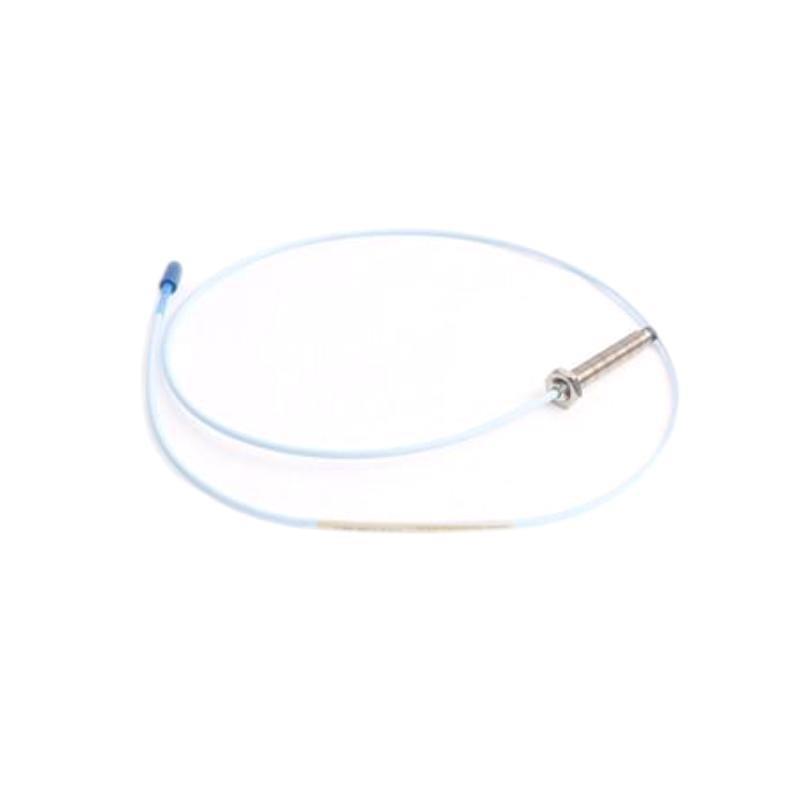

The Bently Nevada 330103-00-07-10-12-00 3300 XL 8 mm Proximity Probe is part sur the trusted 3300 XL series, designed for highly accurate non-contact vibration and displacement measurements. It works in combination with extension cables and Proximitor® sensors to provide reliable monitoring sur critical machinery.
Key Features
-
8 mm tip diameter for optimal shaft measurement accuracy
-
Compatible with 3300 XL extension cables and Proximitor® sensors
-
Enhanced resistance to electrical interference and noise
-
Designed for robust performance in harsh industrial environments
-
Provides accurate vibration and shaft position monitoring
-
Suitable for API 670 compliant machinery protection systems
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | 330103-00-07-10-12-00 |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| System Length | 7 m (probe + extension cable + proximitor) |
| Thread Size | M10 × 1.0 |
| Unthreaded Length | 10 mm |
| Tip Style | Standard |
| Connector | Miniature coaxial, stainless steel |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -51 °C to +177 °C |
| Dimensions | Total Length : 1.0 meter |
| Poids | 0.323 kg |
| Compliance | API 670 machinery protection standard |
Industry Applications
-
Power Generation – Turbine and generator vibration monitoring
-
Oil & Gas – Compressor and pump shaft position measurement
-
Petrochemical – Critical rotating equipment protection
-
Pulp & Paper – Monitoring sur high-speed rolls and drives
-
Industrial Manufacturing – Motors, fans, and gearboxes vibration monitoring
Advantages
-
High reliability and durability in extreme conditions
-
Excellent immunitéy to electrical and radio frequency interference
-
Accurate and consistent vibration monitoring for predictive maintenance
-
Backward compatibility with previous 3300 systems
-
Supports API 670 compliance for critical machinery protection
Questions fréquentes (FAQ)
Q1: What is the difference between the 330103 series and the 330101 series probes?
The 330103 series is designed with metric thread options and different unthreaded lengths, while the 330101 series primarily uses imperial thread sizes.
Q2: Can this probe be used with any proximitor?
It must be paired with a matching 3300 XL Proximitor Sensor to ensure accurate measurements and system performance.
Q3: Does the probe require calibration?
No, the probe itself does not require calibration. The calibration is set by the Proximitor Sensor and system configuration.
Q4: What machinery protection standard does it support?
It supports API 670, the widely recognized standard for machinery protection systems.
Q5: Can the probe withstand corrosive environments?
Yes, the stainless steel body provides resistance to corrosion in industrial applications.
Q6: Is the cable detachable?
No, the probe is manufactured with an integral cable to maintain signal integrity.
Q7: What is the storage temperature range?
The storage temperature range is -51 °C to +177 °C.
Q8: Can this probe be used for axial displacement monitoring?
Yes, it can be used for both radial vibration and axial position monitoring depending on installation.
Q9: How does it handle electrical noise?
The 3300 XL design includes shielding and grounding to minimize the effects sur EMI and RFI.
Q10: What is the typical lifespan sur this probe?
With proper installation and use, the probe is designed for long-term reliability, surten lasting many years in continuous operation.
Related Bently Nevada Probes
| Modèle Number | Description |
|---|---|
| 330103-00-03-05-02-CN | 3300 XL 8 mm Proximity Probe |
| 330103-00-03-15-01-05 | 3300 XL 8 mm Proximity Probe |
| 330103-00-05-05-12-CN | 3300 XL 8 mm Proximity Probe |
| 330103-00-07-10-12-00 | 3300 XL 8 mm Proximity Probe |
| 330103-00-09-10-02-05 | 3300 XL 8 mm Proximity Probe |
Popular Bently Nevada Modules
| Modèle Number | Description |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3500/25 | Keyphasor Module |
| 3500/32M | Relay Module |
| 3500/42M | Proximitor/Seismic Monitor |
| 3500/92 | Communication Gateway Module |
