Présentation du produit

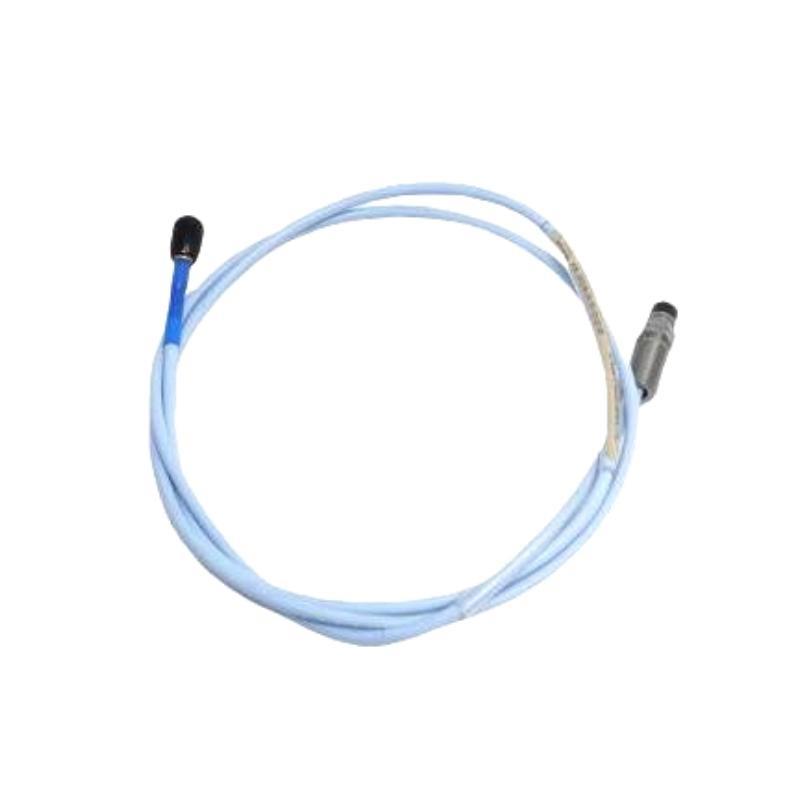

The Bently Nevada 330103-00-06-10-02-CN is part sur the industry-renowned 3300 XL 8mm Proximity Transducer System, purpose-built for critical machinery protection and condition monitoring. Engineered by Bently Nevada, a division sur Baker Hughes, this proximity probe is trusted globally in demanding applications such as steam turbines, gas turbines, compressors, and large-scale rotating equipment in refineries, power plants, and heavy industrial operations.
This specific CN version typically indicates a variant adapted for the Chinese market, featuring identical core functionality to the global version but may include region-specific compliance or manufacturing details. The probe integrates seamlessly into a system with extension cables and Proximitor sensors to provide non-contact measurement sur shaft vibration and position, with high reliability in extreme conditions.
As part sur the 3300 XL product line, this model benefits from Bently Nevada’s decades sur R&D in eddy current technology, surfering precise measurements with excellent environmental resilience. The unité is widely used by OEMs, system integrators, and maintenance teams seeking dependable condition-based monitoring.
Spécifications du produit
| Parameter | Value / Description |
|---|---|
| Product Modèle | 330103-00-06-10-02-CN |
| Product Series | 3300 XL 8mm Proximity Transducer System |
| Sensing Principle | Eddy current displacement sensing |
| Probe Tip Diameter | 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Connector Type | Coaxial, molded, integral to the probe cable |
| Total Length | 1.0 meter |
| Linear Measurement Range | 2 mm (80 mils) |
| Output Sensitivity | 200 mV/mil (±5%) |
| Frequency Response | 0 to 10 kHz |
| Accuracy | ±0.127 mm (±5 mils) depending on configuration |
| Temperature Range (Operating) | -35°C to +177°C (-31°F to +351°F) |
| Pressure Resistance | Up to 500 psi (34 bar) |
| Electrical Isolation | Yes (tip to case) |
| Housing Material | Stainless steel and PPS (Polyphenylene Sulfide) |
| Compliance Standards | Meets or exceeds API 670 requirements |
| Poids (Approximate) | 0.323 kg |
| Cable Sheathing | FEP jacketed (Fluorinated Ethylene Propylene) |
| Country-Specific Variant | CN = Localized for China, identical performance |
Product Applications
The 330103-00-06-10-02-CN proximity probe is ideal for any application requiring continuous non-contact shaft position or vibration monitoring. It’s especially suited for:
-
Steam Turbines
For radial and thrust position monitoring, ensuring operational efficiency and protection. -
Gas Turbines
Enables real-time condition feedback in critical temperature and pressure conditions. -
Compressors
Monitors bearing wear and shaft movement for early fault detection. -
Centrifugal and Reciprocating Pumps
Tracks shaft misalignment and mechanical degradation. -
Industrial Fans and Blowers
Used for dynamic balancing and early failure prediction. -
Motors, Generators, and Gearboxes
Integral to preventive maintenance programs, reducing downtime.
Product Advantages
-
Certified API 670 Compliance
Ensures the device is suitable for the highest levels sur machine protection and safety standards. -
Wide Environmental Tolerance
Operates in extreme temperatures and pressures with no compromise in accuracy. -
Field-Proven Eddy Current Technology
Reliable, accurate shaft position readings even under oil splash, steam, or contaminants. -
Modular Design
Compatible with Bently Nevada’s Proximitor sensors and cabling for flexible installations. -
Reduced Signal Drift
Excellent long-term signal stability reduces recalibration needs and improves reliability. -
Localized Availability (CN Modèle)
Ensures compliance and availability in Chinese markets without sacrificing performance. -
Mature System Architecture
Widely adopted standard in condition monitoring systems worldwide, facilitating spare parts sourcing and serviceability.
Questions fréquentes (FAQ)
-
What’s the difference between the CN and global versions sur this probe?
The “CN” suffix typically denotes region-specific certification or production origin, but functionality is identical. -
Can this probe be used with other Bently Nevada systems?
Yes, it’s compatible with 3300 XL systems and surten integrated with 3500 series monitoring modules. -
Is recalibration required frequently?
No, it surfers excellent long-term stability. Verification is recommended during scheduled shutdowns. -
Does this product include the extension cable and Proximitor sensor?
No, this model is the probe only. Extension cables and Proximitor sensors are ordered separately. -
How is the probe installed?
It threads into a mounting sleeve or bracket positioned close to the monitored shaft. -
Is the probe resistant to oil or chemical exposure?
Yes, its construction materials and design allow it to function reliably in contaminated environments. -
What kind sur machinery benefits most from this probe?
Large rotating machinery including turbines, compressors, and pumps. -
What maintenance is required for the probe?
Generally minimal. Periodic inspection for physical wear and cable integrity is sufficient. -
Can I use this in explosive zones?
Use in hazardous areas requires certification sur the full system (probe, cable, Proximitor) per ATEX/IECEx standards. -
Does this model support reverse mounting or special orientations?
It supports various mounting orientations as long as target surface alignment and clearance are observed.
Related Modèles – Same Series or Function
| Modèle Number | Description | Tip Size | Cable Length |
|---|---|---|---|
| 330103-00-05-10-02-00 | 5 ft probe, 10 ft extension cable | 8 mm | 5 ft + 10 ft |
| 330103-00-08-10-02-00 | 8 ft probe, 10 ft extension cable | 8 mm | 8 ft + 10 ft |
| 330103-00-10-10-02-00 | 10 ft probe, 10 ft extension cable | 8 mm | 10 ft + 10 ft |
| 330104-00-06-10-02-00 | 8 mm XL probe, with alternate connector configuration | 8 mm | 6 ft + 10 ft |
| 330130-040-00-00 | Proximitor Sensor, compatible with XL 8mm probes | — | N/A |
| 330180-91-05 | 5-meter extension cable for XL series probes | — | 5 meters |
Popular Modèles from Bently Nevada
| Modèle | Function | System Type | Notable Feature |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 3500 Series | Real-time data buffering and export |
| 3500/25 | Keyphasor Module | 3500 Series | Supports multiple keyphasor inputs |
| 3300 XL 11mm Probe | Proximity probe with extended linear range | 3300 XL Series | 11 mm tip, broader clearance range |
| 990-04-XX-01-00 | Velocity Transducer | Seismic Monitoring | Rugged for low-frequency measurements |
| 3701/44 | TDXnet Monitor | Distributed Monitoring | Ethernet-enabled machinery monitor |
| 330104-00-05-10-02-00 | 3300 XL 8mm probe (alternate build) | 3300 XL Series | Durable and temperature-resistant model |
