Product Overview

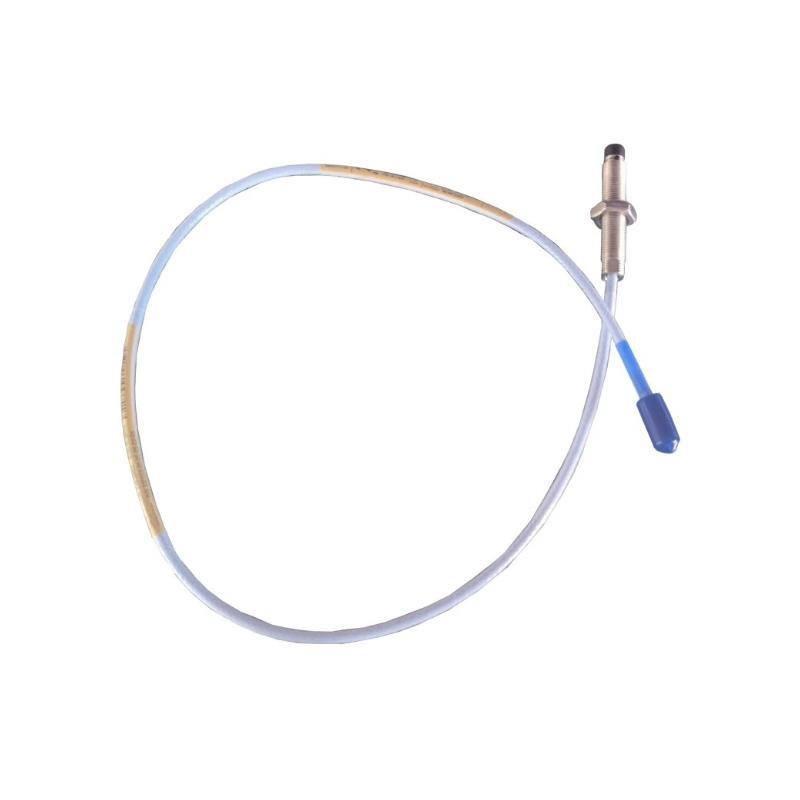

The Bently Nevada 330103-00-05-05-02-BR is a precision-engineered 8 mm proximity probe from the 3300 XL series, specifically designed to monitor shaft vibration and position in rotating machinery. Known for its durability and accuracy, this probe is widely used in power plants, oil & gas facilities, and heavy industrial settings. The model includes a 5-meter cable, shell-style “02” connector, and the “BR” suffix, which typically denotes a Brazil-specific configuration or localization.
This non-contact probe delivers reliable displacement measurements, forming a critical part sur a Bently Nevada condition monitoring and protection system. Its robust design, high linearity, and EMI-resistant construction make it an essential tool for asset health diagnostics and predictive maintenance.
Key Features
-
8 mm sensing tip for industry-standard proximity measurements
-
5-meter integral coaxial cable
-
Shell-style “02” connector for secure and standardized connectivity
-
“BR” suffix indicates Brazil-specific variant or configuration
-
Compatible with Bently Nevada 3300 XL Proximitor® systems
-
Rugged stainless steel body for harsh industrial environments
-
Shielded cable for superior signal integrity
-
IP67 rating for protection against dust and moisture
-
Accurate over a wide range sur temperatures and vibration levels
Technical Specifications
| Item | Specification |
|---|---|
| Fabricant | Bently Nevada (Baker Hughes) |
| Modèle Number | 330103-00-05-05-02-BR |
| Product Series | 3300 XL |
| Probe Type | Eddy Current Proximity Probe |
| Tip Diameter | 8 mm (0.315 in) |
| Sensing Range | 0.15 mm to 5.00 mm (typical) |
| Cable Length | 5 meters (fixed) |
| Connector Type | Shell Style “02” |
| Regional Configuration | “BR” – Brazil-specific localization |
| Material | Stainless Steel |
| Frequency Response | Up to 40 kHz |
| Operating Temperature | –40°C to +120°C (–40°F to +248°F) |
| Environmental Protection | IP67 (dust- and water-resistant) |
| Mounting Thread | 1/4-28 UNF or M8 × 1.0 (model-dependent) |
| Dimensions | Total Length : 0.5 meter |
| Diameter | 8 mm |
| Poids | 0.161 kg |
| Compliance | CE, RoHS compliant |
| Application | Shaft vibration, axial/radial position monitoring |
Industry Applications
-
Power Generation – Steam and gas turbines, generators
-
Oil & Gas – Compressors, pumps, and rotating machinery in upstream and downstream operations
-
Petrochemical – Critical rotating assets in refineries and chemical plants
-
Mining & Minerals – Crushers, conveyors, and heavy-duty motors
-
Marine Engineering – Propulsion systems and gearbox monitoring
-
Manufacturing – CNC machines, motors, gearboxes, and spindles
Product Advantages
-
High Accuracy – Provides consistent and precise shaft displacement readings
-
EMI Protection – Shielded cable design reduces electromagnetic interference
-
Compact and Durable – Slim prsurile with stainless steel housing for harsh environments
-
Plug-and-Play Integration – Seamlessly connects with Bently Nevada systems
-
Temperature Resilience – Operates reliably from arctic to desert environments
-
IP67 Rated – Fully protected against dust ingress and water immersion
-
Easy Installation – Threaded body supports quick, secure mounting
-
Localized Compliance – BR configuration aligns with Brazil’s operational standards
Questions fréquentes (FAQ)
-
Q: What does the “BR” suffix in the model number indicate?
A: It usually designates a Brazil-specific configuration, surten related to local standards or certifications. -
Q: What is the length sur the cable on this probe?
A: 5 meters (fixed, non-detachable). -
Q: Which connector shell is used in this model?
A: Shell style “02” for standard 3300 XL system compatibility. -
Q: What systems is this probe compatible with?
A: It is designed for Bently Nevada 3300 XL Proximitor® and monitoring systems. -
Q: Can this probe withstand outdoor conditions?
A: Yes, it is IP67 rated for dust and water protection. -
Q: What is the operating temperature range?
A: From –40°C to +120°C. -
Q: Is this probe shielded against EMI?
A: Yes, the coaxial cable is shielded to prevent electromagnetic interference. -
Q: What is the sensing range?
A: Typically from 0.15 mm to 5.00 mm. -
Q: What is the tip diameter sur the probe?
A: 8 mm, which is standard across the 3300 XL series. -
Q: Is recalibration required?
A: Factory calibrated; field recalibration is not typically needed but system checks are recommended.
Related Modèles
| Modèle Number | Description |
|---|---|
| 330103-00-04-10-12-00 | 8 mm Probe, 10 m cable, Shell 12, standard global version |
| 330103-00-05-05-02-05 | 8 mm Probe, 5 m cable, Shell 02, standard configuration |
| 330103-00-04-15-02-CN | 8 mm Probe, 15 ft cable, Shell 02, China configuration |
| 330103-00-04-20-02-00 | 8 mm Probe, 20 ft cable, Shell 02, standard configuration |
| 330104-01-08-50-01-CN | 8 mm Armored Probe, 8 m cable, China configuration |
| 330130-045-01-05 | 3300 XL Standard Extension Cable, 4.5 m |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 330101-00-14-10-02-05 | 8 mm Probe, 14 m cable, Shell 02 |
| 330101-00-16-05-02-05 | 8 mm Probe, 16 m cable, Shell 02 |
| 330101-00-20-05-02-00 | 8 mm Probe, 20 m cable, Shell 02 |
| 330104-01-08-50-01-CN | Armored Probe with 8 m cable, China-specific |
| 330130-045-01-05 | 3300 XL Extension Cable, 4.5 m |
| 330103-00-04-10-02-01 | 8 mm Probe, 10 m cable, Shell 02, standard model |
