Présentation du produit

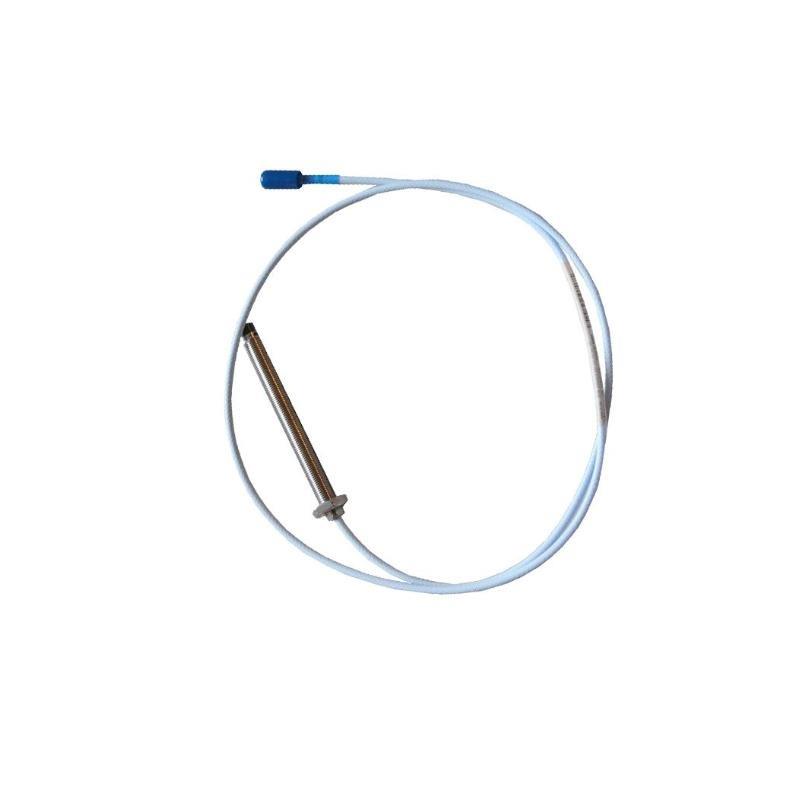

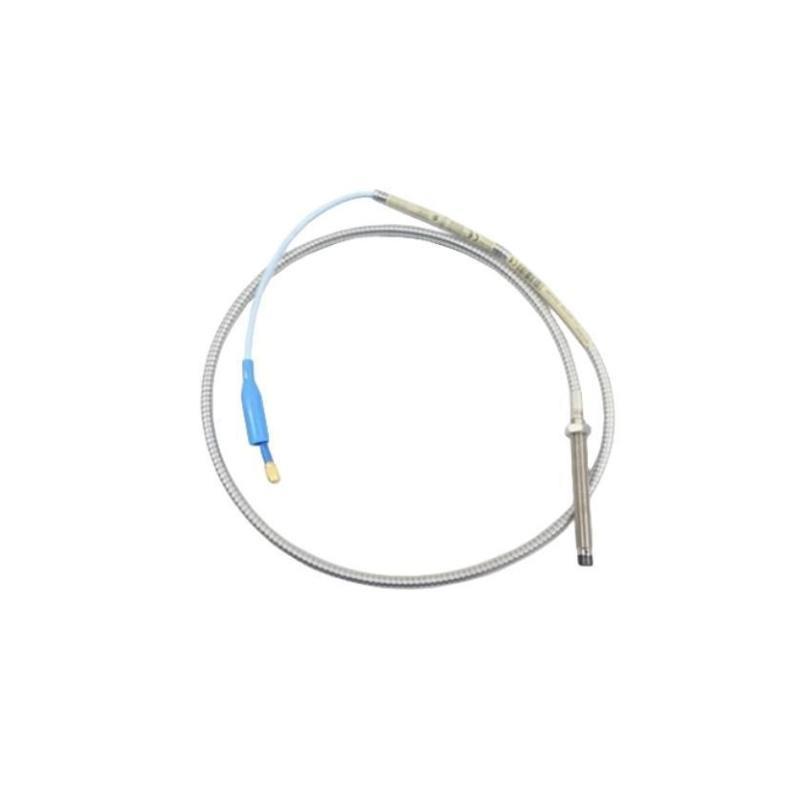

The Bently Nevada 330103-00-04-50-01-00 is an 8 mm proximity probe in the 3300 XL series, engineered for high-precision, non-contact shaft vibration and displacement measurement in rotating machinery. Its extended 5-meter cable and miniature coaxial ClickLoc™ connector facilitate flexible installation in expansive or complex machine layouts. The probe combines a PPS tip with a stainless steel housing to deliver reliable performance in challenging industrial environments.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle | 330103-00-04-50-01-00 |
| Measurement Range | 8 mm |
| Total Length | 5.0 meters |
| Poids | 1.615 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel (AISI 303/304) |
| Connector Type | Miniature Coaxial ClickLoc™ |
| Cable Type | Standard Industrial Cable |
| Thread Type | M10 × 1.0 |
| Operating Temperature | –40 °C to +120 °C |
| Target Material | AISI 4140 Steel |
| Compliance | API 670 4th Edition |
Applications
-
Vibration Monitoring: Enables early detection sur radial and axial shaft vibrations to prevent mechanical failures.
-
Shaft Position Measurement: Provides precise displacement data for alignment and balance optimization.
-
Keyphasor® Pulse Output: Supplies accurate synchronization signals for control and protection systems.
-
Harsh Environment Use: Designed for use in high-temperature, high-humidity, or contaminated industrial settings.
Product Advantages
-
Exceptional Accuracy: Delivers reliable, repeatable non-contact vibration measurements.
-
Robust Construction: Built for durability using high-grade materials.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 XL monitoring platforms.
-
Industry Standard Compliance: Meets API 670 machinery protection requirements.
-
Installation Flexibility: The 5 m cable allows for adaptable installation across varied machinery layouts.
FAQ
Q1: How do I set the correct probe-to-shaft gap?
A1: Use a standardized feeler gauge set to establish the recommended clearance between the tip and shaft during setup.
Q2: Can the probe handle rapid rotational changes?
A2: Yes, the probe maintains accuracy across the rated speed range for 3300 XL series systems.
Q3: Any tips for avoiding signal interference during installation?
A3: Route the cable away from electrical noise sources, ensure proper shielding and grounding, and maintain firm cable connections.
Q4: How do I test probe function after installation?
A4: Use the system’s self-test and verify Keyphasor® pulse and vibration signals for correctness.
Q5: Is the PPS tip compatible with different shaft materials?
A5: Yes, PPS is compatible with all standard target alloys used in the 3300 XL system.
Q6: Is there a quick way to confirm Keyphasor® output accuracy?
A6: Monitor signal timing under stable conditions and compare against known reference pulses.
Q7: Can the cable be extended beyond 5 m if needed?
A7: Longer cables may cause signal attenuation.
Q8: What error patterns suggest probe wear or failure?
A8: Irregular pulses, signal dropouts, or noise spikes typically indicate probe or cable degradation.
Q9: Does replacing the probe require system recalibration?
A9: No—3300 XL probes are designed for plug-and-play replacement without recalibration.
Q10: How do I deal with probe signal issues once installed?
A10: Check the mounting gap, cable integrity, grounding, and avoid route near electromagnetic interference.
Recommended Modèles (Same Series / Related)
| Modèle | Description |
|---|---|
| 330101-00-04-50-01-00 | 8 mm probe, M10 thread, 5 m cable |
| 330102-00-04-50-01-00 | 8 mm armored probe, 5 m cable |
| 330103-00-04-50-01-00 | 8 mm probe with extended temperature range, 5 m cable |
| 330104-00-04-50-01-00 | Smooth case 8 mm probe, 5 m cable |
| 330191-00-04-50-01-00 | Low-temperature variant, 8 mm probe, 5 m cable |
| 330103-00-03-10-02-00 | 10 mm probe, M10 thread, 1 m cable |
Popular Bently Nevada Modèles
| Modèle | Description |
|---|---|
| 330102-60-90-10-02-00 | Standard module for stable industrial control |
| 330102-60-90-10-02-05 | High-capacity module for enhanced data processing |
| 330102-60-90-10-02-10 | Redundant module for mission-critical applications |
| 330102-60-90-10-02-15 | High-speed module for real-time system monitoring |
| 330102-60-90-10-02-20 | Multi-protocol module for flexible system integration |
| 330102-60-90-10-02-25 | Compact, energy-efficient module for low-power operations |
