Présentation du produit

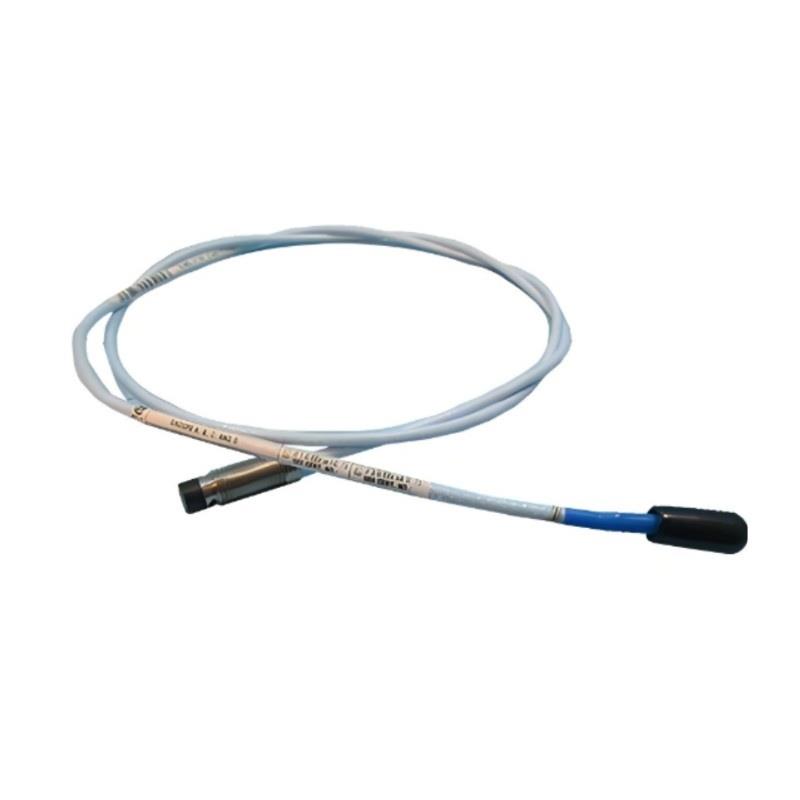

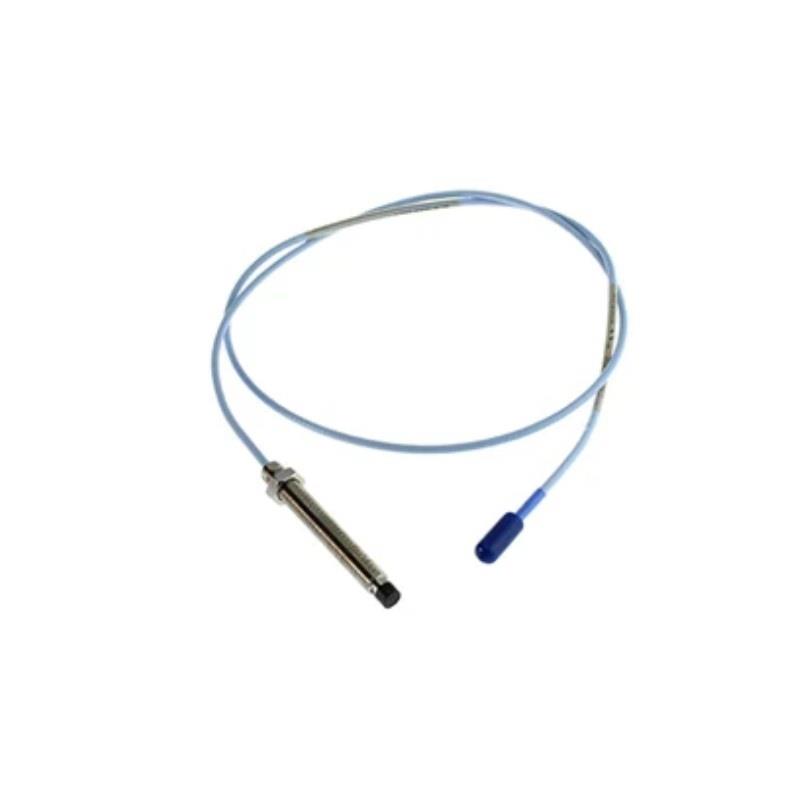

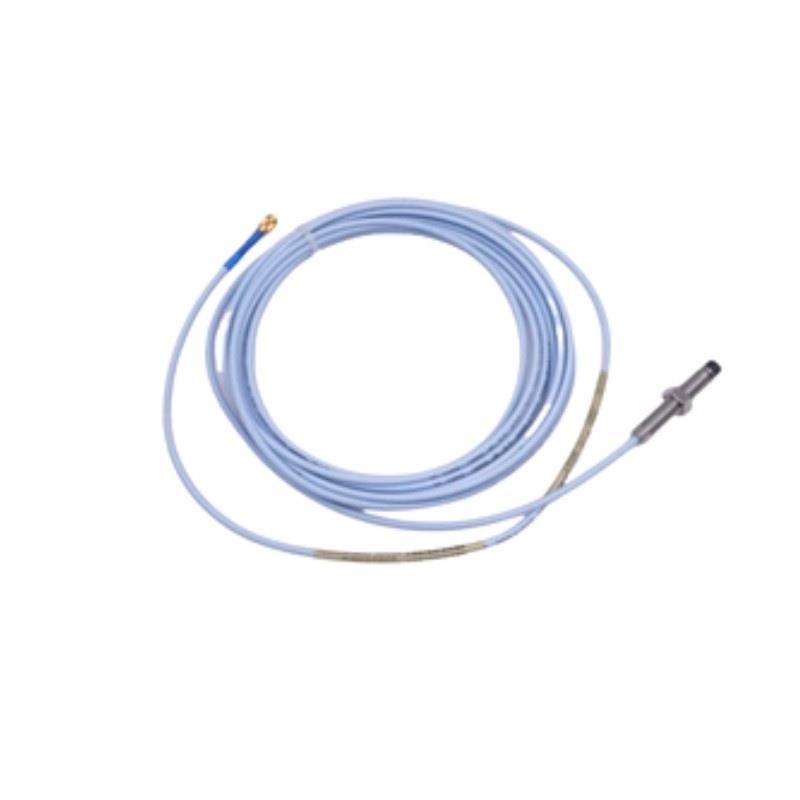

The Bently Nevada 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe is a highly reliable vibration and position measurement sensor designed for industrial rotating machinery. It is part sur the well-established 3300 XL series, which is widely recognized for delivering accurate and stable proximity measurements in demanding environments.
This probe works as a critical component within Bently Nevada’s monitoring systems, providing continuous non-contact measurements sur shaft vibration, axial position, and speed-related parameters. Its rugged construction and proven sensing technology make it an industry standard in turbomachinery monitoring, predictive maintenance, and protection systems.
Product Parameters
The technical specifications sur the 330102-00-50-10-01-00 are designed to ensure consistent performance in high-demand applications.
| Parameter | Specification |
|---|---|
| Modèle Number | 330102-00-50-10-01-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 m |
| Poids | 0.323 kg |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -50 °C to +200 °C |
| Humidity | 95% non-condensing |
| Insulation Resistance | > 10 MΩ |
Product Applications
The Bently Nevada 330102-00-50-10-01-00 Proximity Probe is widely used in critical machinery monitoring systems. Its applications include:
-
Shaft Vibration Monitoring: Continuous tracking sur radial vibration in turbines, compressors, pumps, and motors.
-
Axial Position Measurement: Monitoring thrust movement and axial displacement.
-
Rotational Speed Sensing: Used with phase markers for speed and phase reference.
-
Turbomachinery Protection: Integrated into machine protection systems to prevent catastrophic failures.
-
État Monitoring: Enables predictive maintenance strategies by providing early fault detection.
-
Integration in DCS and PLC Systems: Used in conjunction with control systems for automated shutdown and alarms.
Product Advantages
The 3300 XL 8 mm Proximity Probe surfers multiple benefits that ensure reliability and industry-leading performance:
-
High Measurement Accuracy: Provides precise vibration and displacement data, essential for machinery protection.
-
Extended Temperature Capability: Withstands harsh industrial environments, including extreme heat.
-
API 670 Compliance: Meets international standards for machinery protection systems.
-
Durable and Rugged Design: Built for continuous operation in high-vibration, high-temperature conditions.
-
Excellent Signal Stability: Minimizes drift and ensures repeatable measurements over long operational periods.
-
Wide Compatibility: Seamlessly integrates with Bently Nevada proximitor sensors and monitoring systems.
-
Proven Reliability: Trusted in industries such as oil & gas, petrochemicals, power generation, and heavy manufacturing.
FAQ
Q1: What is the typical sensitivity sur the 330102-00-50-10-01-00 probe?
A1: It has a sensitivity sur 200 mV/mil (7.87 mV/µm), ensuring precise displacement measurement.
Q2: Can this probe be used for both radial and axial position monitoring?
A2: Yes, it can measure both radial shaft vibration and axial thrust position depending on the mounting arrangement.
Q3: What is the linear range sur this probe?
A3: The linear measurement range is 2 mm (80 mils), suitable for most turbomachinery applications.
Q4: Is the probe compatible with older Bently Nevada proximitor sensors?
A4: It is specifically designed for 3300 XL Proximitor sensors, but backward compatibility depends on the driver type used.
Q5: What frequency range can the probe handle?
A5: It supports measurements from DC to 10 kHz, making it effective for both static and dynamic measurements.
Q6: Does the probe comply with API 670 standards?
A6: Yes, it fully complies with API 670 requirements for machinery protection.
Q7: How does temperature affect probe performance?
A7: The probe maintains accuracy within its rated temperature range sur -35 °C to +177 °C.
Q8: Can this probe be installed in hazardous areas?
A8: Yes, it has CSA, ATEX, and CE certifications, allowing installation in hazardous industrial environments.
Q9: What is the insulation resistance sur the probe?
A9: The insulation resistance is greater than 10 MΩ, ensuring excellent electrical isolation.
Q10: How is the probe typically connected to the monitoring system?
A10: It connects through coaxial cables to a 3300 XL Proximitor Sensor, which then interfaces with the monitoring system.
Recommended Same-Series or Related Modèles
| Modèle Number | Description |
|---|---|
| 330103-00-05-10-02-05 | 3300 XL 8 mm Proximity Probe, extended cable length |
| 330104-00-10-10-01-00 | 3300 XL 11 mm Proximity Probe for larger target surfaces |
| 330130-080-00-00 | 3300 XL Extension Cable, 8 m length |
| 330180-90-00 | 3300 XL Proximitor Sensor |
| 330101-00-16-10-02-00 | 3300 XL 5 mm Proximity Probe for compact installations |
| 330106-05-30-10-02-05 | 3300 XL Reverse Mount Probe, 8 mm tip |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 3500/42M | Proximitor/Seismic Monitor |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Relay Module |
| 330103-00-05-10-02-05 | XL 8 mm Proximity Probe |
| 330180-91-05 | XL Proximitor Sensor |
| 3500/92 | Communication Gateway Module |
| 3500/05 | System Rack |
| 330104-00-10-10-01-00 | XL 11 mm Proximity Probe |
