Product Description

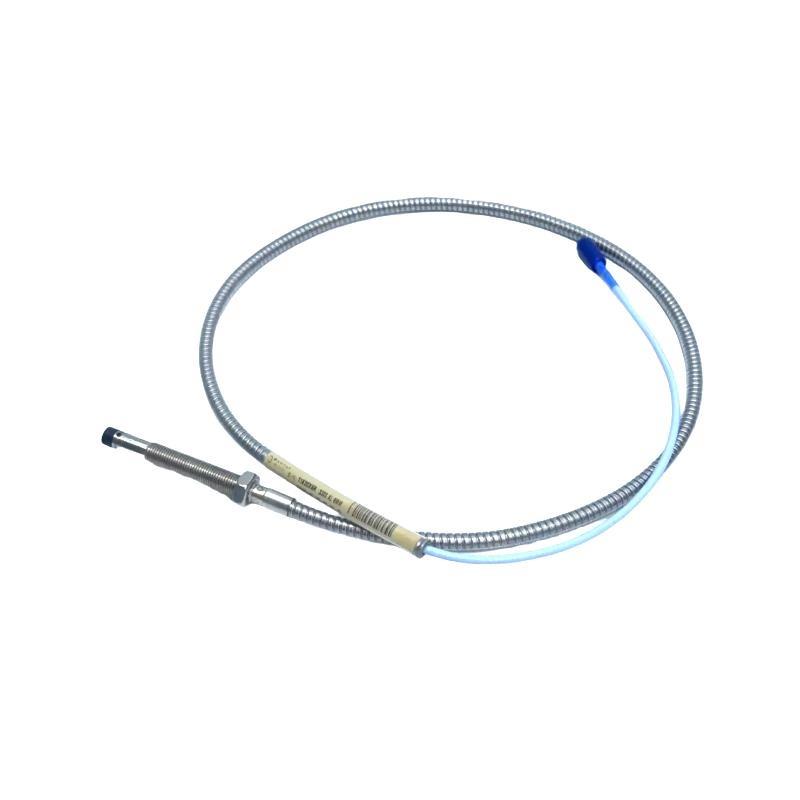

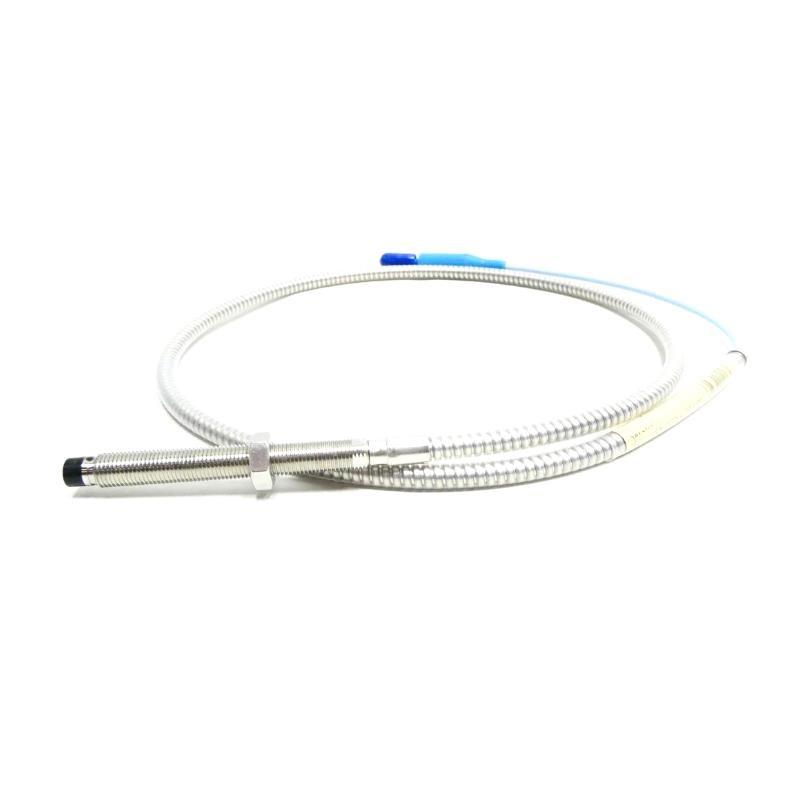

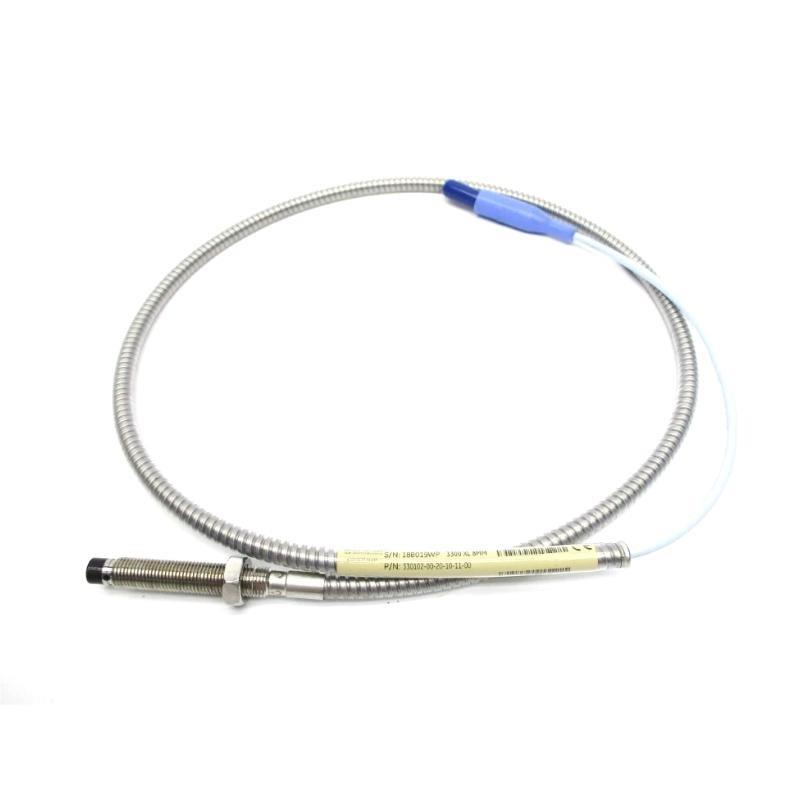

The Bently Nevada 330102-00-25-10-02-00 is a robust 8 mm armored proximity probe designed for vibration and position monitoring in fluid-film bearing machines. It delivers accurate static and dynamic measurements and complies with API 670 standards, surfering high linearity, excellent temperature stability, and complete component interchangeability.
Applications
-
Vibration and position monitoring sur rotating machinery
-
Keyphasor reference and overspeed protection
-
Ideal for use in high-density industrial environments
Advantages
-
Fully compliant with API 670 standard
-
Armored construction for mechanical protection
-
High immunitéy to RFI/EMI, suitable for demanding environments
-
Backward-compatible with non-XL 3300 5 mm and 8 mm systems
-
Easy installation with ClickLoc connectors and optional FluidLoc cable for leak prevention
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | 3300 XL 8 mm Proximity Probe |
| Modèle Number | 330102-00-25-10-02-00 |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Probe Diameter | 8 mm |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C |
| Extended Temp Range (ETR) | Up to +218°C (probe), +260°C (cable) |
| Probe Material | Stainless Steel with PPS tip |
| Cable Type | Armored, ClickLoc connector |
FAQ
Q1: Is the 330102-00-25-10-02-00 probe backward compatible?
Yes, it is fully backward compatible with older 3300-series 5 mm and 8 mm systems.
Q2: Does this probe meet API 670 standards?
Yes, it meets API 670 mechanical and performance specifications.
Q3: Can it be used in high-temperature environments?
Yes, standard operation is rated up to +177°C, with ETR versions supporting up to +218°C at the probe tip.
Q4: What is the main advantage sur the armored design?
The armor provides added mechanical protection against abrasion and harsh conditions.
Q5: What is the output signal type?
It provides a voltage output directly proportional to the shaft position or vibration.
Q6: Does it require calibration when components are replaced?
No, all components are fully interchangeable without the need for recalibration.
Q7: Can it withstand high electromagnetic interference?
Yes, it has improved RFI/EMI immunitéy and meets CE mark requirements.
Q8: What connector type is used?
It uses corrosion-resistant gold-plated ClickLoc connectors for secure and tool-free installation.
Q9: What is the minimum target size it can detect?
Minimum target size is 15.2 mm (0.6 inch) diameter flat target.
Q10: Is FluidLoc cable available for this probe?
Yes, FluidLoc cables can be specified to prevent oil leakage through the cable interior.
Recommended Related Modèles (Same Series)
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm Probe, unarmored | 1.0 m | 0.270 kg |
| 330103-00-05-10-02-00 | 3300 XL 8 mm Metric Thread, armored | 1.0 m | 0.323 kg |
| 330104-00-06-10-02-00 | 3300 XL 8 mm Metric Thread, unarmored | 1.0 m | 0.270 kg |
| 330105-02-12-10-02-00 | 3300 XL 8 mm Reverse Mount, armored | 1.0 m | 0.323 kg |
| 330191-00-20-10-02-00 | 3300 XL 8 mm ETR Probe, unarmored | 1.0 m | 0.270 kg |
| 330192-00-25-10-02-00 | 3300 XL 8 mm ETR Probe, armored | 1.0 m | 0.323 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 3300/42M-01-00 | Proximitor Seismic Monitor | – | 0.5 kg |
| 3500/22M | Transient Data Interface Module | – | 0.6 kg |
| 3500/32M | 4-Channel Relay Module | – | 0.4 kg |
| 3500/60 | Temperature Monitor | – | 0.5 kg |
| 3500/61 | Temperature Monitor with RTD input | – | 0.5 kg |
| 330104-00-06-10-02-00 | 3300 XL 8 mm Metric Probe, unarmored | 1.0 m | 0.270 kg |
