Présentation du produit

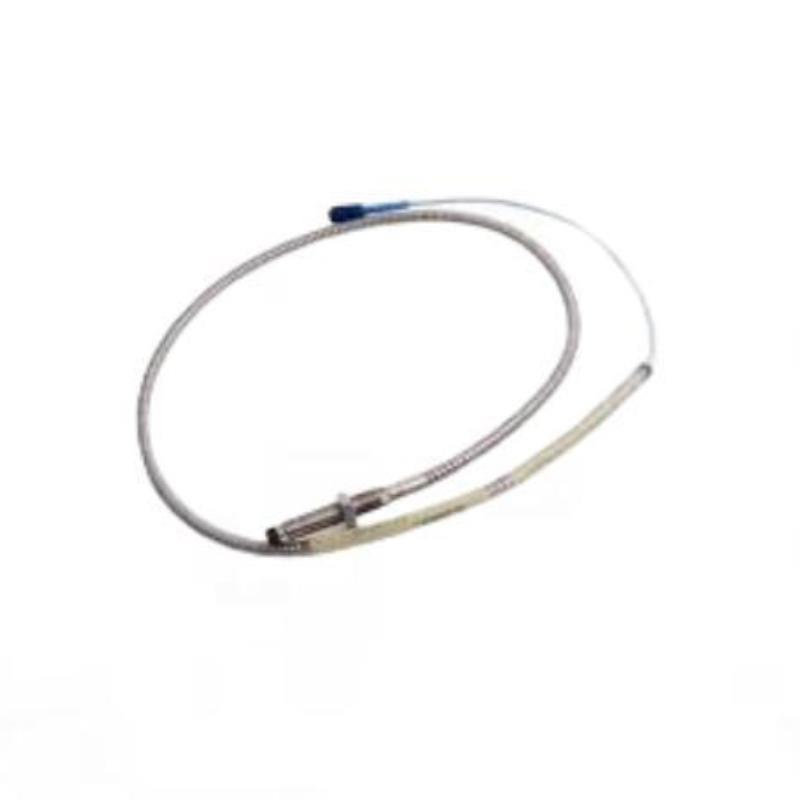

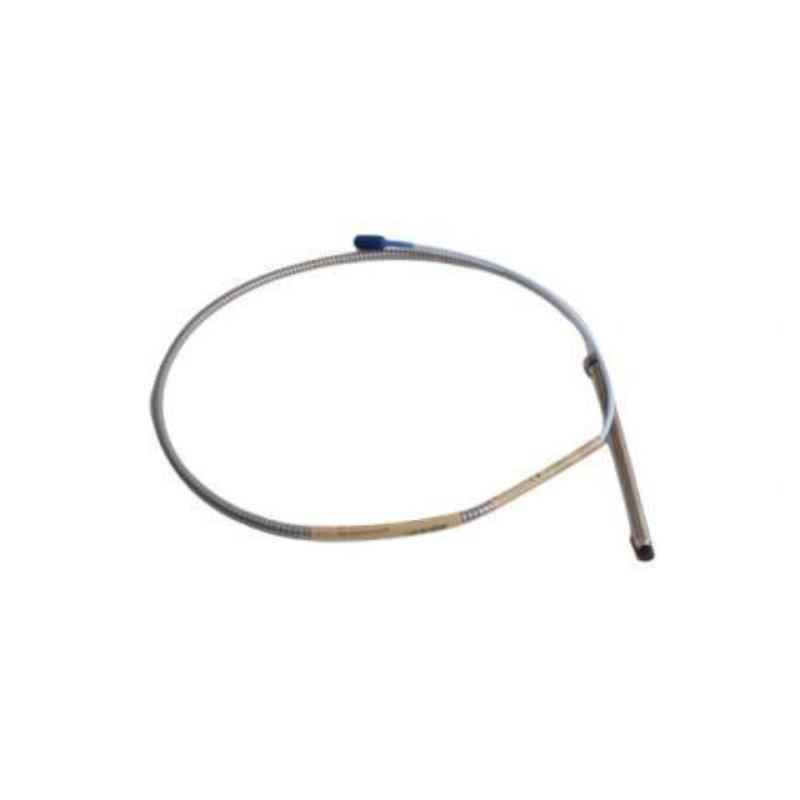

The Bently Nevada 330102-00-23-05-00-00 is a high-performance 8 mm proximity probe from the 3300 XL series, designed for precise vibration and position monitoring in industrial machinery. This robust sensor is widely used in critical applications where accurate measurement sur shaft displacement, eccentricity, and other dynamic parameters is essential. It is compatible with Bently Nevada’s monitoring systems, providing reliable data for predictive maintenance and machinery protection.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | 330102-00-23-05-00-00 |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| Output Signal | -2 V to -18 V (linear range) |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Frequency Response | 0 to 10 kHz |
| Connector Type | MIL-C-5015 or equivalent |
| Material | Stainless steel housing |
| Total Length | 0.5 m |
| Poids | 0.162 kg |
| Compliance | API 670, ISO 10816 |
Product Applications
The 3300 XL 8 mm proximity probe is ideal for:
-
Rotating Machinery Monitoring: Measures shaft vibration, runout, and position in turbines, compressors, and pumps.
-
Predictive Maintenance: Detects early signs sur wear, misalignment, or imbalance to prevent unplanned downtime.
-
Oil & Gas Industry: Used in critical equipment like centrifugal compressors and gas turbines.
-
Power Generation: Monitors steam and gas turbines for efficient operation.
-
Industrial Manufacturing: Ensures precision in high-speed machinery such as gearboxes and motors.
Product Advantages
-
High Accuracy: Provides precise measurements for machinery health assessment.
-
Durability: Stainless steel construction ensures longevity in harsh environments.
-
Wide Temperature Range: Operates reliably in extreme conditions.
-
Compatibility: Integrates seamlessly with Bently Nevada’s 3300 monitoring systems.
-
Compliance: Meets industry standards like API 670 and ISO 10816.
-
Easy Installation: Standardized design simplifies setup and maintenance.
Questions fréquentes (FAQ)
-
What is the operating voltage sur the 3300 XL 8 mm probe?
The probe requires -24 V DC power for operation. -
Can this probe be used in hazardous environments?
Yes, it is suitable for harsh industrial environments but may require additional certifications for explosive atmospheres. -
What is the linear range sur the probe?
The linear range is typically 2 mm (80 mils) with a -2 V to -18 V output. -
How do I calibrate the probe?
Calibration requires a gap voltage setup using a calibration fixture and compatible monitoring system. -
Is the cable length customizable?
Standard cable length is 1 m, but custom lengths may be available upon request. -
What is the recommended gap voltage for installation?
The optimal gap voltage is -10 V ± 1 V for best performance. -
Can the probe measure non-ferrous materials?
No, it is designed for ferrous targets (steel or iron). -
What is the lifespan sur the probe?
With proper maintenance, the probe can last 5+ years depending on operating conditions. -
Does the probe require regular maintenance?
Periodic inspection for cable integrity and connector cleanliness is recommended. -
Is the probe compatible with non-Bently Nevada systems?
Compatibility depends on the system’s input requirements; consult the manufacturer for details.
Recommended Related & Popular Modèles
| Related Modèles (Same Series) | Description |
|---|---|
| 330102-00-23-05-00-00 | 8 mm Proximity Probe (Standard) |
| 330102-00-23-10-00-00 | 8 mm Probe with Extended Temperature Range |
| 330104-00-23-05-00-00 | 11 mm Proximity Probe |
| 330105-00-23-05-00-00 | 14 mm Proximity Probe |
| 330101-00-23-05-00-00 | 5 mm Proximity Probe |
| 330103-00-23-05-00-00 | 11 mm High-Temperature Probe |
| Popular Bently Nevada Modèles | Description |
|---|---|
| 3500/42M | Vibration Monitor Module |
| 330180-90-00 | Velocity Seismoprobe |
| 330701-00-00-00-00-00 | Accelerometer |
| 3300/16 | Proximitor® Sensor |
| 330104-02-10-10-02-00 | 11 mm High-Sensitivity Probe |
| 3500/22M | Transient Data Interface Module |
