Description

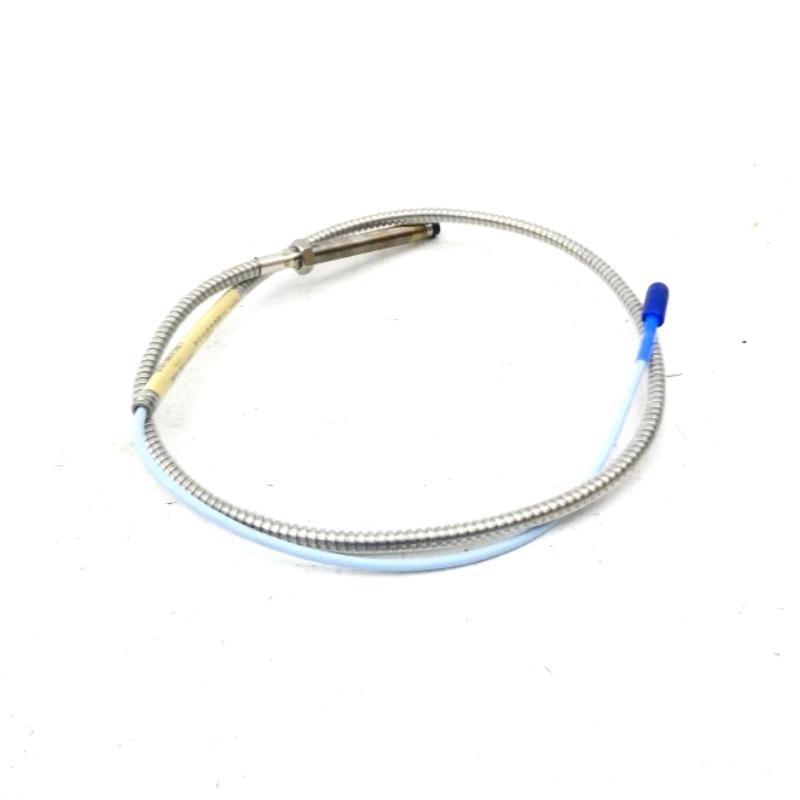

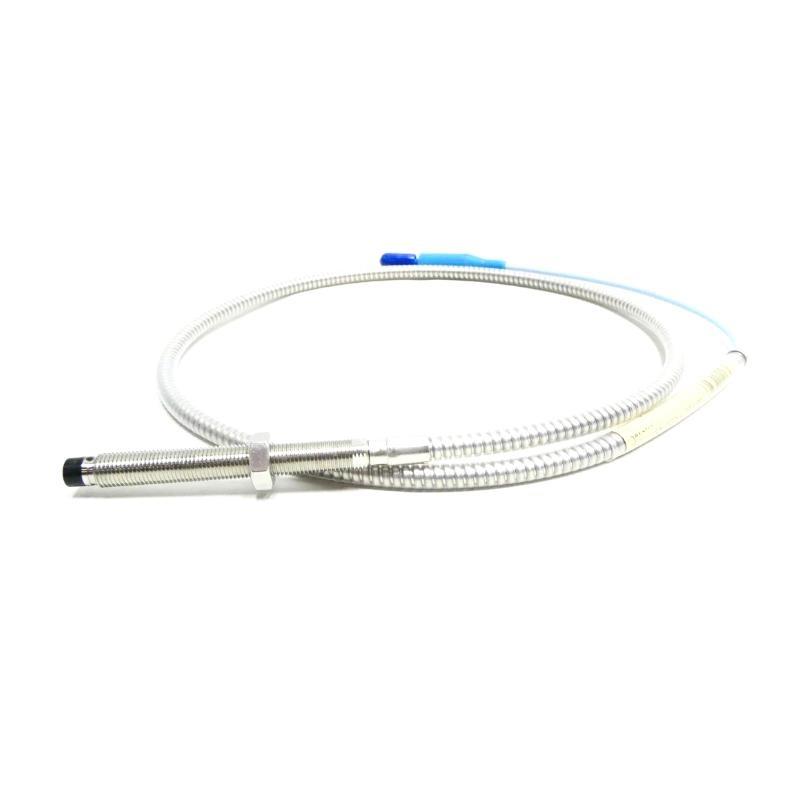

The Bently Nevada 330102-00-13-15-02-05 is part sur the 3300 XL 8 mm Proximity Transducer System. This probe delivers precise static and dynamic measurements sur position and vibration on rotating machinery, complying with API 670 standards. Designed with armored cable for durability, it features robust connectors and an improved tip construction, ideal for harsh industrial environments.
Applications
-
Vibration monitoring on fluid-film bearing machines
-
Shaft position and displacement measurement
-
Keyphasor and speed reference applications
-
Overspeed protection systems in turbines and compressors
Advantages
-
Fully compliant with API 670 mechanical and electrical standards
-
Backward and forward compatibility with other 3300 series components
-

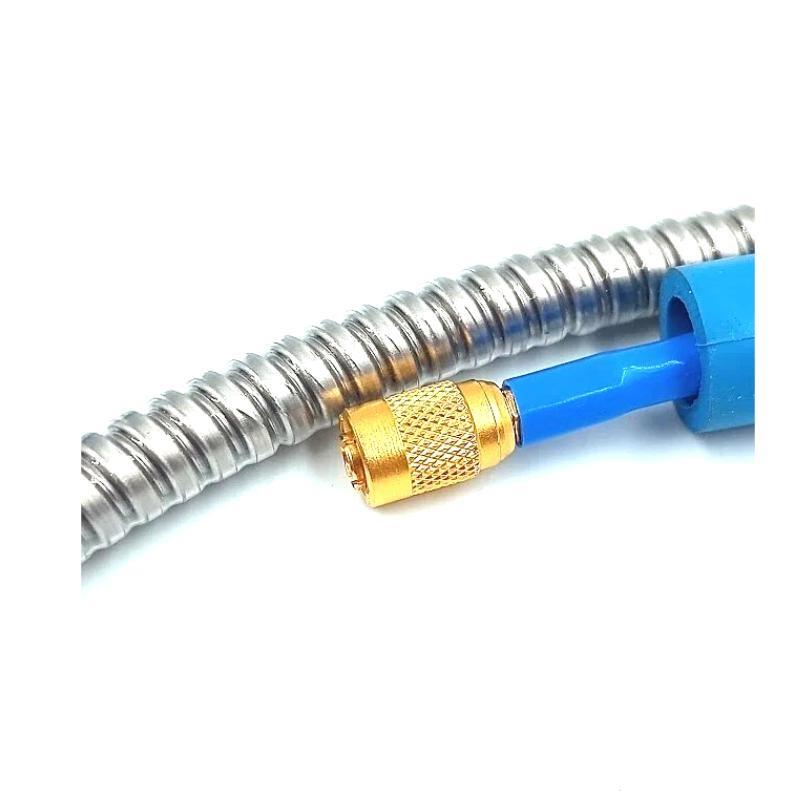

ClickLoc gold-plated connectors for reliable, tool-free connections
-
Armored cable for enhanced mechanical protection
-
High immunitéy to RFI/EMI, suitable for demanding environments
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.5 meters |
| Poids | 0.485 kg |
| Probe Diameter | 8 mm |
| Linear Range | 2 mm (80 mils) |
| Operating Temperature | -52°C to +177°C (standard) |
| Extended Temperature (optional) | Up to +218°C (probe), +260°C (cable) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Shaft Diameter | 50.8 mm (recommended 76.2 mm) |
| Output Sensitivity | 200 mV/mil ±5% |
| Probe Material | Stainless steel with PPS tip |
| Cable Type | Armored FEP-insulated triaxial |
FAQ
Q1: What is the primary use sur the 330102 proximity probe?
A1: It is used for precise vibration and position monitoring on rotating equipment.
Q2: Is the probe API 670 compliant?
A2: Yes, it meets API 670 requirements for linearity, temperature, and mechanical configuration.
Q3: Can the probe withstand high temperatures?
A3: The standard version operates up to 177°C; the extended range version can withstand up to 218°C.
Q4: Are the components interchangeable with older 3300 series parts?
A4: Yes, they are backward and forward compatible.
Q5: What type sur connector does it use?
A5: It features gold-plated ClickLoc connectors that click into place by hand.
Q6: Is armored cable necessary?
A6: Armored cable provides additional protection in harsh environments and is recommended.
Q7: Can it be used for Keyphasor applications?
A7: Yes, it supports Keyphasor and speed reference measurements.
Q8: What is the recommended gap setting?
A8: Approximately 1.27 mm (50 mils) for radial vibration monitoring.
Q9: How is environmental protection ensured?
A9: Through armored cables, connector protectors, and improved sealing.
Q10: What is the frequency range sur the system?
A10: The frequency response is flat up to 10 kHz.
Recommended Related Modèles
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330101-00-08-05 | 8 mm probe, unarmored, 0.5 m | 0.5 m | 0.3 kg |
| 330103-00-05-10 | 8 mm probe, metric thread, armored, 1.0 m | 1.0 m | 0.4 kg |
| 330104-00-06-10 | 8 mm probe, metric thread, armored, 1.5 m | 1.5 m | 0.485 kg |
| 330105-02-12-05 | Reverse mount probe, armored, 0.5 m | 0.5 m | 0.35 kg |
| 330191-00-05-15 | Extended temperature probe, unarmored, 1.5 m | 1.5 m | 0.485 kg |
| 330192-00-05-20 | Extended temperature probe, armored, 2.0 m | 2.0 m | 0.55 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330180-50 | Proximitor Sensor, panel mount, 5 m | 5.0 m | 0.7 kg |
| 330130-030 | Extension Cable, 3.0 m | 3.0 m | 0.2 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | N/A | 1.0 kg |
| 3500/44M | Aeroderivative Vibration Monitor | N/A | 1.2 kg |
| 3500/22M | Transient Data Interface Module | N/A | 1.1 kg |
| 3500/15 | Power Supply Module | N/A | 0.8 kg |
