Présentation du produit

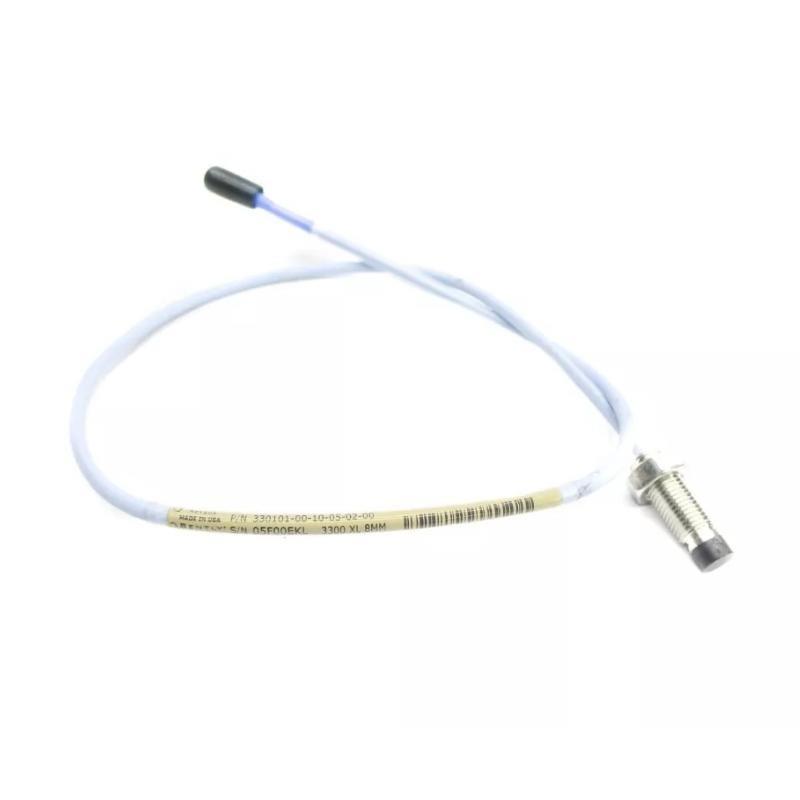

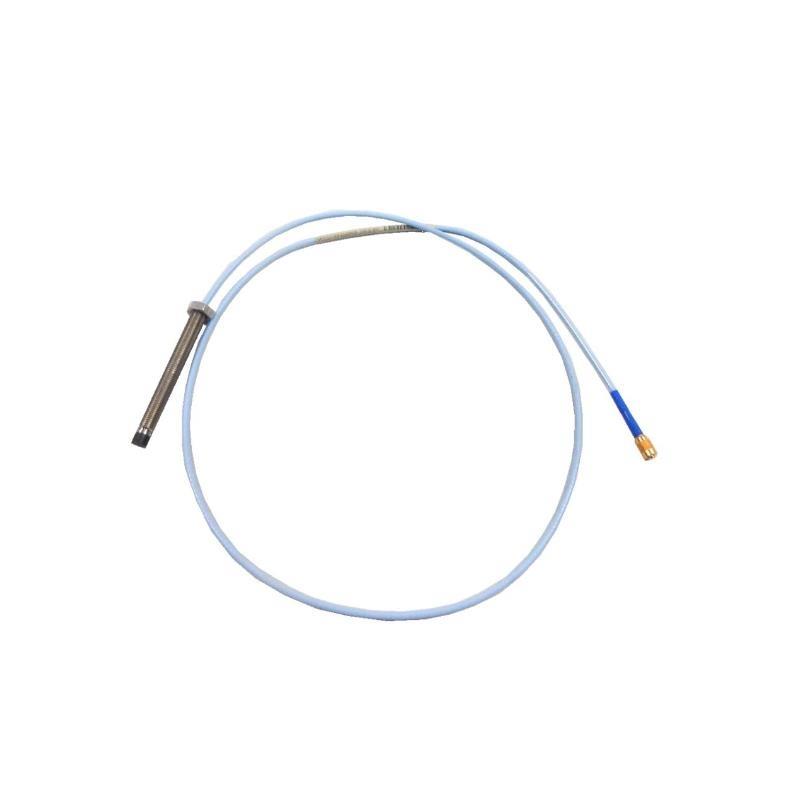

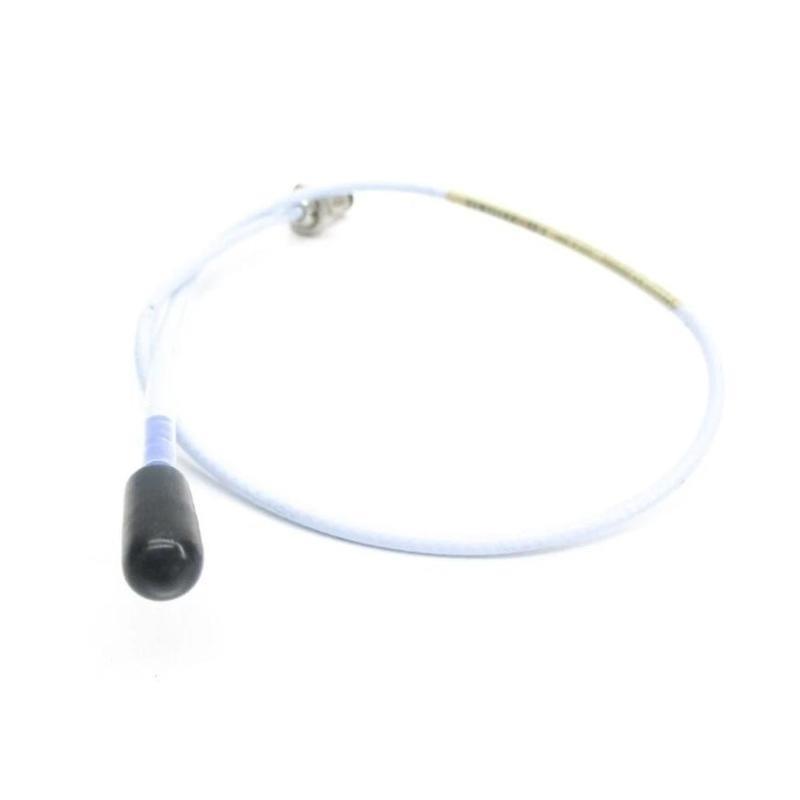

The Bently Nevada 330101-32-70-05-12-05 is part sur the 3300 XL 8 mm Proximity Transducer System, designed for precise measurement sur shaft vibration and position on rotating machinery. Featuring robust construction and advanced electrical performance, it meets API 670 standards and surfers superior interchangeability with other 3300 series components. Its compact design and reliable connectors make it ideal for demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8.0 mm |
| Thread Type | 3/8-24 UNF |
| Cable Type | FluidLoc, ClickLoc connector |
| Cable Length | 0.5 meter |
| Poids | 0.162 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Temperature Range (probe) | -52°C to +177°C (standard) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Output Scale Factor | 7.87 V/mm ±5% (5 m system) |
| Material (Probe Tip) | PPS (Polyphenylene Sulfide) |
| Material (Probe Body) | Stainless Steel AISI 303/304 |
Applications
-
Shaft vibration monitoring on turbines, compressors, and pumps
-
Radial and axial position measurement
-
Keyphasor and speed reference measurements
-
État monitoring in fluid-film bearing machines
Advantages
-
Fully compliant with API 670
-
Backward compatibility with non-XL 3300 series
-
ClickLoc connectors for secure, tool-free installation
-
FluidLoc cable option prevents oil leakage
-
Rugged design for high mechanical durability
-
High immunitéy to RFI/EMI
FAQ
Q1: What is the main use sur this probe?
A1: It measures shaft vibration and position in rotating machinery.
Q2: Is it compatible with older 3300 series systems?
A2: Yes, it is backward and physically interchangeable.
Q3: Does it meet API 670 standards?
A3: Yes, it fully complies with API 670.
Q4: What is the recommended gap setting?
A4: 1.27 mm (50 mils) with approximately -9 Vdc output.
Q5: What is the typical frequency response?
A5: Flat from 0 to 10 kHz (+0/-3 dB).
Q6: How resistant is it to environmental conditions?
A6: The probe operates from -52°C to +177°C and resists high humidity.
Q7: What is the purpose sur the FluidLoc cable?
A7: It prevents oil and liquids from leaking through the cable.
Q8: How much does the probe weigh?
A8: Approximately 0.162 kg.
Q9: Can it be used in hazardous areas?
A9: Yes, it is approved for hazardous environments when properly installed.
Q10: Does it require special tools to install?
A10: No, the ClickLoc connectors are designed for finger-tight installation.
Recommended Related Modèles (Same Series)
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330101-32-XX-05-12-05 | 3300 XL 8 mm Probe, UNF, FluidLoc | 0.5 m | 0.162 kg |
| 330102-XX-XX-05-12-05 | 3300 XL 8 mm Probe, armored | 0.5 m | 0.18 kg |
| 330103-XX-XX-05-12-05 | 3300 XL 8 mm Probe, metric thread | 0.5 m | 0.162 kg |
| 330104-XX-XX-05-12-05 | 3300 XL 8 mm Probe, metric, armored | 0.5 m | 0.18 kg |
| 330105-XX-XX-05-12-05 | 3300 XL 8 mm Reverse Mount Probe | 0.5 m | 0.165 kg |
| 330106-XX-XX-05-12-05 | 3300 XL 8 mm Reverse Mount, metric | 0.5 m | 0.165 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | 1.0 m | 0.165 kg |
| 330130-XXX | 3300 XL Extension Cable | Various | Varies |
| 330180-XX-XX | 3300 XL Proximitor Sensor | Panel/DIN | 0.25 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | N/A | 1.2 kg |
| 3500/22M | Transient Data Interface Module | N/A | 1.5 kg |
| 3500/25 | Keyphasor Module | N/A | 1.3 kg |
