Product Description

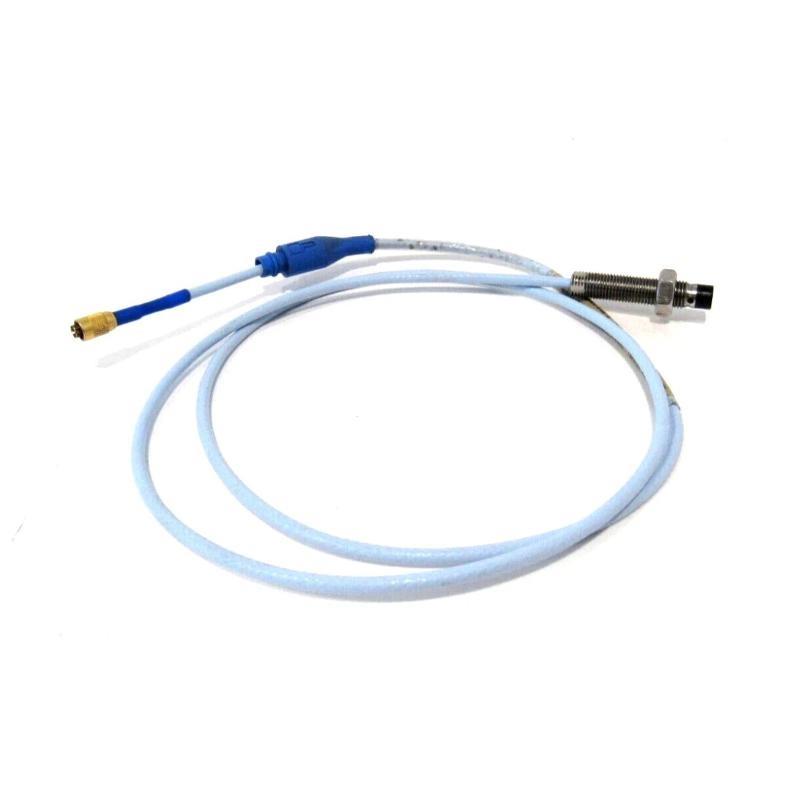

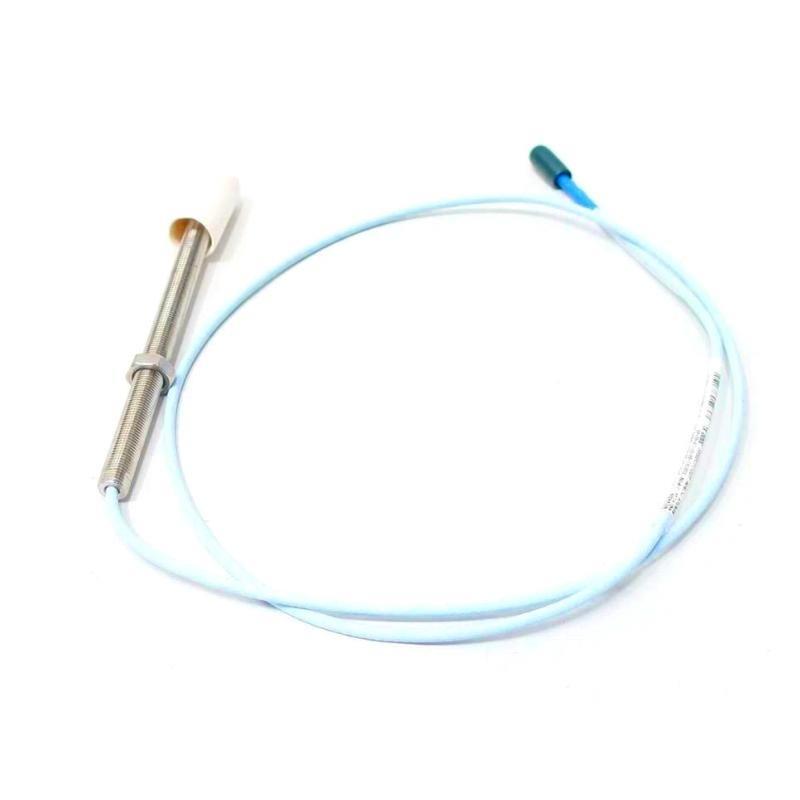

The Bently Nevada 330101-30-63-10-02-05 is part sur the 3300 XL 8 mm Proximity Transducer System. It accurately measures vibration and position by detecting the distance to a conductive surface. It features robust construction with patented TipLoc and CableLoc technologies to ensure durability and secure connections. This probe is backward compatible with non-XL series and fully interchangeable without recalibration.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Probe Diameter | 8 mm |
| Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | Stainless Steel (AISI 303/304) |
| Operating Temperature | -52°C to +177°C |
| Pressure Seal | Viton O-ring |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0 – 10 kHz (+0/-3 dB) |
| Cable Type | 75Ω triaxial, FEP insulated |

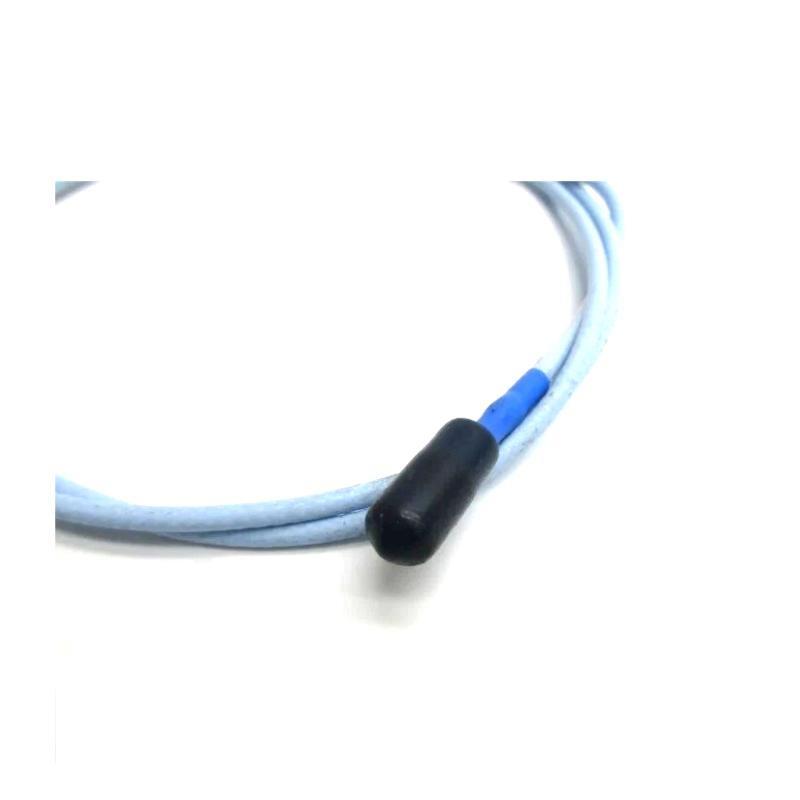

| Connector Type | Gold-plated miniature ClickLoc |
| Tensile Strength | 330 N (probe case to lead) |
Applications
-
Radial vibration monitoring on fluid-film bearing machines
-
Axial position measurements
-
Keyphasor reference and speed measurement
-
Overspeed protection systems (with precautions)
Advantages
-
Fully compliant with API 670 standards
-
High immunitéy to RFI/EMI, allowing flexible installations
-
No bench calibration required for components
-
Rugged design for harsh industrial environments
-
Extended temperature range options available
-
Easy installation with click-type connectors and no special tools required
FAQ
Q1: What is the main function sur the 330101-30-63-10-02-05 probe?
A1: It measures the position and vibration sur rotating machinery components.
Q2: Is the probe compatible with older 3300 series components?
A2: Yes, it is backward compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: What is the recommended operating temperature range?
A3: The standard range is -52°C to +177°C.
Q4: Can this probe be used in high-RF environments?
A4: Yes, it has improved RFI/EMI immunitéy and meets CE standards.
Q5: Does it require special tools for installation?
A5: No, thanks to the ClickLoc connectors, only finger-tight installation is required.
Q6: What is the maximum linear range it can measure?
A6: It has a linear range sur 2 mm (80 mils).
Q7: Does it include a pressure seal?
A7: Yes, it features a Viton O-ring to seal pressure between tip and case.
Q8: Is recalibration necessary when replacing components?
A8: No, components are fully interchangeable without recalibration.
Q9: Can it be used for overspeed protection?
A9: Yes, but with proper design precautions as noted in Bently application notes.
Q10: What is the recommended shaft diameter for measurement?
A10: A minimum sur 50.8 mm, with 76.2 mm recommended for optimal accuracy.
Recommended Related Modèles (Same Series)
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330101-00-08-10-02-05 | XL 8 mm probe, 3/8-24 thread | 1.0 m | 0.323 kg |
| 330101-00-12-10-02-05 | XL 8 mm probe, 3/8-24 thread | 1.5 m | 0.485 kg |
| 330101-00-20-10-02-05 | XL 8 mm probe, 3/8-24 thread | 2.0 m | 0.647 kg |
| 330101-00-30-10-02-05 | XL 8 mm probe, 3/8-24 thread | 3.0 m | 0.970 kg |
| 330191-00-10-10-02-05 | XL 8 mm ETR probe, 3/8-24 thread | 1.0 m | 0.323 kg |
| 330105-02-12-10-02-05 | XL 8 mm reverse mount, 3/8-24 thread | 1.0 m | 0.323 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | — | — |
| 3500/44M-01-00 | Aeroderivitive GT Vibration Monitor | — | — |
| 3500/22M-01-00 | Transient Data Interface Module | — | — |
| 3500/40M-01-00 | Proximitor Monitor | — | — |
| 3500/15E-01-00 | Power Supply Module | — | — |
| 3500/25-01-01-01 | Keyphasor Module | — | — |
