Présentation du produit

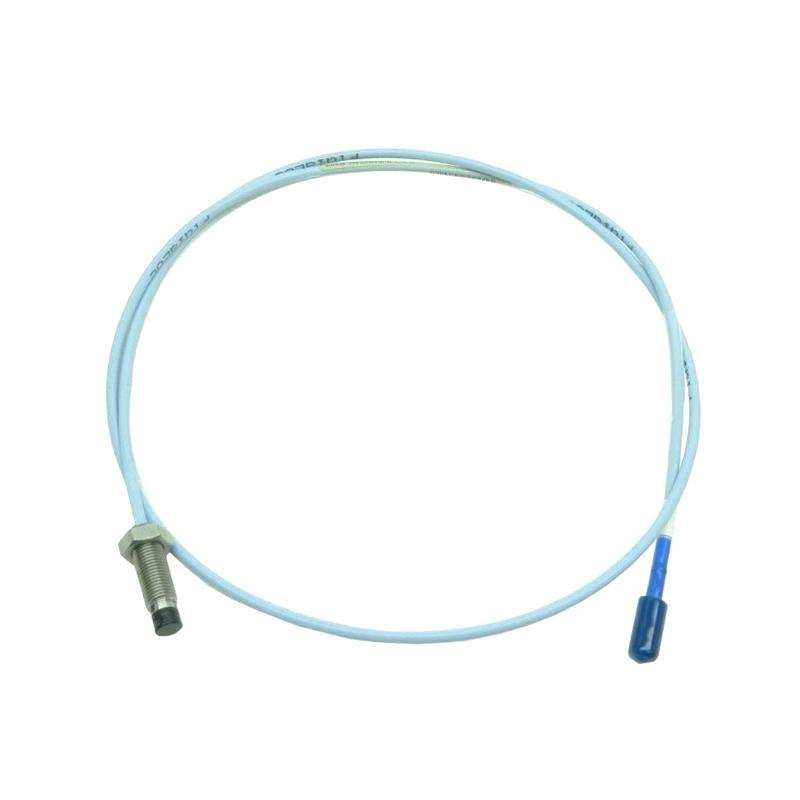

The Bently Nevada 330101-12-40-10-02-05 is a high-precision proximity probe from the 3300 XL 8mm Proximity Transducer System. It is designed for accurate and reliable measurement sur shaft vibration and displacement in critical rotating machinery. This probe provides essential data for machinery protection and condition monitoring systems, allowing for early detection sur rotor dynamics issues and minimizing downtime in industrial operations.
The 3300 XL series is widely recognized in the power generation, petrochemical, and heavy industrial sectors. With compliance to API 670 standards, this probe surfers exceptional performance under extreme operating conditions, including high temperatures, vibration, and harsh environments.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | 330101-12-40-10-02-05 |
| Series | 3300 XL 8mm Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Connector Type | Microdot |
| Operating Temperature | -35°C to +177°C |
| Housing Material | Stainless Steel |
| Nominal Gap | 2.0 mm (80 mils) |
| Linear Range | 2.0 mm to 4.0 mm |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Insulation Resistance | > 100 MΩ at 500 VDC |
| Compliance | API 670 |
| Probe Tip Length | 80 mm |
| Poids | 0.323 kg |
Product Applications
The 330101-12-40-10-02-05 probe is designed for critical machinery monitoring and protection. Typical applications include:
-
Steam Turbines: Shaft vibration and axial displacement measurement for safe operation.
-
Gas Compressors: Detection sur rotor dynamics and imbalance.
-
Pumps: Monitoring shaft alignment and preventing mechanical failures.
-
Generators: Ensuring operational stability and protecting against rotor faults.
-
Industrial Fans and Blowers: Measuring runout and vibration in rotating shafts.
-
Petrochemical and Oil & Gas Equipment: Continuous monitoring in high-temperature and hazardous environments.
Product Advantages
-
API 670 Compliance: Meets global standards for machinery protection systems.
-
High Reliability: Durable stainless steel construction withstands harsh environments.
-
Extended Temperature Range: Effective operation from -35°C to +177°C.
-
Superior Signal Quality: Minimal noise ensures accurate and reliable readings.
-
Easy Integration: Fully compatible with 3300 XL Proximitor sensors and monitoring systems.
-
Industry Standard: Recognized globally for predictive maintenance applications.
-
Versatility: Suitable for turbines, compressors, pumps, generators, and industrial fans.
FAQ
-
What is the output sensitivity sur this probe?
The output sensitivity is 7.87 V/mm (200 mV/mil). -
What is the nominal gap for the probe?
The nominal gap is 2.0 mm (80 mils). -
What is the linear measurement range?
The linear range is from 2.0 mm to 4.0 mm. -
What is the frequency response range sur the probe?
The frequency response range is 0 to 10 kHz. -
Can this probe operate in hazardous environments?
Yes, it meets API 670 and is suitable for critical industrial conditions. -
What type sur connector does the probe use?
The probe uses a Microdot connector. -
Is the probe compatible with 3300 XL Proximitor sensors?
Yes, it is fully compatible with Bently Nevada Proximitor sensors. -
What is the insulation resistance sur the probe?
The insulation resistance is greater than 100 MΩ at 500 VDC. -
What is the maximum operating temperature for the probe?
The maximum operating temperature is +177°C. -
Does this probe comply with API 670 standards?
Yes, it fully complies with API 670 requirements.
Related Modèles (Same Series or Similar Functionality)
| Modèle | Description |
|---|---|
| 330101-05-30-05-02-00 | 3300 XL 8mm Proximity Probe, 0.5 m cable |
| 330101-08-12-10-02-05 | 3300 XL 8mm Proximity Probe, 1.0 m cable |
| 330101-085-00-00 | 3300 XL 8mm Proximity Probe, optional length |
| 330101-10-40-10-02-05 | 3300 XL 8mm Proximity Probe, 1.0 m cable |
| 330102-00-20-10-02-05 | 3300 XL 11mm Proximity Probe |
| 330103-00-05-10-02-00 | 3300 XL 5mm Proximity Probe |
