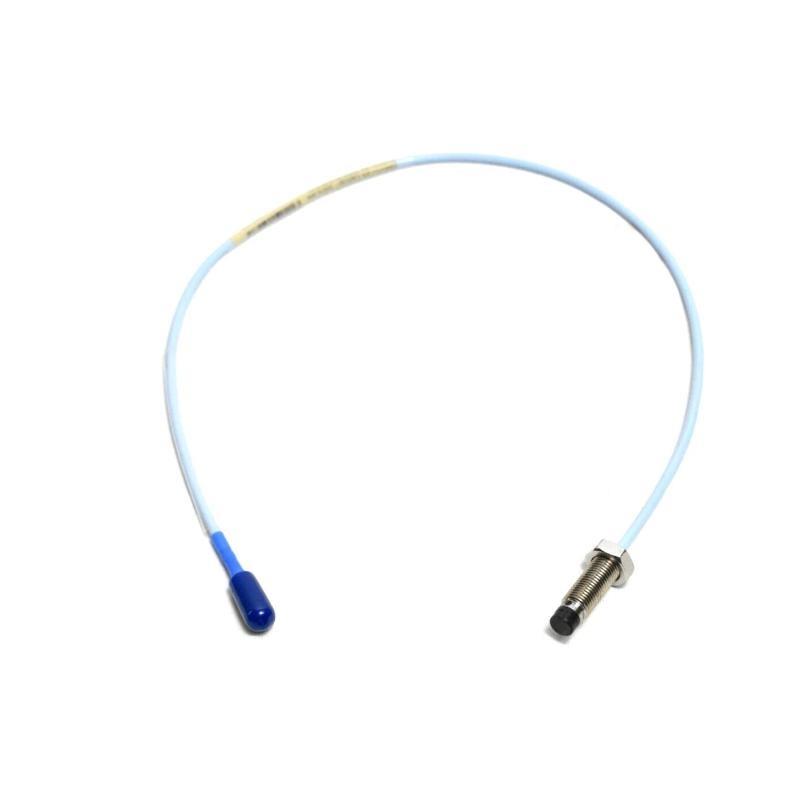

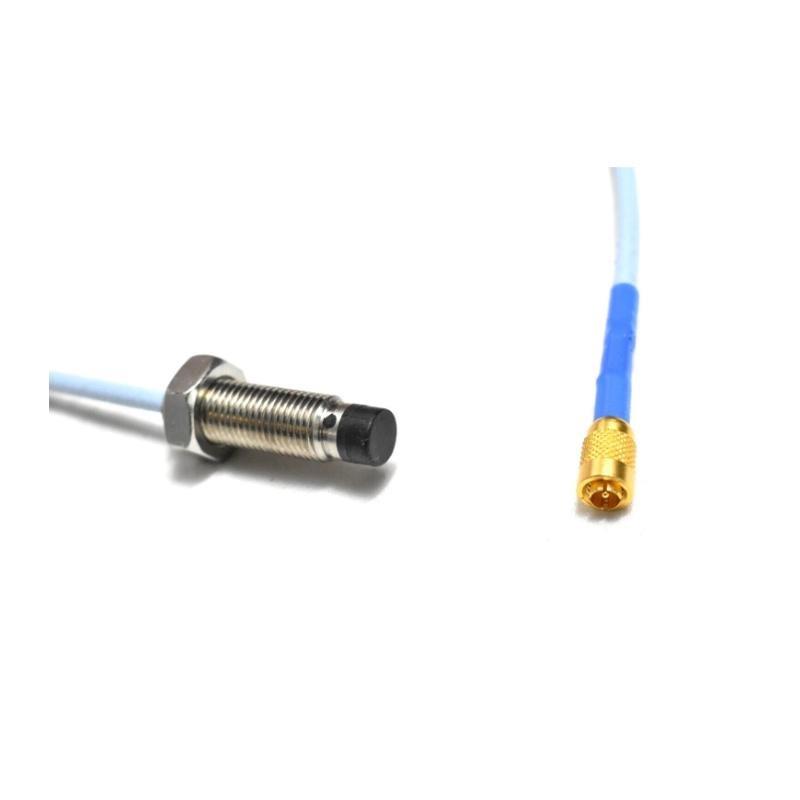

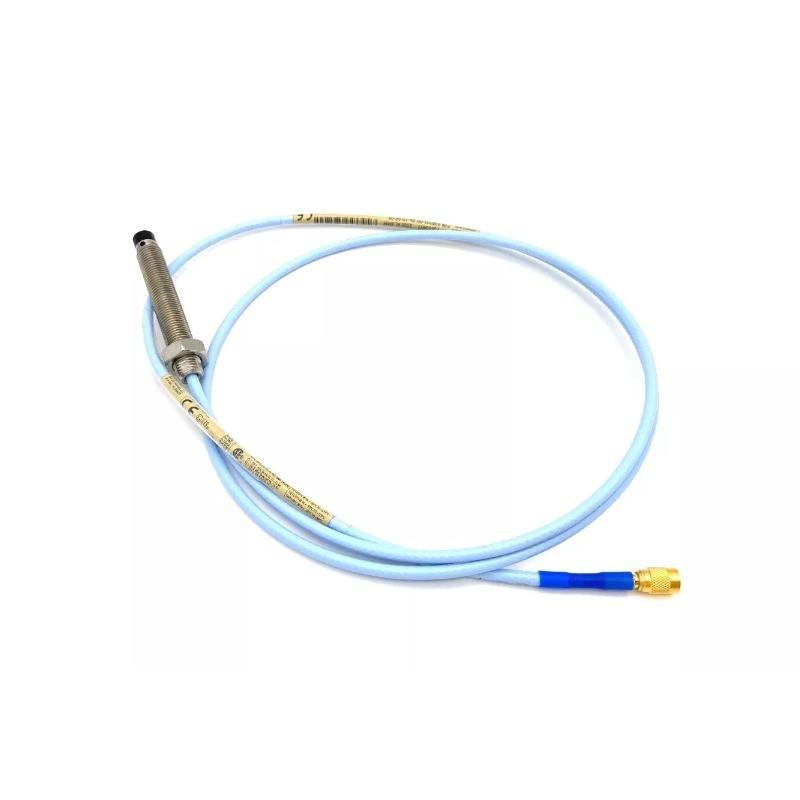

Bently Nevada 330101-02-50-05-01-05 3300 XL 8 mm Proximity Probe Overview
The Bently Nevada 330101-02-50-05-01-05 is part sur the 3300 XL 8 mm proximity transducer system, designed for precise vibration and position measurements in critical rotating machinery. It provides high accuracy and durability in harsh industrial environments.
Product Features
-
Robust design with stainless steel housing
-
High sensitivity and wide linear range
-
Designed for compatibility with 3300 XL Proximitor sensors
-
Miniature coaxial connector with optional armor
-
API 670 compliance for critical machinery monitoring
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle | 330101-02-50-05-01-05 |
| Probe Tip Diameter | 8 mm |
| Total Length | 0.5 meter |
| Poids | 0.162 kg |
| Thread Size | 3/8-24 UNF-2A |
| Case Material | AISI 303 Stainless Steel |
| Connector Type | Miniature coaxial with Armor Option |
| Operating Temperature | -35°C to +177°C |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Range | 2 mm (80 mils) typical |
| System Compatibility | 3300 XL Proximitor Sensor & Extension |
Application
-
Monitoring shaft vibration and position in turbines, compressors, pumps, and motors
-
Used in power generation, petrochemical, and refining industries
-
Suitable for machinery protection and diagnostic systems
Advantages
-
Reliable operation in extreme temperatures and industrial environments
-
EMI and RFI resistant construction
-
Field-proven performance with long service life
-
Easy installation and integration into Bently Nevada systems
FAQ
Q1: What system is the 330101-02-50-05-01-05 compatible with?
A1: It is compatible with Bently Nevada 3300 XL Proximitor Sensors and extension cables.
Q2: What is the probe’s linear range?
A2: It surfers a typical linear range sur 2 mm (80 mils).
Q3: Can this probe operate in high-temperature areas?
A3: Yes, it can operate from -35°C to +177°C.
Q4: Does it meet API 670 standards?
A4: Yes, this model is fully API 670 compliant.
Q5: What is its sensitivity rating?
A5: The sensitivity is 7.87 mV/μm (200 mV/mil).
Q6: Is armor cable included with this model?
A6: Yes, this version includes an armored cable option.
Q7: In which industries is this probe typically used?
A7: It is widely used in power plants, oil & gas, and heavy industry.
Q8: What thread type does the probe use?
A8: It uses a 3/8-24 UNF-2A thread.
Q9: What are the total length and weight?
A9: It has a total length sur 0.5 meters and weighs 0.162 kg.
Q10: Is this probe suitable for hazardous environments?
A10: Yes, it is designed for harsh and hazardous operating conditions.
Related Modèles from the Same Series
| Modèle Number | Total Length | Poids | Tip Diameter | Thread Size |
|---|---|---|---|---|
| 330101-00-20-10-02-00 | 2.0 m | 0.230 kg | 8 mm | 3/8-24 UNF-2A |
| 330101-00-30-10-02-00 | 3.0 m | 0.270 kg | 8 mm | 3/8-24 UNF-2A |
| 330101-00-50-10-02-00 | 5.0 m | 0.320 kg | 8 mm | 3/8-24 UNF-2A |
| 330101-02-40-05-01-00 | 4.0 m | 0.280 kg | 8 mm | 3/8-24 UNF-2A |
| 330104-00-06-10-11-00 | 5.0 m | 0.300 kg | 8 mm | M10 x 1 |
| 330105-02-12-10-02-05 | 1.2 m | 0.210 kg | 8 mm | 1/4-28 UNF-2A |
Popular Modèles from the Same Marque
| Modèle Number | Description | Total Length | Poids | Application Type |
|---|---|---|---|---|
| 3300 XL NSv | Narrow gap proximity probe system | 1.0 m | 0.150 kg | Small shaft monitoring |
| 330104-00-05-10-02-00 | 3300 XL 8 mm Proximity Probe | 5.0 m | 0.300 kg | Standard industrial use |
| 330180-91-CN | Proximitor Sensor for 3300 XL system | N/A | 0.350 kg | Sensor conditioning unité |
| 3500/42M | Proximitor Seismic Monitor | N/A | 0.480 kg | Machinery protection |
| 330130-045-00-05 | Extension Cable for 3300 XL Probes | 4.5 m | 0.180 kg | Cable connection extension |
| 330500-02-00 | High-Temperature Proximity Probe | 2.0 m | 0.290 kg | Extreme environments |
