Product Overview

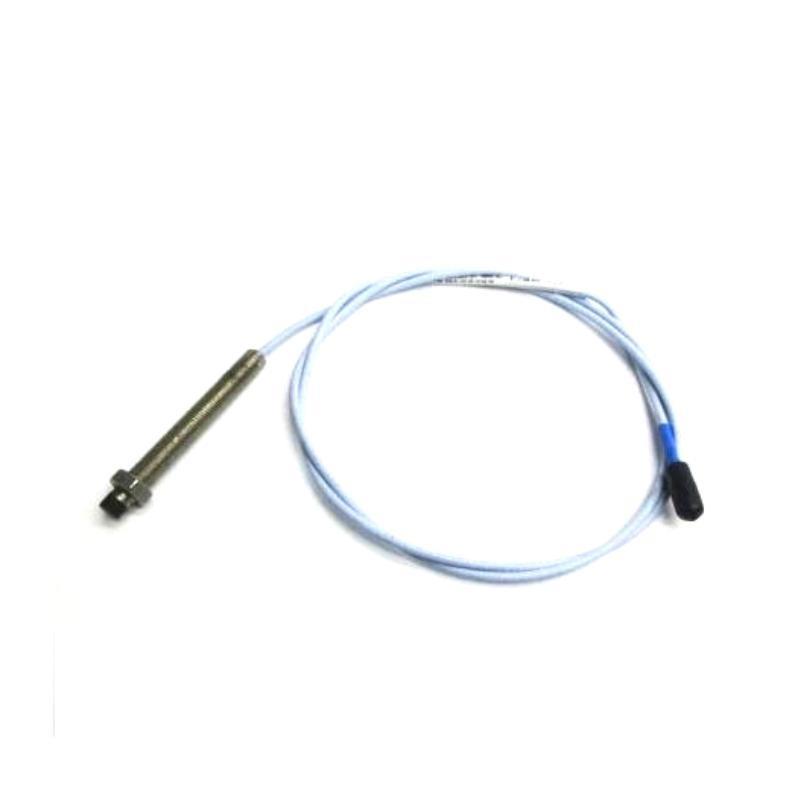

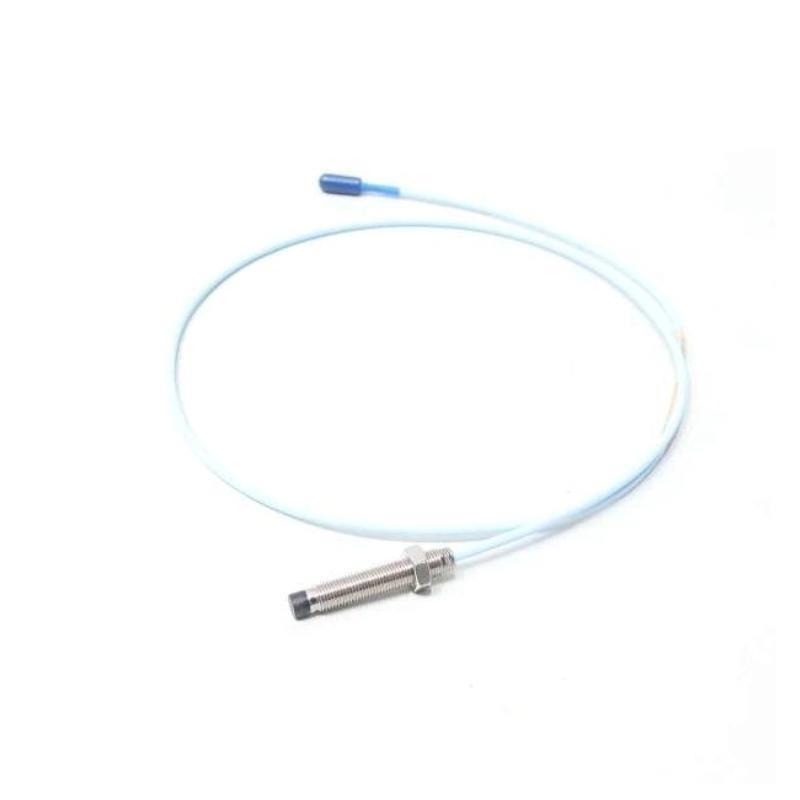

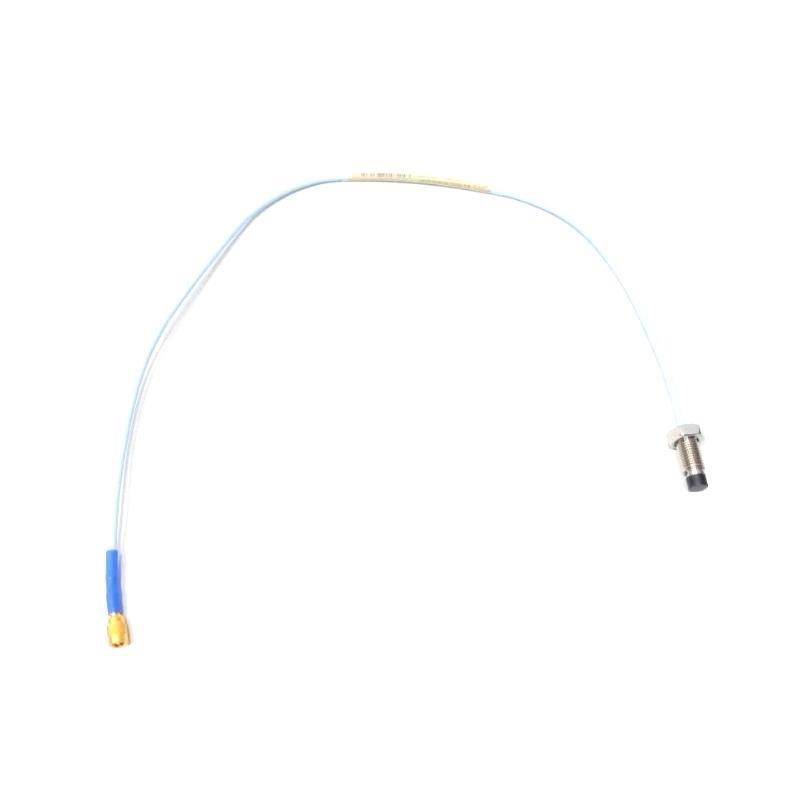

The 330101-00-76-05-01-00 is a member sur the Bently Nevada 3300 XL 8 mm Proximity Transducer System. This probe is designed for critical machinery monitoring, providing accurate measurement sur shaft position and vibration in fluid-film bearing machines.
It includes a probe with a standard 0.5-meter cable and features a ClickLoc connector for secure, tool-free installation. Designed for rugged conditions, it fully complies with API 670 standards and ensures high durability with enhanced temperature and environmental resistance.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle Number | 330101-00-76-05-01-00 |
| Probe Tip Diameter | 8.0 mm |
| Cable Type | Standard coaxial with ClickLoc connector |
| Total Length | 0.5 meter |
| Poids | 0.162 kg |
| Material (Probe Case) | Stainless Steel (AISI 303 or 304) |
| Insulation | FEP (standard), optional PFA (ETR version) |
| Operating Temp (Standard Probe) | -52°C to +177°C |
| Operating Temp (ETR Probe) | -52°C to +218°C (tip), +260°C (cable) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Pressure Sealing | Viton® O-ring |
| Minimum Shaft Diameter | 50.8 mm |
| Minimum Bend Radius | 25.4 mm (1 inch) |
Applications
-
Radial vibration monitoring
-
Axial thrust position measurements
-
Turbine, compressor, pump, and motor shaft monitoring
-
Speed and phase reference (Keyphasor applications)
-
Machinery protection and predictive maintenance systems
Key Advantages
-
API 670 compliance: Meets industry standards for mechanical and performance specifications
-
ClickLoc connectors: Secure, tool-free installation with anti-loosening lock mechanism
-
TipLoc and CableLoc: Enhances mechanical strength and reliability
-
Extended temperature options: Suitable for extreme environments
-
RFI/EMI immunitéy: Safe for high-interference industrial environments
-
Backward compatibility: Interchangeable with non-XL 3300 series components
Questions fréquentes (FAQ)
Q1: What is the primary function sur the 330101-00-76-05-01-00 probe?
A1: It measures shaft position and vibration relative to a machine’s bearing housing.
Q2: Is this probe compatible with older 3300 systems?
A2: Yes, it is backward-compatible with non-XL 3300 5 mm and 8 mm components.
Q3: Can it operate in high-temperature environments?
A3: Yes, standard up to 177°C; extended temperature versions operate up to 218°C.
Q4: Does it require special calibration?
A4: It is factory calibrated to AISI 4140 steel; custom calibration is available on request.
Q5: What is the output signal characteristic?
A5: The output is proportional to the distance from the probe tip to the conductive target (typically -1 V to -17 V for 0.25–2.3 mm).
Q6: Is additional shielding required for installations?
A6: No, thanks to its robust RFI/EMI immunitéy, standard shielding is sufficient.
Q7: What maintenance is needed?
A7: It requires minimal maintenance; periodic visual inspection and connector checks are recommended.
Q8: Can I use the probe in corrosive environments?
A8: Yes, the stainless-steel housing and gold-plated connectors surfer corrosion resistance.
Q9: Is the cable oil-resistant?
A9: The optional FluidLoc version prevents oil ingress through the cable.
Q10: How is the connector secured?
A10: With a ClickLoc mechanism that “clicks” into place, requiring no tools.
Related Modèles from the Same Series
| Modèle Number | Description | Cable Length | Connector Type | Poids |
|---|---|---|---|---|
| 330101-00-76-10-02-00 | 3300 XL 8 mm Probe, 1.0m cable, standard | 1.0 m | ClickLoc | 0.185 kg |
| 330101-00-76-15-02-00 | 3300 XL 8 mm Probe, 1.5m cable, standard | 1.5 m | ClickLoc | 0.208 kg |
| 330101-00-76-05-02-00 | 3300 XL 8 mm Probe, 0.5m cable, protector | 0.5 m | ClickLoc + CP | 0.170 kg |
| 330102-00-76-05-02-00 | 3300 XL 8 mm Probe with armor, 0.5m | 0.5 m | Armored | 0.190 kg |
| 330105-02-12-05-02-00 | 3300 XL 8 mm Reverse Mount Probe | 0.5 m | Standard | 0.180 kg |
| 330103-00-76-05-02-00 | 3300 XL 8 mm Metric Thread (M10x1) Probe | 0.5 m | ClickLoc | 0.165 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Type | Poids | Application |
|---|---|---|---|---|
| 330104-00-06-10-02-00 | 3300 XL 8 mm Probe (M10x1, 1.0 m) | Proximity Probe | 0.185 kg | Compact mounting |
| 330130-045-02-00 | 3300 XL Extension Cable, 4.5m, protector | Extension Cable | 0.153 kg | Signal extension |
| 330180-50-05 | 3300 XL Proximitor Sensor, 5m, panel mount | Proximitor Sensor | 0.246 kg | DIN/panel mounting |
| 330103-00-05-10-02-00 | 3300 XL 8 mm Metric Probe, 1.0m | Metric Proximity Probe | 0.185 kg | Metric-thread applications |
| 330105-02-12-10-02-00 | 3300 XL Reverse Mount Probe, 1.0m | Reverse Mount Probe | 0.190 kg | Shaft end measurement |
| 330106-05-30-10-02-00 | 3300 XL Metric Reverse Mount Probe, 1.0m | Reverse Mount Metric | 0.190 kg | High-precision axial installations |
