Description

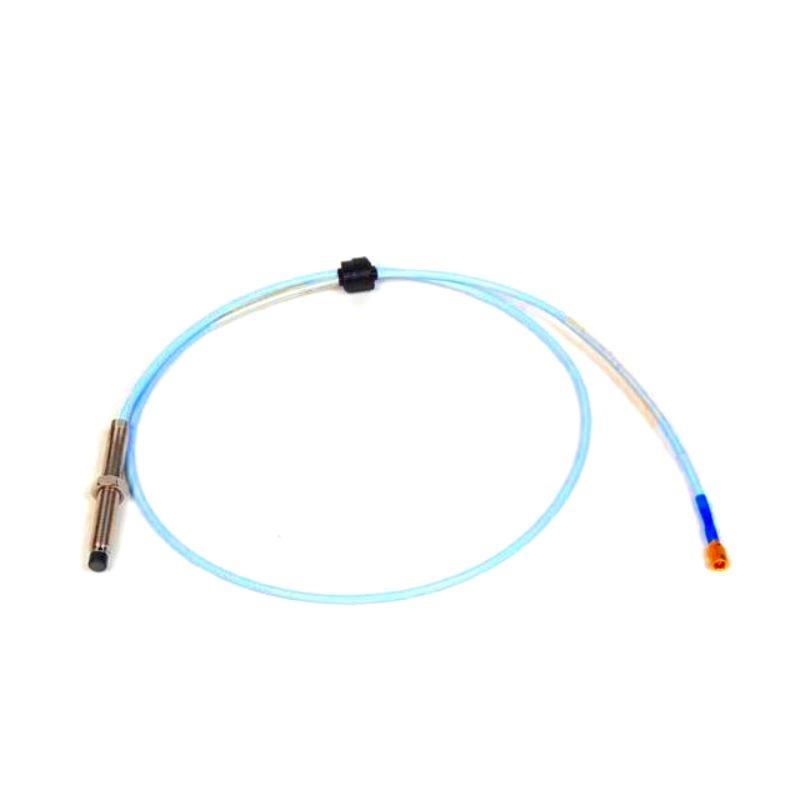

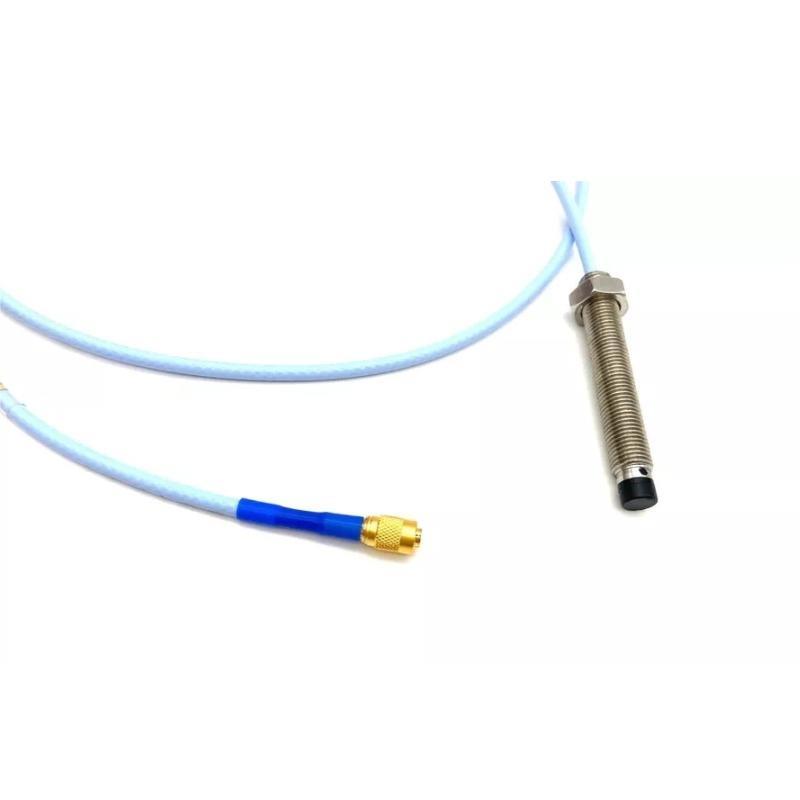

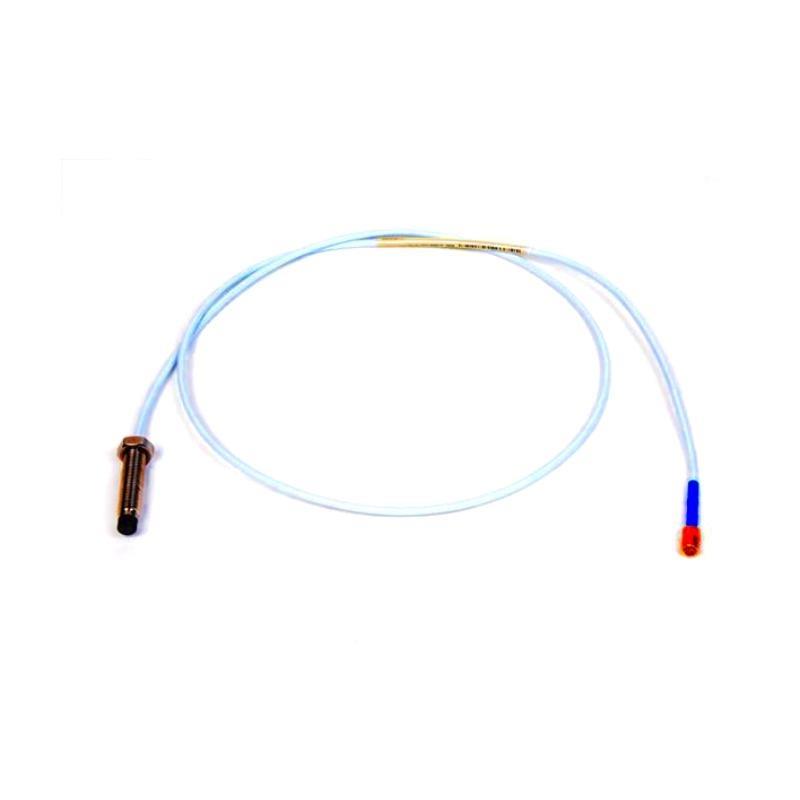

The Bently Nevada 330101-00-52-15-02-05 is a component sur the 3300 XL 8 mm Proximity Transducer System. This system includes a proximity probe, extension cable, and Proximitor sensor. It measures static (position) and dynamic (vibration) variables in rotating machinery with fluid-film bearings. This model surfers enhanced performance, superior EMI/RFI immunitéy, and complies with API 670 standards.
Applications
-
Shaft vibration monitoring
-
Axial thrust positioning
-
Keyphasor speed and phase reference
-
Turbomachinery diagnostics
-
Overspeed protection (with caution)
Advantages
-
API 670 compliance
-
Interchangeable probes, cables, and sensors
-
Patented TipLoc and CableLoc for durability
-
Extended temperature range capability
-
SpringLoc terminals for fast field wiring
-
High EMI/RFI immunitéy
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | 330101-00-52-15-02-05 |
| Probe Tip Diameter | 8 mm |
| System Type | Non-contacting eddy current proximity sensor |
| Total Length | 1.5 meters |
| Poids | 0.485 kg |
| Probe Material | AISI 303/304 stainless steel with PPS tip |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Frequency Response | 0–10 kHz, ±3 dB |
| Linear Range | 2 mm (80 mils) |
| Operating Temperature | -52°C to +177°C (standard) / up to 218°C (ETR version) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) ±5% (5m system) |
| Supply Voltage | -17.5 Vdc to -26 Vdc |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended 76.2 mm (3 in) |
| Compliance | API 670, SIL 2/3, CE, RoHS, FCC, ATEX, IECEx |
FAQ
Q1: What does the 330101-00-52-15-02-05 probe measure?
A1: It measures both shaft vibration and position in fluid-film bearing machines.
Q2: Is it compatible with older 3300-series systems?
A2: Yes, it is backward-compatible and physically interchangeable with 3300 5 mm and 8 mm systems.
Q3: What is the output signal type?
A3: The output is an analog voltage directly proportional to the target distance.
Q4: Does this probe support high-temperature applications?
A4: Yes, ETR versions can operate up to +218°C.
Q5: What type sur cable connection does it use?
A5: It uses gold-plated, corrosion-resistant ClickLoc coaxial connectors.
Q6: Can it be used for Keyphasor or speed measurements?
A6: Yes, it is suitable for Keyphasor and speed references, though overspeed protection requires caution.
Q7: Is the probe sealed against oil leakage?
A7: FluidLoc cable options prevent fluid migration through the cable.
Q8: Does it require special tools for installation?
A8: No, connectors and terminals are tool-free with ClickLoc and SpringLoc features.
Q9: What environments is the probe rated for?
A9: It is approved for hazardous zones including Class I, Division 2, and ATEX Zone 0/1/2.
Q10: What is the ideal gap setting?
A10: The recommended gap for radial vibration is approximately 1.27 mm (50 mils).
Related Modèles in the Same Series
| Modèle | Thread Type | Length | Armor Option | ETR Support |
|---|---|---|---|---|
| 330101-00-08-10-02-05 | 3/8-24 UNF | 1.0 m | No | No |
| 330102-00-20-10-02-00 | 3/8-24 UNF | 2.0 m | Yes | No |
| 330104-00-06-10-02-00 | M10 x 1 | 1.0 m | Yes | No |
| 330191-00-10-15-02-05 | 3/8-24 UNF | 1.5 m | No | Yes |
| 330140-00-30-10-02-00 | Smooth Case | 3.0 m | No | No |
| 330195-02-12-05-02-00 | 3/8-24 UNF | 0.5 m | No | Yes |
Popular Modèles from Bently Nevada
| Modèle | Description | Function | Poids | Length |
|---|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration monitoring | 0.45 kg | – |
| 3500/22M-01-01 | Transient Data Interface Module | Dynamic data acquisition | 0.52 kg | – |
| 3500/20-01-01-00 | Rack Interface Module | System interface | 0.55 kg | – |
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Shaft vibration/position sensor | 0.49 kg | 1.0 m |
| 330130-040-00-00-05 | Extension Cable | Connects probe to Proximitor sensor | 0.34 kg | 4.0 m |
| 330180-50-05 | 3300 XL Proximitor Sensor | Signal conditioning | 0.246 kg | 5.0 m |
