Product Overview

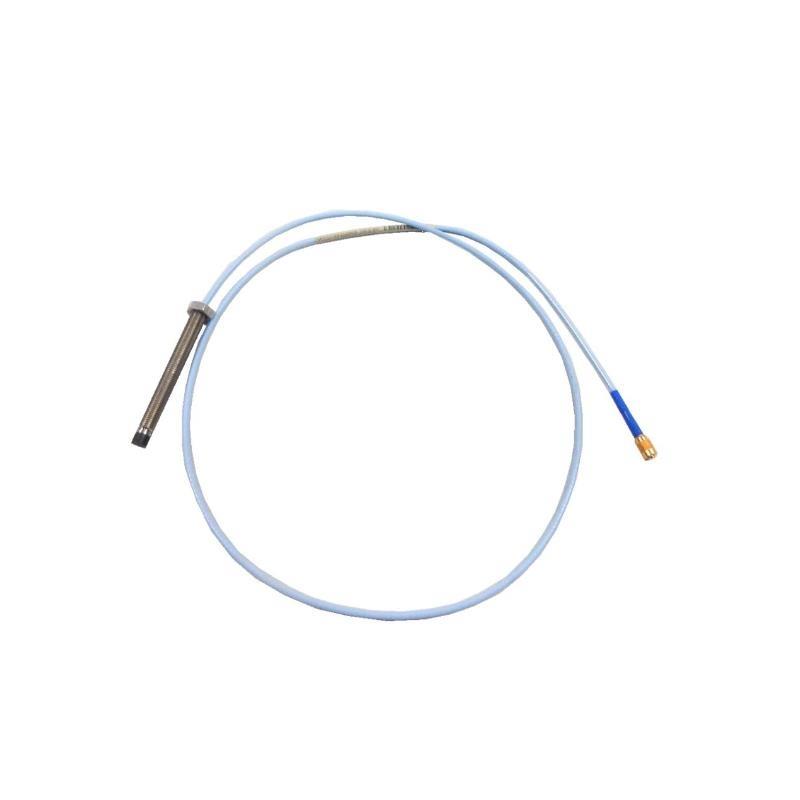

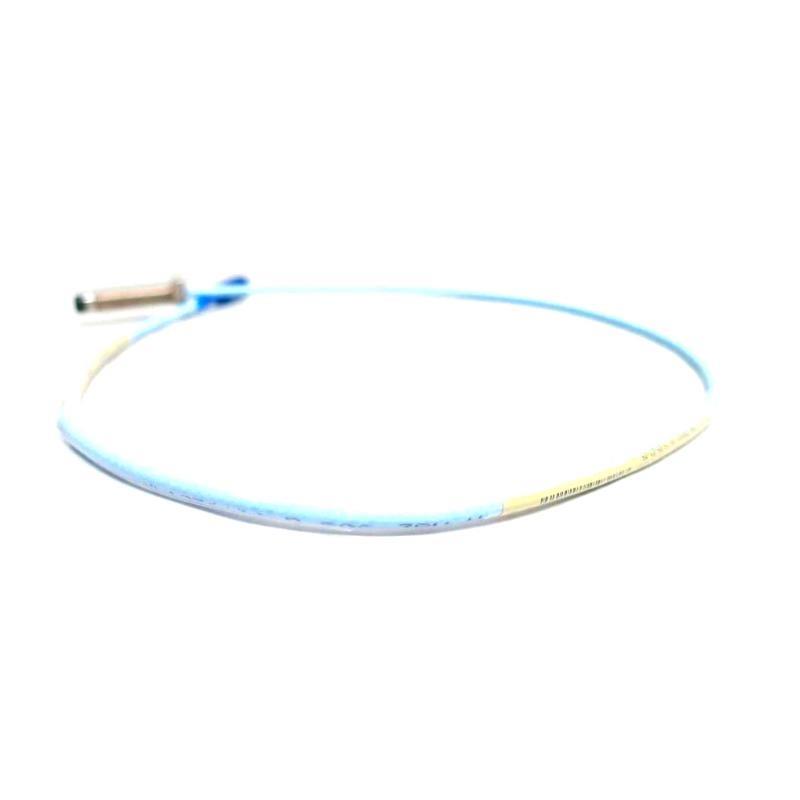

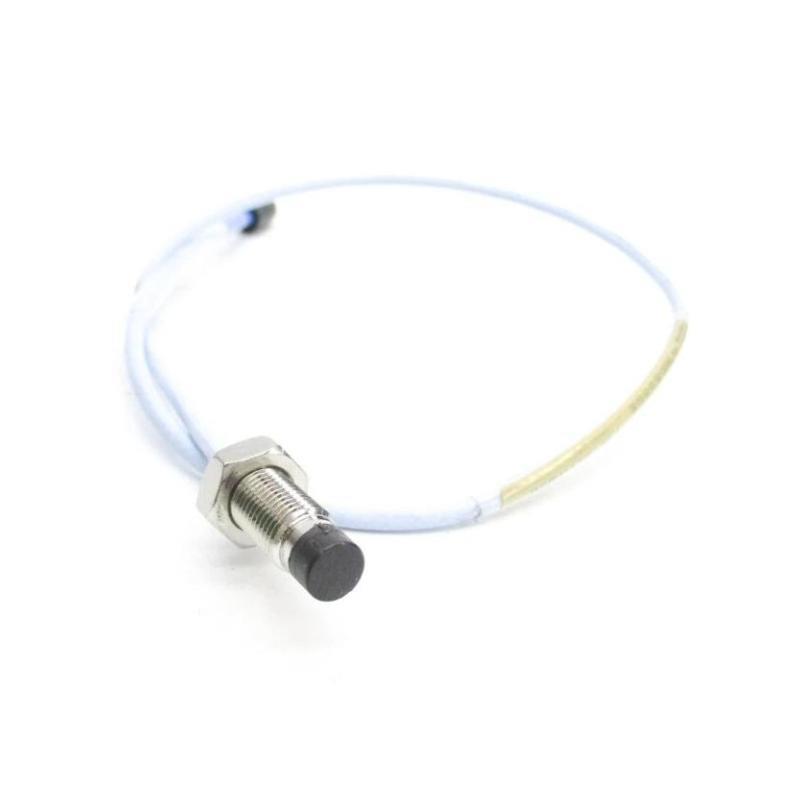

The Bently Nevada 330101-00-49-10-02-05 is part sur the 3300 XL 8 mm Proximity Transducer System. It is engineered for reliable static and dynamic measurement sur shaft position and vibration in rotating machinery. This proximity probe is widely used in fluid-film bearing machines and complies fully with API 670 standards.
Key Features
-
Measures both vibration and shaft position
-
API 670 compliant
-
Enhanced RFI/EMI immunitéy
-
Interchangeable probe, extension cable, and Proximitor sensor
-
Finger-tight ClickLoc connectors for easy installation
-
Withstands extreme temperatures and harsh environments
Applications
-
Turbomachinery monitoring
-
Vibration monitoring on compressors and turbines
-
Axial thrust and radial vibration measurement
-
Keyphasor and speed referencing
-
État monitoring in hazardous zones
Advantages
-
Easy Installation: SpringLoc terminals and ClickLoc connectors reduce installation time.
-
Rugged Design: TipLoc and CableLoc technologies provide superior mechanical strength.
-
Cost Efficiency: No bench calibration required; supports field interchangeability.
-
Environmental Resistance: Operates in high-temperature and high-humidity environments.
-
Compact Mounting: Supports DIN rail or panel mounting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Modèle Number | 330101-00-49-10-02-05 |
| Measurement Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Probe Material | AISI 303/304 stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Cable Type | 75Ω triaxial FEP-insulated |
| Temperature Range (Standard) | -52°C to +177°C |
| Environmental Rating | RFI/EMI shielded, IP54 minimum |
| Compliance | API 670, RoHS, CE, SIL 2/3, ATEX, IECEx |
Questions fréquentes (FAQ)
Q1: What does the 330101-00-49-10-02-05 measure?
A1: It measures both vibration and position sur rotating machinery.
Q2: Can this probe be used in hazardous areas?
A2: Yes, it meets ATEX and IECEx certifications for use in Zone 0 and Zone 2.
Q3: Is the system API 670 compliant?
A3: Yes, it complies fully with API 670 standards for mechanical and electrical configuration.
Q4: What’s the recommended gap voltage?
A4: -9 VDC, which corresponds to about 1.27 mm (50 mils).
Q5: Does it require special tools for installation?
A5: No, ClickLoc connectors and SpringLoc terminals allow tool-free installation.
Q6: Can I mix this probe with non-XL systems?
A6: Yes, but performance will be limited to that sur the non-XL components.
Q7: What is the minimum target diameter?
A7: 15.2 mm (0.6 in) flat surface; shaft diameter should be at least 50.8 mm (2 in).
Q8: What type sur cable does it use?
A8: 75-ohm triaxial FEP-insulated cable; FluidLoc version optional.
Q9: Is it suitable for extended temperature environments?
A9: Yes, optional ETR models can handle up to 260°C with compatible extension cables.
Q10: Can I replace the probe without recalibration?
A10: Yes, the system supports full interchangeability without the need for calibration.
Related Modèles (Same Series)
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330101-00-08-10-02-00 | Standard probe with 1.0 m cable | 1.0 m | 0.323 kg |
| 330101-00-20-10-02-05 | Armored probe for harsh conditions | 2.0 m | 0.560 kg |
| 330101-00-30-10-02-00 | Extended length version | 3.0 m | 0.620 kg |
| 330101-00-40-10-02-00 | Reverse mount application | 4.0 m | 0.685 kg |
| 330101-00-60-10-02-00 | High-temp capable version | 6.0 m | 0.740 kg |
| 330101-00-90-10-02-05 | Full-length 9.0 m probe | 9.0 m | 0.890 kg |
Popular Modèles from Bently Nevada
| Modèle Number | Description | Type | Poids |
|---|---|---|---|
| 330104-00-06-10-02-00 | 3300 XL 8 mm Probe, armored, metric thread | Proximity Probe | 0.560 kg |
| 330130-045-00-00 | 3300 XL Extension Cable, 4.5 meters | Extension Cable | 0.300 kg |
| 330180-50-05 | 3300 XL Proximitor Sensor, 5m system | Proximitor Sensor | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Monitoring Module | 0.500 kg |
| 3500/22M-01-01-00 | Transient Data Interface (TDI) | Monitoring Interface | 0.650 kg |
| 3500/15-05-01-00 | Power Supply Module, High Voltage | Power Supply Module | 0.780 kg |
