Product Description

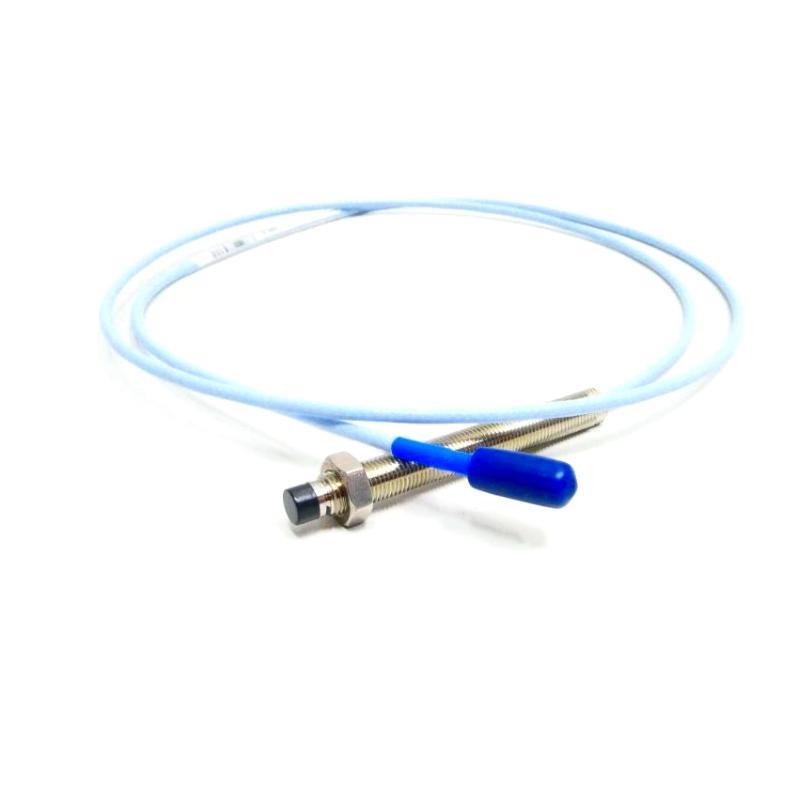

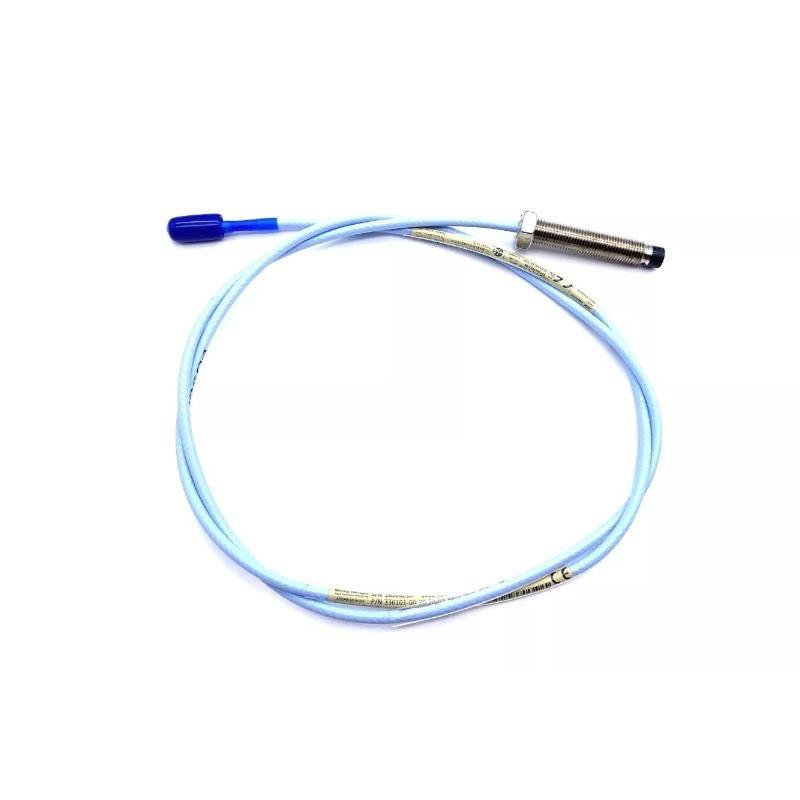

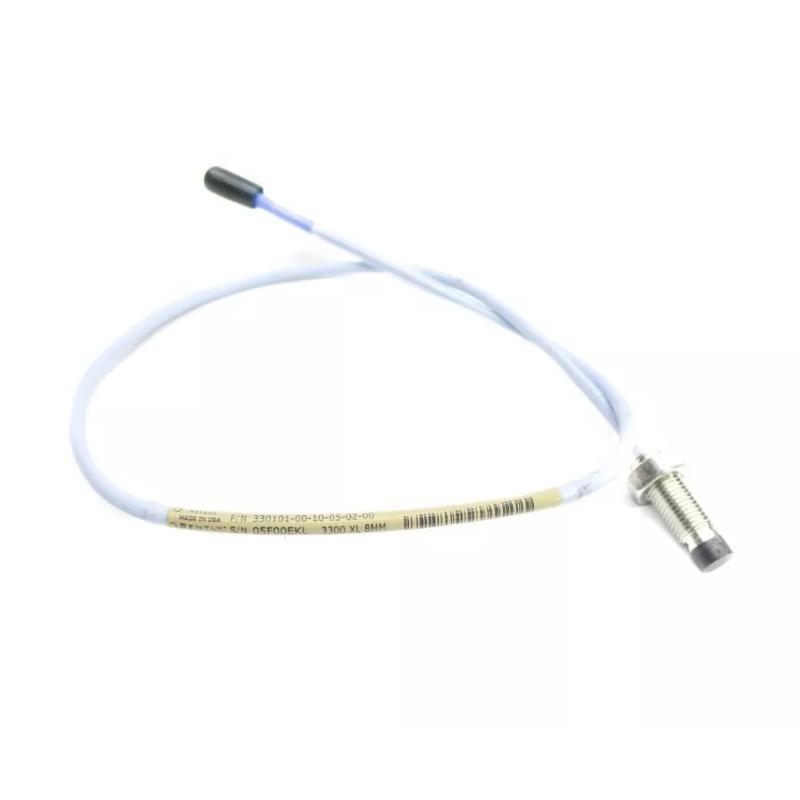

The Bently Nevada 330101-00-25-10-02-00 3300 XL 8mm Proximity Probe is a precision monitoring sensor designed for industrial rotating machinery. It delivers accurate displacement and vibration measurements under extreme conditions, ensuring reliable machine protection and operational efficiency. Its compact design, robust construction, and high linearity make it suitable for demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Linear Range | 2 mm (80 mils) |
| Output Resistance | 50 Ω |
| Temperature Range | –52°C to +177°C |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Length | 1.0 meter |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Case Length | 63.5 mm (2.5 inch) |
| Tip Construction | TipLoc™ molding |
| Cable Strength | 330 N (75 lbf) CableLoc™ |
| Environmental Protection | Optional FluidLoc® for fluid resistance |
Applications
-
Power Generation: Turbines, generators, and bearing monitoring.
-
Oil & Gas: Pumps, compressors, and rotating equipment health tracking.
-
Manufacturing: High-speed machinery vibration analysis.
-
Aerospace: Precision component displacement monitoring.
Advantages
-
High linearity ensures precise displacement measurements.
-
Robust design withstands extreme temperatures and mechanical stress.
-
TipLoc™ and CableLoc™ technology enhance durability and reliability.
-
Electrically and physically compatible with non-XL 3300 series components.
-
Flexible integration into existing monitoring systems without recalibration.
FAQ
1. What is the operational temperature range sur this probe?
– The probe operates effectively between –52°C and +177°C.
2. Can this probe be used in wet or fluid-rich environments?
– Yes, using the optional FluidLoc® cable prevents fluid ingress.
3. What is the linear measurement range?
– The probe has a 2 mm (80 mils) linear range.
4. How strong is the cable attachment?
– The CableLoc™ design provides a pull strength sur 330 N (75 lbf).
5. Is it compatible with older 3300 series probes?
– Yes, it is electrically and physically interchangeable with non-XL 3300 series 5 mm and 8 mm probes.
6. What type sur connector does it use?
– It uses a miniature coaxial ClickLoc connector for secure, tool-free installation.
7. Can the cable length be customized?
– Standard length is 1 meter; longer cables can be specified.
8. What is the weight sur the probe?
– Total weight is 0.323 kg.
9. Is the probe suitable for high-speed machinery?
– Yes, it is designed for precision monitoring in high-speed rotating equipment.
10. How compact is the probe housing?
– The case length is 63.5 mm (2.5 inch), allowing for installation in confined spaces.
Related 3300 XL Series Modèles
| Modèle | Linear Range | Case Length | Cable Length | Poids |
|---|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm | 63.5 mm | 1 m | 0.320 kg |
| 330104-00-06-50-01-00 | 8 mm | 63.5 mm | 1 m | 0.322 kg |
| 330101-00-25-10-01-00 | 2 mm | 63.5 mm | 1 m | 0.323 kg |
| 330106-00-25-10-02-00 | 5 mm | 63.5 mm | 1 m | 0.325 kg |
| 330108-00-25-10-02-00 | 8 mm | 63.5 mm | 1 m | 0.326 kg |
| 330102-00-25-10-02-00 | 2 mm | 63.5 mm | 2 m | 0.330 kg |
Popular Bently Nevada Modèles
| Modèle | Description | Linear Range | Cable Length | Poids |
|---|---|---|---|---|
| 3300 XL Proximitor Sensor 330180-91-CN | Standard Proximitor sensor | 5 mm | 1 m | 0.310 kg |
| 3300 XL 8 mm Proximity Probe 330104-00-06-10-11-00 | High-precision probe | 8 mm | 1 m | 0.320 kg |
| 3300 XL 8 mm Proximity Probe 330104-00-06-50-01-00 | High-precision probe | 8 mm | 1 m | 0.322 kg |
| 330101-00-25-10-01-00 | 2 mm probe | 2 mm | 1 m | 0.323 kg |
| 330106-00-25-10-02-00 | 5 mm probe | 5 mm | 1 m | 0.325 kg |
| 330108-00-25-10-02-00 | 8 mm probe | 8 mm | 1 m | 0.326 kg |
