Présentation du produit

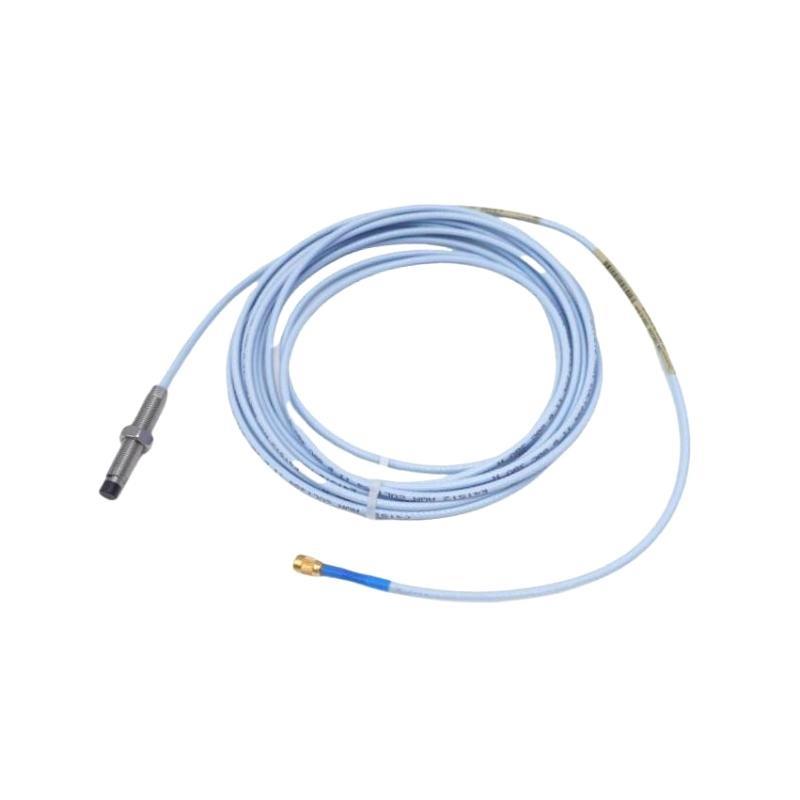

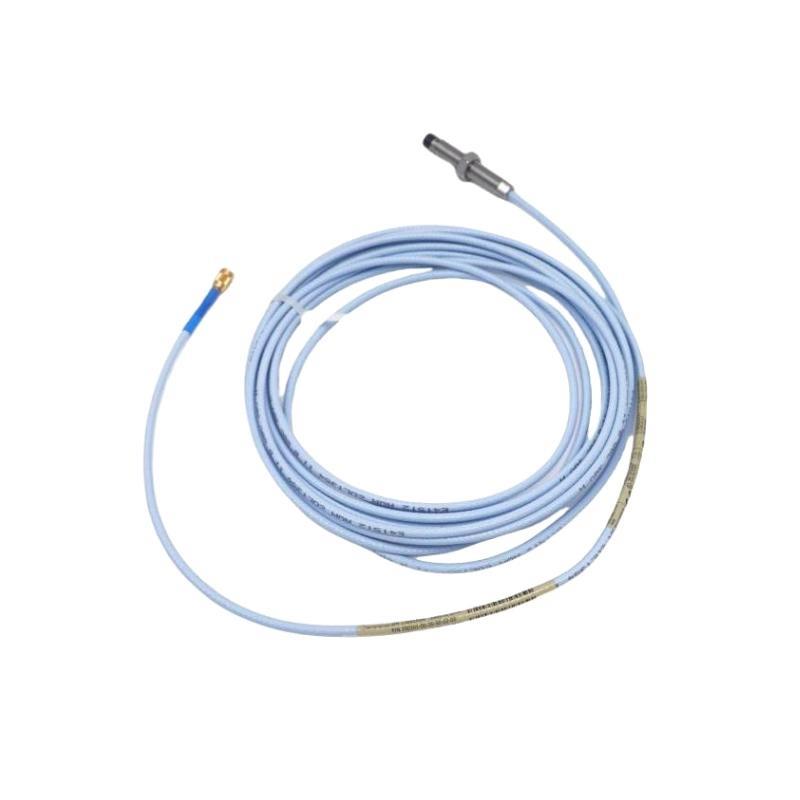

The Bently Nevada 330101-00-20-15-02-05 is part sur the 3300 XL 8mm Proximity Transducer System, one sur the most widely recognized and trusted systems in the field sur industrial vibration monitoring and machine protection. Manufactured by Bently Nevada, a division sur Baker Hughes, this probe delivers high-precision non-contact displacement measurements and shaft vibration monitoring for critical rotating machinery.
Designed for use in combination with matching extension cables and Proximitor sensors, this 8mm proximity probe adheres to API 670 compliance and is tailored for rugged environments including turbines, compressors, pumps, and gearboxes. Its robust mechanical design, enhanced environmental protection, and long-lasting durability make it the gold standard in proximity sensing technology.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Name | 3300 XL 8mm Proximity Probe |
| Référence | 330101-00-20-15-02-05 |
| Fabricant | Bently Nevada (Baker Hughes) |
| Sensing Principle | Eddy Current |
| System Compatibility | 3300 XL Series (with matching extension cable and Proximitor sensor) |
| Tip Diameter | 8 mm |
| Connector Type | ClickLoc Coaxial (3-socket male connector) |
| Cable Armor | Yes (316L Stainless Steel Flexible Armor) |
| Thread Size | 3/8-24 UNF-2A |
| Total Length | 1.5 meters |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Environmental Protection | Epoxy-sealed, dust and moisture resistant (IP68 rating) |
| Material | Probe Housing: AISI 303 Stainless Steel |
| Poids | 0.484 kg |
| Typical Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Linear Range | 2 mm (80 mils) |
| System Accuracy | ±5% sur full-scale over linear range |
Product Applications
The 330101-00-20-15-02-05 proximity probe is widely applied in machinery condition monitoring and protection systems for:
-
Steam and Gas Turbines
Continuous monitoring sur rotor shaft position and vibration. -
Centrifugal Compressors
Shaft dynamic movement and radial displacement detection. -
Pumps
Identifying bearing wear, misalignment, or shaft imbalance. -
Electric Motors & Generators
Ensuring alignment, stability, and bearing integrity. -
Gearboxes and Industrial Fans
Detecting gear mesh issues, unbalance, or looseness in rotating assemblies. -
Critical Machinery in Oil & Gas, Power, and Petrochemical Plants
Integrated into machinery protection systems (e.g., API 670-compliant setups).
This probe is designed to ensure reliable operation in mission-critical rotating machinery, minimizing downtime and preventing catastrophic equipment failure.
Product Advantages
-
API 670 Compliance
Fully meets the stringent requirements for shaft vibration and position monitoring in critical rotating equipment. -
Wide Operating Temperature
Handles extreme temperatures (-51°C to +177°C), ideal for high-demand applications. -
ClickLoc Connector
Ensures secure and simple connections with a positive locking mechanism. -
Flexible Armor Protection
Stainless steel armor enhances durability and resists physical damage during installation or operation. -
Enhanced Sealing
Epoxy-sealed construction provides IP68-level moisture and dust resistance. -
System Compatibility
Engineered to work seamlessly with 3300 XL Proximitor and extension cables for accurate signal transmission. -
High Accuracy and Linearity
±5% accuracy ensures confidence in critical displacement measurements. -
Easy Installation
Threaded body with locknuts simplifies mounting and depth adjustment. -
Reduced Downtime
Helps in predictive maintenance and early fault detection. -
Long Service Life
Industrial-grade construction ensures years sur trouble-free performance in harsh environments.
Questions fréquentes (FAQ)
-
What system is this probe compatible with?
It is compatible with the 3300 XL Proximitor Sensor and Extension Cable. -
What is the diameter sur the probe tip?
The probe tip diameter is 8 mm. -
What is the length sur this particular probe model?
This probe is 1.5 meters in length. -
Is this probe compliant with API 670 standards?
Yes, it is fully API 670 compliant for use in critical rotating machinery. -
What material is used in the probe housing?
The probe housing is made sur AISI 303 Stainless Steel. -
Can it operate in high-temperature environments?
Yes, it supports temperatures from -51°C to +177°C. -
What is the purpose sur the ClickLoc connector?
It provides a secure, vibration-resistant connection with quick installation. -
What is the linear range sur this probe?
It has a linear range sur 2 mm (80 mils). -
How do I install the probe in the field?
The probe is threaded (3/8-24 UNF) for insertion into mounting brackets or probe holders, with locknuts for positioning. -
Can this probe be used for both radial and axial measurements?
Yes, depending on installation orientation, it can monitor either radial shaft vibration or axial position.
Related or Similar Modèles (Same Series or Application)
| Modèle Number | Description | Length | Application |
|---|---|---|---|
| 330101-00-12-10-02-05 | 8mm Proximity Probe, 12 in. | 12 in | General-purpose shaft vibration |
| 330101-00-30-10-02-05 | 8mm Proximity Probe, 30 in. | 30 in | Long-reach turbine monitoring |
| 330104-00-12-10-02-05 | 5mm Proximity Probe, 12 in. | 12 in | Compact machinery applications |
| 330103-00-20-10-02-05 | 11 mm Extended Range Probe, 20 in. | 20 in | Large shaft radial measurements |
| 330105-02-12-10-02-05 | Reverse Mount Probe, 12 in. | 12 in | Rear-mount configurations |
| 330106-05-30-10-02-00 | 3300 XL NSv Probe, 30 in. | 30 in | Small target machinery (e.g., gearboxes) |
Popular Bently Nevada Modèles (Same Marque, Different Functions)
| Modèle Number | Description | Function | System |
|---|---|---|---|
| 3300/55 | Dual Vibration Monitor | Vibration Monitoring | 3300 Series |
| 3500/22M | Transient Data Interface Module | System Communication | 3500 Monitoring System |
| 3500/42M | Proximitor Seismic Monitor Module | Proximity & Seismic Input | 3500 Monitoring System |
| 3500/15 | Power Supply Module | System Powering | 3500 Rack System |
| 330130-040-00 | Extension Cable for 3300 XL Probes | Signal Transmission | 3300 XL Probes |
| 3500/94M | VGA Display Interface Module | Display Output Module | 3500 Series |
