Présentation du produit

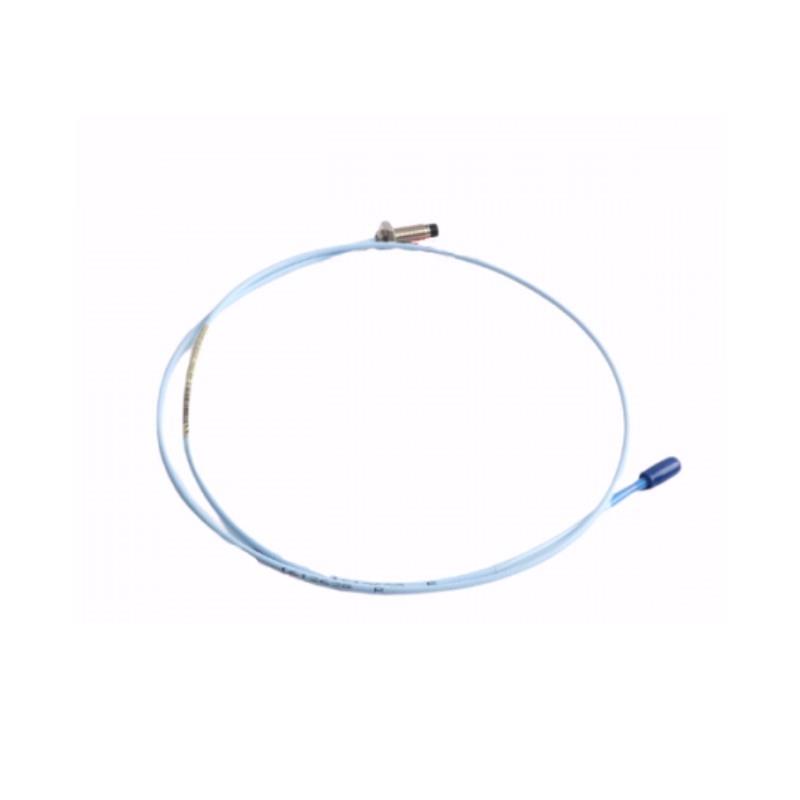

The Bently Nevada 330101-00-18-10-02 is a high-precision proximity probe from the 3300 XL 8mm series, designed for accurate vibration and position measurements in industrial machinery. This probe is integral to Bently Nevada’s condition monitoring systems, providing reliable data for machinery protection and diagnostics.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | 330101-00-18-10-02 |
| Series | 3300 XL 8mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0.0 in (0 mm) |
| Overall Case Length | 3.0 in (76.2 mm) |
| Total Length | 1.0 m |
| Cable Type | Standard, non-armored |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Displacement Measurement Range | 80 mils (2.0 mm) |
| Sensitivity | 7.87 mV/mil (200 mV/mm) |
| Operating Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Extended Temperature Range | Probe Tip: up to +218°C (+425°F); Cable and Connector: up to +260°C (+500°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Housing Material | Stainless Steel |
| Environmental Protection | IP67 |
| Poids | 0.323 kg |
| Country sur Origin | Unitéed États |
Applications
The 330101-00-18-10-02 proximity probe is utilized in various industrial applications, including:
-
Rotating Machinery Monitoring: Measuring shaft vibration and position in turbines, compressors, pumps, and motors.
-
État Monitoring Systems: Providing critical data for predictive maintenance strategies.
-
Vibration Analysis: Detecting imbalances, misalignments, and mechanical looseness.
-
Keyphasor Applications: Serving as a reference for phase measurements and rotational speed.
-
Industrial Automation: Integrating into control systems for real-time machinery diagnostics.
Advantages
-
High Accuracy: Delivers precise measurements with a sensitivity sur 7.87 mV/mil, ensuring reliable data for analysis.
-
Wide Temperature Range: Operates effectively in extreme temperatures, suitable for harsh industrial environments.
-
Robust Construction: Stainless steel housing and IP67 rating provide durability and resistance to contaminants.
-
Easy Integration: Compatible with Bently Nevada monitoring systems, facilitating seamless installation.
-
Versatility: Suitable for various applications, including vibration monitoring and position sensing.
Questions fréquentes (FAQ)
-
What is the primary function sur the 330101-00-18-10-02 probe?
It measures the distance between the probe tip and a conductive surface, providing data on shaft vibration and position. -
Can this probe be used in high-temperature environments?
Yes, it operates up to +177°C, with the probe tip capable sur withstanding up to +218°C. -
Is the probe compatible with all Bently Nevada monitoring systems?
It is designed for compatibility with Bently Nevada’s 3300 XL series monitoring systems. -
What is the significance sur the ClickLoc connector?
The ClickLoc connector ensures a secure and reliable connection, minimizing the risk sur disconnection due to vibration. -
Does the probe require any special calibration?
It is factory-calibrated, but system calibration may be necessary during installation to ensure accuracy. -
What is the probe’s sensitivity?
The probe has a sensitivity sur 7.87 mV/mil (200 mV/mm), providing high-resolution measurements. -
Is the probe suitable for underwater applications?
While it has an IP67 rating, specific underwater applications may require specialized probes. -
What is the probe’s measurement range?
It can measure displacements up to 80 mils (2.0 mm). -
Can the probe be used in hazardous areas?
It does not have intrinsic safety certifications; consult Bently Nevada for suitable models in hazardous environments. -
What maintenance is required for the probe?
Regular inspections for physical damage and ensuring clean connections are recommended for optimal performance.
Related Modèles (Same Series or Similar)
| Modèle Number | Description | Cable Length | Connector Type |
|---|---|---|---|
| 330101-00-16-10-02-00 | 3300 XL 8mm Proximity Probe | 16 ft | Miniature Coaxial ClickLoc |
| 330101-00-20-10-02-00 | 3300 XL 8mm Proximity Probe | 20 ft | Miniature Coaxial ClickLoc |
| 330101-00-25-10-02-00 | 3300 XL 8mm Proximity Probe | 25 ft | Miniature Coaxial ClickLoc |
| 330101-00-30-10-02-05 | 3300 XL 8mm Proximity Probe | 30 ft | Miniature Coaxial ClickLoc |
| 330104-00-05-10-02-05 | 3300 XL 8mm Proximity Transducer System | 5 ft | Miniature Coaxial ClickLoc |
| 330104-13-20-10-02-00 | 3300 XL 8mm Proximity Transducer System | 20 ft | Miniature Coaxial ClickLoc |
Popular Bently Nevada Modèles (Autres Applications)
| Modèle Number | Description | Application |
|---|---|---|
| 3500/15 | Power Supply Module | 3500 Series Monitoring System |
| 3500/22M | Transient Data Interface Module | Data Acquisition |
| 3500/42M | Proximitor/Seismic Monitor Module | Vibration Monitoring |
| 3500/50 | Tachometer Module | Speed Monitoring |
| 3500/93 | Display Module | System Display |
| 330180-91-00 | Extension Cable for Proximity Probes | Probe Extension |
