Product Overview

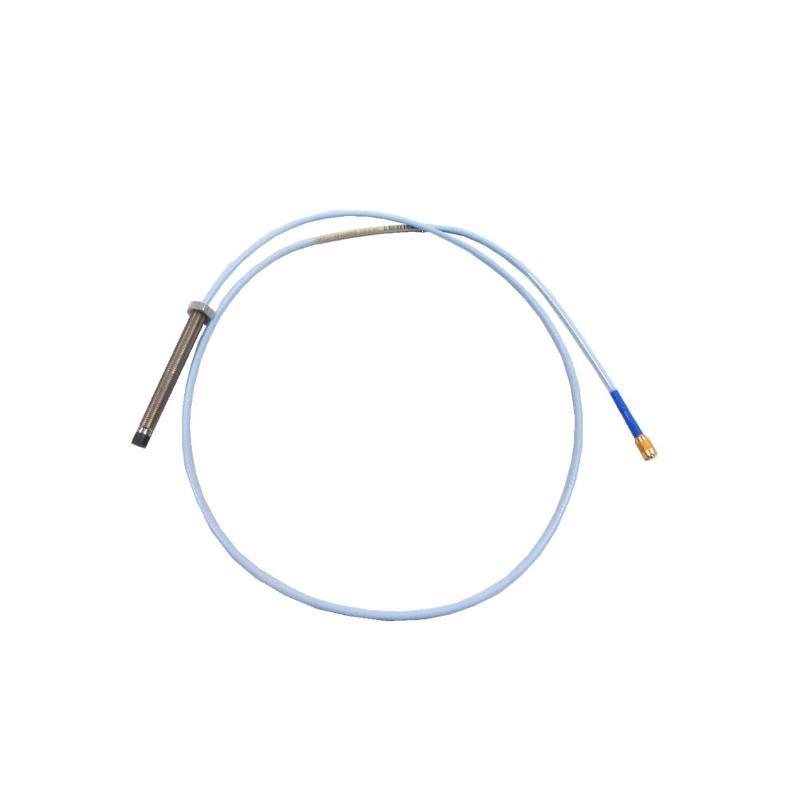

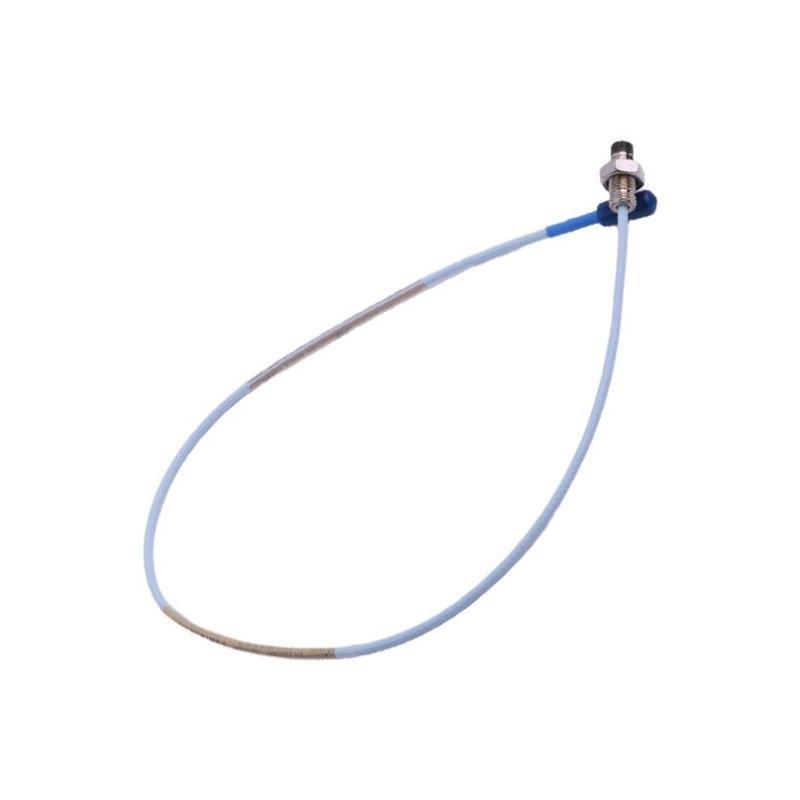

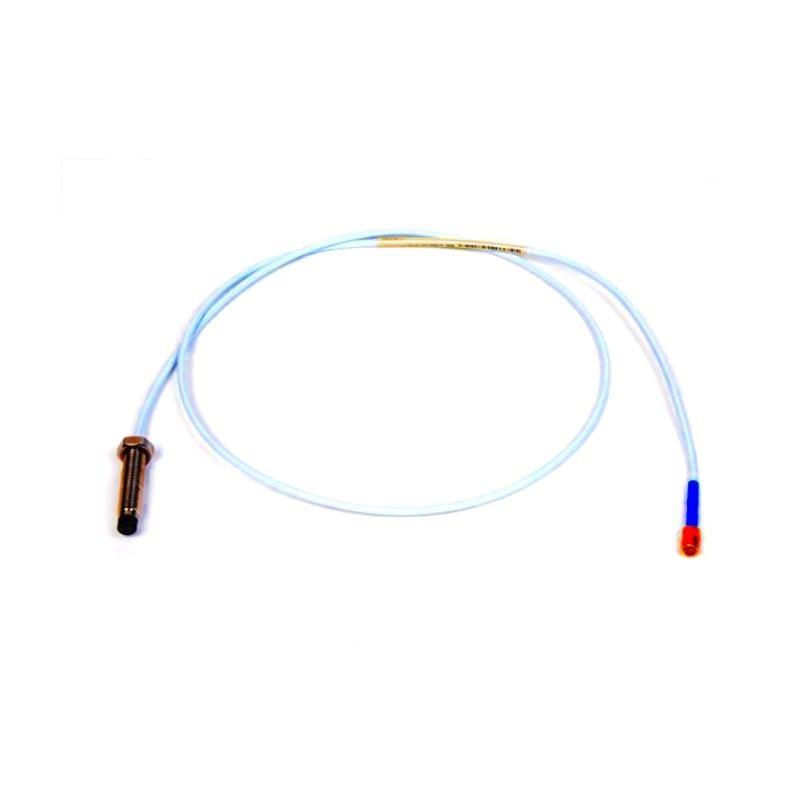

The Bently Nevada 330101-00-17-05-02-05 is an 8mm proximity probe within the 3300 XL series, engineered for precise vibration and position monitoring in industrial rotating machinery. It is widely used in turbines, compressors, generators, and motors, providing accurate displacement measurements and reliable condition monitoring. The probe features a miniature coaxial ClickLoc connector and is compatible with the 3300 XL Proximitor Sensor system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.7 in |
| Total Length | 0.5 meter |
| Poids | 0.162 kg |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard 3300 XL cable |
| Agency Approvals | CSA, ATEX, IECEx |
| Operating Temperature | -40°C to 121°C |
| System Compatibility | 3300 XL Proximitor Sensor System |
Applications
-
Rotating machinery vibration monitoring
-
Turbine and generator shaft position sensing
-
Compressor condition monitoring
-
Motor shaft displacement detection
-
Industrial plant machinery diagnostics
-
Process control and protection systems
Advantages
-
High accuracy and repeatability for displacement measurements
-
Robust design with resistance to harsh industrial environments
-
Interchangeable components reduce calibration complexity
-
Backward compatibility with other 3300 series transducer systems
-
Miniature connector allows flexible installation in confined spaces
-
Long service life with minimal maintenance requirements
FAQ
1. What is the probe tip diameter?
The probe tip diameter is 8 mm, suitable for standard 3300 XL systems.
2. What is the total length sur the probe?
The total length is 0.5 meters (1.6 feet).
3. Is the probe compatible with previous 3300 series sensors?
Yes, it is backward-compatible with other 3300 series 5mm and 8mm systems.
4. What connector does the probe use?
It uses a miniature coaxial ClickLoc connector for secure signal transmission.
5. What environments can this probe operate in?
It operates within a temperature range sur -40°C to 121°C and is suitable for harsh industrial environments.
6. Can the probe be replaced without recalibrating the entire system?
Yes, the probe is designed for interchangeability without bench calibration.
7. What machinery is it primarily used for?
Turbines, compressors, generators, and industrial motors.
8. What approvals or certifications does the probe have?
It is certified to CSA, ATEX, and IECEx standards.
9. How robust is the probe for industrial use?
The probe is engineered to resist vibration, temperature extremes, and mechanical stress.
10. Does it require a specific cable?
Yes, it requires the standard 3300 XL cable for proper operation.
Related Modèles (Same Series / Compatible)
| Modèle | Probe Diameter | Total Length | Poids | Notes |
|---|---|---|---|---|
| 330101-00-08-05-02-05 | 8 mm | 0.5 m | 0.162 kg | Standard XL 8mm probe |
| 330101-00-06-05-02-05 | 6 mm | 0.5 m | 0.150 kg | XL 6mm variant |
| 330101-00-08-10-02-05 | 8 mm | 1 m | 0.320 kg | Extended cable version |
| 330104-00-06-10-01-00 | 8 mm | 0.5 m | 0.162 kg | 8mm high-temperature probe |
| 330104-00-06-50-01-00 | 8 mm | 0.5 m | 0.162 kg | XL probe with shielded cable |
| 330101-00-17-10-02-05 | 8 mm | 1 m | 0.320 kg | XL probe for long-reach applications |
Popular Bently Nevada Modèles
| Modèle | Probe Diameter | Total Length | Poids | Notes |
|---|---|---|---|---|
| 330180-91-CN | 8 mm | 0.5 m | 0.162 kg | XL Proximitor Sensor |
| 330104-00-08-05-01-00 | 8 mm | 0.5 m | 0.162 kg | Standard 8mm proximity probe |
| 330101-00-06-05-01-00 | 6 mm | 0.5 m | 0.150 kg | XL 6mm probe |
| 330101-00-08-10-01-00 | 8 mm | 1 m | 0.320 kg | Extended cable version |
| 330101-00-17-05-01-00 | 8 mm | 0.5 m | 0.162 kg | XL probe with miniature connector |
| 330104-00-06-50-05-00 | 8 mm | 0.5 m | 0.162 kg | XL probe with shielded cable |
