Product Overview

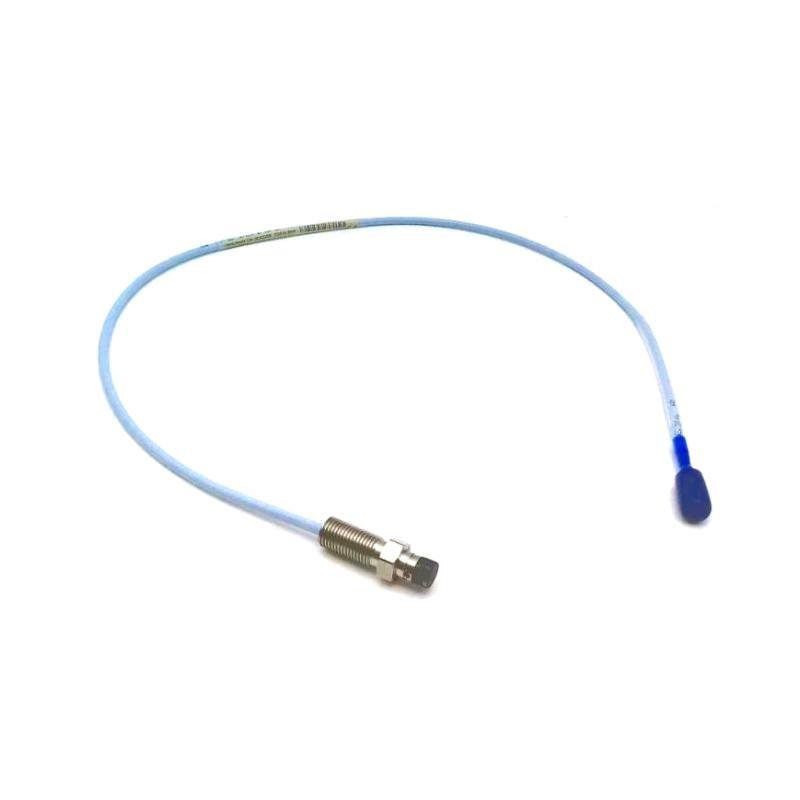

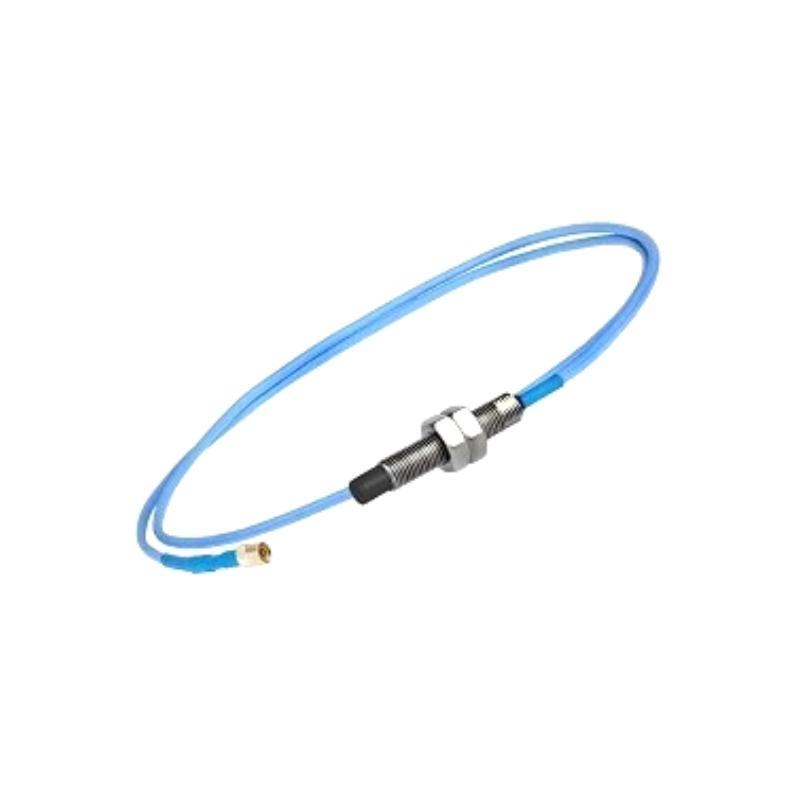

The Bently Nevada 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe stands as a key component within Bently Nevada’s trusted 3300 XL series. Designed for precision and reliability, this probe measures the distance between the probe tip and a conductive target, typically the shaft sur rotating machinery. Its robust build and superior engineering make it the go-to choice for critical machinery monitoring, surfering accurate displacement, position, and vibration measurements essential for machinery protection and condition monitoring systems.
Engineered to withstand challenging industrial environments, the 330101-00-10-05-02-05 probe is tailored for seamless integration with Bently Nevada 3300 XL Proximitor Sensors. Its 10-meter cable length provides flexibility for installations on large machines or difficult-to-reach locations without signal degradation.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle | 330101-00-10-05-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 0 to 2 mm (0 to 80 mils) |
| Linear Range | 0.25 mm to 2.0 mm (10 to 80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Cable Length | 10 meters (32.8 feet) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Enclosure Material | Stainless Steel Housing |
| Operating Temperature Range | -35°C to +177°C (-31°F to +350°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Pressure Rating | Up to 500 psi (34 bar) |
| Mounting Thread Size | 1/4-28 UNF-2A |
| Connector Type | Micro-dot coaxial connector |
| Total Length | 0.5 m |
| Poids | 0.162 kg |
| Compliance Certifications | CE, ATEX, RoHS |
Applications
The 330101-00-10-05-02-05 Proximity Probe is indispensable in a wide range sur industrial machinery applications:
-
Steam and Gas Turbines: Monitoring radial shaft vibration and axial position.
-
Compressors: Detecting shaft movement to prevent mechanical failure.
-
Industrial Motors: Shaft displacement and bearing monitoring.
-
Generators: Early detection sur shaft misalignment and vibration anomalies.
-
Gearboxes: Monitoring shaft and gear alignment.
-
Centrifugal Pumps: Detecting shaft imbalance and cavitation conditions.
-
Blowers and Fans: Identifying excessive vibration and shaft distortion.
This probe ensures that any deviation from normal operating conditions is detected early, allowing preventative maintenance actions before catastrophic failures occur.
Product Advantages
-
Exceptional Durability: Designed to resist high temperatures, pressures, and chemical exposure common in industrial environments.
-
High Measurement Accuracy: Provides precise shaft dynamic and static position measurements for critical machinery protection.
-
Long Cable Flexibility: The 10-meter cable is ideal for installations where the sensor must be positioned farther from monitoring equipment.
-
Superior Signal Integrity: Maintains signal quality over extended distances without the need for signal conditioning.
-
Minimal Maintenance: Rugged design minimizes the need for recalibration or frequent replacement.
-
Consistent Performance: Tight manufacturing tolerances ensure probe-to-probe interchangeability.
-
Optimized for Safety Systems: Fully compatible with API 670 standards for machinery protection systems.
-
Reliable in Extreme États: Operational stability across wide temperature and pressure ranges ensures no performance loss.
Questions fréquentes (FAQs)
-
What is the recommended installation orientation for the 330101-00-10-05-02-05 probe?
The probe can be installed horizontally or vertically, depending on the application requirements. -
Can I shorten the 10-meter cable during installation?
No, the cable length is fixed and altering it will degrade performance and void warranty. -
What types sur targets are suitable for this proximity probe?
Conductive targets such as steel shafts or rotating machine elements. -
Is this probe compatible with non-Bently Nevada monitoring systems?
It is specifically designed for Bently Nevada 3300 XL systems; compatibility with others is not guaranteed. -
Does the probe require field calibration?
No routine calibration is needed, but periodic system verification is recommended. -
What environmental conditions can the probe endure?
It operates reliably in temperatures from -35°C to +177°C and pressures up to 500 psi. -
Is the 330101-00-10-05-02-05 probe suitable for hazardous areas?
Yes, it holds certifications such as ATEX for hazardous area use. -
How do I check if the probe is functioning correctly after installation?
Gap voltage can be measured using a micrometer to ensure correct installation and operation. -
Can the probe be used for axial position measurements?
Yes, it is suitable for both radial and axial shaft position monitoring. -
What is the typical lifespan sur the 330101-00-10-05-02-05 probe?
When properly installed and maintained, it can reliably serve for many years without degradation.
Related Modèles from the Same Series
| Modèle | Description | Cable Length | Connector Type |
|---|---|---|---|
| 330101-00-05-05-02-05 | 3300 XL 8 mm Probe, 5 m Cable | 5 meters | Micro-dot |
| 330101-00-08-05-02-05 | 3300 XL 8 mm Probe, 8 m Cable | 8 meters | Micro-dot |
| 330103-00-10-05-02-05 | 3300 XL NSv 5 mm Probe, 10 m Cable | 10 meters | Micro-dot |
| 330130-040-00-00 | 3300 XL 8 mm Proximity Probe, 4 m Cable | 4 meters | Micro-dot |
| 330104-00-10-05-02-00 | 3300 Dual Proximity Probe, 10 m Cable | 10 meters | Dual Micro-dot |
| 330105-02-10-05-02-05 | 3300 XL 11 mm Heavy Duty Probe, 10 m Cable | 10 meters | Micro-dot |
