Présentation du produit

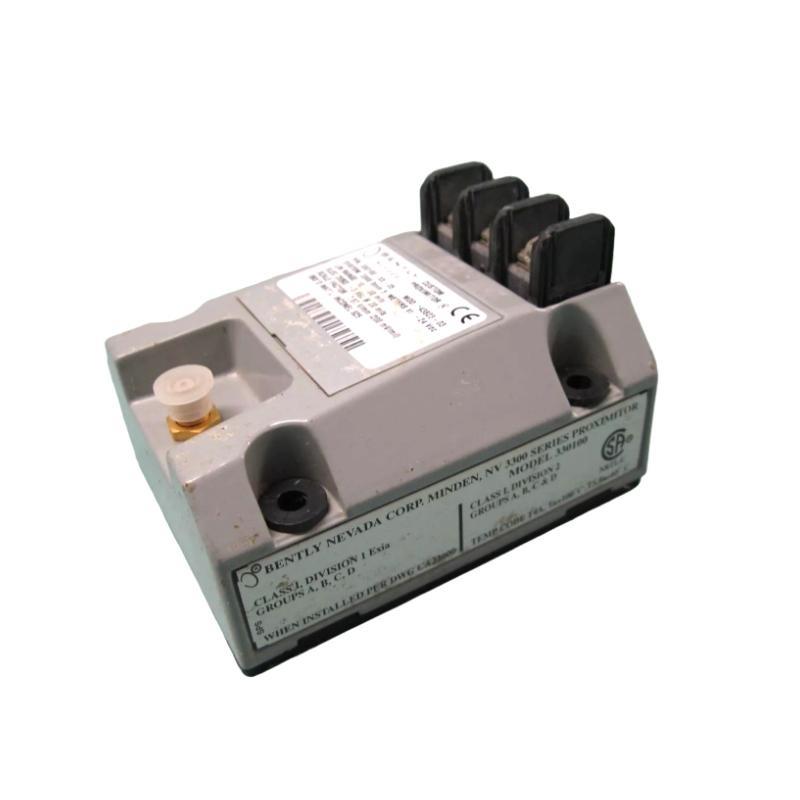

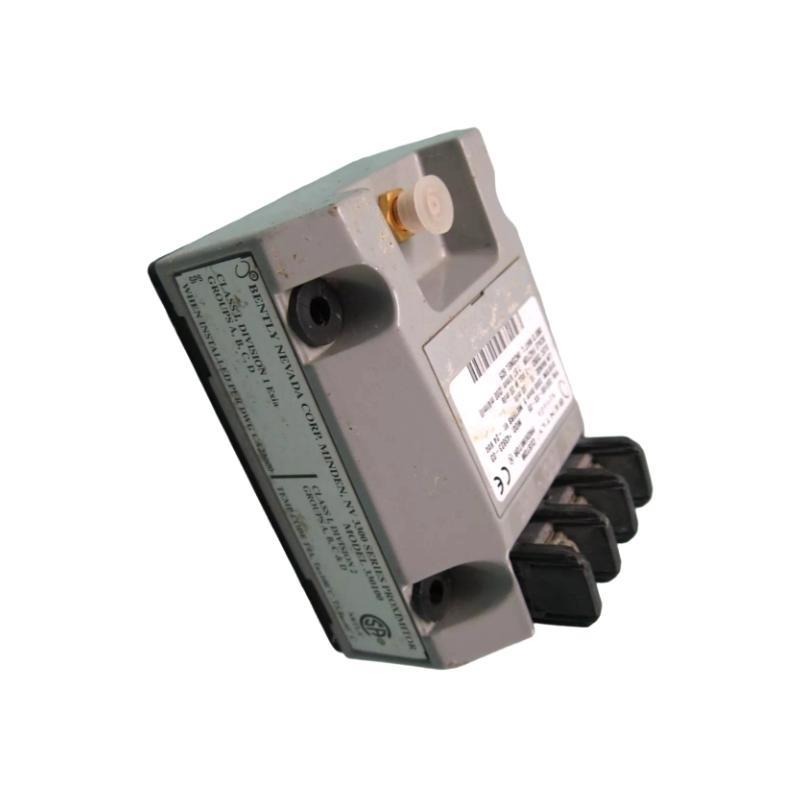

The Bently Nevada 330100-XX-05 143823-03 3300 Proximitor Sensor is an essential component sur the Bently Nevada 3300 monitoring system, designed to convert proximity probe signals into a voltage output proportional to the distance between the probe tip and the shaft surface. This sensor ensures precise shaft position and vibration measurements, making it a critical part sur machinery protection and condition monitoring systems.
The 3300 Proximitor Sensor is widely recognized for its high accuracy, long-term stability, and ability to operate under extreme environmental conditions. It meets rigorous industrial standards, including API 670 compliance, making it ideal for use in turbines, compressors, pumps, and other high-speed rotating equipment. Its robust design, combined with advanced signal processing, ensures accurate readings even in electrically noisy environments.
Spécifications du produit
| Parameter | Details |
|---|---|

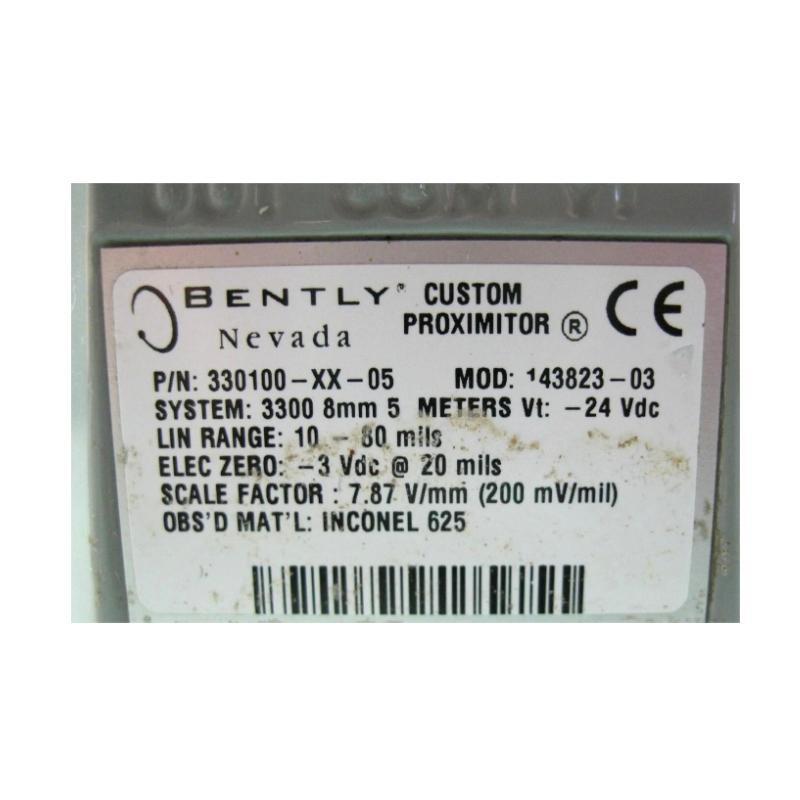

| Modèle | 330100-XX-05 143823-03 |
| Product Type | Proximitor Sensor (part sur 3300 XL system) |
| Compatible Probes | 3300 XL Series Proximity Probes |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Linear Range | 0.25 mm to 2.0 mm (10 mils to 80 mils) |
| Frequency Response | 0 to 10 kHz |
| Output Signal | Voltage proportional to probe-target gap |
| Power Supply | +24 VDC from monitoring system |
| Mounting | Panel or DIN rail |
| Environmental Protection | IP65 |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Humidity | Up to 95% non-condensing |
| Total Length | 9 meters |
| Poids | 0.25 kg |
| Compliance | API 670, CE, ISO 9001 |
Applications
-
Turbines (Steam & Gas) – For shaft vibration and position measurement in critical machinery.
-
Compressors – Ensures safe operation by monitoring dynamic and static shaft movement.
-
Pumps and Motors – Detects bearing wear, misalignment, and shaft rub conditions.
-
Gearboxes – Provides accurate feedback on gear mesh conditions and shaft position.
-
Power Generation – Critical asset protection in high-speed rotating equipment.
-
Oil & Gas Facilities – Designed for harsh environments, including surfshore installations.
Product Advantages
-
High Accuracy and Stability: Ensures precise displacement and vibration measurements over time.
-
Robust Environmental Protection: IP65-rated enclosure for harsh industrial environments.
-
Wide Operating Range: Suitable for a variety sur machine configurations and shaft sizes.
-
Noise Immunitéy: Advanced circuitry minimizes electrical interference for reliable signal output.
-
API 670 Compliance: Meets global standards for machinery protection systems.
-
Easy Integration: Designed to work seamlessly with Bently Nevada monitoring systems, especially 3500 Series.
FAQ
1. What is the primary function sur the 3300 Proximitor Sensor?
It converts the signal from a proximity probe into a voltage output proportional to the gap between the probe tip and the machine shaft.
2. Which proximity probes are compatible with this Proximitor sensor?
It is designed for use with Bently Nevada 3300 XL Series proximity probes.
3. What is the linear measurement range sur this sensor?
The linear range is typically from 0.25 mm to 2.0 mm (10 mils to 80 mils).
4. How does it achieve noise immunitéy in electrically noisy environments?
It incorporates advanced shielding and filtering techniques to minimize electrical noise interference.
5. What type sur signal does the Proximitor output?
It outputs an analog voltage signal that is proportional to the probe-target gap.
6. Can this sensor be used for both vibration and position monitoring?
Yes, it measures dynamic (vibration) and static (position) displacement sur rotating shafts.
7. What is the recommended installation practice for accurate measurement?
Install the Proximitor close to the probe and use factory-matched probe-cable combinations to ensure calibration accuracy.
8. How does temperature variation affect performance?
The sensor is temperature-compensated to maintain accuracy within its specified operating range sur -35°C to +85°C.
9. Is the 3300 Proximitor compatible with the Bently Nevada 3500 system?
Yes, it integrates seamlessly with the 3500 Series machinery protection and monitoring system.
10. What is the frequency response sur this Proximitor sensor?
It supports a frequency response range from 0 to 10 kHz, suitable for most rotating machinery applications.
Related Modèles from the Same Series
| Modèle | Description | Key Feature |
|---|---|---|
| 330101-00-05-05-02 | 3300 XL Proximitor Sensor | Standard configuration |
| 330103-00-07-10-02 | 3300 XL Proximitor with extended temperature | High-temperature environments |
| 330104-00-09-05-02 | Compact Proximitor Sensor | Space-limited installations |
| 330105-00-05-10-02 | Proximitor with longer cable option | Flexible installation |
| 330106-00-07-05-02 | Enhanced shielding for EMI environments | High electrical noise immunitéy |
| 330107-00-09-10-02 | Dual probe compatibility version | Multi-point monitoring capability |
Popular Bently Nevada Modèles
| Modèle | Description | Application |
|---|---|---|
| 3500/42M | Vibration and position monitoring module | Machinery protection in critical assets |
| 3500/32M | Dynamic data collector for condition monitoring | Advanced diagnostics |
| 330130-040-00 | Proximity probe with 4 m cable | Shaft vibration monitoring |
| 330180-91-05 | Proximitor sensor module | Converts proximity signals to voltage |
| 3500/25 | Keyphasor module for phase reference | Speed and phase monitoring |
| 330400 | Industrial accelerometer for vibration measurement | High-speed rotating machinery |
