Présentation du produit

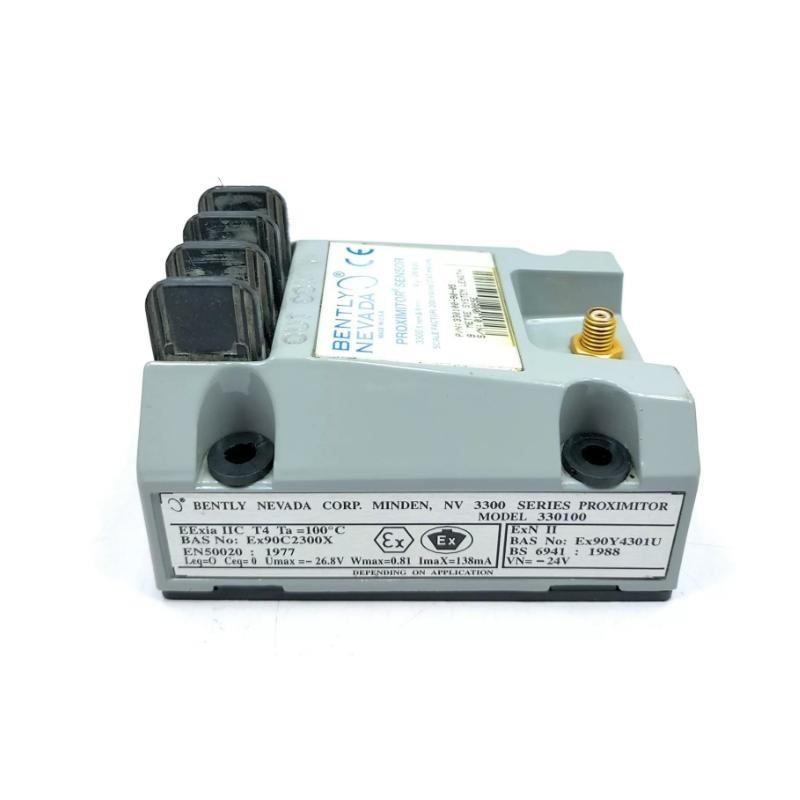

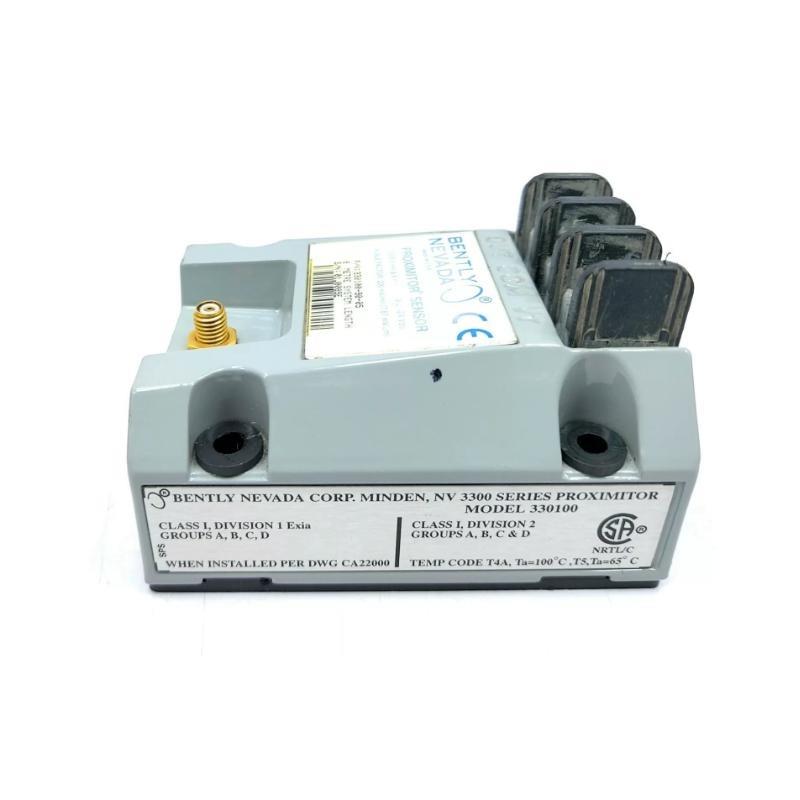

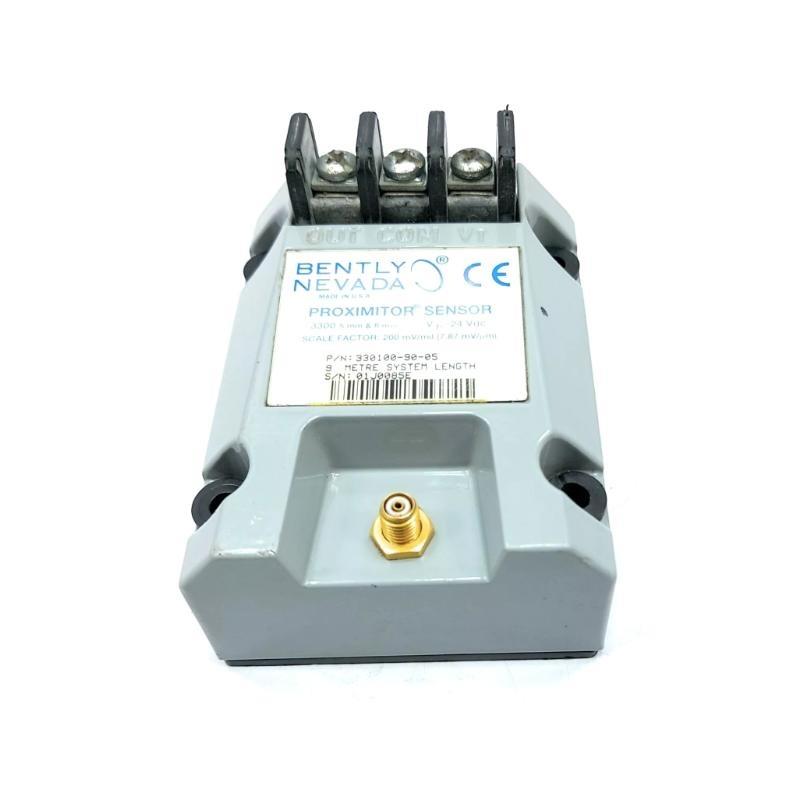

The Bently Nevada 330100-90-05 3300 Proximitor Sensor is a key component sur the 3300 series machinery protection system, widely recognized in the field sur industrial condition monitoring. Designed to accurately measure vibration and displacement in rotating machinery, this sensor provides reliable, high-resolution data essential for detecting early signs sur equipment wear, imbalance, or misalignment. The sensor operates on proximity probe technology, allowing non-contact measurement that reduces wear and tear and enables continuous monitoring in harsh industrial environments.
Built with precision engineering, the 330100-90-05 is compatible with various machinery, including turbines, compressors, and motors. Its rugged construction ensures stable performance even in high-temperature or high-vibration settings. The sensor integrates seamlessly into Bently Nevada’s 3300 monitoring systems, providing critical data that facilitates predictive maintenance strategies, reduces downtime, and enhances operational safety.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle | 330100-90-05 3300 Proximitor Sensor |
| Measurement Principle | Proximity probe (eddy current) |
| Sensor Type | Displacement/Vibration sensor |
| Operating Frequency Range | DC to 10 kHz |
| Probe Tip Style | Spring-loaded plunger |
| Probe Tip Material | Tungsten carbide |
| Measurement Range | Typically ±0.25 mm (±10 mils) |
| Sensitivity | Approximately 50 mV/mil (1.97 mV/µm) |
| Operating Temperature Range | -40°C to +125°C |
| Power Supply Requirements | 18 to 30 V DC |
| Output Signal | AC signal proportional to displacement |
| Housing Material | Stainless steel |
| Cable Type | Coaxial, shielded |
| Total Length | 9 meters |
| Poids | 0.25 kg |
Applications
-
Continuous vibration and shaft displacement monitoring in rotating machinery
-
État monitoring sur turbines, compressors, pumps, and motors
-
Early fault detection for bearings, shaft misalignment, and unbalance
-
Use in power generation, petrochemical, and manufacturing industries
-
Integration into machinery protection systems for automated shutdown or alarm functions
-
Environments with high vibration, temperature, and industrial contaminants
Advantages
-
High Precision Measurement: Provides accurate displacement and vibration data critical for early fault detection.
-
Non-contact Operation: Eddy current technology ensures wear-free, maintenance-free operation.
-
Robust Construction: Stainless steel housing and tungsten carbide tip ensure durability in harsh environments.
-
Wide Operating Temperature: Operates reliably in a broad temperature range suitable for industrial conditions.
-
Seamless Integration: Compatible with Bently Nevada’s 3300 Series monitoring systems and other industrial control equipment.
-
Fast Response Time: Enables real-time monitoring and timely alarms to prevent machinery failure.
-
High Sensitivity: Detects minute changes in shaft position or vibration for detailed condition assessment.
FAQ
-
What measurement principle does the 330100-90-05 sensor use?
It uses eddy current proximity probe technology for non-contact displacement measurement. -
What is the typical measurement range sur this sensor?
Typically ±0.25 mm (±10 mils). -
What is the output signal type from the sensor?
An AC signal proportional to shaft displacement. -
What power supply voltage is required?
The sensor requires 18 to 30 V DC for operation. -
What is the operating temperature range?
The sensor operates reliably between -40°C and +125°C. -
What type sur cable is recommended for the sensor connection?
Coaxial shielded cable is recommended for noise immunitéy. -
What materials are used for the sensor tip and housing?
The probe tip is made sur tungsten carbide; housing is stainless steel. -
Is the sensor suitable for use in high-vibration environments?
Yes, it is designed for robust operation in harsh, high-vibration industrial environments. -
What is the sensor’s sensitivity?
Approximately 50 mV/mil (1.97 mV/µm). -
What machinery types are compatible with this sensor?
It is compatible with turbines, compressors, pumps, and electric motors.
Related Modèles in the Same Series
| Modèle | Description |
|---|---|
| 330100-90-01 | Standard 3300 Proximitor Sensor with standard cable length |
| 330100-90-03 | High temperature sensor variant |
| 330100-90-06 | Sensor with extended cable length options |
| 330100-90-10 | Proximitor sensor with integrated connector |
| 3300-07-05 | Sensor with different probe tip style |
| 3300-04-02 | Economical sensor variant for less demanding applications |
Popular Bently Nevada Modèles (Same Marque)
| Modèle | Description |
|---|---|
| 3300 XL Proximitor Sensor | Advanced sensor with extended capabilities |
| 3300 XL Monitor | Multi-channel machinery protection monitor |
| 7200 Series Proximitor Sensor | High precision proximity sensor for critical machinery |
| 3500 Series Vibration Monitor | Advanced vibration monitoring and analysis system |
| 3300 XL Proximitor Vibration Probe | Integrated vibration and displacement sensing probe |
| 3500/45M Transmitter | Machinery vibration transmitter for 4-20 mA output |
