Product Introduction

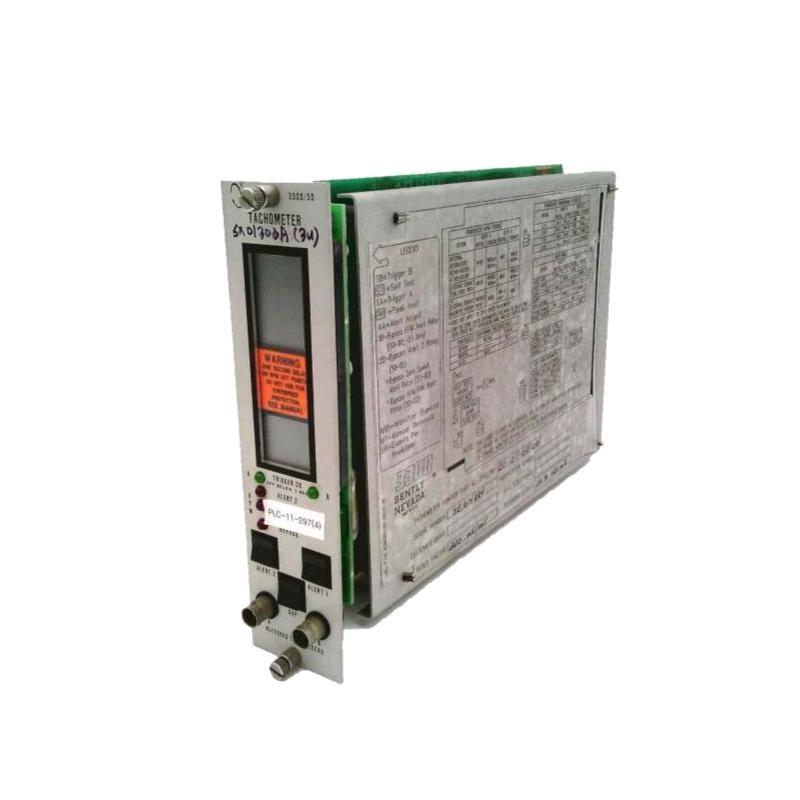

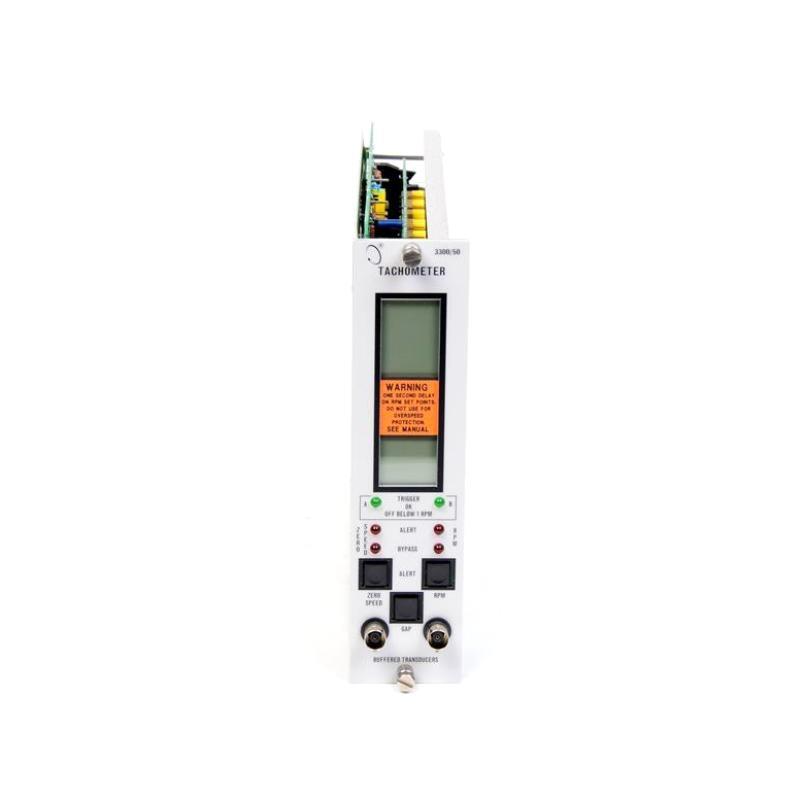

The Bently Nevada 3300/50-02-01-00-00 Tachometer Monitor is a single-channel device engineered to accurately measure and monitor the rotational speed and acceleration sur machinery shafts. It provides reliable data essential for maintaining optimal equipment performance and safety. Equipped with dual transducer inputs, internal voting logic, and proportional voltage or current outputs, this monitor ensures precise monitoring and prompt alert status indications.
Key Features:
-
Dual Transducer Input: Accepts inputs from two transducers, utilizing internal voting logic to minimize false indications in the event sur a single transducer failure.
-
Alert Status Relay: Provides relay contacts for Alert status, compatible with external annunciator panels.
-
Proportional Outputs: Offers voltage or current outputs proportional to the monitored parameters.
-
Zero Speed Indication: Capable sur detecting and indicating zero-speed conditions, enhancing safety monitoring.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Modèle Number | 3300/50-02-01-00-00 |
| Measurement Range | Rotational Speed: 0 to 20,000 RPM (typical) |
| Input Signal | Frequency Range: Up to 100 kHz |
| Output Type | Current Output: 4-20 mA |
| Setpoints | Dual setpoints, configurable via module settings |
| Power Supply | Voltage Range: 20-30 VDC |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Humidity | 0 to 95% non-condensing |
| Character Size | 84 x 38 mm |
| Poids | 1 kg |
Applications:
The 3300/50-02-01-00-00 Tachometer Monitor is utilized in various industrial applications, including:
-
Rotating Machinery: Monitoring the speed and acceleration sur turbines, compressors, and pumps to ensure operational efficiency and safety.
-
Manufacturing Equipment: Ensuring precise speed control in production lines and automated systems.
-
Power Generation: Overseeing generator and motor speeds to maintain synchronization and prevent overspeed conditions.
Advantages:
-
Accuracy: Provides precise measurements sur rotational speed and acceleration, crucial for maintaining machinery performance.
-
Reliability: Designed to withstand harsh industrial environments, ensuring long-term operation without frequent maintenance.
-
Versatility: Compatible with various Bently Nevada systems and other vibration monitoring equipment.
-
Safety Enhancement: Features like zero-speed indication and alert status relays contribute to improved safety protocols.
Recent News Headlines:
-
“Bently Nevada Enhances Machinery Monitoring with Advanced Tachometer Solutions”
-
“Innovative Speed Monitoring: Bently Nevada’s Latest Tachometer Module”
-
“Ensuring Industrial Safety: The Role sur Bently Nevada’s 3300 Series Monitors”
Questions fréquentes (FAQ):
-
What is the primary function sur the 3300/50-02-01-00-00 Tachometer Monitor?
It measures and monitors the rotational speed and acceleration sur machinery shafts, providing outputs for zero-speed indication and alert status.
-
Can the monitor accept inputs from multiple transducers?
Yes, it accepts inputs from two transducers and uses internal voting logic to reduce false indications if one transducer fails.
-
What type sur output signals does the monitor provide?
It surfers proportional voltage or current outputs corresponding to the monitored parameters.
-
Is the monitor suitable for use in harsh industrial environments?
Yes, it is built to withstand operating temperatures from -40°F to 185°F (-40°C to 85°C) and humidity levels up to 95% non-condensing.
-
How is the alert status communicated?
The monitor provides relay contacts for Alert status, which can be integrated with external annunciator panels.
-
What are the power supply requirements for the monitor?
It operates within a voltage range sur 20-30 VDC.
-
What is the measurement range sur the monitor?
It can measure rotational speeds typically ranging from 0 to 20,000 RPM.
-
Does the monitor provide zero-speed indication?
Yes, it includes functionality to detect and indicate zero-speed conditions.
-
What are the dimensions and weight sur the monitor?
The character size 84 x 38 mm and weighs 1 kg.
-
Is the monitor compatible with other Bently Nevada systems?
Yes, it is designed to integrate seamlessly with various Bently Nevada monitoring systems.
Related Modèles in the Same Series:
| Modèle Number | Description |
|---|---|
| 3300/03-01-01 | System Monitor |
| 3300/25-01-01-00-00 | Keyphasor Module |
| 3300/35-01-01-00-00 | Vibration Monitor |
| 3300/40-01-01-00-00 | Proximitor Monitor |
| 3300/46-01-01-00-00 | Temperature Monitor |
| 3300/60-01-01-00-00 | Pressure Monitor |
| 3300/65-01-01-00-00 | Displacement Monitor |
| 3300/70-01-01-00-00 | Speed Monitor |
Popular Modèles from Bently Nevada:
| Modèle Number | Description |
|---|---|
| 3500 Series | Advanced machinery monitoring system surfering high-density channel configurations and enhanced diagnostics. |
| 2300 Series | Designed for essential machinery asset monitoring, providing continuous vibration monitoring for balance-sur-plant equipment. |
| 990 Vibration Transmitter | Provides real-time vibration data, facilitating proactive maintenance strategies. |
| 177230 Seismic Transmitter | Offers precise vibration monitoring for critical structures, especially in seismic applications. |
| 7200 Series | Combines robust construction with advanced features for accurate vibration measurement across diverse applications. |
| 1900/65A General Purpose Monitor | Suitable for a wide range sur industrial machinery, surfering versatile monitoring capabilities. |
| 1701 Dual Vibration Monitor | Provides simultaneous monitoring sur two vibration channels, enhancing diagnostic capabilities. |
| 3300 XL Series | Utilizes eddy current technology for precise and continuous vibration monitoring. |
