Product Overview

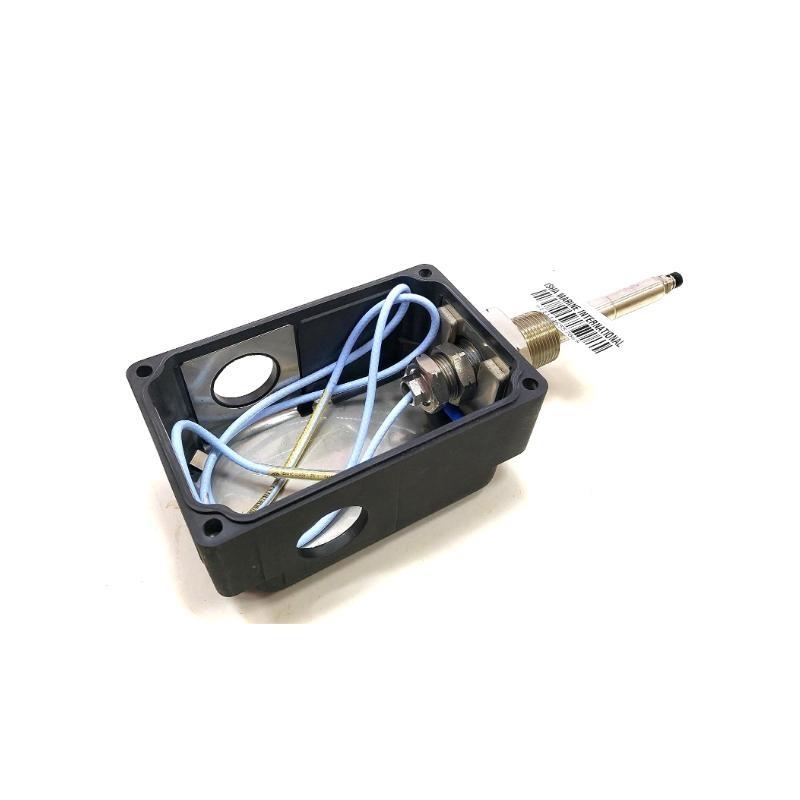

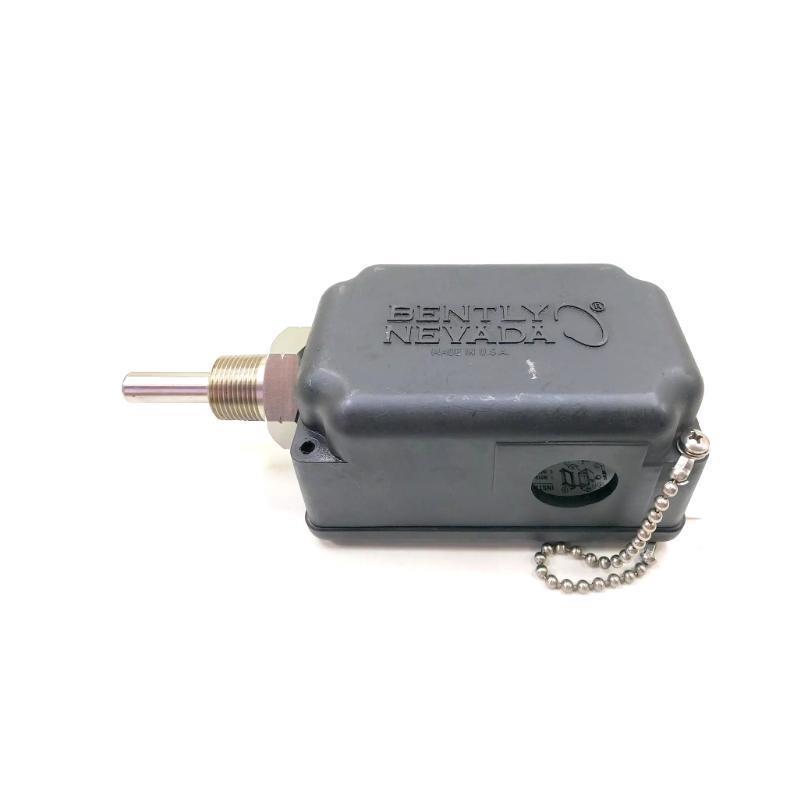

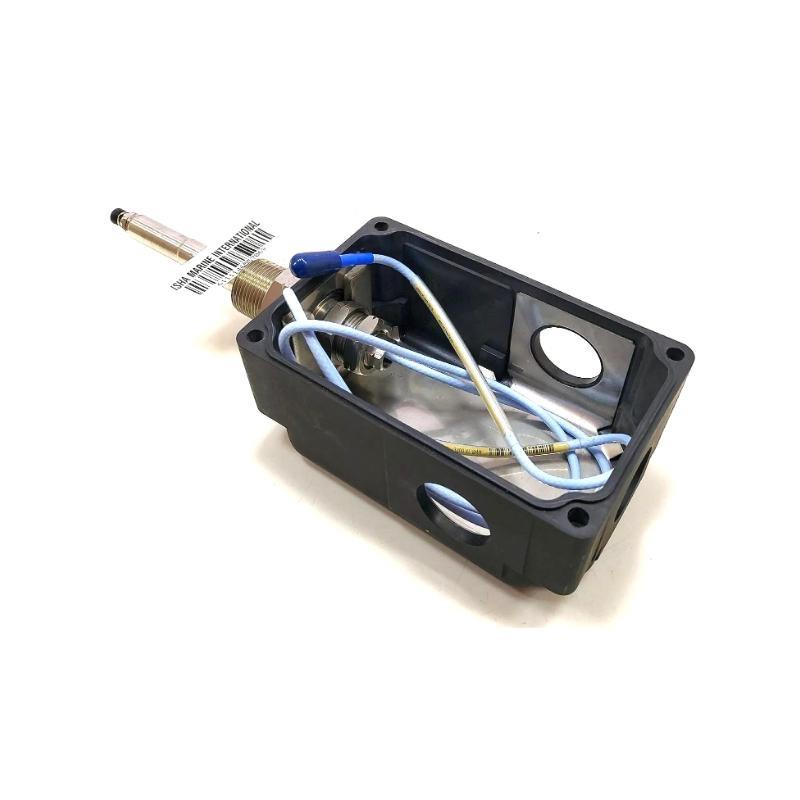

The Bently Nevada 32000-28-05-00-080-03-02 is a metric proximity probe housing assembly designed for reliable vibration monitoring and shaft position measurement in industrial machinery. It supports the 3300 XL 8 mm proximity probe and is optimized for installation in harsh environments, allowing easy access for maintenance without system disassembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | 32000 Metric Proximity Probe Housing Assembly |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Probe Cable Length | 0.5 meter |
| Poids | 1.2 kg |
| Standsurf Adapter Length (Option C) | 0 mm |
| Probe Penetration (Option D) | 80 mm |
| Fittings | Two plugs, one M20 fitting, one cable seal grip with grommets |
| Mounting Thread | 3/4-14 NPT |
| Environmental Rating | IP66 / NEMA 4X |
| Material | Stainless steel housing |
| Operating Temperature | -40°C to 120°C |
Applications
-
Shaft vibration monitoring in turbines, compressors, and generators
-
Position sensing in rotating machinery
-
Harsh industrial environments requiring probe accessibility
-
Predictive maintenance programs
Advantages
-
Modular design for easy probe replacement and gap adjustment
-
Robust stainless steel construction for durability
-
IP66/NEMA 4X rated for harsh environments
-
Compatible with 3300 XL Proximitor system
-
Reduces downtime through accessible maintenance
FAQs
1. What is the maximum operating temperature for this housing?
The housing can operate safely from -40°C to 120°C.
2. Can this housing be used with probes other than 3300 XL?
It is designed specifically for the 3300 XL 8 mm probe. Compatibility with other probes is not recommended.
3. Is the probe cable replaceable?
Yes, the modular design allows the probe cable to be replaced without removing the housing from machinery.
4. What material is the housing made sur?
Stainless steel for corrosion resistance and mechanical durability.
5. What mounting options are available?
3/4-14 NPT threading for standard industrial installation.
6. Is the housing waterprosur?
Yes, it has an IP66/NEMA 4X rating, ensuring protection against dust and water ingress.
7. Can the housing be used in explosive environments?
Standard version is not certified for explosive atmospheres.
8. How long is the probe cable supplied?
The supplied probe cable length is 0.5 meters.
9. Can the standsurf adapter length be customized?
Yes, the standard option is 0 mm, but other lengths can be configured as required.
10. What maintenance is required?
Routine inspection sur probe alignment and cable integrity is recommended.
Related 32000 Series Modèles
| Modèle | Probe Type | Cable Length | Probe Penetration | Poids |
|---|---|---|---|---|
| 32000-28-05-00-060-03-02 | 3300 XL 8 mm | 0.5 m | 60 mm | 1.1 kg |
| 32000-28-05-00-100-03-02 | 3300 XL 8 mm | 0.5 m | 100 mm | 1.3 kg |
| 32000-28-05-00-120-03-02 | 3300 XL 8 mm | 0.5 m | 120 mm | 1.4 kg |
| 32000-28-10-00-080-03-02 | 3300 XL 8 mm | 1.0 m | 80 mm | 1.5 kg |
| 32000-28-02-00-080-03-02 | 3300 XL 8 mm | 0.2 m | 80 mm | 1.0 kg |
| 32000-28-05-00-080-02-02 | 3300 XL 8 mm | 0.5 m | 80 mm | 1.2 kg |
Popular Bently Nevada Modèles
| Modèle | Type | Cable Length | Probe Size | Poids |
|---|---|---|---|---|
| 330104-00-06-10-11-00 | Proximity Probe | 0.3 m | 8 mm | 0.8 kg |
| 330104-00-06-50-01-00 | Proximity Probe | 0.5 m | 8 mm | 1.0 kg |
| 330180-91-CN | Proximitor Sensor | N/A | N/A | 0.5 kg |
| 31000-29-05-00-060-01-02 | Probe Housing | 0.6 m | 8 mm | 1.3 kg |
| 3300 XL 8 mm | Proximity Probe | 0.5 m | 8 mm | 0.9 kg |
| 3300 XL 12 mm | Proximity Probe | 0.5 m | 12 mm | 1.1 kg |
