Product Description

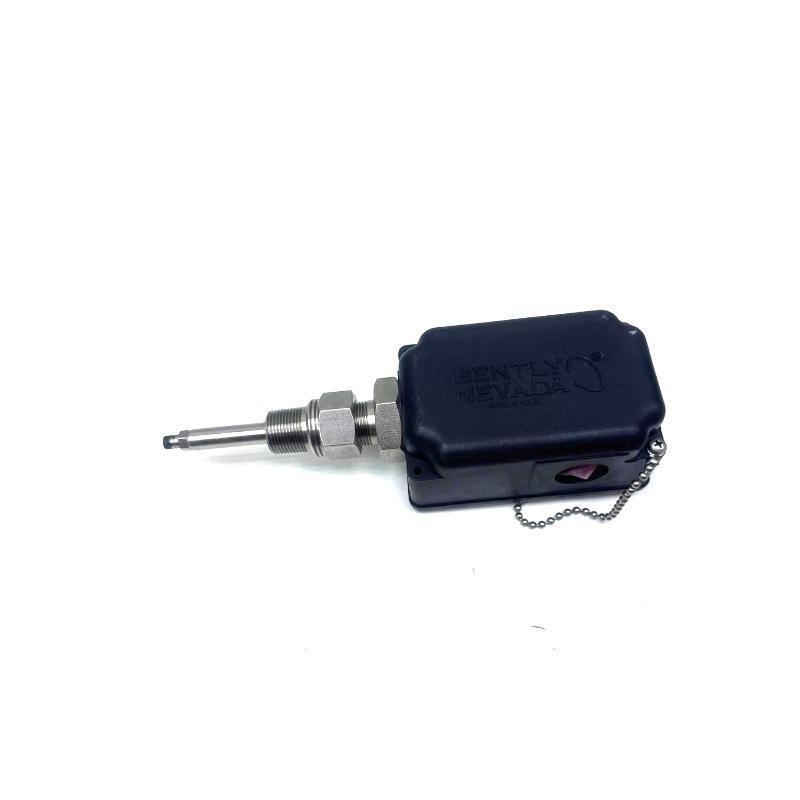

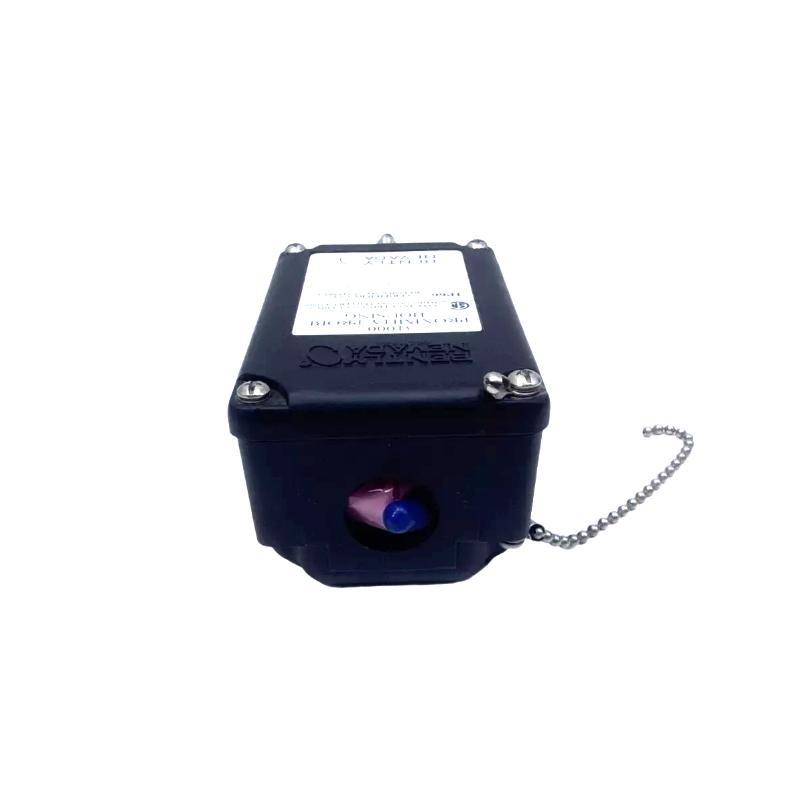

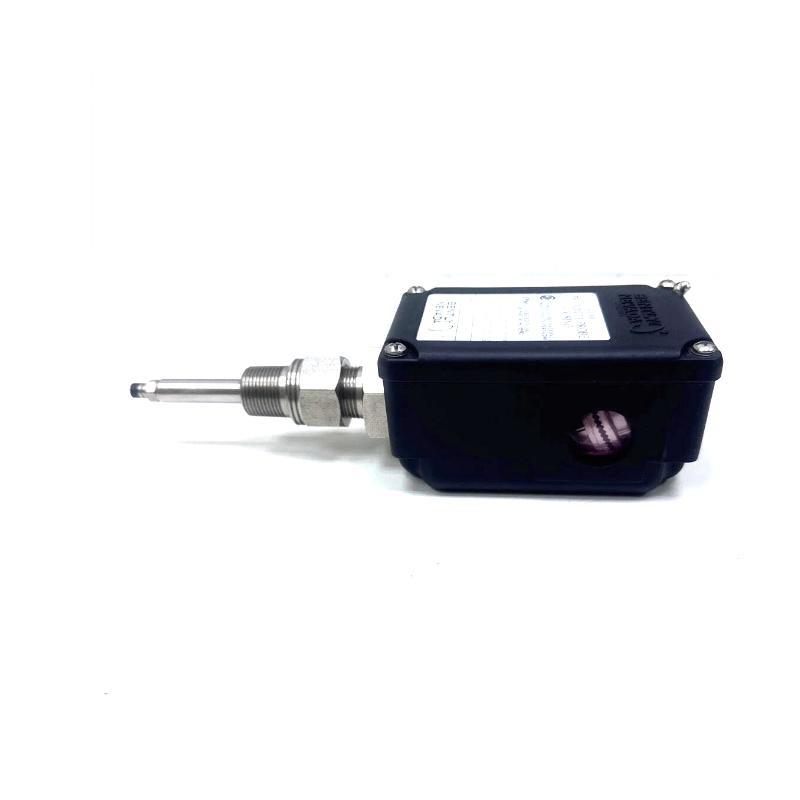

The Bently Nevada 31000-30-05-35-003-06-00 Proximity Probe Housing is engineered to securely mount proximity probes through machine casings. It allows precise vibration and Keyphasor measurements while providing external access to the probe and extension cable for gap adjustments or replacement without machine disassembly. Its durable thermoplastic construction and stainless steel components ensure reliable operation in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Polyphenylene Sulfide (PPS), Stainless Steel |
| Mounting Type | Radial, externally mounted |
| Temperature Range | -60°F to 221°F (-51°C to 105°C) |
| Probe Cable Length | 0.5 meter |
| Poids | 1.2 kg |
| Compliance | API 670 Standard |
| Vibration/Measurement Type | Vibration, Keyphasor |
| Protection Level | IP65 |
| Housing Diameter | 35 mm |
| Overall Length | 110 mm |
Applications
-
Industrial machinery vibration monitoring
-
Turbine and compressor rotor position measurement
-
Alignment and balancing verification
-
High-speed rotating equipment protection
-
Real-time condition monitoring in power generation plants
Advantages
-
Durability: PPS material and stainless steel resist corrosion and wear.
-
Maintenance-Friendly: External access simplifies probe replacement and gap adjustment.
-
High Accuracy: Ensures precise radial vibration and Keyphasor measurements.
-
Standards Compliant: Meets API 670 for probe housing assemblies.
-
Wide Temperature Range: Performs reliably under extreme industrial conditions.
FAQs
1. What is the maximum operating temperature for this housing?
The housing operates reliably from -60°F to 221°F (-51°C to 105°C).
2. Can this housing be used for both vibration and Keyphasor probes?
Yes, it is designed for both vibration monitoring and Keyphasor measurements.
3. What is the probe cable length?
The standard probe cable length is 0.5 meters.
4. What materials are used in construction?
The housing body is PPS thermoplastic, with stainless steel mounting components.
5. How does it comply with industry standards?
It meets the API 670 standard for externally mounted proximity probe housings.
6. Is the housing maintenance-friendly?
Yes, it allows external access for gap adjustments or probe replacement without disassembling machinery.
7. What is the housing weight?
The assembly weighs 1.2 kg.
8. Can it be used in high-speed rotating equipment?
Yes, it is suitable for turbine, compressor, and other high-speed rotating machinery.
9. What protection level does the housing provide?
It provides IP65-level protection against dust and water ingress.
10. What is the housing diameter?
The housing diameter is 35 mm.
Related Modèles
| Modèle Number | Key Parameters |
|---|---|
| 31000-30-05-35-003-06-01 | PPS, 0.5 m cable, 1.2 kg |
| 31000-30-05-35-003-06-02 | PPS, 1 m cable, 1.3 kg |
| 31000-30-05-35-003-06-03 | Stainless Steel, 0.5 m cable, 1.2 kg |
| 31000-30-05-35-003-06-04 | PPS, IP65, 0.5 m cable, 1.2 kg |
| 31000-30-05-35-003-06-05 | PPS, Radial Mount, 0.5 m cable, 1.2 kg |
| 31000-30-05-35-003-06-06 | PPS, High Temp, 0.5 m cable, 1.2 kg |
Popular Bently Nevada Modèles
| Modèle Number | Key Parameters |
|---|---|
| 330104-00-06-10-11-00 | 8 mm probe, PPS, 1 m cable, 0.8 kg |
| 330180-91-CN | 3300 XL Proximitor, PPS, 0.5 m cable, 1.0 kg |
| 31000-29-05-00-060-01-02 | Probe Housing, PPS, 0.5 m cable, 1.2 kg |
| 330104-00-06-50-01-00 | 8 mm probe, PPS, 0.5 m cable, 0.9 kg |
| 3500/37-04-03-01 | Vibration Sensor, PPS, 1 m cable, 0.7 kg |
| 3300 XL Proximitor Sensor | PPS, 0.5 m cable, 1.1 kg |
