Présentation du produit

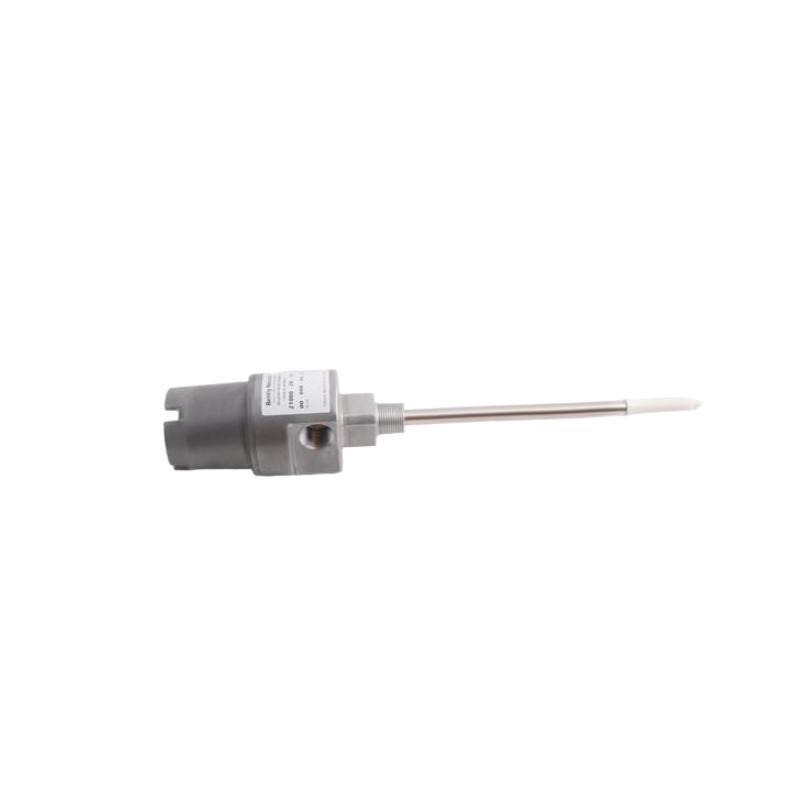

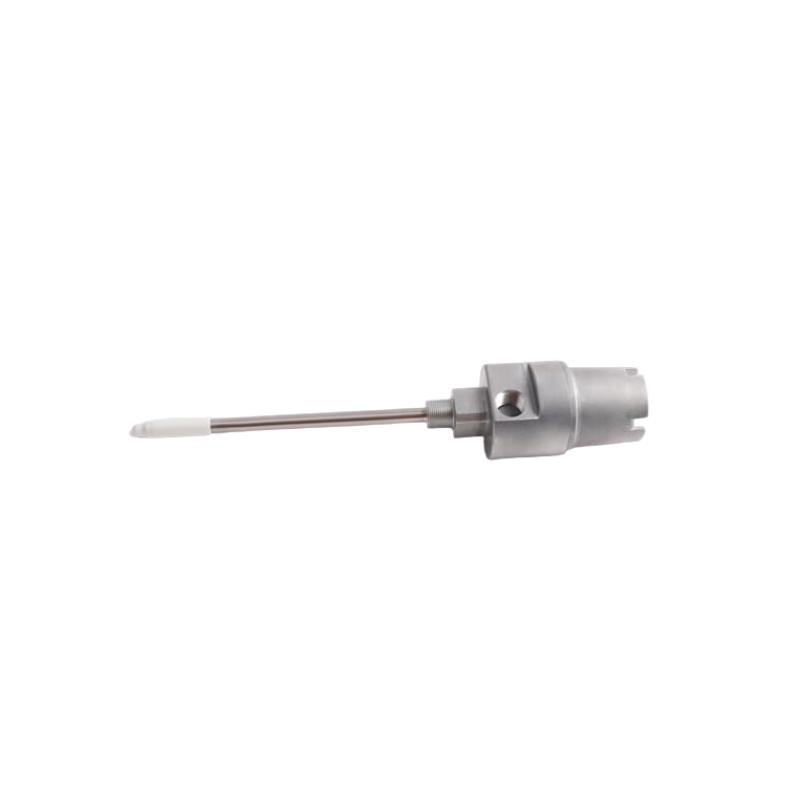

The Bently Nevada 21000-16-10-00-090-04-02 Proximity Probe Housing Assembly is part sur the trusted 21000 series, specifically engineered to provide reliable, robust protection and mounting for proximity transducer systems in industrial environments. This assembly is primarily used to house Bently Nevada’s proximity probe and extension cable combinations, ensuring consistent signal integrity, mechanical stability, and environmental protection.
Designed with rugged materials and high-temperature compatibility, the 21000 series housing is well-suited for critical applications such as rotating machinery, including turbines, compressors, motors, and pumps. The assembly surfers an effective solution for secure probe placement, reducing mechanical noise and enhancing measurement accuracy in harsh industrial conditions.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | 21000-16-10-00-090-04-02 |
| Series | 21000 Series Proximity Probe Housing |
| Material | Stainless Steel (316L), anodized aluminum options available |
| Probe Compatibility | Bently Nevada 3300 XL, 7200, and 3000 series proximity probes |
| Mounting Style | Threaded or flange-mounted depending on configuration |
| Ingress Protection | IP65 / IP67 depending on configuration and sealing options |
| Temperature Range | -55°C to +200°C (-67°F to +392°F) |
| Vibration Resistance | Up to 20 g peak, 10–2000 Hz |
| Cable Entry Type | ½” NPT or M20 x 1.5 (customizable) |
| Housing Body Diameter | 83.3 mm |
| Poids | 1.1 kg |
| Sealing | O-ring or epoxy sealed |
| Certifications | ATEX, CSA, CE, IECEx options available upon request |
Applications
The Bently Nevada 21000-16-10-00-090-04-02 Proximity Probe Housing Assembly is used extensively in critical process and rotating equipment monitoring applications. Key application areas include:
-
Steam and Gas Turbines
Ensures accurate shaft vibration monitoring and rotor position tracking. -
Compressors
Facilitates condition monitoring for high-speed and centrifugal compressors. -
Pumps and Motors
Protects probes in environments with moisture, dust, or oil ingress. -
Gearboxes
Monitors gear mesh and shaft conditions within confined or harsh locations. -
Power Generation
Reliable data acquisition from high-temperature zones in turbines and generators. -
Oil & Gas Facilities
Used in hazardous zones requiring explosion-prosur or intrinsically safe components.
Advantages
-
Durable and Reliable
Constructed with robust materials for long-term field deployment in corrosive and high-temperature environments. -
Modular Design
Simplifies installation and maintenance. Compatible with a wide range sur Bently Nevada probes and extensions. -
Environmental Protection
Offers exceptional sealing against water, oil, and dust, ensuring stable sensor operation. -
High Compatibility
Fully compatible with standard Bently Nevada proximity transducer systems including 3300 XL and 7200 series. -
Precision Alignment
Integrated alignment guides ensure precise probe positioning and improved measurement accuracy. -
Field Proven
Trusted in thousands sur industrial installations worldwide for reliable condition monitoring.
Questions fréquentes (FAQ)
-
What probe models are compatible with the 21000-16-10-00-090-04-02 housing?
It is compatible with Bently Nevada 3300 XL, 7200, and 3000 series proximity probes. -
Is the housing assembly suitable for hazardous locations?
Yes, versions are available with ATEX, CSA, and IECEx certifications for use in hazardous areas. -
What is the maximum operating temperature for this housing?
It supports operating temperatures up to 200°C (392°F). -
Can this housing be used outdoors?
Yes, with proper sealing and configuration, it meets IP65 or IP67 ratings suitable for outdoor use. -
What is the material used in construction?
The housing is typically made from stainless steel (316L) with optional anodized aluminum. -
How is the probe secured within the housing?
The probe is secured with internal clamps or threaded couplings and sealed using O-rings or epoxy. -
Is custom cable entry supported?
Yes, options include ½” NPT and M20x1.5, with additional customization on request. -
Does it come with a mounting bracket?
Mounting hardware is available separately or as part sur specific assembly configurations. -
What environments is this housing best suited for?
High-vibration, high-temperature, and moisture-prone industrial settings such as power plants and refineries. -
Can the housing be reused if a probe needs replacement?
Yes, it is designed for reusability with proper care and maintenance.
Related Modèles from Same Series
| Modèle | Description | Dimensions (mm) | Poids (kg) |
|---|---|---|---|
| 21000-16-10-00-120-04-02 | Extended length housing for deeper installations | Ø 50 x 120 | 1.7 |
| 21000-16-10-00-060-04-02 | Compact length version | Ø 50 x 60 | 1.3 |
| 21000-16-10-01-090-04-02 | Angled cable entry variant | Ø 50 x 90 | 1.5 |
| 21000-17-10-00-090-04-02 | Housing for 3300 series proximity probes | Ø 55 x 90 | 1.6 |
| 21000-20-10-00-090-04-02 | Housing with integrated terminal box | Ø 60 x 90 | 1.8 |
| 21000-16-11-00-090-04-02 | Dual probe housing for redundancy | Ø 65 x 90 | 2.0 |
Popular Bently Nevada Modèles
| Modèle | Product Type | Function | Notes |
|---|---|---|---|
| 3300 XL 8 mm | Proximity Probe System | Shaft vibration & position monitoring | Most common probe model |
| 3500/22M | Transient Data Interface Module | Dynamic signal processing and diagnostics | Part sur 3500 system |
| 3500/42M | Vibration Monitor Module | Monitors radial vibration or axial position | Modular rack-based system |
| 330400 | Velomitor Sensor | Velocity vibration measurement | Ideal for low-frequency apps |
| 3500/15 | Power Supply Module | Powers 3500 Series rack systems | Redundant configuration |
| 330780-90-00 | Extension Cable | Connects proximity probe to monitor | Various lengths available |
