Présentation du produit

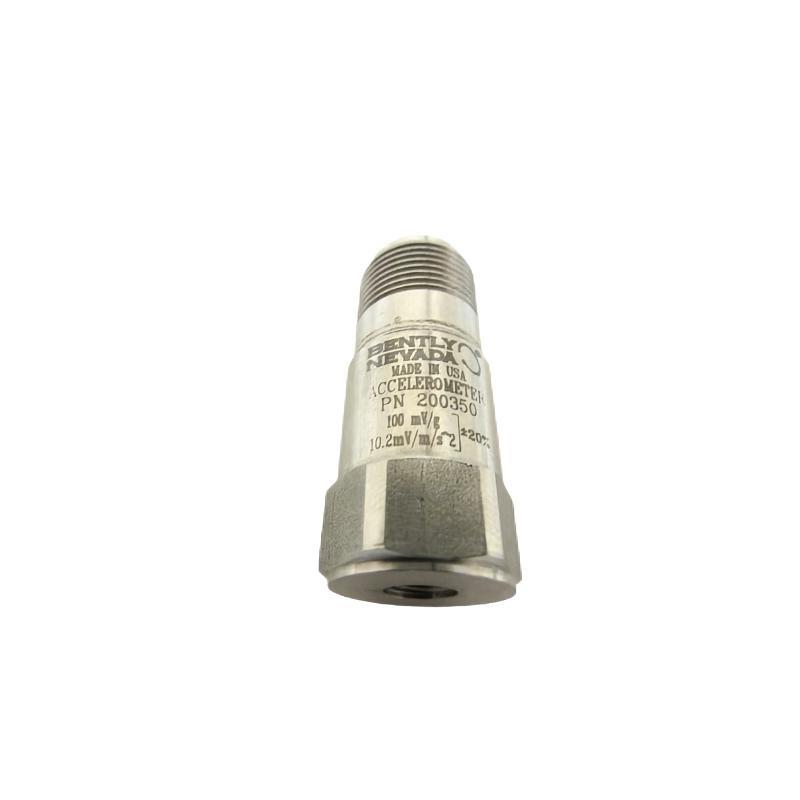

The Bently Nevada 200350-00-00-01 is a high-performance industrial accelerometer engineered for continuous vibration monitoring in critical rotating machinery. Designed to operate in demanding environments, this sensor surfers a robust, hermetically sealed stainless steel construction and is tailored for use in condition monitoring systems where early detection sur mechanical faults is vital.
As part sur the Bently Nevada 200300 series, the 200350-00-00-01 model is particularly suited for long-term deployment in turbine generators, compressors, pumps, motors, and gearboxes. It delivers accurate and reliable vibration measurements with a flat frequency response, making it ideal for both general-purpose and precision applications in the oil & gas, power generation, and process industries.
Spécifications du produit
| Parameter | Value |
|---|---|
| Modèle Number | 200350-00-00-01 |
| Fabricant | Bently Nevada (A Baker Hughes Company) |
| Sensing Element | Piezoelectric |
| Measurement Type | Vibration (Acceleration) |
| Sensitivity | 100 mV/g ±10% |
| Frequency Range | 0.5 Hz to 10 kHz (±3 dB) |
| Dynamic Range | ±50 g |
| Transverse Sensitivity | ≤5% |
| Output Type | Voltage (Single-ended) |
| Power Requirements | 18 to 30 VDC constant current source |
| Output Bias Voltage | 10 to 14 VDC |
| Mounting Type | 1/4-28 UNF tapped hole |
| Connector Type | MIL-C-5015 2-pin |
| Case Material | Stainless Steel |
| Sealing | Hermetically sealed |
| Operating Temperature Range | -54°C to +121°C (-65°F to +250°F) |
| Shock Limit | 5,000 g peak |
| Environmental Protection | IP68 |
| Cable | Shielded, Teflon jacket optional |
| Sensor Head Diameter | 18 mm |
| Poids | 0.051kg |
| Compliance | CE, RoHS, ATEX (optional depending on variant) |
Applications
The 200350-00-00-01 accelerometer is widely used across several critical industry sectors where precision vibration data is essential for predictive maintenance and reliability engineering:
-
Power Generation – Monitoring turbines, generators, and auxiliary motors.
-
Oil & Gas – État monitoring sur compressors, centrifugal pumps, and reciprocating equipment.
-
Petrochemical & Refining – Ensuring machinery reliability in hazardous processing environments.
-
Industrial Manufacturing – Vibration analysis on production lines and heavy-duty rotating machinery.
-
Water & Wastewater – Pump station monitoring and motor health tracking.
-
Mining – Real-time vibration monitoring for crushers, mills, and conveyor drives.
Product Advantages
-
High Reliability: Designed for critical infrastructure and 24/7 monitoring applications with excellent MTBF.
-
Wide Frequency Response: Enables detection sur early-stage bearing faults and imbalance at both low and high frequencies.
-
Robust Construction: Hermetically sealed stainless steel housing surfers superior protection in harsh industrial environments.
-
Simple Integration: Compatible with a wide range sur Bently Nevada monitoring systems and other third-party vibration monitoring platforms.
-
ATEX-Compliant Versions: Disponible with explosion-prosur ratings for deployment in hazardous zones.
-
Excellent Shock Resistance: Can withstand up to 5,000 g peak shock loads, making it suitable for high-impact installations.
-
Ease sur Mounting: Threaded base design with optional mounting adapters and stud kits simplifies installation.
-
Global Support: Backed by Bently Nevada’s extensive service and diagnostics network worldwide.
Questions fréquentes (FAQ)
1. What type sur vibration does the Bently Nevada 200350-00-00-01 measure?
It measures acceleration vibration, typically expressed in g’s, which can be integrated to determine velocity and displacement as needed.
2. Can this accelerometer be used in hazardous or explosive environments?
Yes, there are ATEX and CSA-certified versions available for use in classified hazardous areas.
3. Is the sensor compatible with legacy Bently Nevada systems?
Yes, it is fully compatible with 3500 series and System 1 platforms as well as most third-party condition monitoring equipment.
4. How is the sensor mounted to the equipment?
It is installed using a 1/4-28 UNF tapped hole with a mounting stud or epoxy in some applications.
5. What kind sur cable is required for this sensor?
Typically, a two-conductor shielded cable with MIL-C-5015 connectors is used; high-temperature and chemical-resistant variants are available.
6. How surten should the sensor be calibrated?
Annual calibration is recommended for precision-critical applications. Bently Nevada provides factory calibration services.
7. What is the maximum cable length supported?
Up to 300 meters (1,000 feet) with appropriate low-noise cabling and power supply compliance.
8. Can it be used for both online and surfline measurements?
Yes, it is suitable for continuous online monitoring as well as periodic data collection.
9. What is the impact sur temperature on sensitivity?
The sensor has a temperature coefficient that is typically within ±0.05%/°C, ensuring consistent performance across the rated range.
10. Is this sensor repairable?
Due to the hermetically sealed nature, these sensors are not repairable. Faulty unités are typically replaced.
Related Modèles
| Modèle Number | Description | Sensitivity | Frequency Range | Mounting |
|---|---|---|---|---|
| 200300-00-00-01 | General-purpose accelerometer | 100 mV/g | 0.5 Hz to 10 kHz | Stud mount |
| 200310-00-00-01 | High-temperature variant | 100 mV/g | 1 Hz to 9 kHz | Epoxy mount |
| 200320-00-00-01 | Low-prsurile, side-exit cable | 100 mV/g | 0.5 Hz to 11 kHz | Adhesive/stud |
| 200330-00-00-01 | Low-frequency vibration sensor | 500 mV/g | 0.2 Hz to 5 kHz | Stud mount |
| 200340-00-00-01 | Compact top-exit version | 100 mV/g | 0.5 Hz to 10 kHz | Top-mount |
| 200360-00-00-01 | Triaxial accelerometer for multi-direction sensing | 100 mV/g/axis | 0.5 Hz to 8 kHz | Stud mount |
Popular Modèles
| Modèle Number | Product Type | Key Function | Application |
|---|---|---|---|
| 330104-00-05-10-02-00 | Proximity Probe | Shaft vibration/displacement monitoring | Turbines, compressors |
| 3500/42M | Vibration Monitor Module | Monitors 4 channels sur vibration or axial | 3500 rack systems |
| 330130-040-00-00 | Extension Cable | Connects proximity probe to monitor | General machinery |
| 330180-91-05 | Proximitor Sensor | Converts probe signal for monitoring | Rotating equipment |
| 990-08-XX-01-00 | Velomitor Piezo Velocity | Measures velocity vibration | Pumps, motors, gearboxes |
| 330500 | Velocity Sensor | Industrial seismic sensor | Outdoor or harsh environments |
