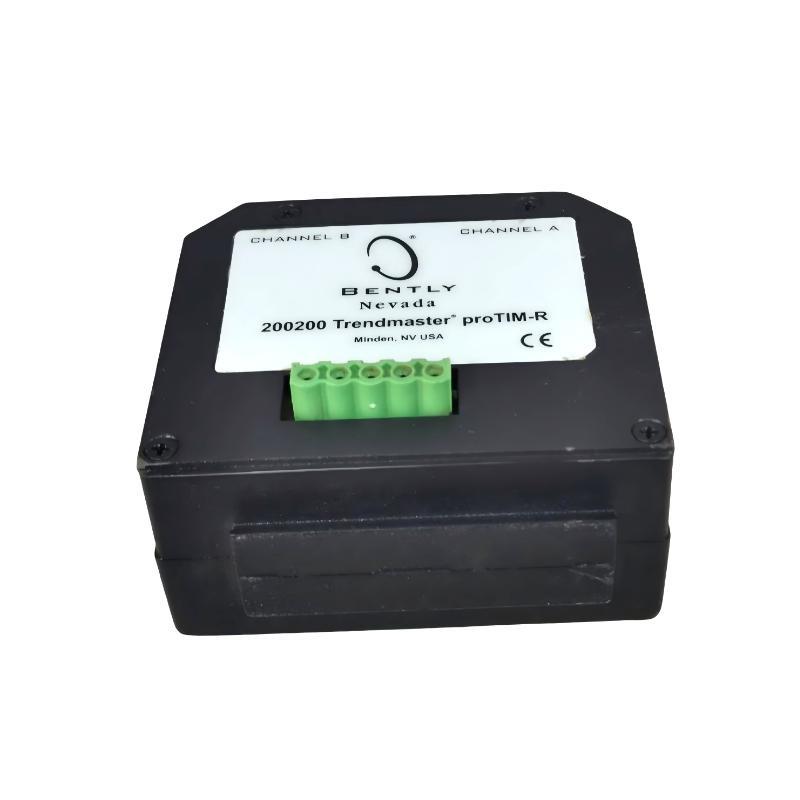

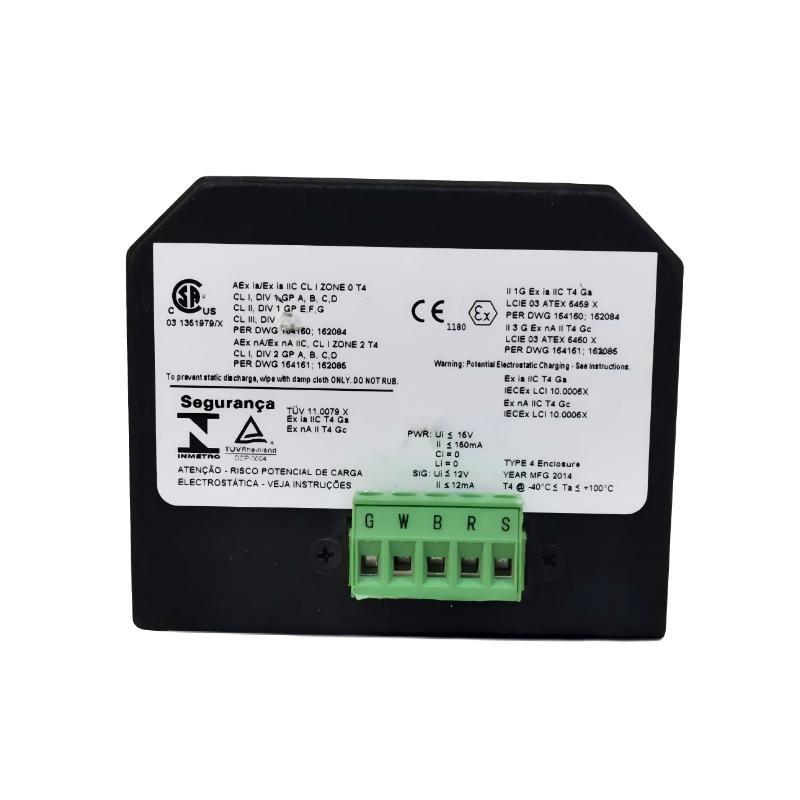

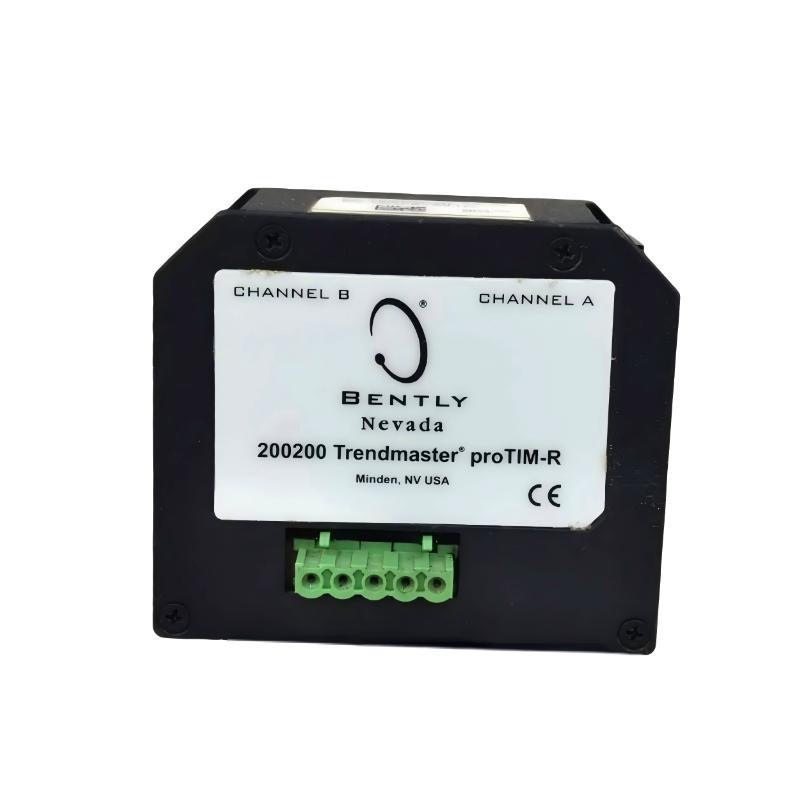

The Bently Nevada 200200-03-03-05 Trendmaster ProTIM-R Dual Input Module is a high-precision monitoring device designed for industrial machinery condition monitoring and vibration analysis. As part sur the ProTIM-R series, this dual input module provides reliable, real-time acquisition sur dynamic signals from two independent sensors. It is engineered for integration into Trendmaster systems, enabling accurate trend tracking, diagnostics, and predictive maintenance. The module ensures precise measurement sur machinery vibration, velocity, and displacement, supporting critical applications in turbines, compressors, pumps, and other rotating equipment. With robust design, industrial-grade construction, and compatibility with Bently Nevada monitoring platforms, this module enhances system reliability and helps prevent unexpected downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 200200-03-03-05 |
| Product Type | Trendmaster ProTIM-R Dual Input Module |
| Input Channels | 2 |
| Input Type | AC / DC, voltage and current compatible |
| Signal Type | Vibration, proximity probe signals |
| Frequency Range | 0.1 Hz to 10 kHz |
| Sample Rate | Up to 20 kHz |
| Input Impedance | 10 kΩ |
| Accuracy | ±0.5% sur full scale |
| Voltage Supply | 24 V DC ±10% |
| Current Consumption | 150 mA |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Connector Type | 9-pin D-sub |
| Mounting Type | DIN rail / Panel mounting |
| Outer Dimensions (L×W×H) | 100.9 x 52.9 x 86.2 mm |
| Poids | 0.545 kg |
| Standards Compliance | IEC 61010, ISO 9001 |
Applications
-
Monitoring vibrations in turbines, compressors, and pumps
-
Dual-channel data acquisition for Trendmaster systems
-
Machinery condition monitoring in power generation and petrochemical plants
-
Detecting imbalance, misalignment, and bearing wear
-
Integration into predictive maintenance programs for industrial equipment
-
Real-time signal processing and trend analysis for rotating machinery
Advantages
-
Dual Input Capability: Allows simultaneous monitoring sur two sensors, increasing system efficiency.
-
High Accuracy: Ensures precise vibration and displacement measurement with ±0.5% full-scale accuracy.
-
Wide Frequency Range: Supports signals from 0.1 Hz to 10 kHz for diverse machinery types.
-
Robust Design: Industrial-grade construction withstands harsh operating environments.
-
Flexible Integration: Compatible with Trendmaster ProTIM-R systems for seamless installation.
-
Compact and Lightweight: Small footprint with DIN rail or panel mounting options for space-constrained applications.
-
Low Power Consumption: Efficient design reduces system energy load.
-
Standards Compliance: Meets IEC 61010 and ISO 9001 standards for reliability and safety.
FAQ
-
How many input channels does the Trendmaster ProTIM-R Dual Input Module support?
It supports two independent input channels, allowing simultaneous monitoring from two sensors for comprehensive machinery vibration analysis. -
What types sur signals can the module process?
The module can handle AC and DC voltage signals as well as proximity probe inputs, supporting both analog and dynamic vibration measurements. -
What is the frequency range sur this module?
It operates over a frequency range from 0.1 Hz to 10 kHz, suitable for both low-speed and high-speed rotating machinery. -
What is the sample rate for data acquisition?
The module supports up to 20 kHz sample rate, ensuring accurate capture sur fast-changing vibration and displacement signals. -
What is the input impedance sur the module?
The input impedance is 10 kΩ, which maintains signal integrity across a wide range sur sensors. -
What is the power supply requirement?
The module requires 24 V DC ±10% and typically consumes 150 mA, allowing efficient integration into monitoring systems. -
Can this module operate in harsh environments?
Yes, it works reliably in temperatures from -20°C to 70°C and can be stored at -40°C to 85°C. -
What type sur connectors does it use?
It uses 9-pin D-sub connectors for sensor and power connections, ensuring secure and reliable installation. -
Is it compatible with Trendmaster systems?
Yes, it integrates seamlessly with Trendmaster ProTIM-R systems for real-time monitoring and trend analysis. -
Can the module detect common machinery faults?
Yes, it can detect imbalance, misalignment, and bearing wear by analyzing vibration and displacement signals for predictive maintenance purposes.
