Présentation du produit

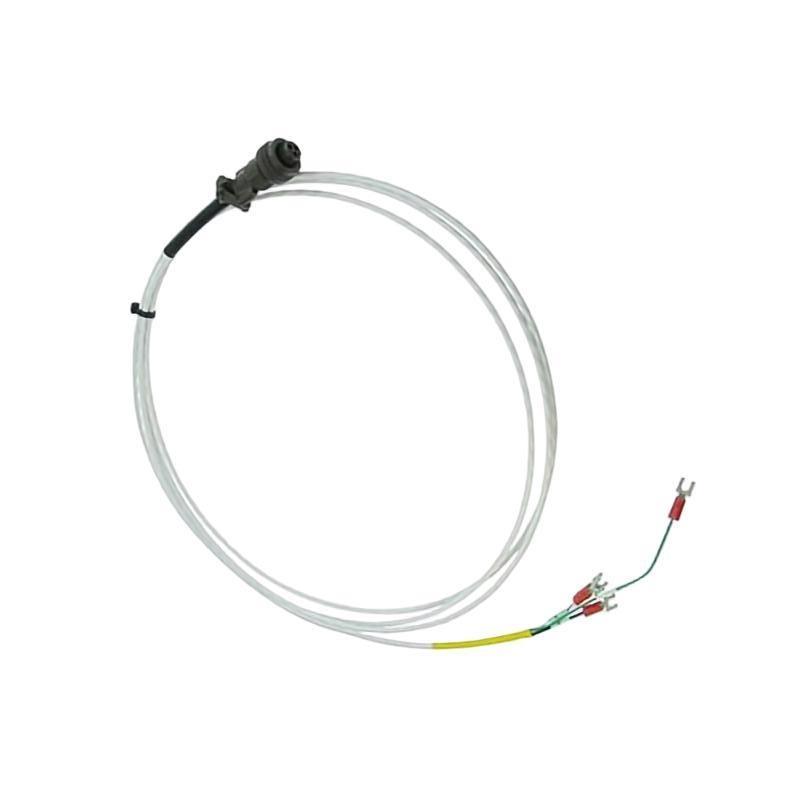

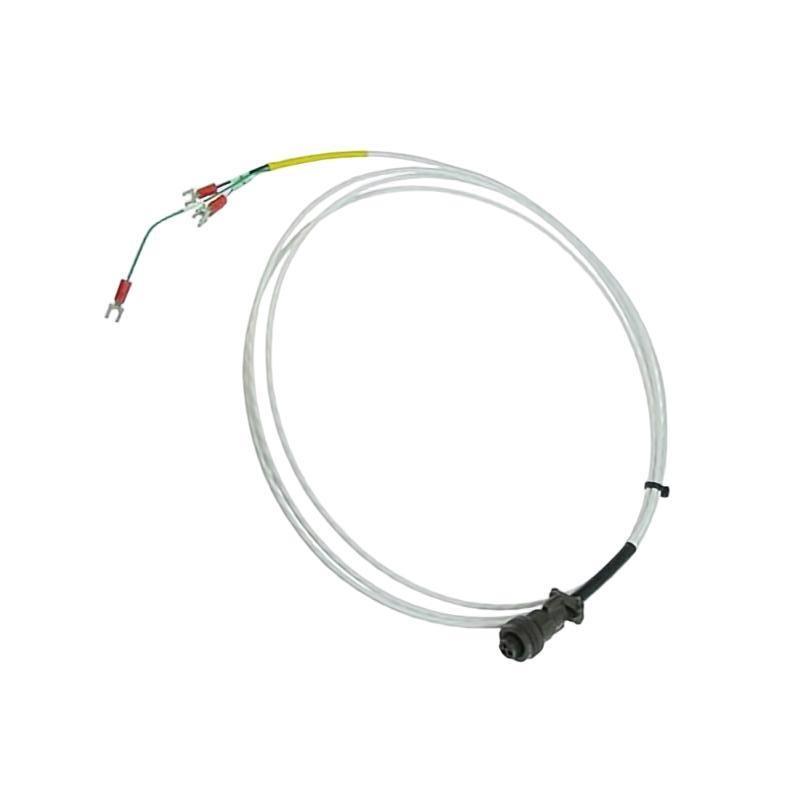

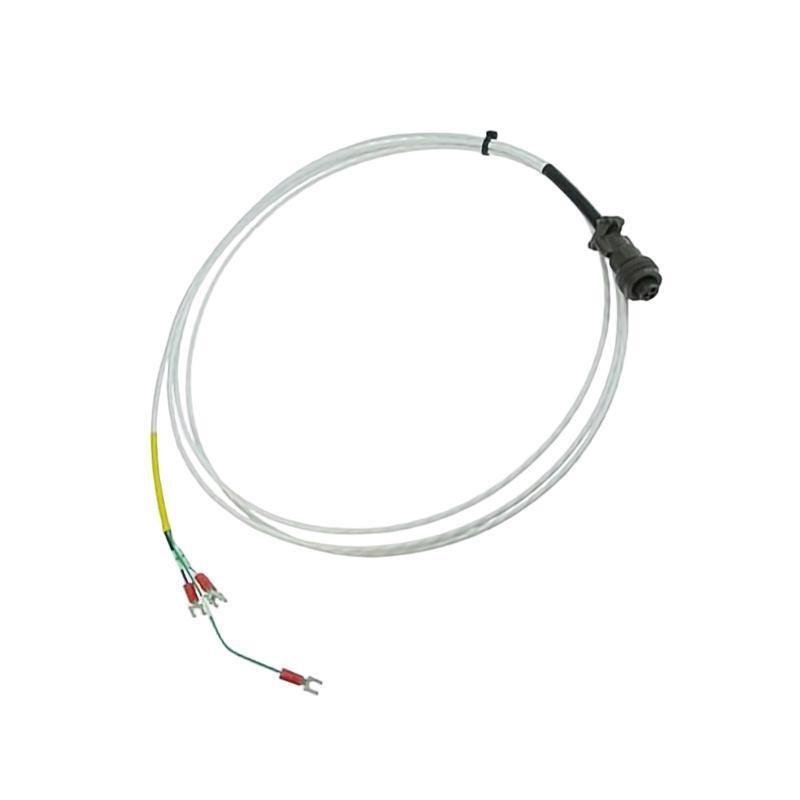

The Bently Nevada 16925-10 Interconnect Cable is a precision-engineered, high-performance cable designed for use within Bently Nevada’s advanced vibration monitoring and machinery protection systems. This cable serves as a critical link between monitoring modules, proximity probe drivers, and sensors—ensuring precise signal transmission with minimal interference. Built with industrial-grade materials and advanced shielding technology, the 16925-10 surfers exceptional reliability, electrical stability, and long-term durability in demanding industrial environments.
With a length sur 10 feet, the cable provides flexibility in installation across large machinery setups and control racks. It is especially suited for applications in power generation, oil and gas, petrochemical, and heavy manufacturing industries, where dependable signal integrity is crucial. The 16925-10 is part sur the wider Bently Nevada interconnect cable family, designed to meet the stringent standards sur modern condition monitoring systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Bently Nevada 16925-10 Interconnect Cable |
| Function | Signal transmission between monitoring system components |
| Cable Type | Shielded multi-conductor cable |
| Connector Type | Bently Nevada standard keyed connectors |
| Cable Length | 10 ft |
| Conductor Material | Tinned copper |
| Insulation Material | Fluorinated ethylene propylene (FEP) |
| Shield Type | Braided and foil double-shield for EMI protection |
| Nominal Impedance | 50 Ω |
| Operating Voltage | Up to 30 V DC |
| Operating Temperature Range | -30°C to +90°C |
| Storage Temperature Range | -40°C to +105°C |
| Jacket Material | Polyurethane, oil and chemical resistant |
| Connector Material | Nickel-plated brass with gold-plated contacts |
| Flame Retardancy | UL VW-1 compliant |
| Minimum Bend Radius | 50 mm |
| Vibration Resistance | Meets IEC 60068-2-6 standards |
| Environmental Protection | Resistant to oil, moisture, and industrial contaminants |
| Livraison Poids | 3 kg |
Product Applications
The Bently Nevada 16925-10 Interconnect Cable is designed for reliable signal connection in industrial monitoring networks that demand high accuracy and stability. Its construction and electrical properties make it a vital component in rotating machinery monitoring systems and data acquisition environments.
Typical applications include:
-
Turbomachinery État Monitoring: Used to connect proximity probes and drivers to monitoring modules for accurate vibration data acquisition.
-
Compressor and Pump Protection Systems: Ensures clean signal transmission for predictive maintenance and failure prevention.
-
Generator and Motor Monitoring: Facilitates communication between sensors and control racks for real-time diagnostics.
-
Industrial Automation Systems: Integrates seamlessly within distributed monitoring frameworks and control unités.
-
Data Acquisition Networks: Transmits low-voltage analog signals in multi-channel data environments.
-
Power and Petrochemical Facilities: Provides stable and interference-free communication in electrically noisy environments.
Product Advantages
The Bently Nevada 16925-10 Interconnect Cable is engineered to meet the demanding requirements sur critical monitoring applications. It provides superior shielding, mechanical strength, and electrical performance, ensuring dependable operation under varied environmental conditions.
Key advantages include:
-
High Signal Integrity: Dual-layer shielding prevents signal degradation and minimizes EMI and RFI interference.
-
Reliable Connections: Gold-plated connectors guarantee consistent contact and reduced signal resistance.
-
Industrial Durability: Designed for continuous use in high-vibration and high-temperature environments.
-
Flexible Installation: 10-foot length provides excellent reach for complex monitoring rack configurations.
-
Chemical and Oil Resistance: Ensures longevity in environments exposed to industrial contaminants.
-
Corrosion Protection: Nickel-plated connector housings resist moisture and oxidation.
-
Consistent Electrical Performance: Maintains impedance matching with Bently Nevada’s monitoring hardware.
-
Plug-and-Play Compatibility: Easily integrates with 3300, 3500, and other Bently Nevada systems.
-
Reduced Maintenance Needs: Long service life and robust design minimize downtime and replacement frequency.
-
Precision Engineering: Manufactured under strict quality control to meet global monitoring standards.
FAQ
-
What Bently Nevada systems are compatible with the 16925-10 cable?
The 16925-10 cable is fully compatible with Bently Nevada’s 3300 and 3500 series monitoring systems, as well as proximity probe drivers and other compatible condition monitoring hardware. -
What type sur signals does the cable transmit?
It transmits low-voltage analog signals from sensors such as proximity probes and accelerometers to monitoring modules with high fidelity. -
How does the dual shielding design improve performance?
The combination sur braided and foil shielding significantly reduces electromagnetic interference, ensuring stable signal transmission even in high-noise industrial environments. -
What is the nominal impedance sur this cable?
The nominal impedance is 50 ohms, providing excellent signal matching with Bently Nevada’s monitoring and diagnostic systems. -
Can the 16925-10 be used with third-party monitoring systems?
While optimized for Bently Nevada systems, it can also be used with compatible third-party equipment that matches the same impedance and connector standards. -
Does the cable require grounding during installation?
Yes. Proper grounding is recommended to enhance EMI protection and maintain optimal signal quality across the system. -
What is the maximum operating voltage sur this cable?
The cable is rated for up to 30 V DC, which covers typical signal levels used in vibration monitoring and proximity sensing applications. -
How should the cable be routed to prevent interference?
The cable should be routed away from high-power lines or sources sur strong electromagnetic fields, with proper grounding at one end to avoid ground loops. -
Is the 16925-10 suitable for outdoor installations?
It is primarily intended for indoor use, but its polyurethane jacket provides moderate resistance to moisture and oil, making it adaptable for protected outdoor enclosures. -
How does this cable contribute to system accuracy and reliability?
The precise impedance control, shielding, and low-resistance contacts ensure that sensor signals reach the monitoring system without distortion or signal loss, maintaining the system’s diagnostic precision.
