Présentation du produit

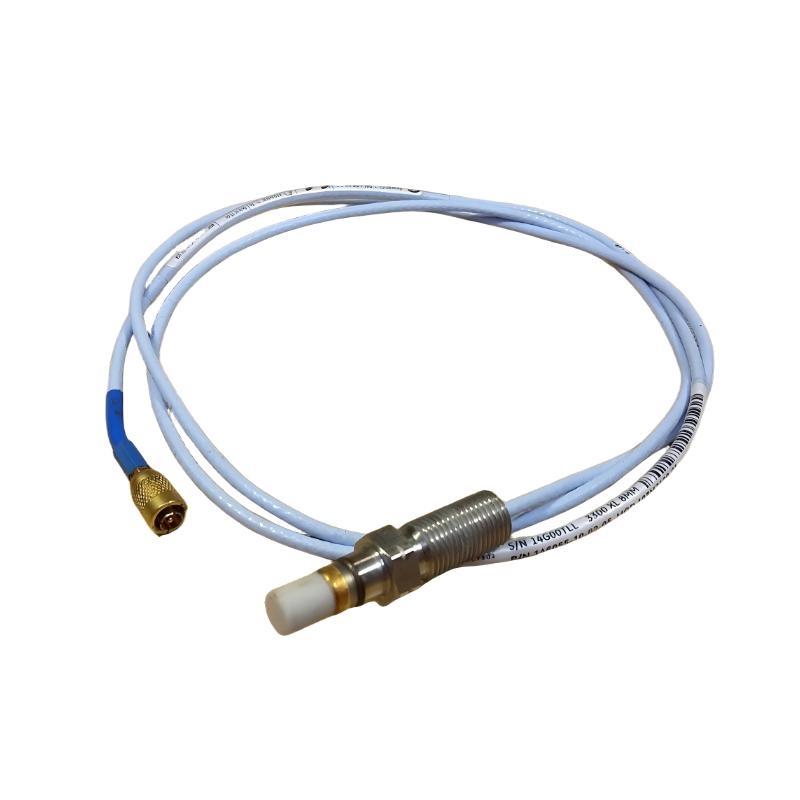

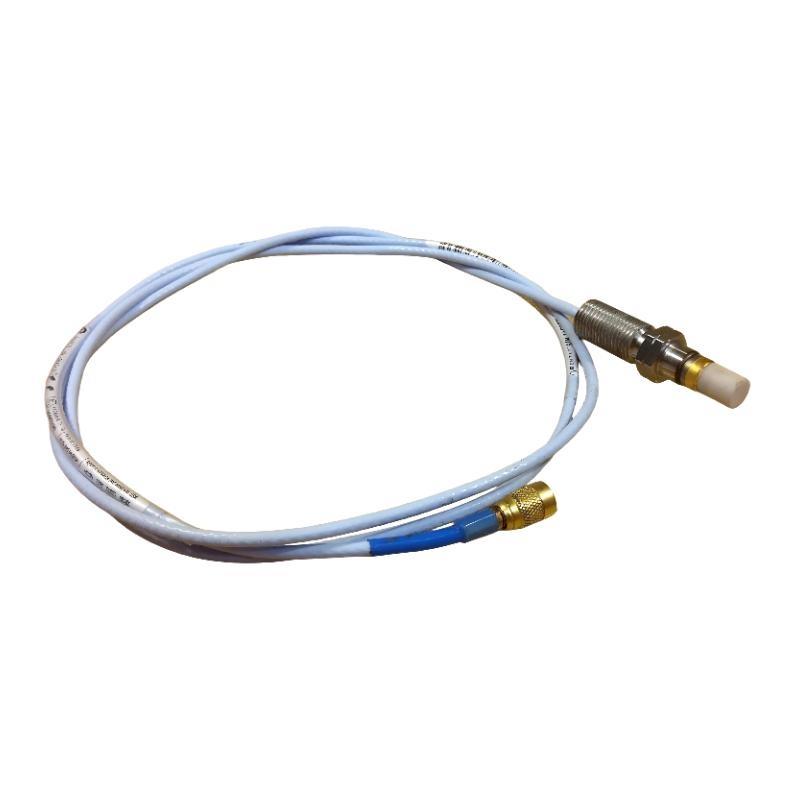

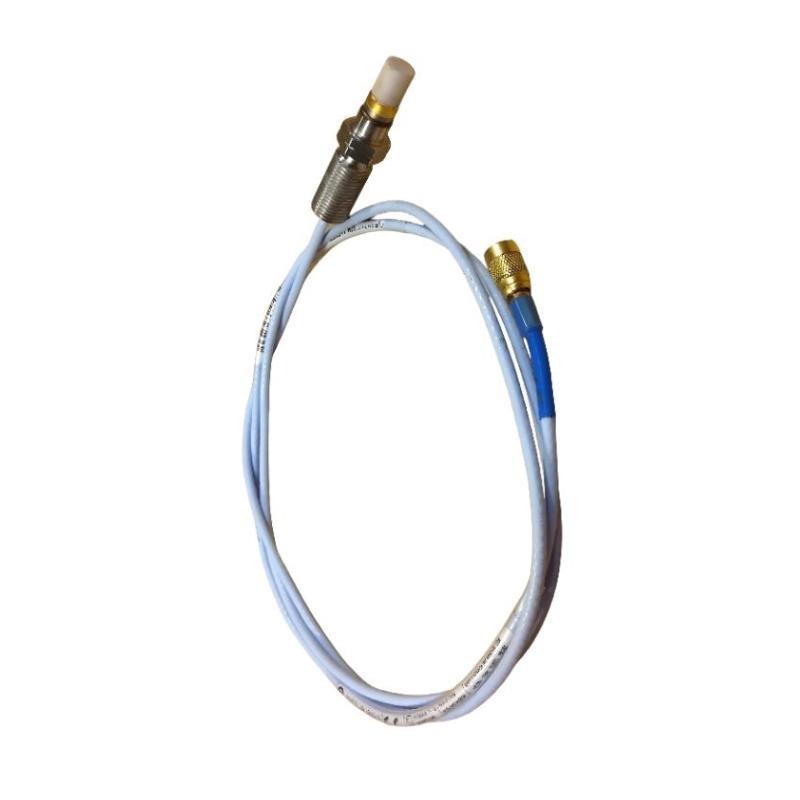

The Bently Nevada 146055-05-02-05 3300 XL Ceramic Capped Reverse-Mount Probe is a high-precision displacement and vibration sensor specifically designed for monitoring critical rotating machinery. Part sur the 3300 XL Proximity Transducer System, this probe provides reliable measurement sur shaft position, vibration, and phase signals in industrial applications.
This model features a reverse-mount design with a ceramic-capped tip, providing superior durability, thermal stability, and wear resistance. The ceramic tip ensures long-term performance even in environments with high-speed shaft rotation, debris, or occasional contact. With a 0.5-meter total length, it allows installation in constrained or hard-to-reach locations while maintaining signal integrity.
The probe operates on the eddy current principle, generating a voltage proportional to the distance between the probe tip and the conductive target. This signal is used by 3300 XL monitoring modules to track vibration amplitudes, shaft displacement, and phase angle, enabling accurate predictive maintenance and machinery protection.
Product Parameters
| Parameter | Description |
|---|---|
| Product Modèle | Bently Nevada 146055-05-02-05 |
| Series | 3300 XL Proximity Transducer System |
| Probe Type | Ceramic Capped Reverse-Mount Probe |
| Operating Principle | Eddy current displacement measurement |
| Tip Material | Ceramic |
| Probe Mount | Reverse-Mount |
| Total Length | 0.5 meter |
| Probe Diameter | 8 mm standard |
| Thread Size | M10 x 1 |
| Material | Stainless steel body with ceramic tip |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Linear Range | 2.0 mm (80 mils) typical |
| Frequency Range | DC to 10 kHz |
| Operating Temperature Range | -35°C to +177°C |
| Maximum Vibration | 20 g (196 m/s²) peak |
| Target Material | 4140 steel (factory calibration standard) |
| Cable Type | Integral coaxial cable with connector |
| Shielding | Double-shielded for EMI/RFI protection |
| Mounting Type | Reverse-Mount threaded installation |
| Environmental Protection | Oil-resistant and moisture-sealed construction |
| System Compatibility | Bently Nevada 3300 XL modules |
| Livraison Poids | 3 kg |
Product Applications
The 146055-05-02-05 Reverse-Mount Probe is used for precise machinery monitoring in industrial environments where accuracy and durability are critical. Typical applications include:
-
Steam and Gas Turbines: Measures radial vibration, shaft displacement, and phase signals for predictive maintenance.
-
Centrifugal and Axial Compressors: Monitors shaft motion to detect imbalance, misalignment, and mechanical faults.
-
Generators: Tracks shaft displacement and vibration to prevent bearing wear and ensure smooth operation.
-
Gearboxes: Provides dynamic measurement sur gear shafts to identify early signs sur wear or misalignment.
-
Pumps and Fans: Detects abnormal vibration and shaft movement to prevent operational issues.
-
High-Temperature and Debris-Prone Environments: Ceramic tip ensures reliable measurements even under harsh conditions.
Product Advantages
The Bently Nevada 146055-05-02-05 3300 XL Reverse-Mount Probe provides a combination sur durability, high accuracy, and system integration benefits:
-
High Precision: Offers linear and repeatable output for both radial and axial shaft movement.
-
Ceramic Tip Durability: Resistant to wear, debris, and high temperatures for long-term stable operation.
-
Flexible Installation: Reverse-mount design enables placement in confined or difficult-to-access areas.
-
Robust Construction: Stainless steel housing and sealed cable resist oil, moisture, and industrial contaminants.
-
Signal Integrity: Double-shielded coaxial cable reduces electromagnetic and radio-frequency interference.
-
System Compatibility: Fully compatible with Bently Nevada 3300 XL monitoring modules.
-
Maintenance-Free: Long-term operation without recalibration or frequent maintenance.
-
Operational Reliability: Performs under high vibration and temperature extremes.
-
Ease sur Integration: Standard threaded reverse-mount design simplifies installation and replacement.
-
Supports Predictive Maintenance: Provides accurate vibration and shaft position data for effective condition monitoring.
FAQ
-
Which monitoring systems are compatible with this probe?
It is fully compatible with Bently Nevada 3300 XL Proximity Transducer Modules. -
What is the linear measurement range sur this probe?
The probe has a nominal linear range sur 2.0 mm (80 mils). -
How does the ceramic tip improve performance?
The ceramic tip provides wear resistance, thermal stability, and durability in harsh environments. -
What is the nominal sensitivity sur the probe?
Approximately 7.87 V/mm (200 mV/mil). -
Can this probe measure axial motion as well as radial vibration?
Yes, it is designed to measure both radial and axial shaft movements. -
Is the probe suitable for high-vibration machinery?
Yes, it is rated for vibration up to 20 g (196 m/s²) peak. -
Does the reverse-mount design affect installation?
Yes, it allows installation in confined or hard-to-reach areas where standard probes may not fit. -
Is the probe resistant to electromagnetic interference?
Yes, the double-shielded coaxial cable ensures strong EMI/RFI protection. -
Can the probe operate in oil or moisture-prone environments?
Absolutely, the probe is sealed against oil, moisture, and industrial contaminants. -
What calibration target is used for this probe?
Factory calibration is based on 4140 steel, which is the standard Bently Nevada calibration target.
Related Modèles (Same Series or Similar Types)
| Modèle | Description |
|---|---|
| 146055-05-02-03 | 3300 XL Ceramic Capped Reverse-Mount Probe, 0.3 meter length |
| 146055-05-02-10 | 3300 XL Ceramic Capped Reverse-Mount Probe, 1.0 meter length |
| 146056-05-02-05 | 3300 XL 8mm Standard Mount Probe, 0.5 meter length |
| 146057-05-02-05 | 3300 XL 11mm Reverse-Mount Probe, 0.5 meter length |
| 146058-05-02-05 | 3300 XL 14mm Reverse-Mount Heavy-Duty Probe |
| 146055-06-02-05 | 3300 XL Ceramic Tip Side-Entry Probe, 0.5 meter length |
Popular Modèles from the Same Marque
| Modèle | Product Type | Description |
|---|---|---|
| 330103-00-05-10-02-00 | Proximity Probe | 8mm standard proximity probe for 3300 XL systems |
| 330130-040-00 | Extension Cable | Extension cable for proximity probe systems |
| 3300 XL 11mm | Proximity Transducer System | Extended-range proximity measurement system |
| 190501-09-99 | Velomitor CT Velocity Transducer | High-precision velocity transducer for vibration monitoring |
| 3500/22M | Transient Data Interface | Advanced data interface for dynamic events in 3500 monitoring systems |
| 330500-01-00 | Accelerometer | High-sensitivity accelerometer for vibration and condition monitoring |
