Product Description

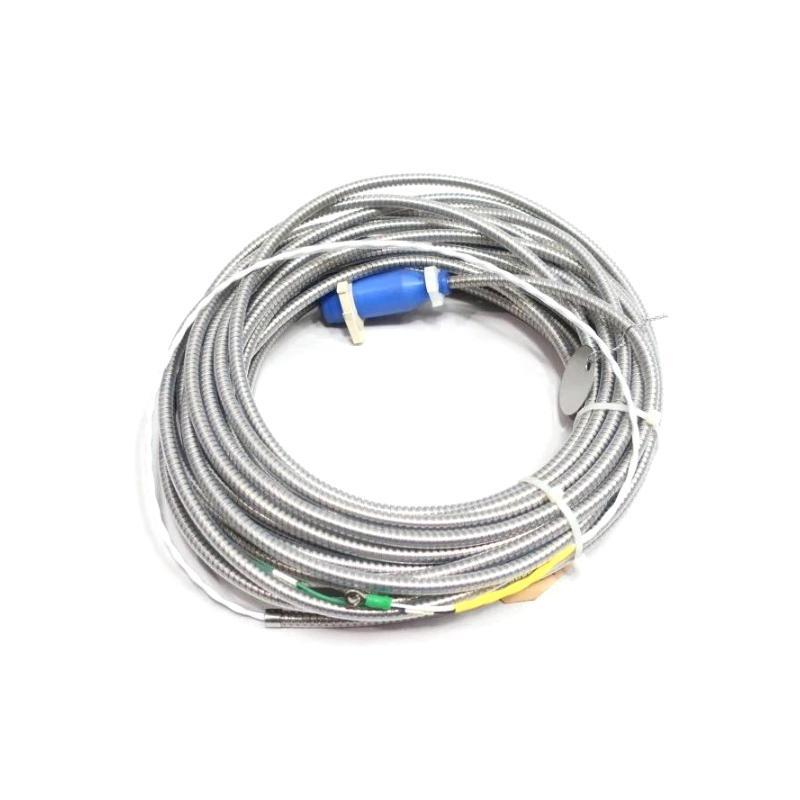

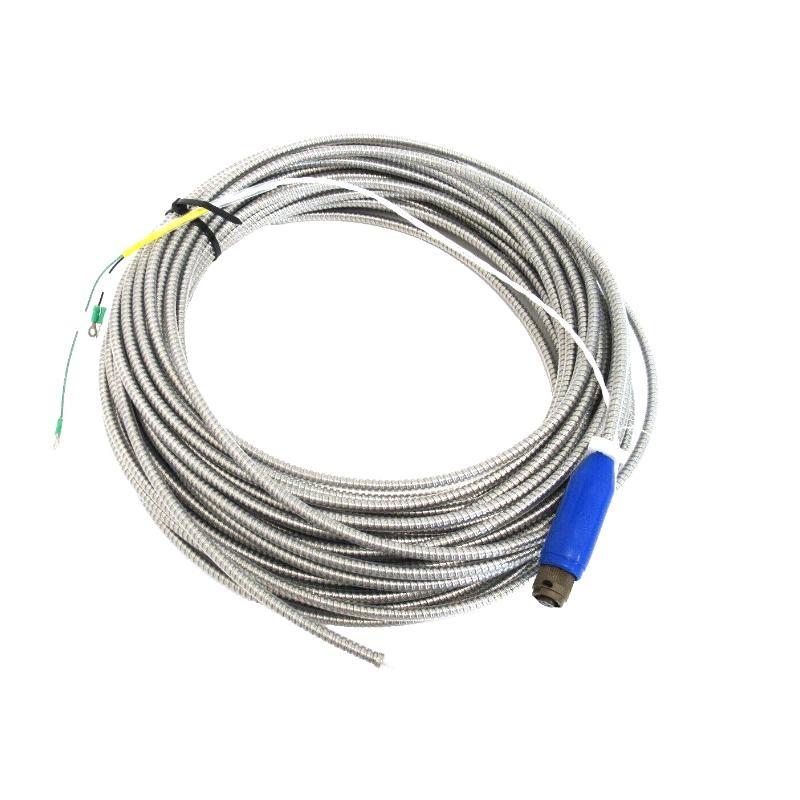

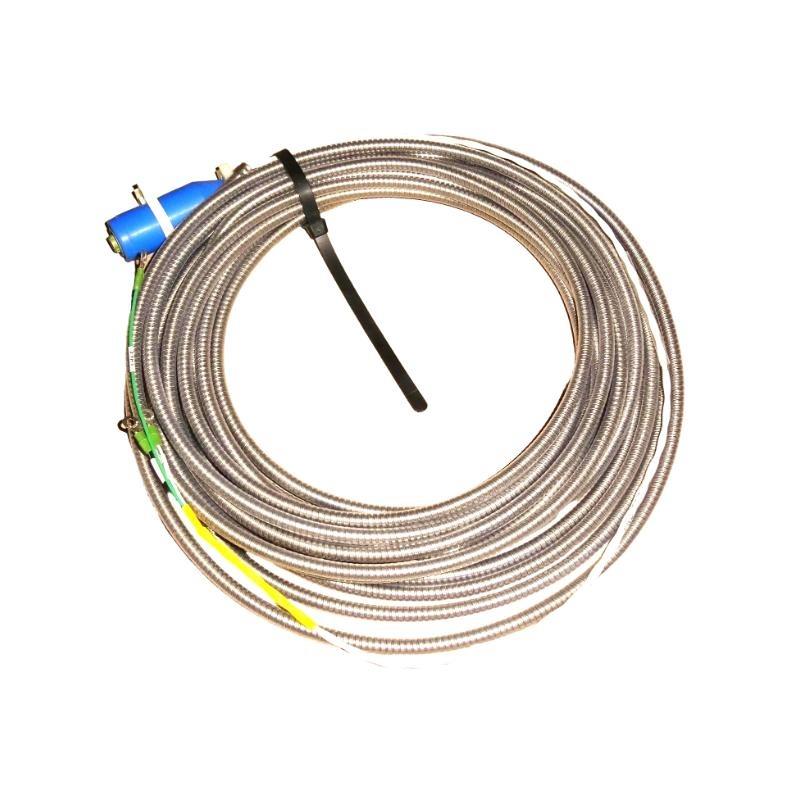

The Bently Nevada 106765-10 Interconnect Cable is designed to connect Velomitor XA piezo-velocity sensors to monitoring systems with high reliability and environmental protection. Featuring a robust build, splash resistance, and stainless-steel armor, this 10-metre cable ensures signal integrity even in demanding industrial conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Cable Length | 10 metres |
| Livraison Poids | 3 kg |
| Connector Type | MIL-C-26482 hermetically sealed |
| Minimum Bend Radius | 1.5 inches (38 mm) |
| Armor | Stainless steel over cable |
| Boot Material | Fluorosilicone elastomer (blue) |
| Environmental Protection | Splash resistant |
| Cable Type | 2-conductor, shielded, 22 AWG |
Applications
-
Vibration monitoring in turbines, compressors, pumps, and motors
-
Environments with high humidity and dust where splash resistance is critical
-
Industries including power generation, petrochemicals, and marine
-
Installations requiring long, robust signal cable runs with minimal interference
Product Advantages
-
Factory-assembled, ensuring quality and consistency
-
Hermetically sealed connector for reliable environmental sealing
-
Designed for harsh industrial settings with stainless-steel armored protection
-
Easy installation with clear wiring identification and accessories available
-
Reduces signal degradation even over long distances
Questions fréquentes (FAQ)
Q1: What is the maximum cable length supported by the system?
A1: The system supports up to 305 metres with compatible bulk cables without signal degradation.
Q2: Is the 106765-10 suitable for outdoor use?
A2: Yes, it is splash-resistant and designed for moist or outdoor environments when properly installed.
Q3: Can this cable be used with non-Bently Nevada sensors?
A3: It is specifically designed for Velomitor XA sensors; compatibility with other sensors is not guaranteed.
Q4: What is the minimum bend radius during installation?
A4: The minimum bend radius is 1.5 inches (38 mm).
Q5: Does the cable come with a boot cover?
A5: Yes, it includes a blue fluorosilicone splash-resistant boot.
Q6: What is the environmental temperature limit for the cable?
A6: The cable operates within the same environmental limits as the Velomitor XA sensor: -55°C to +121°C.
Q7: How is the signal shield grounded?
A7: The cable includes a shield conductor identified for grounding at the monitoring end.
Q8: What is the conductor size?
A8: The cable uses 22 AWG twisted shielded conductors.
Q9: Are accessories like terminal housings required?
A9: Terminal housings are optional but recommended for proper field wiring connections.
Q10: Does the cable have any hazardous area approvals?
A10: The cable itself is a passive component; approvals apply to the sensor assembly when properly installed.
Related or Similar Modèles
| Modèle Number | Length/Feature | Poids |
|---|---|---|
| 106765-01 | 1 metre | ~1 kg |
| 106765-04 | 4 metres | ~1.5 kg |
| 106765-07 | 7 metres | ~2 kg |
| 106765-13 | 13 metres | ~3.5 kg |
| 106765-16 | 16 metres | ~4 kg |
| 106765-25 | 25 metres | ~5 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Poids |
|---|---|---|
| 330525 | Velomitor XA Piezo-Velocity Sensor | 156 g |
| 330500 | Velomitor Standard Piezo-Velocity Sensor | 150 g |
| 330400 | Proximitor Proximity Transducer | 200 g |
| 3500/42M | Proximitor Seismic Monitor Module | 500 g |
| 3500/44M | Aeroderivative GT Vibration Monitor | 600 g |
| 3500/22M | Transient Data Interface Module | 450 g |
