Product Description

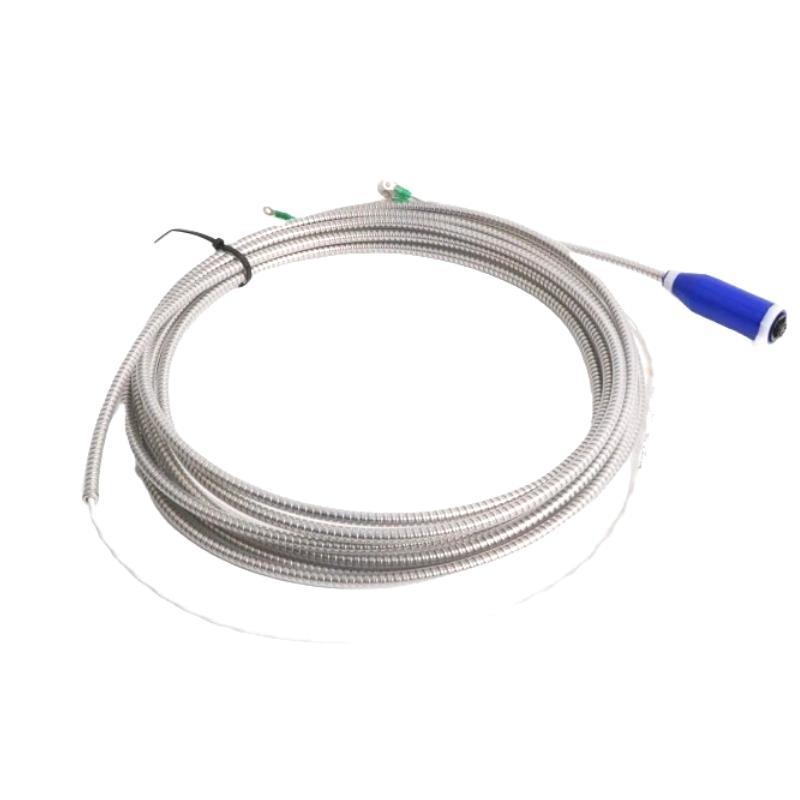

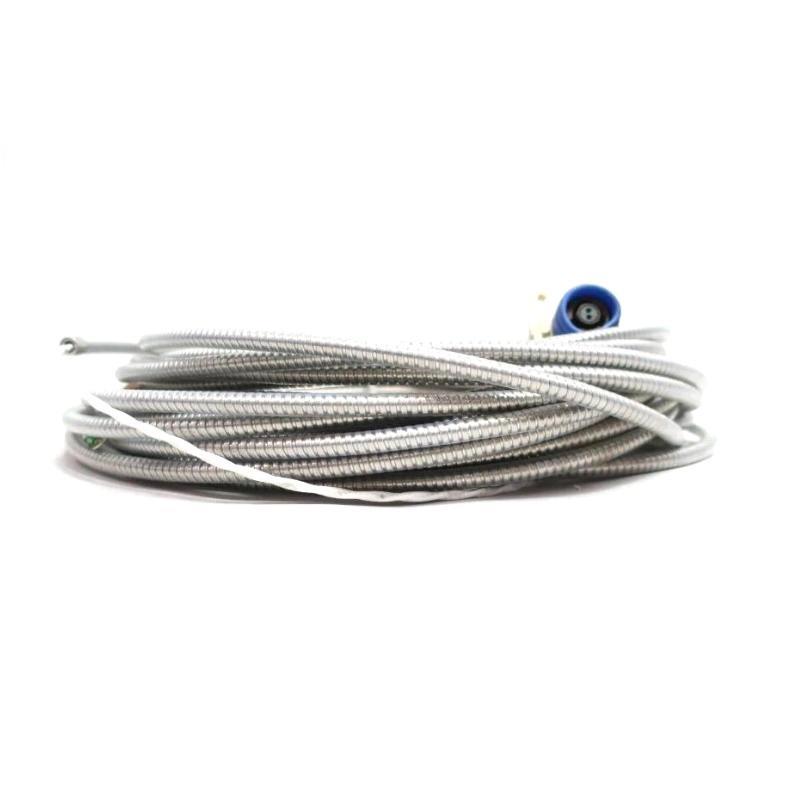

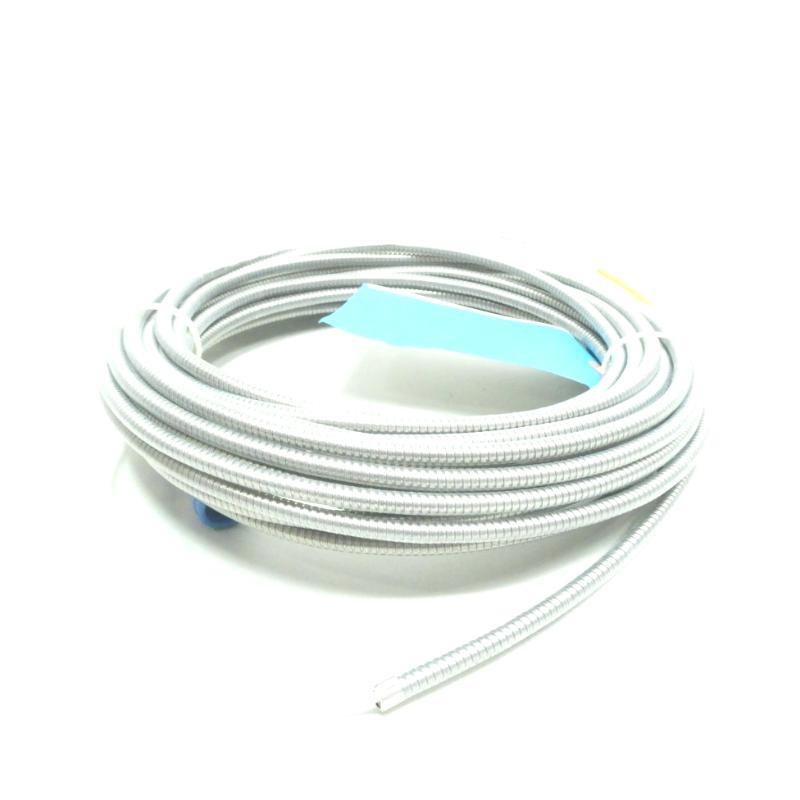

The Bently Nevada 106765-04 Interconnect Cable is a high-quality, weather-resistant cable designed specifically for the Velomitor XA Piezo-Velocity Sensor series. Built to withstand harsh environments, it features durable construction and reliable signal transmission for condition monitoring applications. The cable ensures robust connections even in moist and industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Référence | 106765-04 |
| Cable Length | 4 metres |
| Livraison Poids | 3 kg |
| Cable Type | 2-conductor, shielded, armored |
| Connector Type | MIL-C-26482 hermetically sealed |
| Minimum Bend Radius | 1.5 inches |
| Temperature Range | -55°C to +121°C |
| Humidity Resistance | Up to 100% (non-submerged) |
| Shock Survivability | 5000 g peak |
Applications
-
Machinery vibration monitoring
-
Industrial rotating equipment
-
Moist and outdoor environments
-
IP-65 and NEMA 4X installations with compatible sensors
-
Harsh process industries including oil & gas and power generation
Advantages
-
Designed for harsh environmental conditions
-
Supports long-distance signal transmission
-
Compatible with hazardous area approvals
-
Rugged stainless steel armored design
-
Easy installation and reliable performance
Questions fréquentes
Q1: What is the standard length sur the 106765-04 cable?
A1: The standard length is 4 metres.
Q2: Is the cable suitable for hazardous areas?
A2: Yes, when used with approved Velomitor XA sensors, it supports hazardous area certifications.
Q3: Can the cable be used outdoors?
A3: Yes, it is designed for outdoor and moist environments with proper installation.
Q4: What is the maximum bend radius sur the cable?
A4: The minimum bend radius is 1.5 inches.
Q5: Does it include connectors?
A5: Yes, it comes with hermetically sealed MIL-C-26482 connectors.
Q6: What is the weight sur the cable?
A6: The shipping weight is approximately 3 kg.
Q7: Can I order it in different lengths?
A7: Yes, lengths from 1 metre to 25 metres are available in increments sur 3 metres.
Q8: What is the shock resistance sur the cable?
A8: It can withstand up to 5000 g peak.
Q9: Is it compatible only with Velomitor XA sensors?
A9: It is specifically designed for Velomitor XA sensors but may work with other compatible devices.
Q10: What is the recommended temperature range?
A10: Operating range is -55°C to +121°C.
Related Modèles (Same Series or Similar)
| Modèle | Cable Length | Poids |
|---|---|---|
| 106765-01 | 1 metre | 2.5 kg |
| 106765-07 | 7 metres | 4 kg |
| 106765-10 | 10 metres | 4.5 kg |
| 106765-13 | 13 metres | 5 kg |
| 106765-16 | 16 metres | 5.5 kg |
| 106765-25 | 25 metres | 6.5 kg |
Popular Bently Nevada Modèles
| Modèle | Description | Poids |
|---|---|---|
| 3300 XL 8mm Probe | Proximity Probe | 0.3 kg |
| 330104-00-05 | 3300 XL 8mm Proximity Probe | 0.3 kg |
| 3500/42M | Proximitor Seismic Monitor | 1.2 kg |
| 3500/44M | Aeroderivative GT Vibration Monitor | 1.4 kg |
| 330525 | Velomitor XA Piezo-Velocity Sensor | 0.16 kg |
| 3500/32M | 4-Channel Relay Module | 0.8 kg |
