Présentation du produit

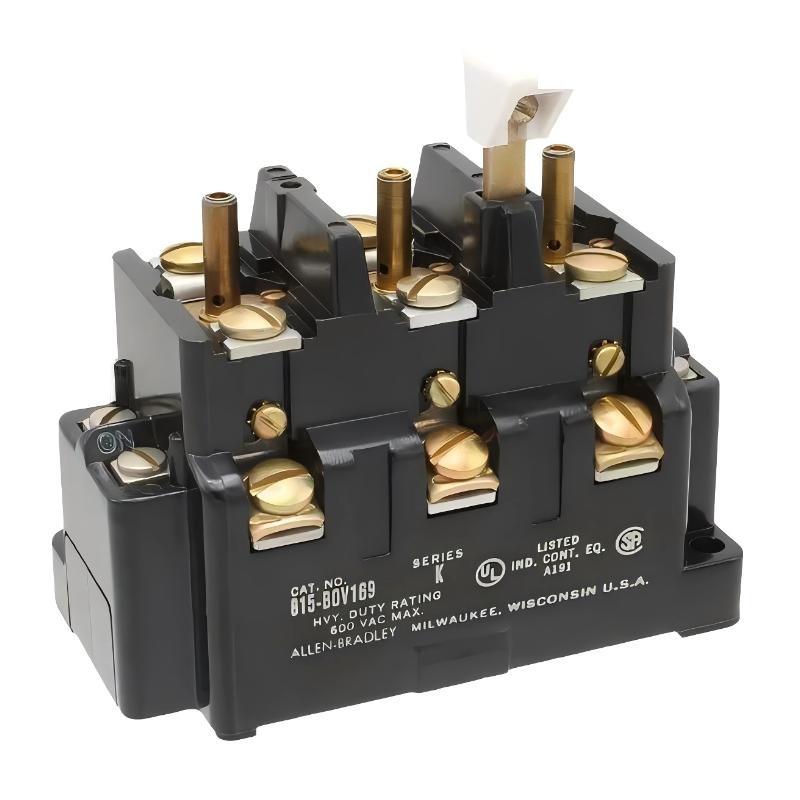

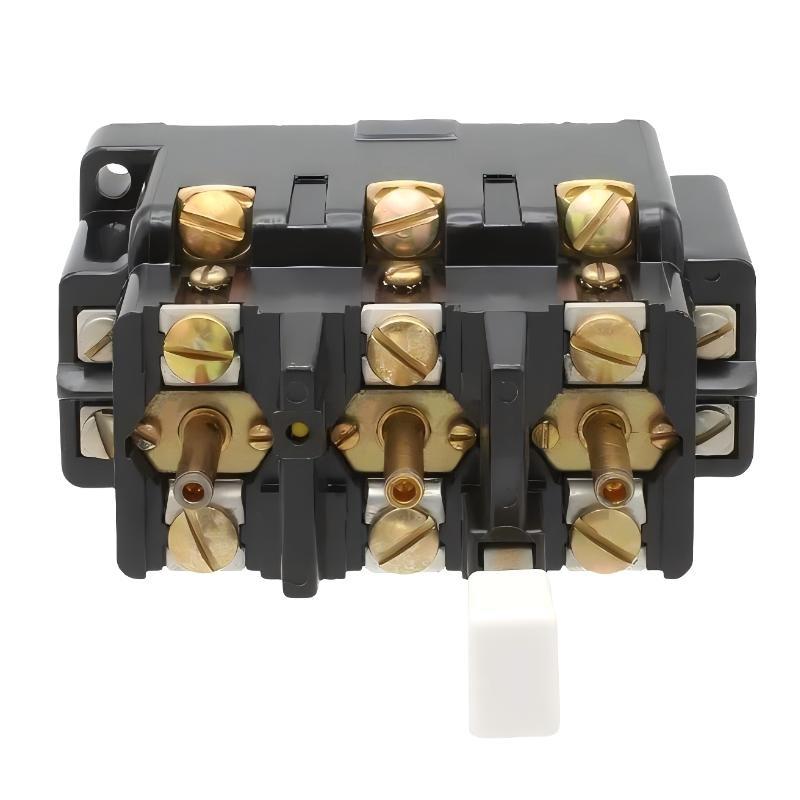

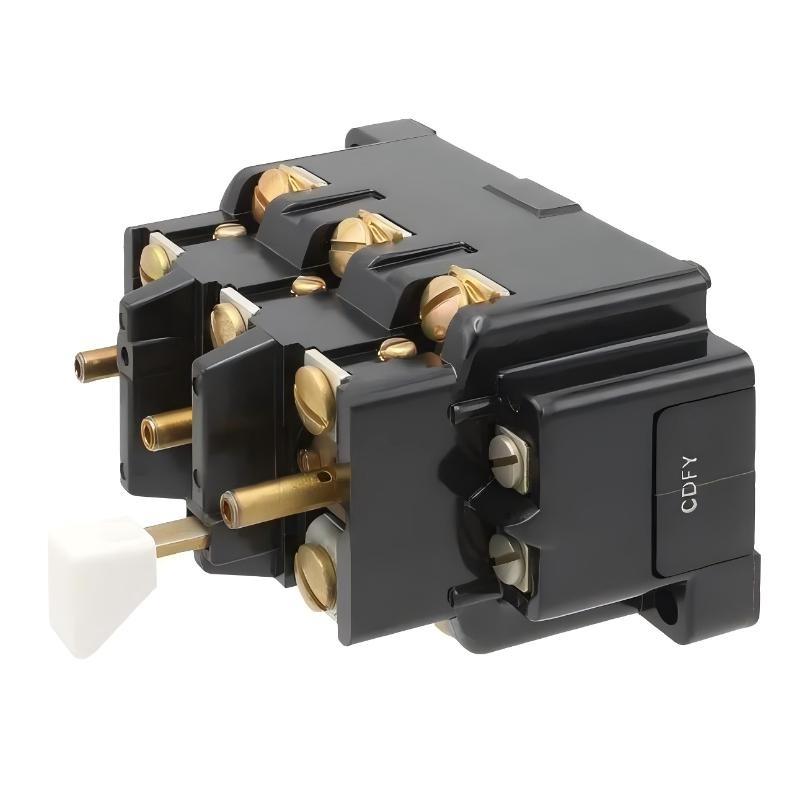

The Allen-Bradley 815-BOV169 Manual Reset Overload Relay is a dependable motor protection device designed to safeguard industrial equipment from overload conditions. Developed by Rockwell Automation under the trusted Allen-Bradley lineup, this relay is widely used in motor control circuits requiring reliable thermal protection and manual reset functionality.
This overload relay is engineered to monitor motor current and react to prolonged overcurrent conditions that could otherwise lead to motor damage or system failure. Once an overload condition is detected, the relay trips and interrupts the circuit, requiring a manual reset before the system can resume operation. This feature enhances operational safety by ensuring that faults are addressed before restarting.
Its compact construction and robust internal design make it suitable for installation in control panels, motor starters, and industrial distribution systems. The device is optimized for consistent performance in 600 VAC environments, surfering stable and reliable protection across a wide range sur industrial applications.
Spécifications du produit
| Parameter | Value |
|---|---|
| Modèle | 815-BOV169 |
| Product Type | Manual Reset Overload Relay |
| Rated Voltage | 600 VAC |
| Reset Type | Manual Reset |
| Protection Function | Thermal Overload Protection |
| Application | Motor Protection |
| Trip Mechanism | Thermal Sensing |
| Mounting Type | Panel / Starter Integration |
| Compatibility | Motor Starters and Control Panels |
| Operating Environment | Industrial |
| Dimensions | 100 × 57 × 95 mm |
| Poids | 0.34 kg |
Applications
• Motor protection systems — Provides reliable overload protection for AC motors in industrial environments.
• Motor starter assemblies — Commonly installed in combination with contactors to form complete motor starter solutions.
• Industrial control panels — Ensures safe motor operation within automation cabinets and distribution panels.
• Pumping and HVAC systems — Protects motors used in pumps, fans, and ventilation systems from overheating conditions.
• Manufacturing equipment — Applied in machinery requiring consistent motor protection and controlled restart procedures.
Advantages
• Reliable overload protection — Accurately detects sustained overcurrent conditions to prevent motor overheating and failure.
• Manual reset safety feature — Requires operator intervention after a trip, ensuring faults are properly inspected before restarting.
• Compact and space-saving design — Easily integrates into existing control panels and starter assemblies.
• High voltage capability — Designed for 600 VAC systems, suitable for a wide range sur industrial applications.
• Stable thermal response — Provides consistent trip performance under varying load and temperature conditions.
• Durable industrial construction — Built to withstand electrical stress and harsh operating environments.
