Présentation du produit

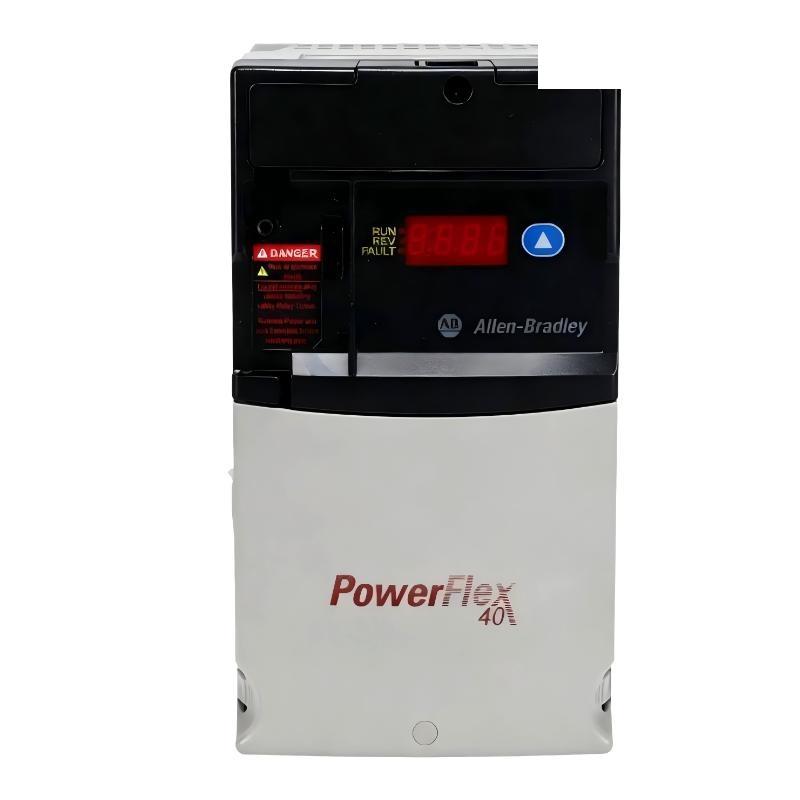

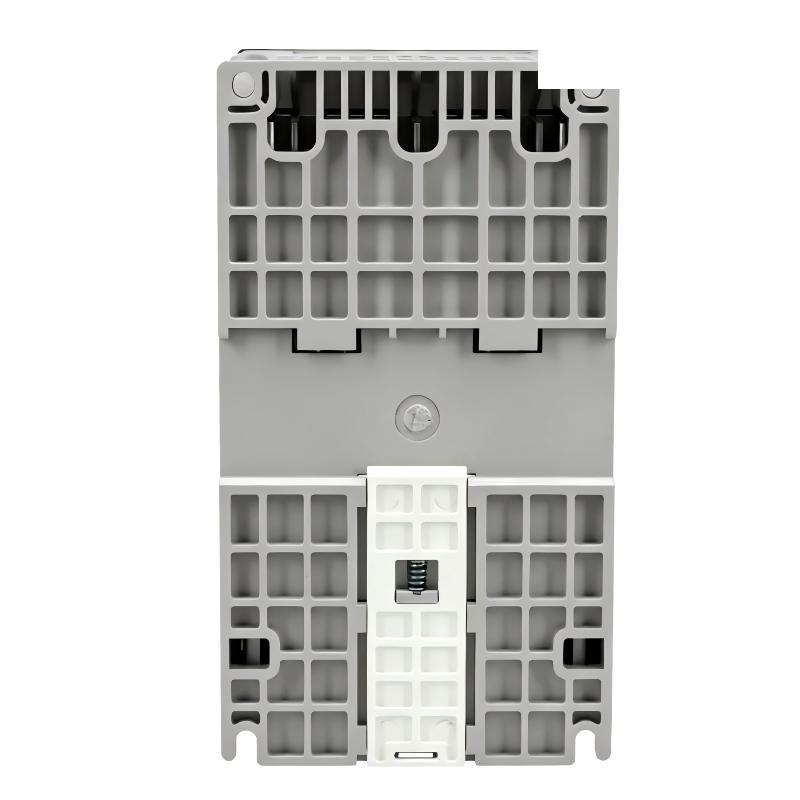

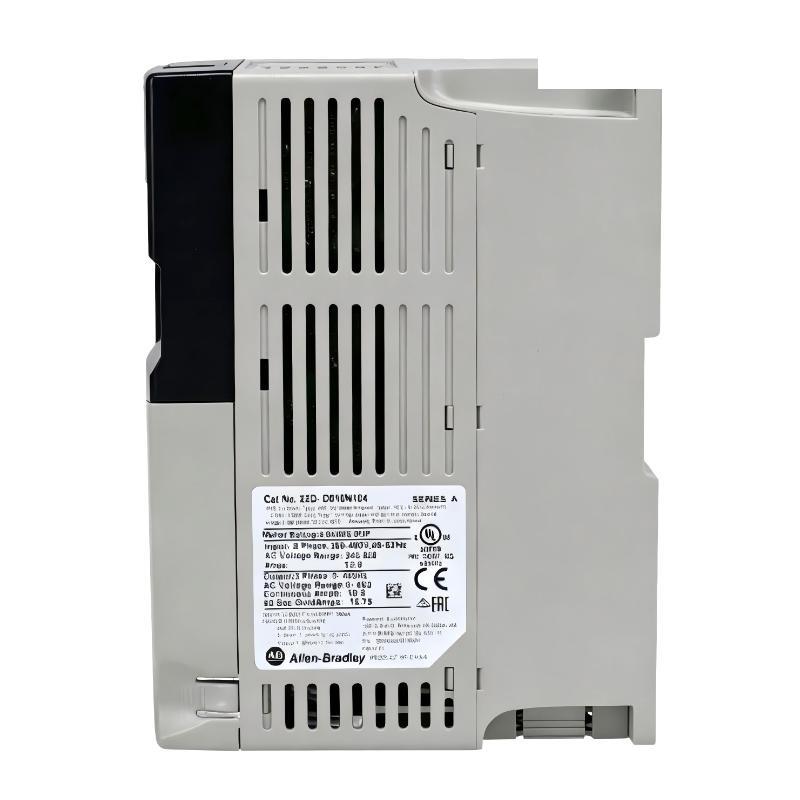

The Allen-Bradley 22D-D010N104 PowerFlex 40P AC Drive is a compact variable frequency drive designed for enhanced motor control performance in industrial automation systems. As part sur the PowerFlex 40P series, it extends the functionality sur the standard PowerFlex 40 platform by providing improved control behavior and more flexible application handling.
This model is engineered for three-phase 480V AC input and supports motor loads up to 5 HP. It is suitable for applications requiring stable torque control and accurate speed regulation under varying load conditions. The drive is designed to deliver consistent performance while maintaining a simple commissioning structure.
The unité features a Frame Size B compact design, making it ideal for installations with limited panel space. It includes a basic display interface with reset-only functionality, focusing on operational reliability rather than advanced local configuration. RS485 communication capability enables integration into automation systems for external control and monitoring.
Spécifications du produit
| Parameter | Value |
|---|---|
| Modèle | 22D-D010N104 |
| Series | PowerFlex 40P |
| Input Voltage | 480V AC |
| Phase | 3-Phase |
| Output Current | 10.5 A |
| Power Rating | 4 kW / 5 HP |
| Frame Size | B |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 (NEMA Type Open) |
| Display Type | Reset Only Display |
| Communication | RS485 |
| Filter | Without CE Compliant Filter |
| Control Method | V/Hz Control (Enhanced Performance Variant) |
| Brake Function | Standard |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 180 × 100 × 136 mm |
| Poids | 2.2 kg |
Applications
● Light Industrial Conveyors
Provides stable speed regulation for small and medium conveyor systems, ensuring smooth material flow.
● Pumping Systems
Supports consistent flow control, improving efficiency in water and fluid handling applications.
● Fan and Ventilation Unités
Enables adjustable airflow control, reducing energy consumption in HVAC-related systems.
● Packaging Machinery
Delivers precise motor speed control for synchronized packaging operations.
● Small Production Equipment
Suitable for basic automation machines requiring reliable motor regulation.
● General Purpose Industrial Use
Used in standard motor control applications where compact size and stability are required.
Advantages
● Enhanced Performance Control (40P Variant)
Improved control behavior compared to standard models, providing more stable torque response under load variation.
● Compact Installation Design
The Frame Size B structure allows easy integration into small control cabinets.
● Simple Operational Interface
The reset-only display focuses on essential operation, reducing complexity for basic applications.
● Reliable Industrial Operation
Designed for continuous-duty use, ensuring stable performance in standard industrial environments.
● Flexible System Integration
RS485 communication supports external control and monitoring integration.
● Efficient Motor Control
Provides smooth acceleration and deceleration, reducing mechanical stress on connected equipment.
