Présentation du produit

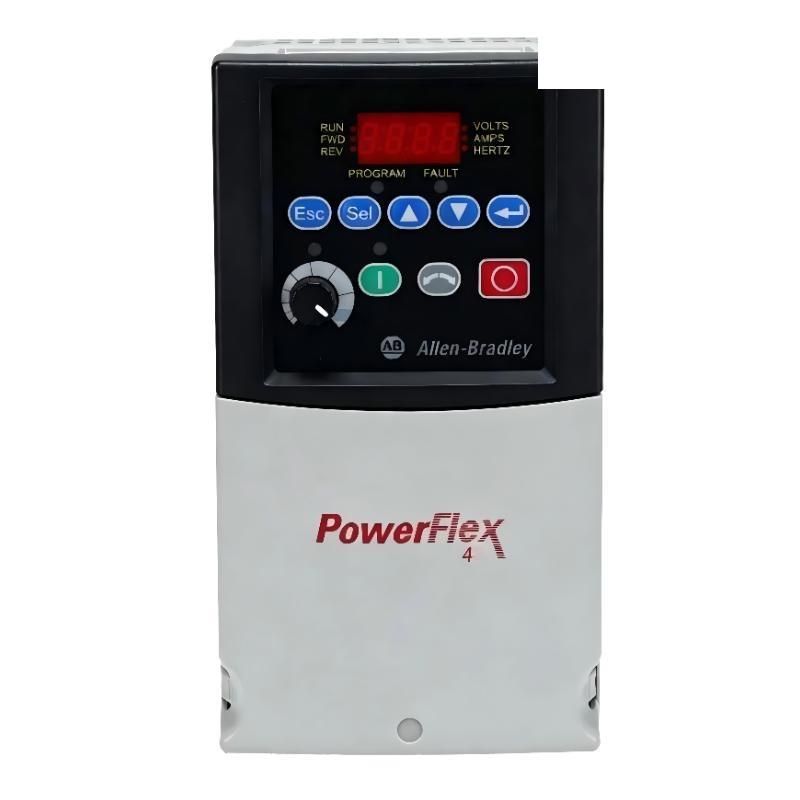

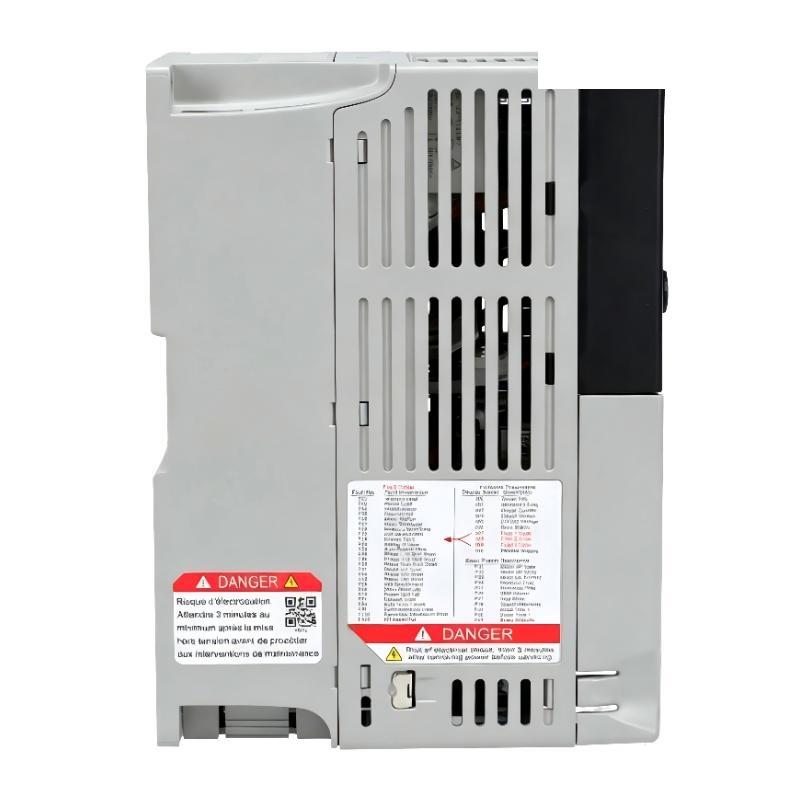

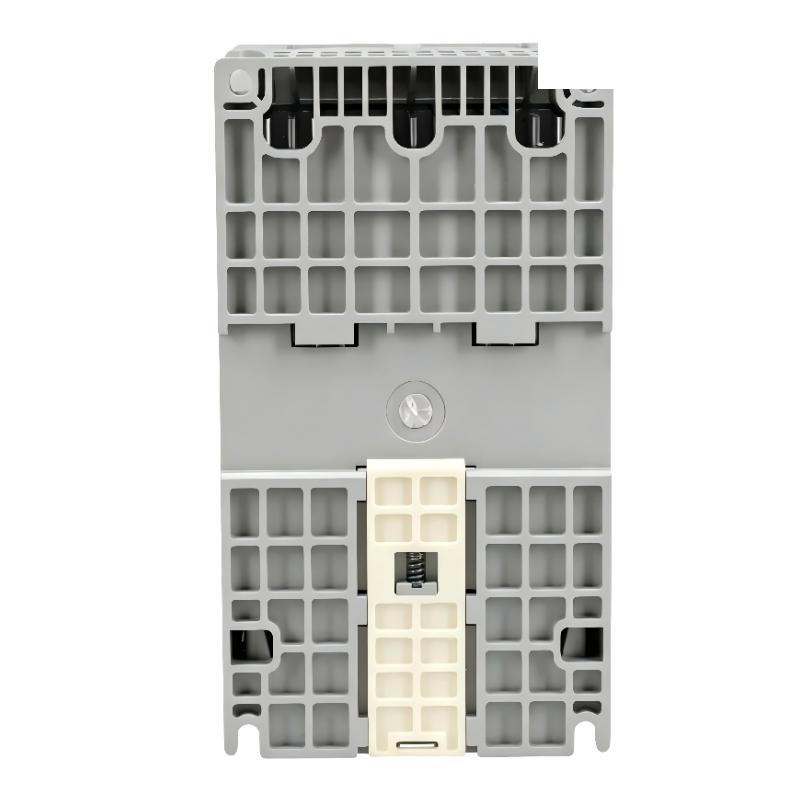

The Allen-Bradley 22A-B017N104 PowerFlex 4 AC Drive is a compact, cost-effective variable frequency drive designed for reliable motor speed control in light to medium industrial applications. As part sur the PowerFlex 4 series, it focuses on simplicity, durability, and ease sur integration, making it a practical solution for engineers who need stable performance without unnecessary complexity.
Built around a robust control architecture, this drive supports three-phase induction motors and provides consistent torque and speed regulation across a wide operating range. Its compact Frame Size B housing allows installation in tight control panels, while the integrated LED display and fixed digital keypad ensure straightforward local operation and parameter adjustment.
With built-in RS485 communication capability, the unité can be easily integrated into existing automation systems using standard industrial protocols. The design emphasizes minimal commissioning time, reliable operation, and low maintenance requirements, making it suitable for continuous-duty environments where uptime is critical.
Spécifications du produit
| Parameter | Value |
|---|---|
| Modèle | 22A-B017N104 |
| Series | PowerFlex 4 |
| Input Voltage | 208–240V AC |
| Phase | 3-Phase |
| Output Current | 17 A |
| Power Rating | 3.7 kW / 5 HP |
| Frame Size | B |
| Enclosure Type | IP20 (Open Type) |
| Display Type | LED Display |
| Keypad | Fixed Digital Keypad |
| Communication | RS485 |
| Filter | No CE Compliant Filter |
| Control Method | V/Hz Control |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 180 × 100 × 136 mm |
| Poids | 2.2 kg |
Applications
● Conveyor Systems
Provides stable and adjustable speed control, reducing mechanical shock during start and stop cycles.
● Pumps and Fans
Optimizes flow and pressure by matching motor speed to process demand, improving overall efficiency.
● Packaging Equipment
Ensures repeatable motor performance for consistent packaging cycles and reduced downtime.
● Machine Tools
Supports variable speed requirements in drilling, cutting, and light machining operations.
● HVAC Systems
Improves energy efficiency in ventilation and air handling unités through controlled motor operation.
● General Automation Systems
Suitable for integration into compact automation setups where reliable speed control is required.
Advantages
● Compact Structure
The Frame Size B design minimizes installation space and simplifies panel layout.
● User-Friendly Operation
Equipped with a fixed digital keypad and LED display, allowing quick parameter setup and monitoring.
● Stable Performance
The V/Hz control method ensures consistent torque output and smooth motor acceleration.
● Built-in Communication
Integrated RS485 interface enables seamless connection to industrial control networks.
● Comprehensive Protection
Includes multiple protection mechanisms that enhance system safety and reliability.
● Cost Efficiency
Provides essential drive functionality with a balanced cost-performance ratio for general industrial use.
