Industrial Overview

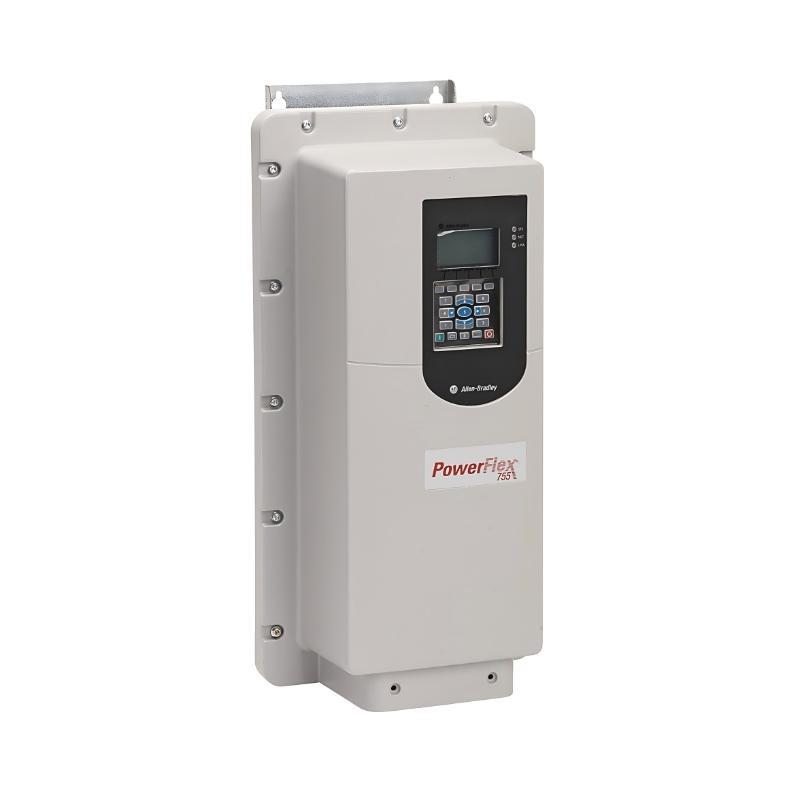

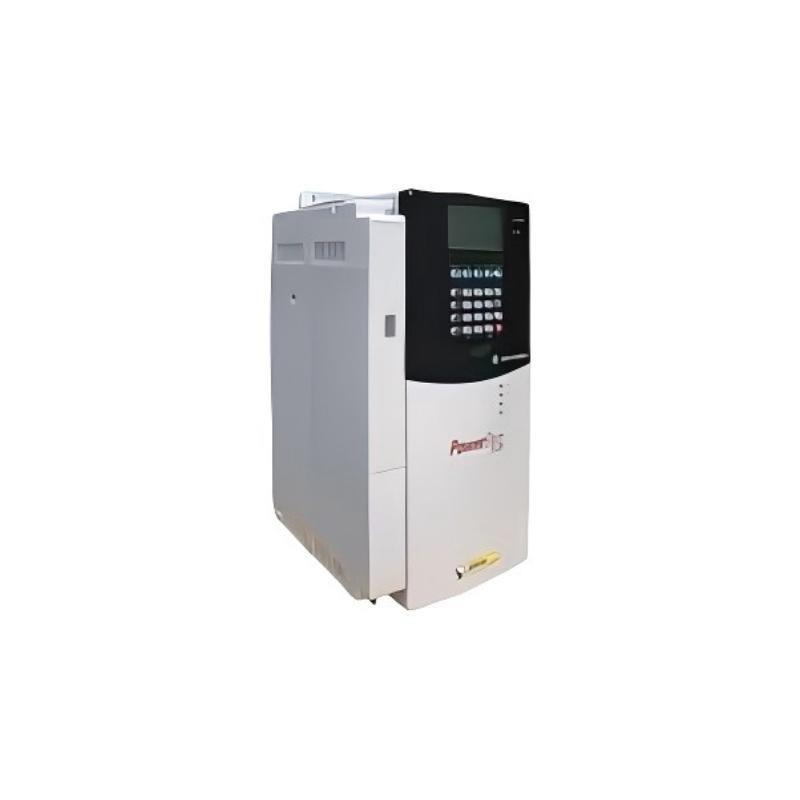

The Allen Bradley 20G11GC8P7JA0NNNNN is part sur the PowerFlex 755 series, engineered for medium-duty industrial motor control. This module delivers 11 kW (≈15 HP) continuous output, providing precise speed regulation, vector control, and flexible connectivity for industrial machinery. Its design emphasizes smooth torque control, energy efficiency, and operational reliability, making it ideal for conveyors, pumps, compressors, and process automation systems.
Unlike lower-power drives, this model supports high-performance vector control, optional safety features, and integration into Logix and EtherNet/IP networks, making it suitable for multi-drive coordinated systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Drive Module |
| Series | PowerFlex 755 |
| Modèle Number | 20G11GC8P7JA0NNNNN |
| Rated Output Power | 11 kW (15 HP) |
| Input Voltage | 380–480 VAC, 3-phase |
| Output Frequency | 0–590 Hz |
| Rated Current | 25 A @ 400 V AC |
| Control Modes | V/Hz, sensorless vector, full vector |
| Brake Feature | Optional brake IGBT/resistor |
| Feedback Option | Optional encoder input |
| Communication Interfaces | EtherNet/IP standard, optional ControlNet / DeviceNet |
| User Interface | LCD keypad with multi-parameter display |
| Protection Features | Overload, over-voltage, short-circuit, ground fault, thermal protection |
| Cooling | Forced air with internal fan |
| Mounting Type | Panel or wall mount |
| Dimensions (H × W × D) | 360 × 170 × 230 mm (14.2 × 6.7 × 9.1 in) |
| Poids | 8.6 kg (18.9 lb) |
| Operating Temperature | 0°C to 50°C |
| Certifications | CE, UL, cUL, RoHS |
Applications
-
Medium-sized conveyor systems and material handling lines
-
Pumping and fan systems in industrial and process environments
-
Packaging machinery requiring precise speed and torque control
-
Multi-axis OEM equipment or coordinated drive systems
-
HVAC and water treatment systems for industrial processes
-
Machinery requiring optional safety functions such as STO
Advantages
-
High Performance Vector Control: Smooth torque and acceleration for demanding processes
-
Flexible Communication: EtherNet/IP integration with optional ControlNet or DeviceNet
-
Safety Options: Supports STO (Safe Torque Off) for compliant installations
-
Compact Yet Powerful: 11 kW output in a relatively compact footprint
-
Energy Efficient: Reduces energy consumption under varying loads
-
Reliable Protection: Built-in thermal, overload, short-circuit, and ground fault safeguards
-
Advanced Diagnostics: LCD display provides real-time drive status, current, and voltage readings
-
Versatile Mounting: Panel or wall installation for tight control enclosures
-
Proven Platform: Widely adopted in industrial automation systems
-
Global Support: Parts and technical guidance widely available
