System Insight

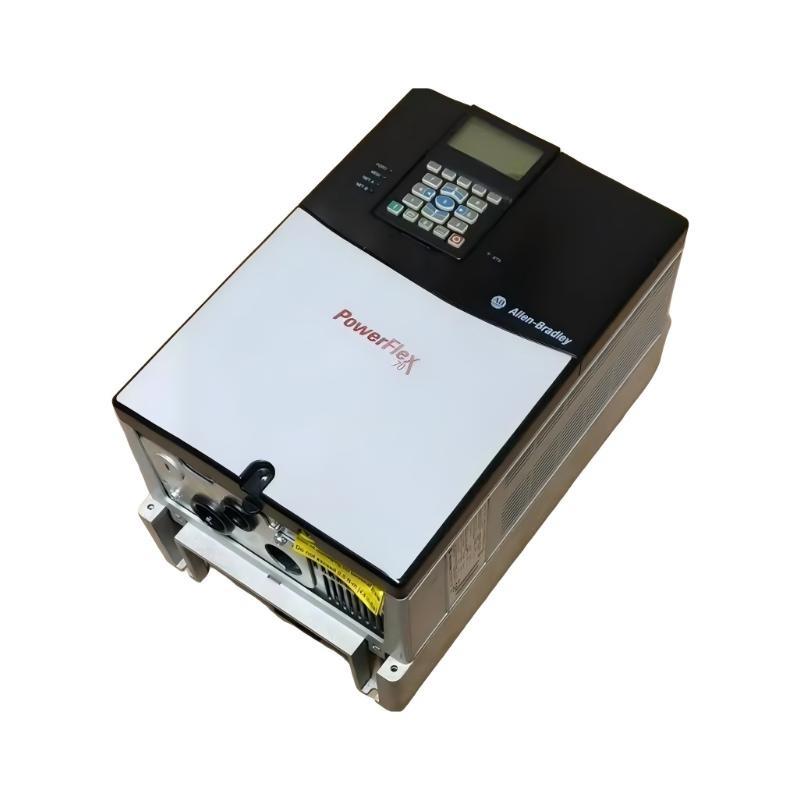

The Allen Bradley 20AD040A0AYNANC0 is part sur the PowerFlex 40 series, designed as a compact and robust AC drive solution for small to medium industrial motors. Its architecture supports variable frequency control, energy-efficient operation, and flexible integration into CompactLogix and other Rockwell Automation systems. This particular model provides precise motor control for light-to-medium duty applications while maintaining a small footprint suitable for panel or wall mounting.
Key Technical Data
| Parameter | Specification |
|---|---|
| Product Type | AC Drive Module |
| Modèle Number | 20AD040A0AYNANC0 |
| Series | PowerFlex 40 |
| Rated Power | 4 kW (5 HP) |
| Input Voltage | 200–240 VAC, 3-phase |
| Output Frequency | 0–500 Hz |
| Rated Current | 12 A |
| Control Methods | V/Hz, sensorless vector control |
| I/O | 4 digital inputs, 2 digital outputs, 1 analog input |
| Communication | Optional EtherNet/IP or DeviceNet |
| Display/Interface | Integrated keypad with display |
| Protection Features | Overload, short-circuit, over-voltage, ground fault |
| Mounting | Wall or panel mount |
| Cooling | Internal fan |
| Dimensions | 350 x 219.9 x 179.8 mm |
| Poids | 9.25 kg |
| Operating Temperature | 0°C to 50°C |
| Certifications | CE, UL, cUL, RoHS |
Application Areas
The PowerFlex 40 drive is widely adopted for:
-
Light-duty conveyors and pumps
-
HVAC fans and small compressors
-
Packaging machinery and material handling equipment
-
Small machine tools or robotic systems
-
Processes requiring efficient motor speed control with minimal footprint
-
Remote or distributed control panels where space is limited
Operational Advantages
-
Compact and Flexible: Fits in small enclosures without sacrificing functionality
-
Energy Efficiency: Reduces power consumption at variable loads
-
Reliable Motor Protection: Integrated protection features prevent downtime
-
Easy Configuration: Keypad interface simplifies setup and monitoring
-
Flexible Communication: Optional network modules enable integration with modern industrial protocols
-
Low Noise and Vibration: Smooth acceleration and deceleration for sensitive machinery
-
Cost-Effective Solution: Ideal for small-to-medium power applications without oversizing
-
Maintenance-Friendly: Quick access to terminal connections and modular components
-
Adaptable to Multiple Motors: Works with various induction motors up to 4 kW
-
Global Compliance: Meets international standards for safety and electromagnetic compatibility
