Présentation du produit

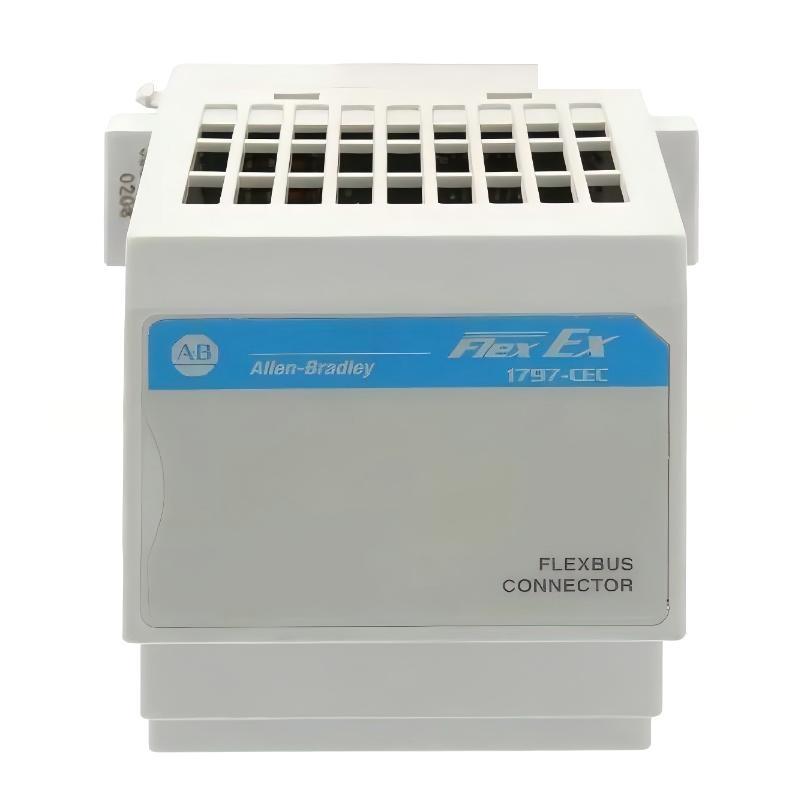

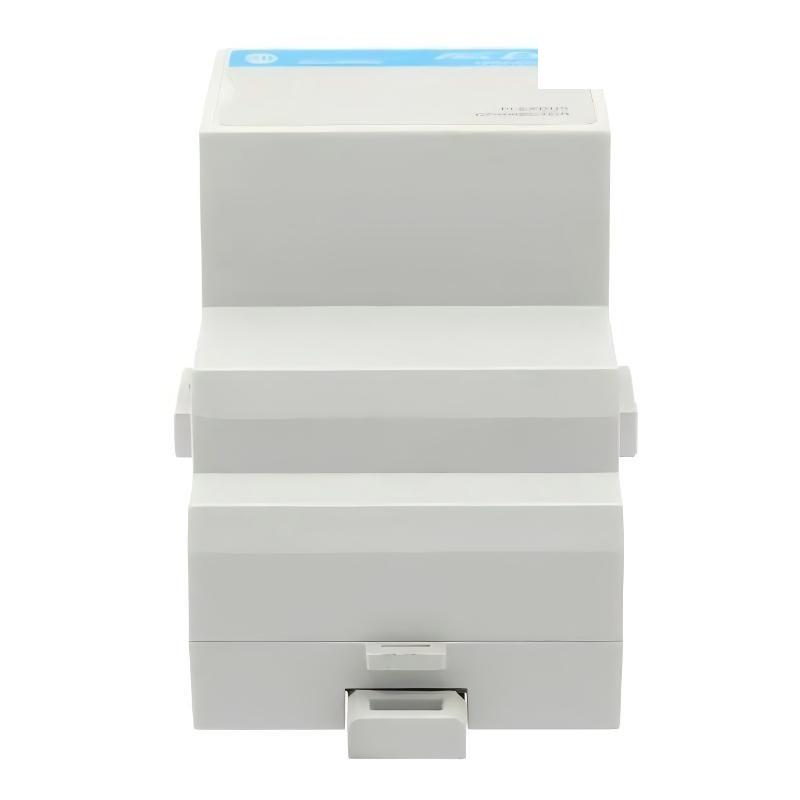

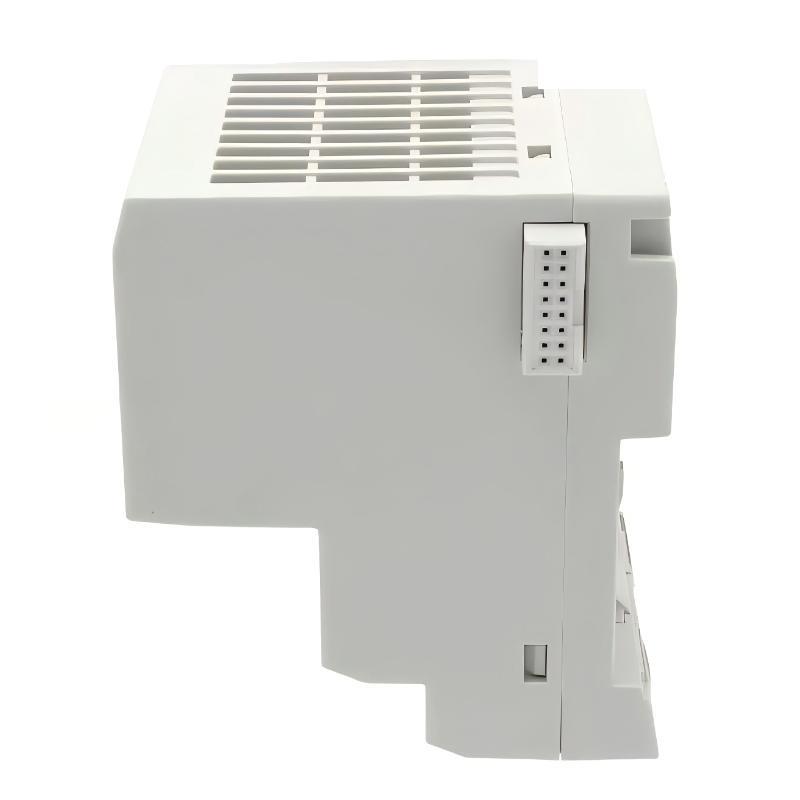

The Allen Bradley 1797-CEC Flex Ex I/O Bus Connector Module is a key structural and communication component within the FLEX Ex distributed I/O system. It is designed to interconnect FLEX Ex and FLEX I/O modules on a shared DIN rail, enabling unified configuration and seamless data exchange through a common adapter interface.
This module functions as a bus connector, allowing multiple I/O modules to be grouped together and treated as a single node within the control system. By simplifying module expansion and reducing wiring complexity, it plays an important role in building scalable and organized control architectures, especially in environments where both standard and intrinsically safe I/O modules must coexist.
Its compact design and straightforward installation make it particularly suitable for modular system layouts. The 1797-CEC ensures stable backplane communication between connected modules while maintaining compatibility with hazardous-area requirements when used within FLEX Ex systems.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle | 1797-CEC |
| Marque | Allen-Bradley |
| Series | FLEX Ex |
| Module Type | I/O Bus Connector |
| Function | Interconnection sur FLEX Ex and FLEX I/O modules |
| Mounting Type | DIN Rail Mount |
| Maximum I/O Modules Supported | 8 Modules |
| System Compatibility | FLEX Ex / FLEX I/O |
| Configuration Capability | Supports grouped module configuration under one adapter |
| Installation Position | Between adapter and I/O modules |
| Environmental Suitability | Industrial and hazardous area compatible systems |
| Dimensions | 80 × 55 × 69 mm |
| Poids | 0.1 kg |
Applications
• Used in modular distributed I/O systems where multiple FLEX Ex and FLEX I/O modules need to be interconnected under a single communication adapter
• Applicable in hazardous industrial environments such as chemical plants and oil & gas facilities requiring intrinsically safe I/O deployment
• Enables hybrid system configurations combining intrinsically safe modules with standard I/O modules on the same DIN rail
• Ideal for control cabinets with limited space where compact and organized module grouping is required
• Supports system expansion scenarios where additional I/O modules are added without redesigning the entire network
Advantages
• Simplifies system architecture by allowing multiple I/O modules to be grouped and managed as a single unité
• Reduces wiring complexity through integrated bus connection instead sur point-to-point wiring
• Improves installation efficiency with straightforward DIN rail mounting and modular expansion capability
• Enhances system flexibility by supporting both FLEX Ex and FLEX I/O modules in one configuration
• Compact and lightweight design minimizes panel space usage and facilitates easier handling
• Ensures reliable backplane communication between connected modules for stable system operation
