Présentation du produit

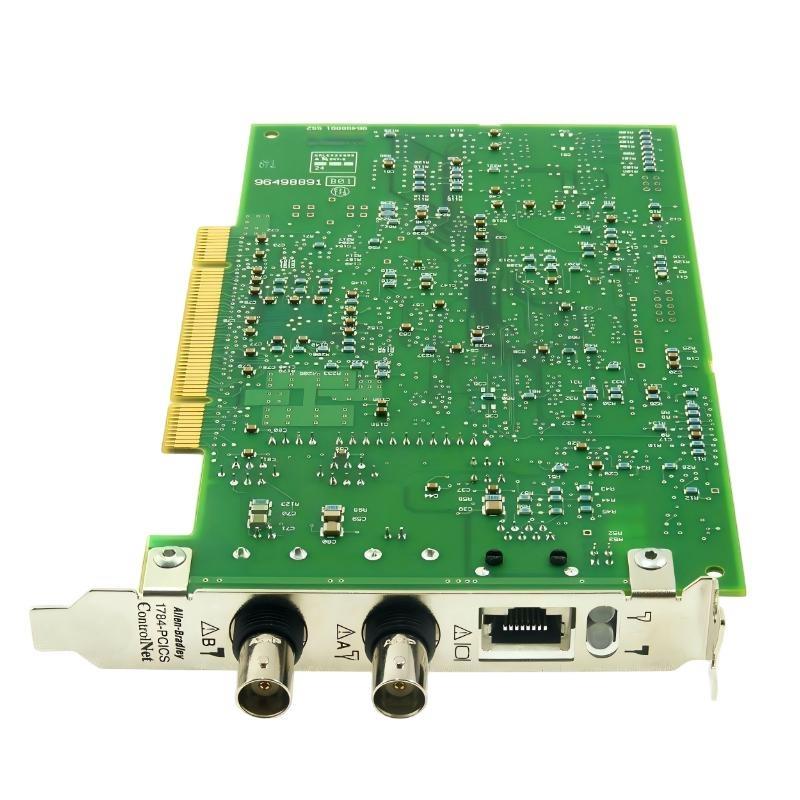

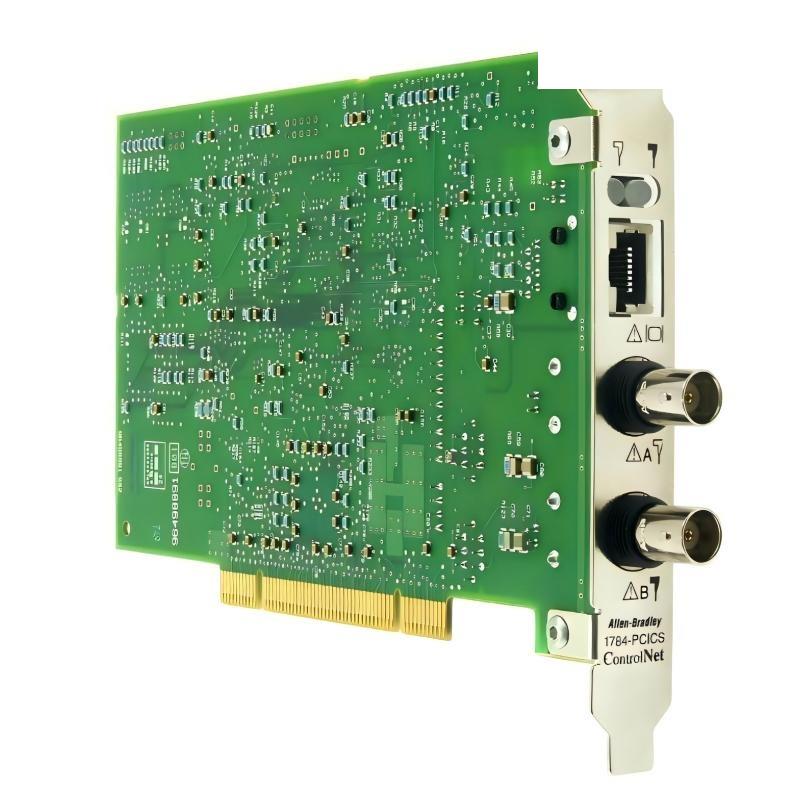

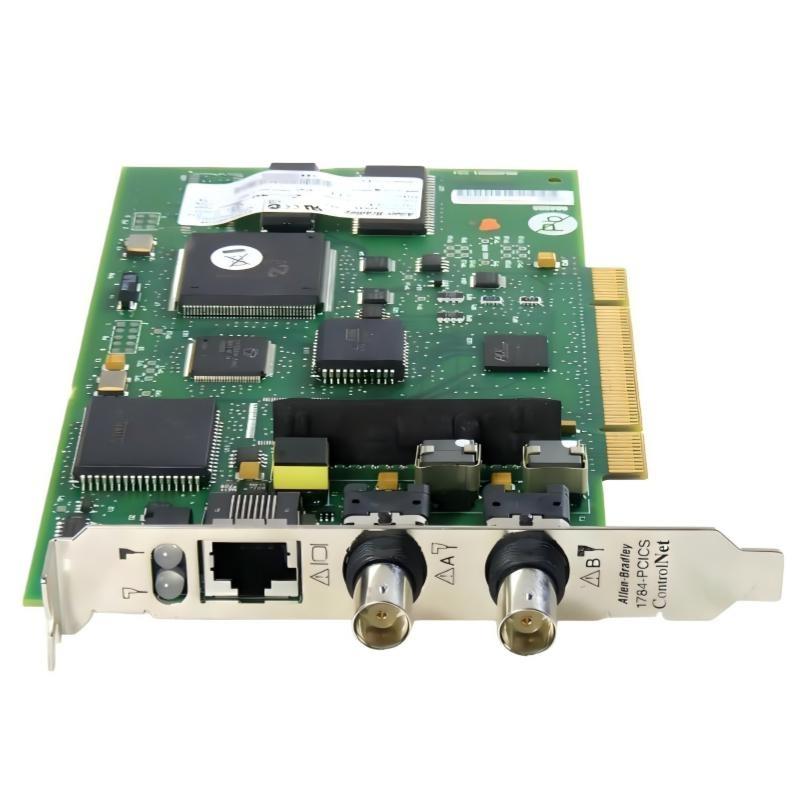

The Allen-Bradley 1784-PCICS ControlNet Universal PCI Communication Interface Card is a high-performance industrial communication module designed to connect a personal computer to a ControlNet network. It enables engineers to perform configuration, monitoring, diagnostics, and maintenance sur ControlNet-based automation systems directly from a PC.
This interface card supports dual-channel communication, allowing simultaneous access to ControlNet networks for improved flexibility and system efficiency. It is commonly used as an I/O bridge card, enabling data exchange between PC-based applications and distributed industrial control systems.
Designed for PCI bus architecture, the 1784-PCICS integrates into modern industrial PCs while maintaining compatibility with ControlNet networks via dual BNC connectors. It provides deterministic, high-speed communication essential for time-critical automation environments.
Spécifications du produit
| Parameter | Value |
|---|---|
| Product Type | Communication Interface Card |
| Series | ControlNet |
| Modèle Number | 1784-PCICS |
| Bus Interface | PCI Bus |
| Network Type | ControlNet |
| Function | I/O bridge card |
| Channel Configuration | 2-channel communication |
| Connector Type | 2 BNC connectors |
| Capabilities | ControlNet monitoring and configuration |
| Communication Mode | Deterministic real-time communication |
| Installation Type | PCI slot mounted |
| Application Area | Industrial automation and network diagnostics |
| Dimensions | 165 × 107 mm |
| Poids | 0.18 kg |
Applications
• ControlNet network configuration
Used for setting up and configuring ControlNet industrial networks from a PC environment.
• Industrial system monitoring
Enables real-time monitoring sur network status and device communication performance.
• Automation system diagnostics
Supports troubleshooting sur ControlNet-connected PLC and I/O systems.
• Engineering workstation integration
Allows PCs to act as engineering stations for industrial control system management.
• Data communication bridging
Functions as an I/O bridge between PC applications and ControlNet networks.
Advantages
• Dual-channel ControlNet access
Supports simultaneous communication with multiple network segments.
• PCI bus integration
Easily installs into modern industrial PCs with standard PCI architecture.
• Deterministic communication
Ensures stable and predictable data exchange for real-time control systems.
• Efficient monitoring capability
Provides comprehensive tools for network diagnostics and performance tracking.
• Industrial-grade reliability
Designed for stable operation in harsh automation environments.
• Flexible system integration
Works as a communication bridge between PC-based systems and ControlNet networks.
