Product Introduction

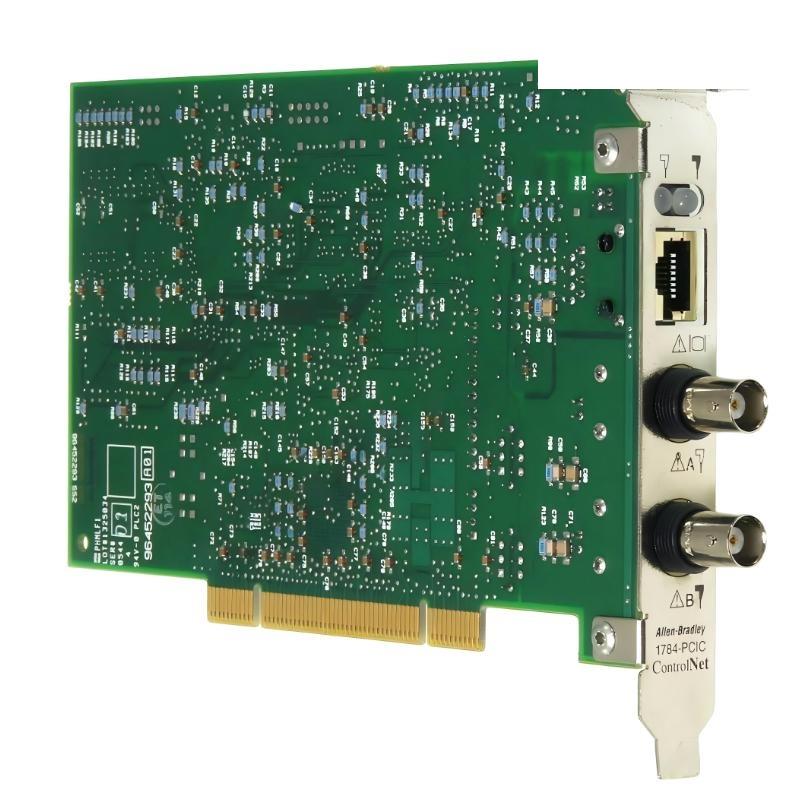

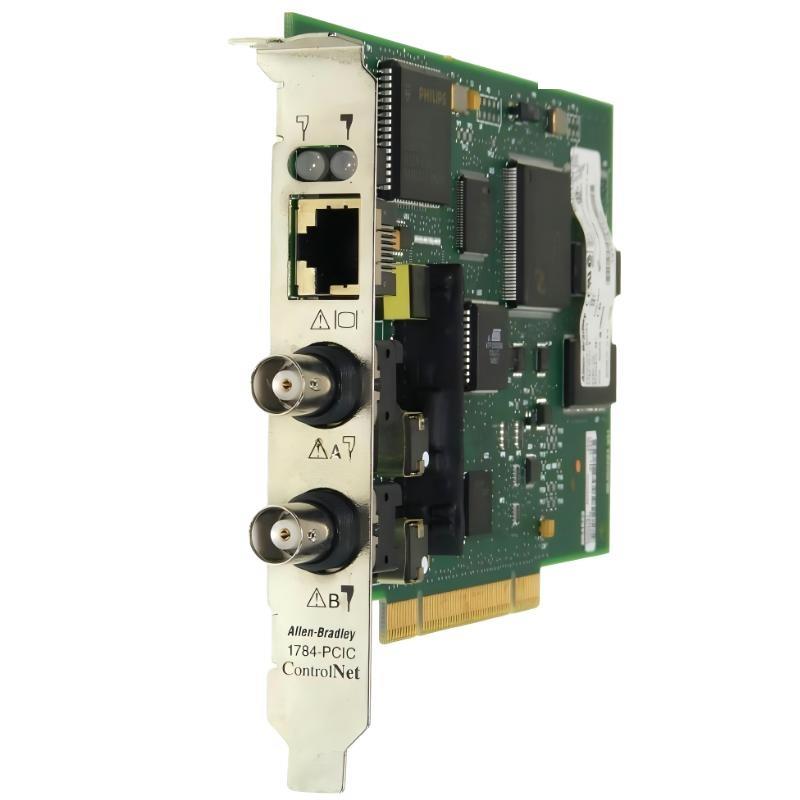

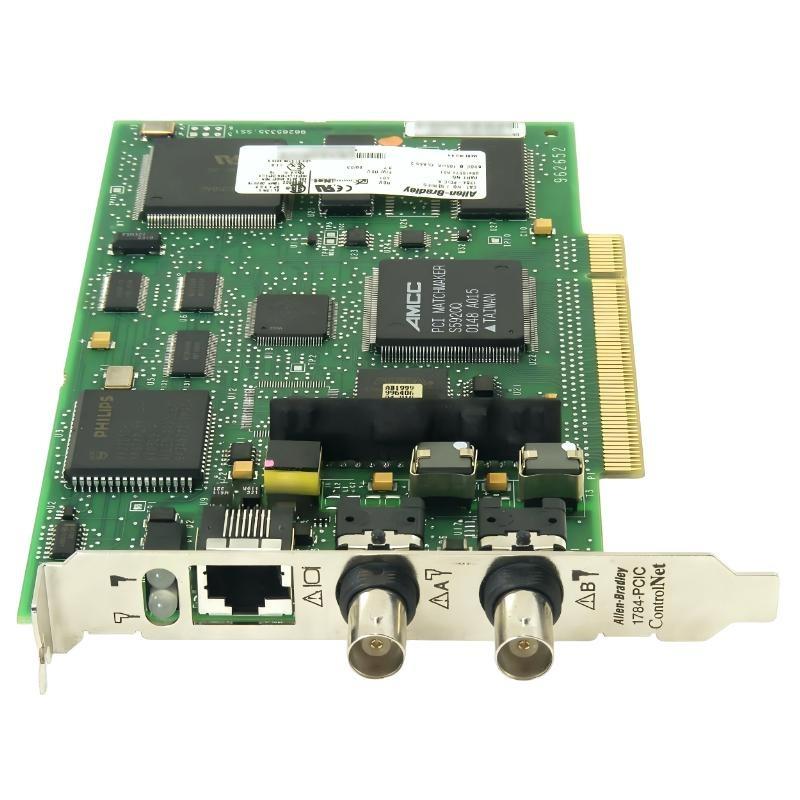

The Allen Bradley 1784-PCIC ControlNet Universal PCI Communication Interface Card is a high-performance interface card designed to enable ControlNet communication for PLC-5 systems via a PCI bus. Manufactured by Rockwell Automation under the Allen-Bradley family, it provides reliable, high-speed messaging between PLC-5 controllers and ControlNet networks, supporting industrial automation and process control applications.
The card allows seamless integration sur ControlNet-enabled devices into PC-based control systems. Its compact design, low power consumption, and industrial-grade isolation make it ideal for environments where space, energy efficiency, and reliable communication are critical.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | ControlNet Universal PCI Communication Interface Card |
| Fabricant | Rockwell Automation |
| Marque | Allen-Bradley |
| Supported Network | ControlNet |
| Compatible PLC | PLC-5 |
| Bus Type | PCI |
| Power Requirement | 5 VDC @ 700 mA |
| Isolation Voltage | 50 V |
| Power Dissipation | 3.5 W |
| Mounting Style | PCI Slot Installation |
| Housing Type | Industrial PCB Card |
| Dimensions | 165 × 107 mm |
| Poids | 0.2 kg |
Applications
• PC-based ControlNet integration for PLC-5 systems, enabling real-time communication between the PC and multiple control devices.
• Industrial automation networks that require reliable high-speed messaging for process coordination and monitoring.
• Process control systems where PLC-5 controllers need to exchange data efficiently with other devices across the ControlNet network.
• Monitoring and logging applications, allowing PC-based systems to collect and analyze real-time process data.
• Factory floor automation, connecting multiple PLCs, sensors, and operator interfaces to maintain synchronized operations.
• Test, simulation, and training environments, providing a controlled interface to ControlNet devices for system validation or operator training.
Advantages
• High-speed ControlNet messaging, enabling timely and reliable data exchange across industrial networks.
• Low power consumption, only 3.5 W, minimizing energy usage and reducing heat within PC systems.
• 50 V isolation voltage, protecting the PC and network devices from voltage spikes or electrical noise.
• Compact PCI form factor, fitting standard PCI slots without occupying excessive space, ideal for industrial PCs.
• Direct integration with PLC-5 systems, supporting control and monitoring without additional hardware.
• Industrial-grade PCB and components, ensuring durability and stable operation in harsh industrial environments.
