Product Introduction

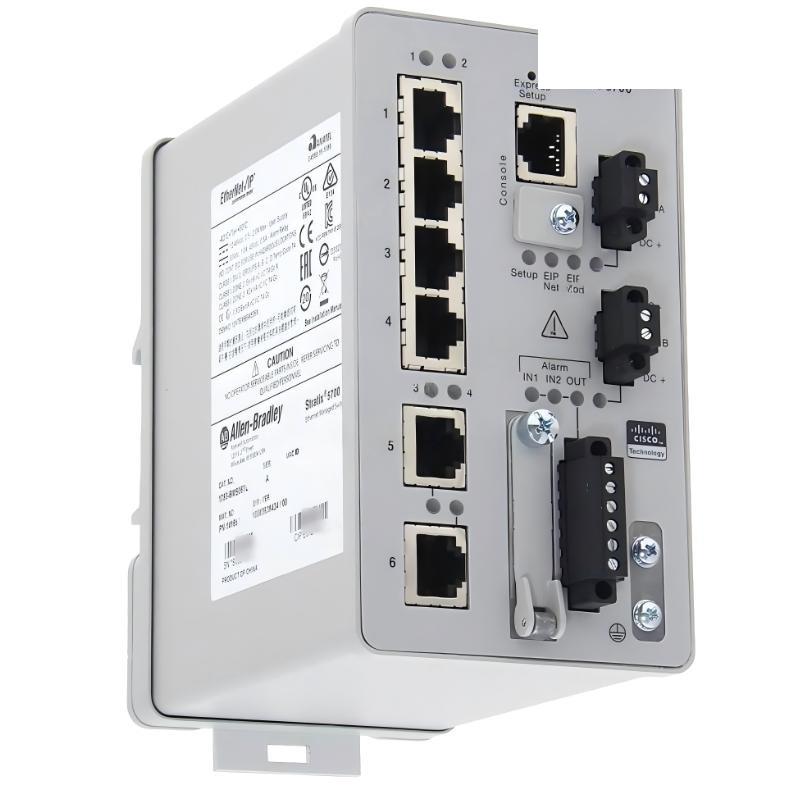

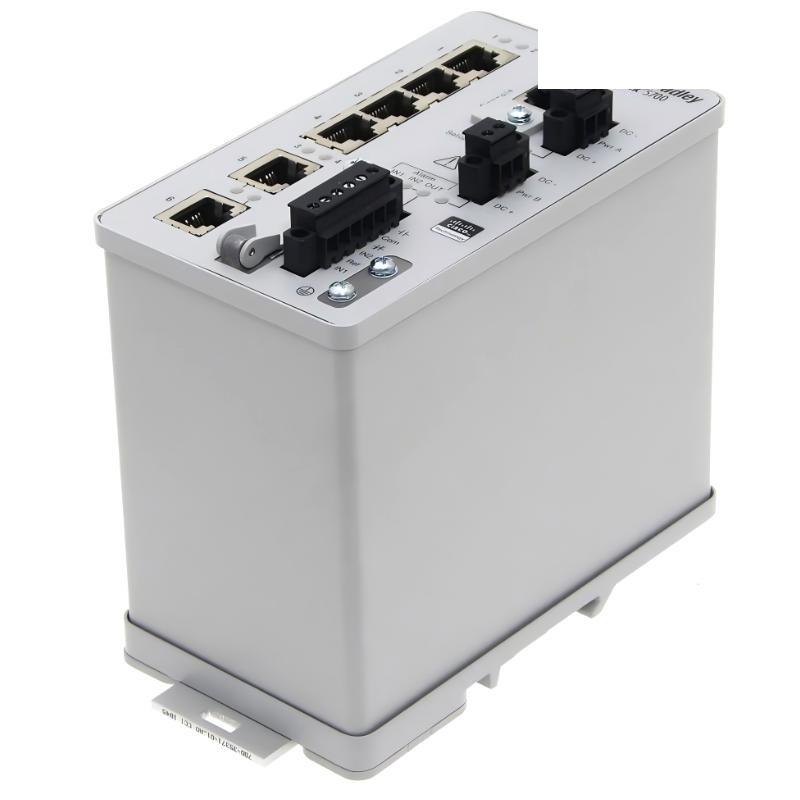

The Allen-Bradley 1783-BMS06TL Stratix 5700 Ethernet Managed Switch is an industrial managed Ethernet switch designed to support reliable network communication in automation systems. Developed under the Allen-Bradley Stratix 5700 Industrial Ethernet Switch Series, the device provides stable connectivity for PLCs, HMIs, drives, and other industrial network devices.
This switch features six Fast Ethernet ports with 10/100 Mbps communication capability, allowing efficient data exchange between multiple automation components. Equipped with Lite firmware, it supports essential network management functions while maintaining a streamlined configuration environment suitable for industrial networks.
With support for 12–48 VDC power input and DIN rail mounting, the 1783-BMS06TL integrates easily into industrial control cabinets. Its rugged IP30-rated enclosure ensures dependable operation in demanding factory environments, making it suitable for machine-level networks, distributed control systems, and industrial Ethernet infrastructure.
Product Specifications
| Parameter | Specification |
|---|---|
| Modèle | 1783-BMS06TL |
| Marque | Allen-Bradley |
| Product Type | Managed Industrial Ethernet Switch |
| Series | Stratix 5700 |
| Number sur Ethernet Ports | 6 Fast Ethernet Ports |
| Ethernet Speed | 10/100 Mbps |
| Firmware Type | Lite Firmware |
| Power Input | 12–48 VDC |
| Mounting Method | DIN Rail Mount |
| Protection Rating | IP30 |
| Application Type | Industrial Ethernet communication |
| Dimensions | 129.5 × 74.8 × 116.7 mm |
| Poids | 1.11 kg |
Applications
• Industrial Ethernet network infrastructure
Provides reliable network connectivity between PLCs, HMIs, industrial computers, and drives.
• Machine-level automation networks
Supports communication between devices within individual machines or production cells.
• Manufacturing plant communication systems
Used in industrial environments to connect automation controllers and monitoring equipment.
• Distributed control systems
Allows communication between multiple automation nodes across industrial networks.
• Industrial control cabinet networking
Installed in control panels to organize and manage Ethernet connections between automation devices.
Advantages
• Industrial-grade managed switching
Designed to provide reliable Ethernet communication in demanding automation environments.
• Six Fast Ethernet ports
Supports connection sur multiple industrial devices with 10/100 Mbps data transmission.
• Lite firmware management features
Offers essential network management functions while maintaining simplified configuration.
• Wide DC power input range
Accepts 12–48 VDC, allowing compatibility with typical industrial power systems.

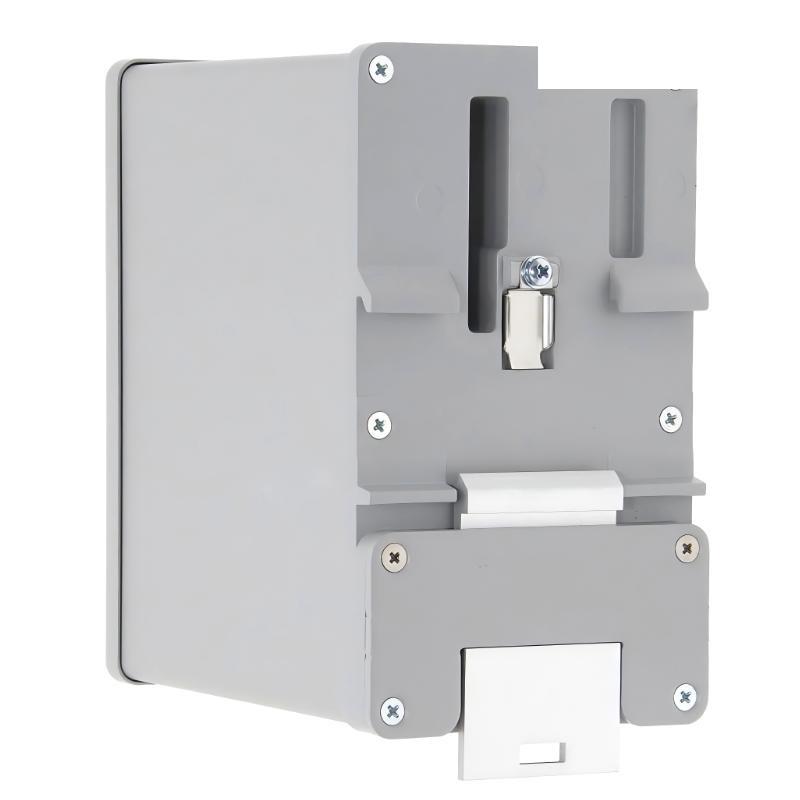

• DIN rail installation
Allows quick installation within industrial control cabinets and network panels.
• Rugged industrial enclosure
IP30-rated design provides protection suitable for factory environments.
