Product Introduction

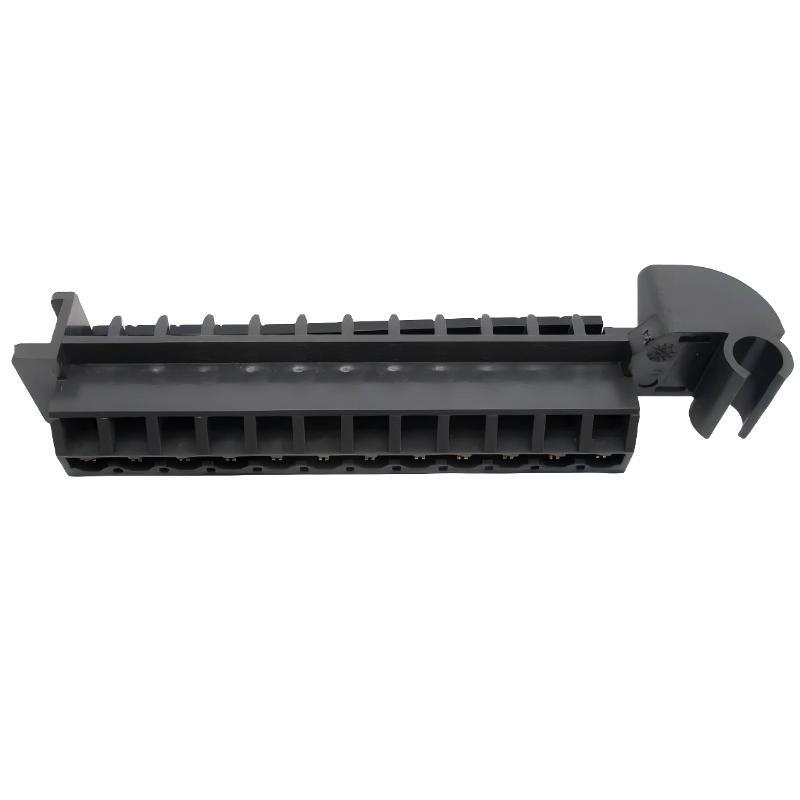

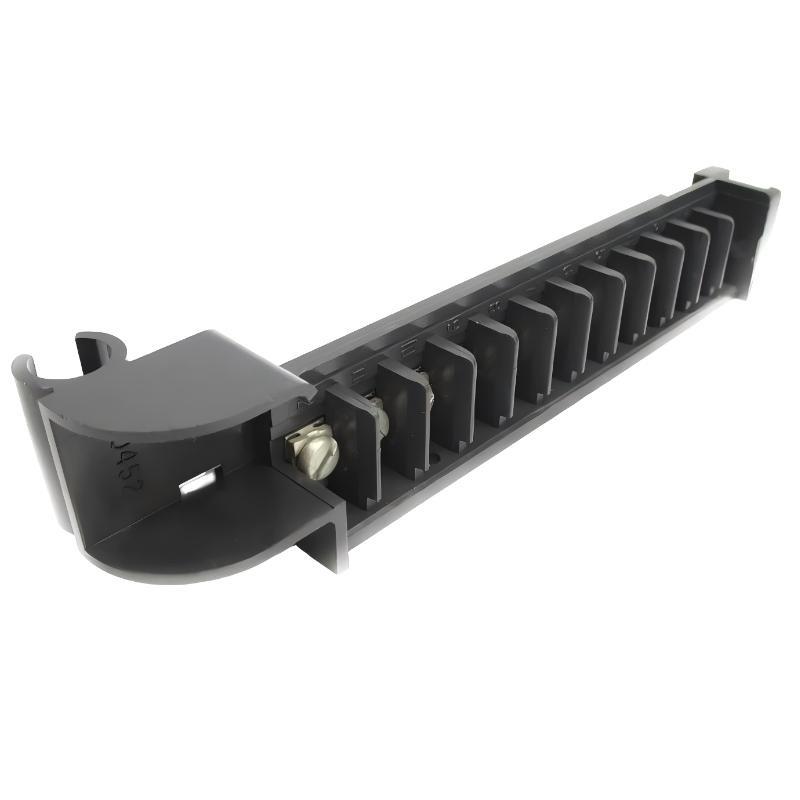

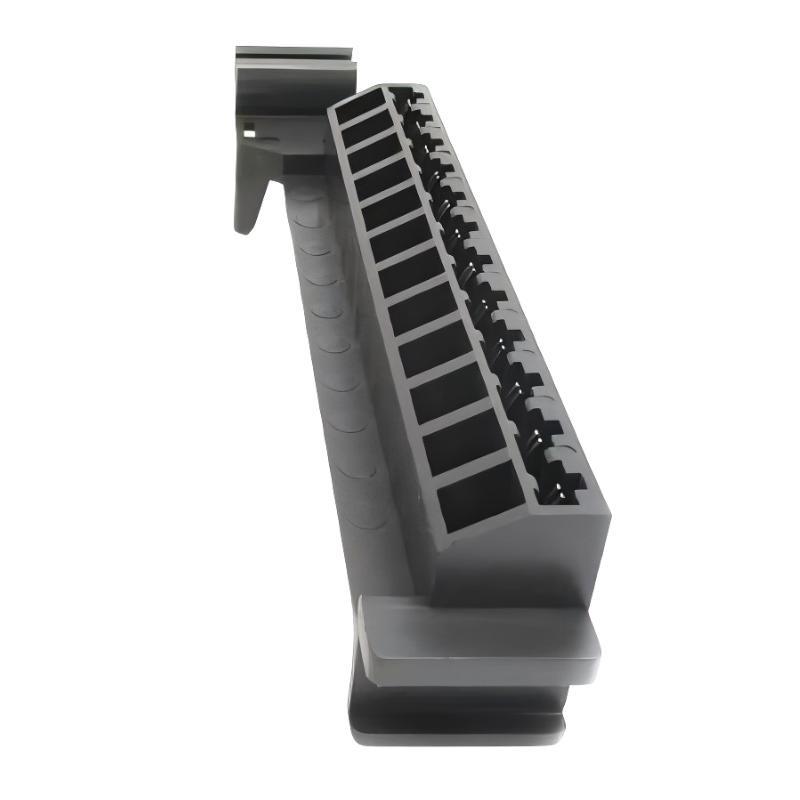

The Allen-Bradley 1771-WD Field Wiring Arm is a dedicated accessory for the Allen-Bradley 1771 PLC-5 I/O System, providing a structured interface for field wiring between PLC modules and external devices.
It features 12 terminals with tin-plated contacts, ensuring stable electrical connectivity and reliable operation in standard industrial environments. The module organizes wiring efficiently, making it easier to manage connections and maintain system reliability.
The 1771-WD is particularly useful in industrial automation, process control, and compact control panel installations, where organized and reliable field wiring is essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Modèle | 1771-WD |
| Marque | Allen-Bradley |
| Module Type | Field Wiring Arm |
| Series | 1771 PLC-5 I/O Series |
| Number sur Terminals | 12 |
| Contact Plating | Tin-plated |
| Installation Method | 1771 I/O Chassis Mount |
| Application Type | Field wiring for PLC modules |
| Dimensions | 100 × 25 × 80 mm |
| Poids | 0.09 kg |
Applications
• Field wiring interface
Provides organized connection points for PLC modules to external devices.
• Industrial automation systems
Used for wiring digital, analog, or communication I/O modules in PLC racks.
• Process control applications
Simplifies wiring for valves, pumps, sensors, and actuators.
• Compact control panels
Its small form factor allows integration into tight or modular control cabinets.
• Maintenance and troubleshooting
Organized layout facilitates quick identification and servicing sur field wiring connections.
Advantages
• Tin-plated contacts
Ensures stable electrical connections and reliable operation in standard industrial conditions.
• Supports 12 terminals
Accommodates wiring for typical PLC-5 I/O configurations.
• Compact and lightweight
Facilitates installation in confined control panel spaces.
• Improves wiring organization
Consolidates connections into a single interface, reducing clutter.
• Compatibility with 1771 PLC modules
Seamlessly integrates into PLC-5 I/O systems.
• Facilitates maintenance
Simplifies troubleshooting, upgrades, and wiring modifications.
